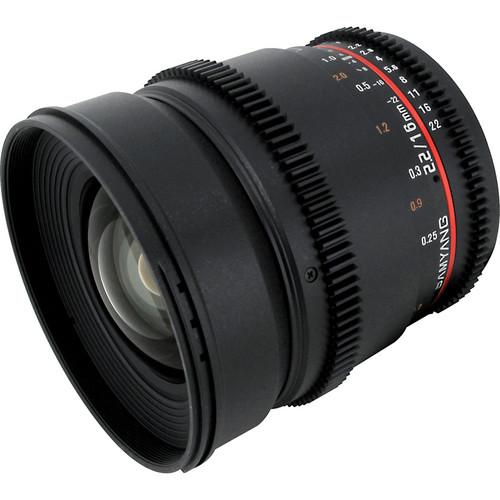

Product description Cinema Lens Care and Maintenance Read More The Samyang 16mm T2.2 Cine Lens for Sony E is a wide-angle lens optimized for digital cinematography. The lens produces an image circle that will cover APS-C sized sensors or smaller. The focus and aperture rings feature industry-standard 0.8 pitch gearing for attaching a follow focus unit. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera.
The 16mm T2.2 lens is constructed out of 13 individual elements in 11 groups, including one aspherical and one hybrid aspherical element. Aspherical elements help minimize unwanted distortion and chromatic aberrations. The lens also has a multi-layer coating to reduce flares and maintain image contrast in bright conditions.
With an angle of view of 83.1°, the lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. A maximum aperture of T2.2 means that the lens is effective in low-light shooting and can produce a shallow depth of field when the lens is closer to the subject. The lens has a minimum focus distance of 7.87". A bayonet-mount lens hood and lens pouch come included with the lens. -
- 16mm lens with 83.1° angle-of-view
- Image Circle covers APS-C sized sensors
- Industry Standard 0.8 pitch gearing on Focus and Iris rings
- De-clicked aperture for smooth focus pulls
- 13 elements in 11 groups with an aspherical and a hybrid aspherical lens element
- Ultra Multi Coating on lens minimizes flares and ghosting
- Depth of Field markings on side of the lens
- A minimum focusing distance of 7.87 inches
- Includes bayonet mount lens hood
UPC: 084438761757 In the Box Samyang 16mm T2.2 Cine Lens for Sony E Front Lens Cap Rear Lens Cap Lens Hood Limited 1-Year Warranty User Manual PDF 6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 16mm T2.2 Cine Lens for Sony E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 16mm T2.2 Cine Specs | Focal Length | 16mm | | Lens Mount | Sony E | | Format | Super35/APS-C | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 83.1° | | Minimum Focus Distance from Image Plane | 7.9" / 20 cm | | Optical Design | 13 Elements in 11 Groups | | Iris Blades | 7 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 4.5" / 115.4 mm | | Weight | 21.9 oz / 620.0 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.8 x 6.8 x 4.8" |
