User Manual for Samyang 35mm T1.5 Cine Lens for Canon EF Click to enlarge the picture
Contents of the user manual for the Samyang 35mm T1.5 Cine Lens for
- Product category: Digital Cine Lenses Samyang
- Brand: Samyang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samyang Digital Cine Lenses
 |
User manual for the Samyang 35mm T1.5 Cine Lens for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samyang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samyang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samyang product will considerably shorten its lifespan!
|

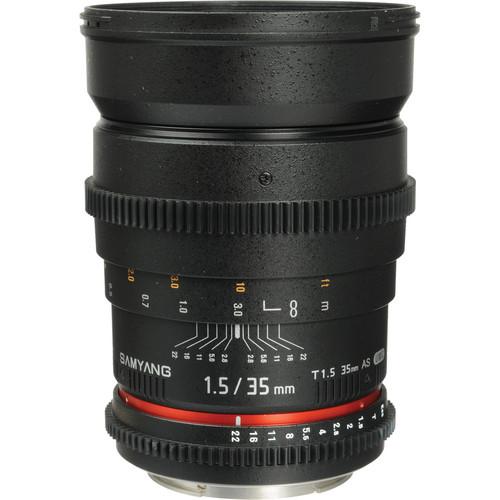

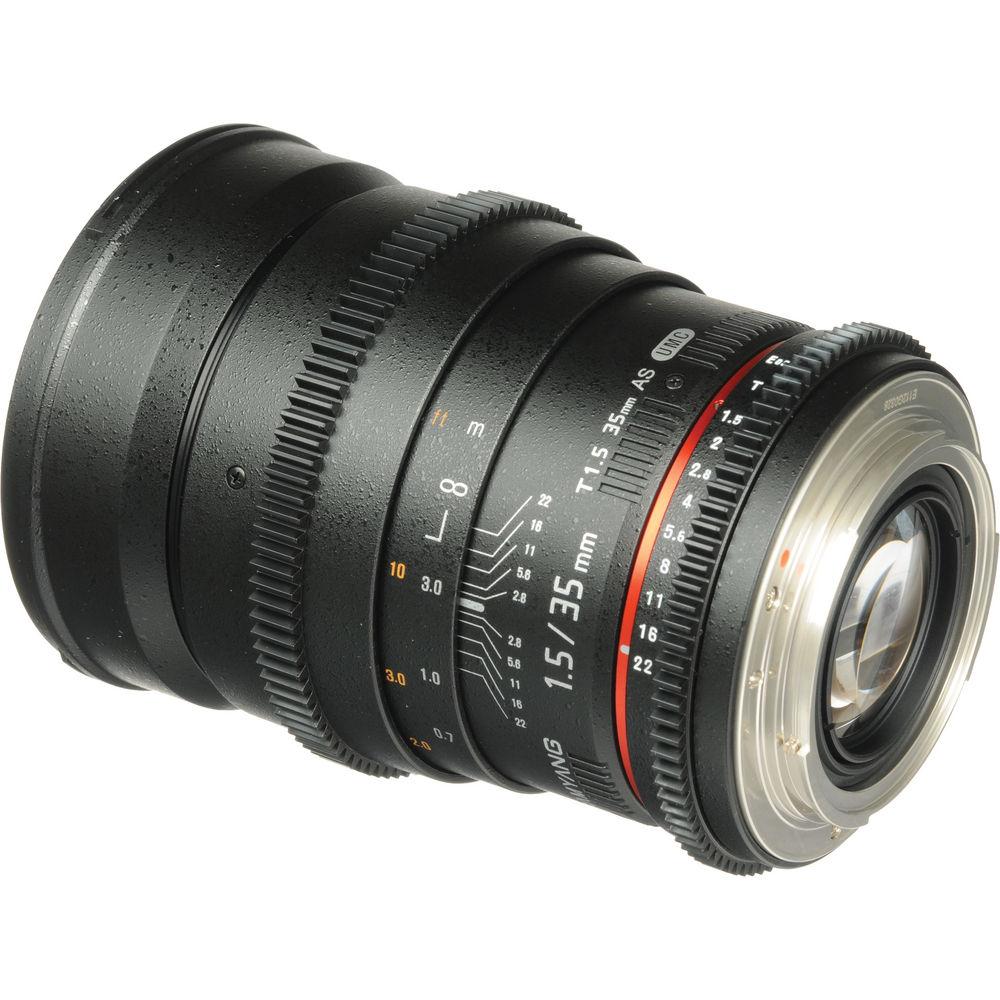

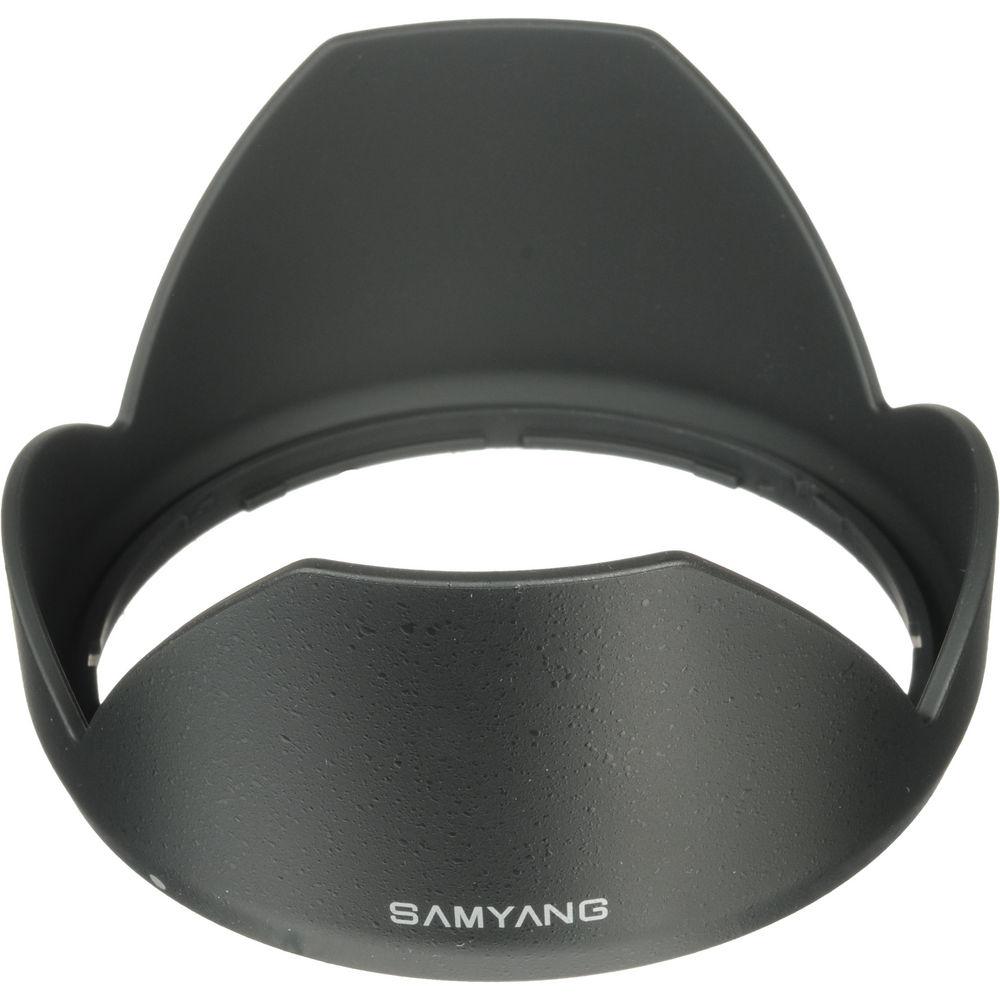

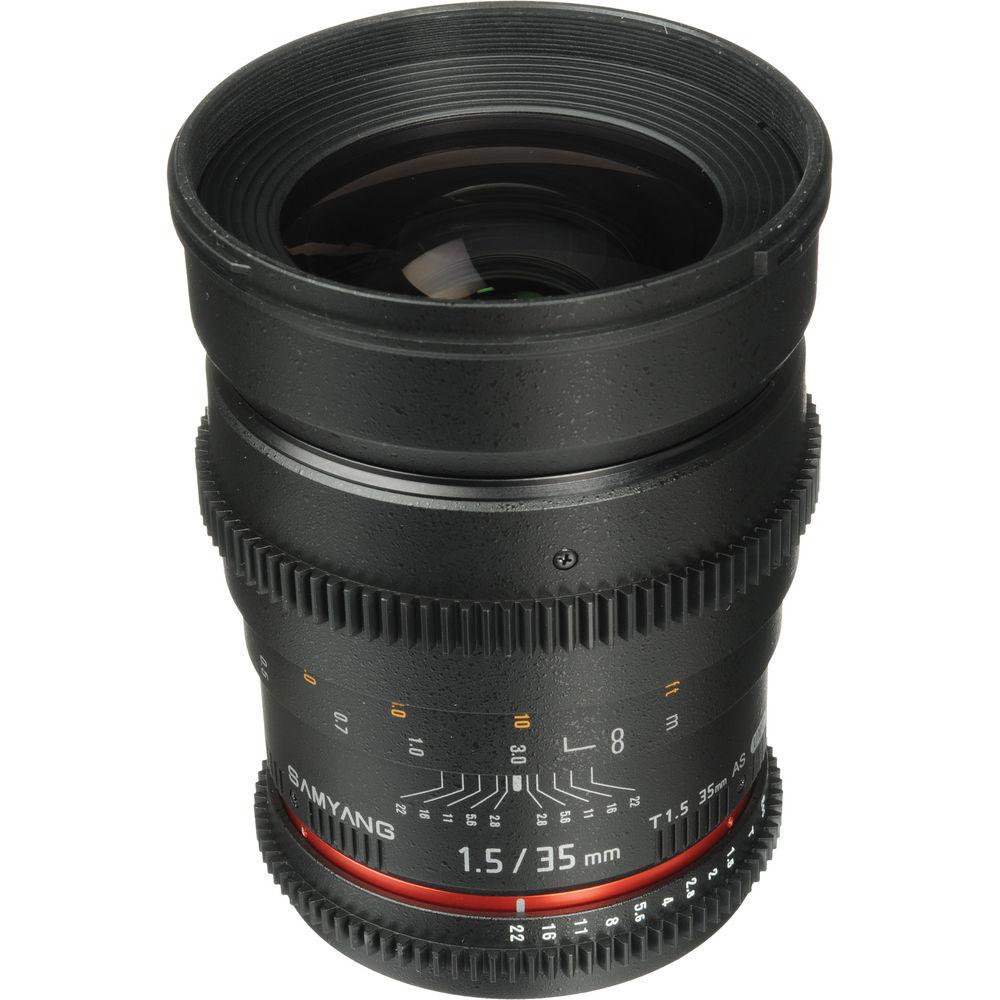

Product description Cinema Lens Care and Maintenance Read More The Samyang 35mm T1.5 Cine Lens for Canon EF with geared, manual focus and aperture control rings, is optimized for digital cinematography. The aperture ring has been "de-clicked" for smooth iris pulls, and depth of field markings provide an essential aid to focus pullers. Optically, this lens is identical to the Samyang 35mm f/1.4, which is known for its excellent sharpness, contrast and bokeh.A hybrid aspherical lens and multi-layer coating produce sharply defined images with a minimum of flare and ghosting. The 35mm lens focuses as close as 11.8" (30 cm) from the lens. A bayonet mount, petal-type lens hood is also included. - At T1.5 this lens is great for low light and shallow depth of field
- The focus and aperture control rings feature industry standard gearing
- Covers a wide range of sensor formats, including full-frame 35mm
- 12 elements in 10 groups, including one hybrid aspherical lens
- Minimum focusing distance of 11.8" for great close ups
- Depth of field markings aid in pulling focus
UPC: 084438760675 In the Box Samyang 35mm T1.5 Cine Lens for Canon EF Lens Pouch Front and Rear Lens Caps Removable Petal Lens Hood 1-Year Samyang Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 35mm T1.5 Cine Lens for Canon EF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 35mm T1.5 Cine Specs | Focal Length | 35mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 33.4°
Full Frame: 63.1°
Super35: 43.2° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Optical Design | 12 Elements in 10 Groups | | Iris Blades | 8 | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 4.39" / 11.15 cm | | Weight | 24.7 oz / 700.0 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.7 x 6.7 x 4.8" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
