User Manual for Samyang 50mm T1.5 VDSLR AS UMC Lens for Nikon F Mount Click to enlarge the picture
Contents of the user manual for the Samyang 50mm T1.5 VDSLR AS UMC
- Product category: Digital Cine Lenses Samyang
- Brand: Samyang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samyang Digital Cine Lenses
 |
User manual for the Samyang 50mm T1.5 VDSLR AS UMC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samyang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samyang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samyang product will considerably shorten its lifespan!
|

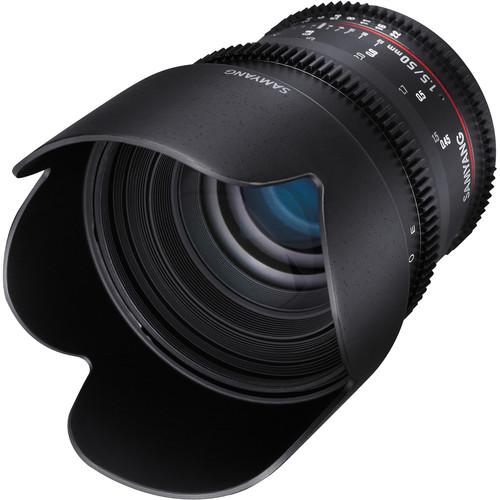

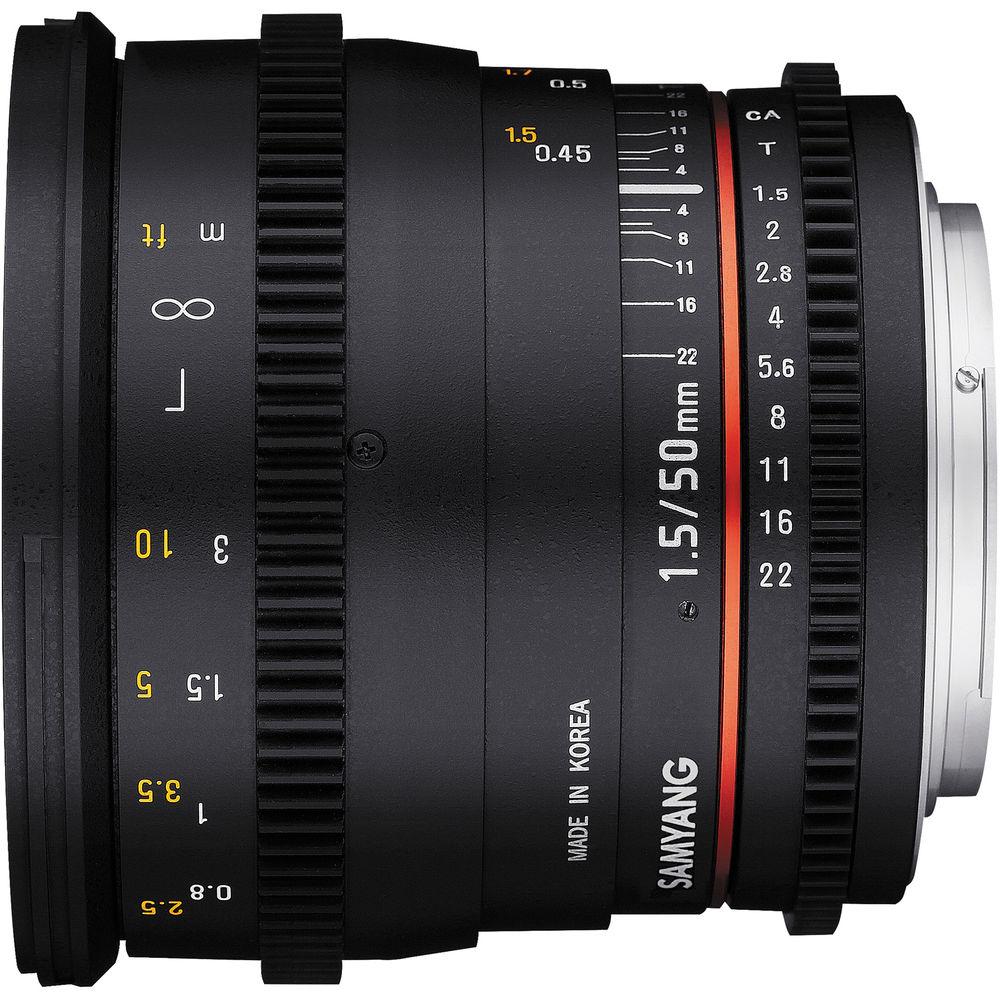

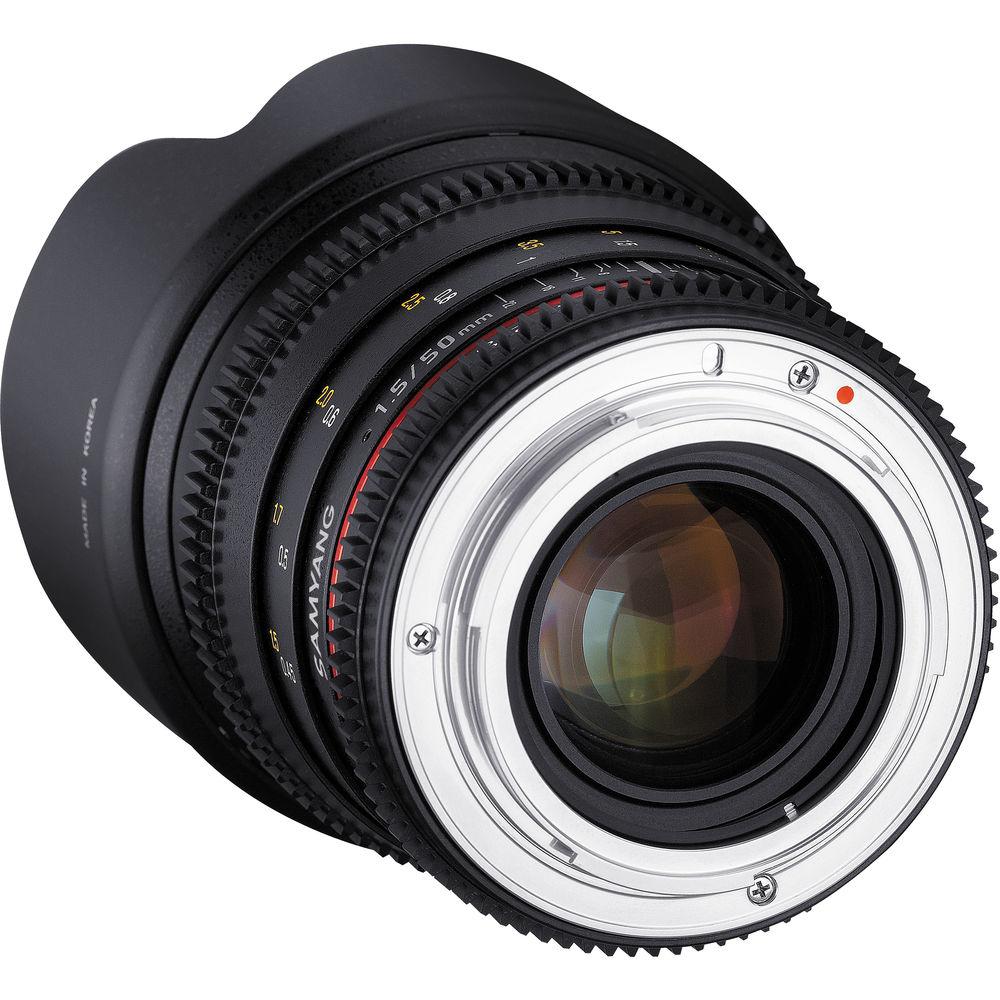

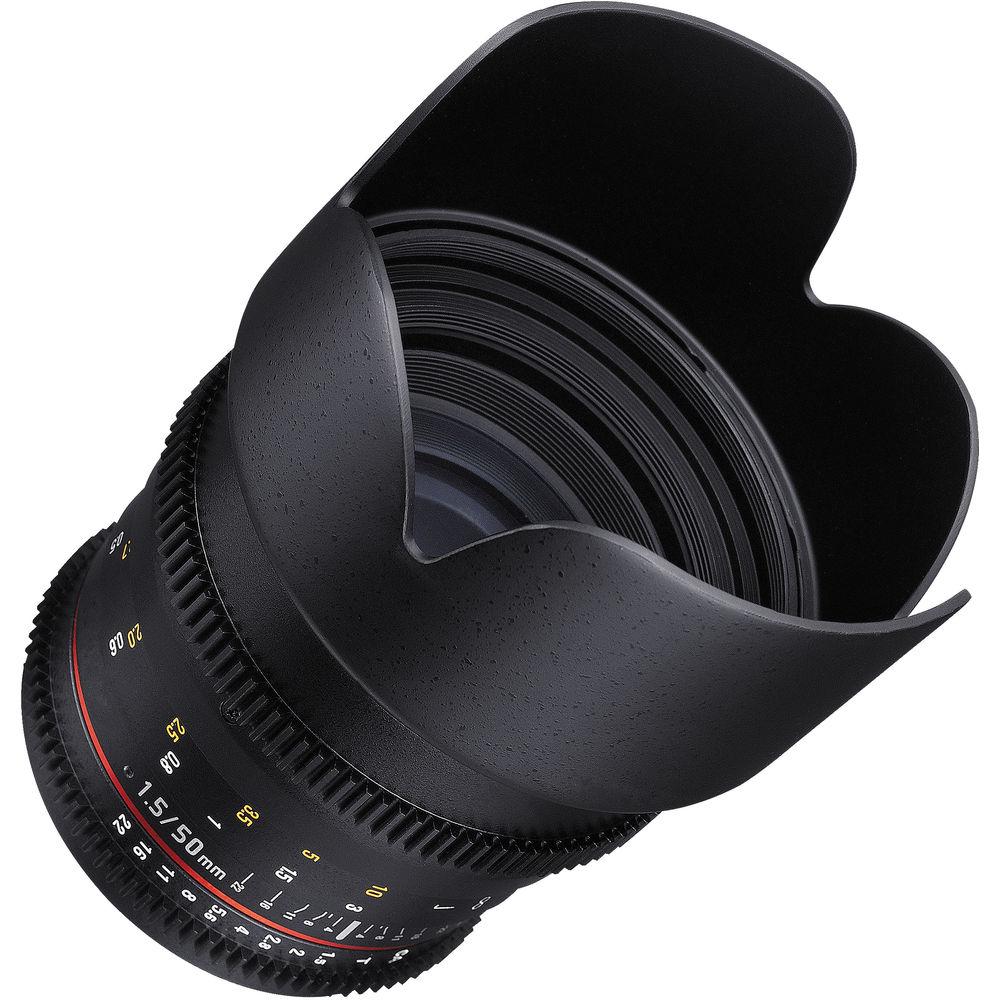

Product description Cinema Lens Care and Maintenance Read More The 50mm T1.5 VDSLR AS UMC Lens for Nikon F Mount from Samyang is a fast, manual focus, prime lens. It provides a maximum aperture of T1.5 for effective low light capture and shallow depth of field control and an 8 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller.The 50mm has a minimum focus distance of 1.5'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 6 groups, including one aspherical element and one hybrid aspherical element to reduce aberrations. In addition, a lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter is 77mm.The VDSLR line of cinema lenses unifies Samyang's cine lenses into a cohesive series. Each of the VDSLR lenses will offer the same alignment of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video. Lastly, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from both sides of the camera. - Standard length manual focus prime lens for FX format F mount cameras. Will also fit DX format cameras.
- Functional as still photo lens but optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions, and side-facing aperture and distance markings. The 50mm T1.5 is part of the VDSLR series of cine lenses, sharing characteristics and features that unify the series and make it easier for users to swap out lenses when shooting video. Each VDSLR lens provides aligned focus and aperture rings so that readjustment of the follow focus is not necessary when switching lenses. Also each lens has been tested to match color and contrast for a consistent look and less potential post-processing. Finally, all lenses from this series print focus scales on both sides of the lens barrel for ease of use from each side of the camera.
- Very fast T1.5 maximum aperture for effective low light capture and shallow depth of field.
- Internal focusing system with 9 lens elements in 6 groups.
- One aspherical and one hybrid aspherical lens element control aberrations and improve sharpness throughout the frame.
- Lens multi-coating improves light transmission and reduces flare and ghosting.
- Minimum focus distance of 1.5'
- Filter thread diameter of 77mm
UPC: 084438763430 In the Box Samyang 50mm T1.5 VDSLR AS UMC Lens for Nikon F Mount Front Lens Cap Rear Lens Cap Removable Petal-Style Lens Hood Soft Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 50mm T1.5 VDSLR AS UMC Lens for Nikon F Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 50mm T1.5 VDSLR Specs | Focal Length | 50mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Full Frame: 46.2° | | Minimum Focus Distance from Image Plane | 1.5' / 0.45 m | | Optical Design | 9 Elements in 6 Groups | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.2 x 3.2" / 81.3 x 81.3 mm | | Length | 2.8" / 72.2 mm | | Weight | 19.6 oz / 555.0 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.25 x 5.0 x 5.0" |
