User Manual for Samyang 7.5mm T3.8 Cine UMC Fisheye Lens for Micro Four Thirds Mount Click to enlarge the picture
Contents of the user manual for the Samyang 7.5mm T3.8 Cine UMC Fisheye
- Product category: Digital Cine Lenses Samyang
- Brand: Samyang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samyang Digital Cine Lenses
 |
User manual for the Samyang 7.5mm T3.8 Cine UMC Fisheye contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samyang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samyang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samyang product will considerably shorten its lifespan!
|

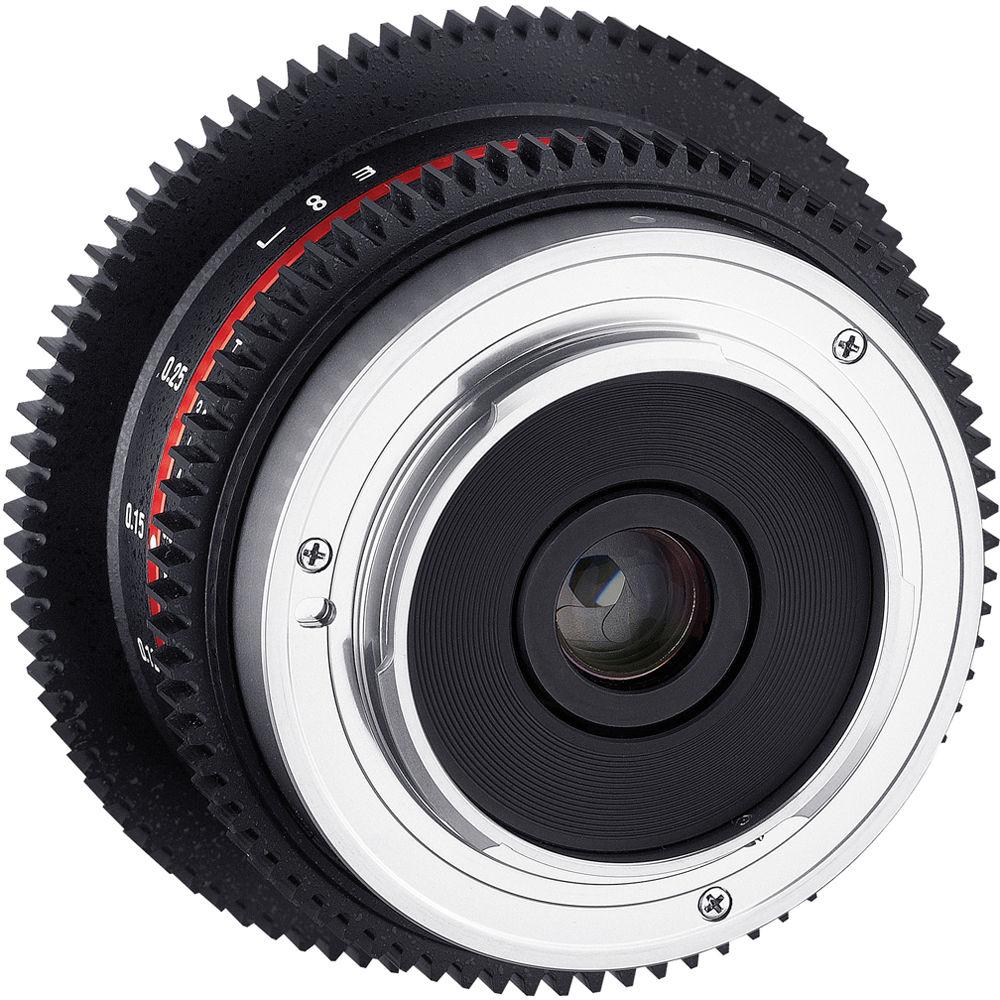

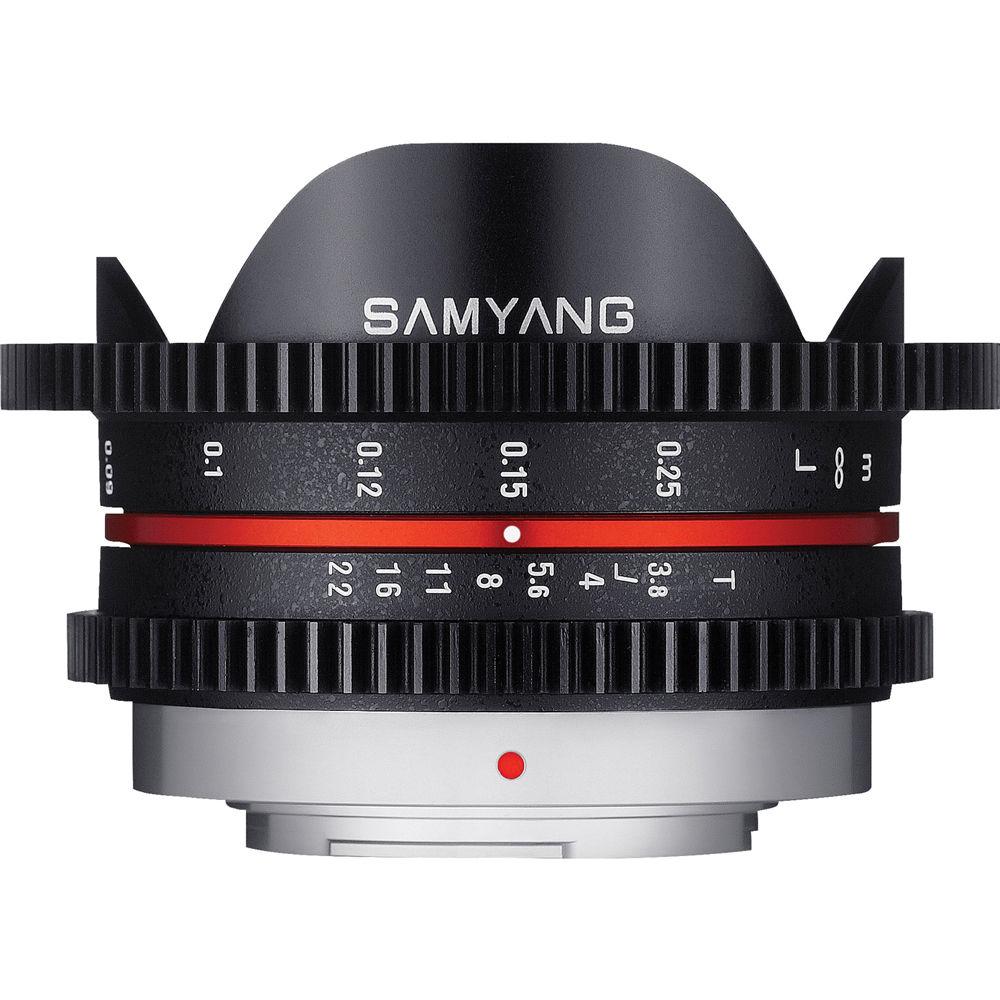

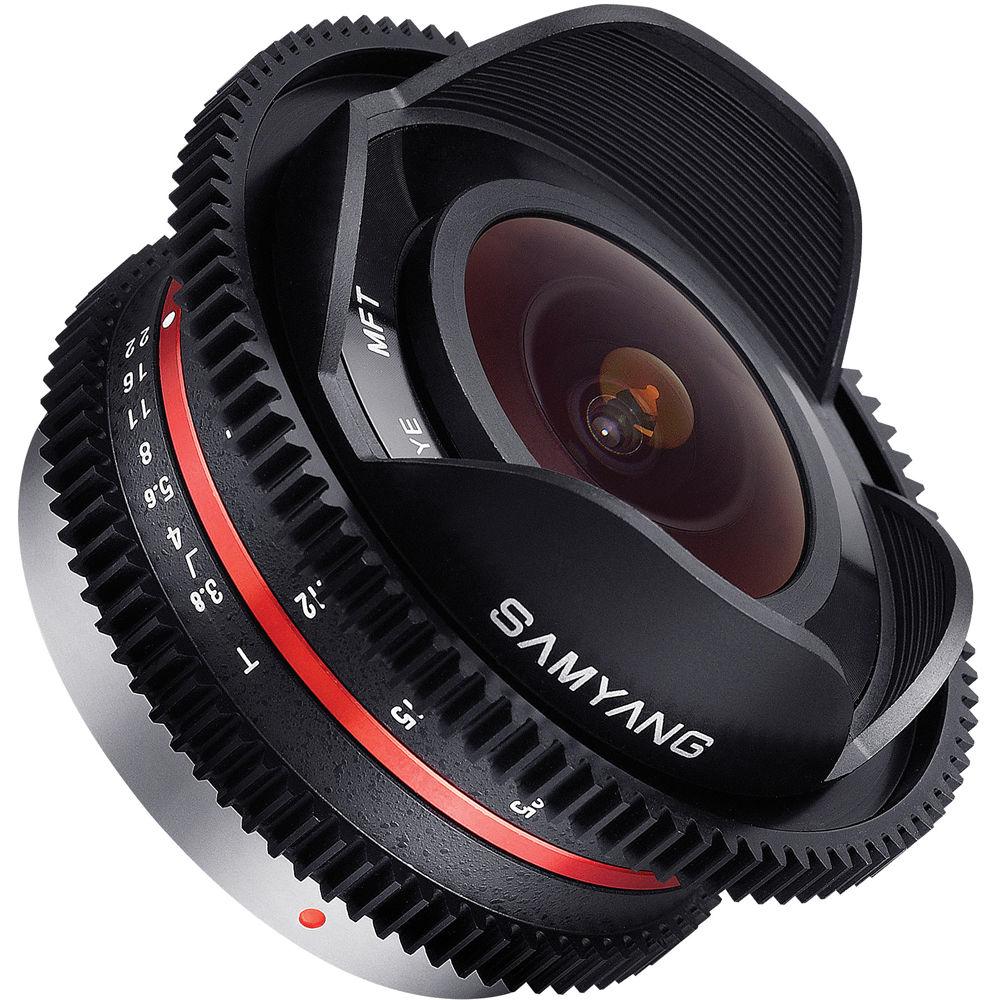

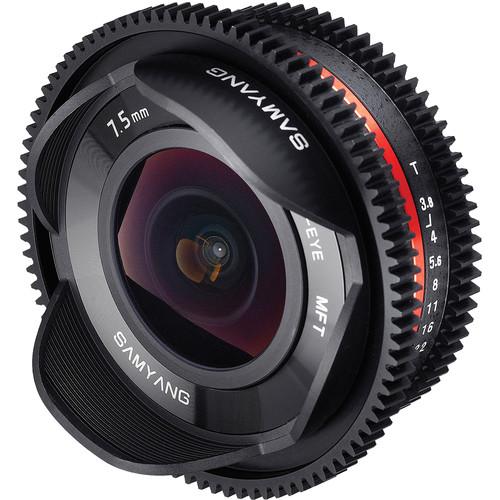

Product description Cinema Lens Care and Maintenance Read More The Samyang 7.5mm T3.8 Cine UMC Fisheye Lens for Micro Four Thirds Mount is a manual focus fisheye lens optimized for digital cinematography. The compact lens features a Micro Four Thirds lens mount and provides a 180° ultra-wide angle of view. The fisheye effect is useful for capturing sports stadiums, large halls, highly-packed city sights, and similar scenery in a warped, dramatic fashion.
For use with a follow focus unit, the focus and aperture rings feature industry-standard 0.8 pitch gearing. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operate on the side of the camera.
One aspherical and three extra-low dispersion (ED) lens elements have been incorporated into the optical design to minimize chromatic aberrations and distortion in order to produce sharper images. Additionally, the lens' design features a built-in petal lens hood and an Ultra Multi-Coating (UMC) has been applied to the lens elements to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery. -
- 7.5mm fisheye lens with 180° angle-of-view
- Comporable 35mm focal length: 15mm
- Aperture range: T3.8 to T22
- Image circle covers APS-C sized sensors
- Industry standard 0.8 pitch gearing on focus and aperture rings
- De-clicked aperture for smooth focus pulls
- 9 elements in 7 groups, including one aspherical and three ED elements
- Ultra Multi-Coating reduces surfaces reflections and prevents flares and ghosting
- Depth of Field markings on side of the lens
- A minimum focusing distance of 3.54"
- Integrated petal lens hood (not removable)
UPC: 084438762792 In the Box Samyang 7.5mm T3.8 Cine UMC Fisheye Lens for Micro Four Thirds Mount Front Lens Cap Rear Lens Cap Limited 1-Year Warranty User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 7.5mm T3.8 Cine UMC Fisheye Lens for Micro Four Thirds Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 7.5mm T3.8 Cine Fisheye Specs | Focal Length | 7.5mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T3.8 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Full Frame: 180° | | Minimum Focus Distance from Image Plane | 3.54" / 9 cm | | Optical Design | 9 Elements in 7 Groups | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | None | | Dimensions (W x H) | 2.36 x 2.36" / 59.9 x 59.9 mm | | Length | 1.90" / 48.3 mm | | Weight | 6.9 oz / 195.0 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.0 x 4.8 x 4.6" |
