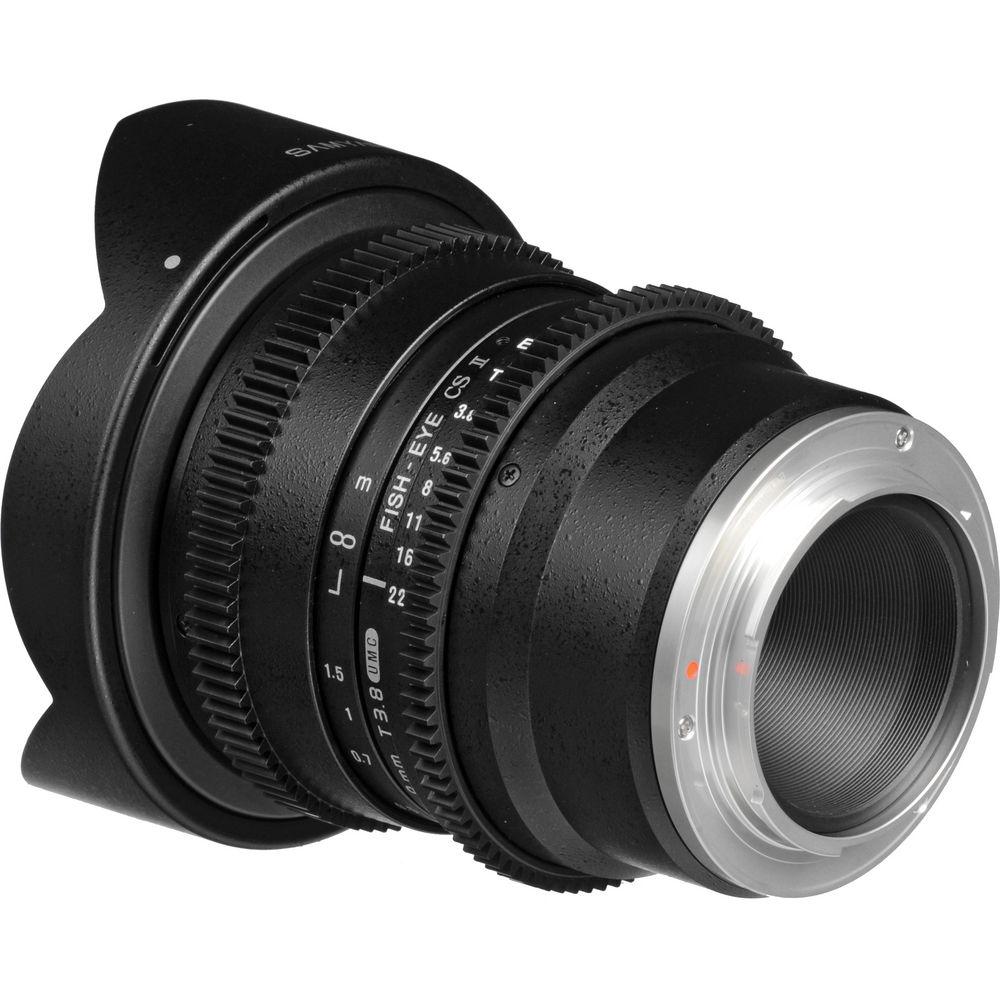

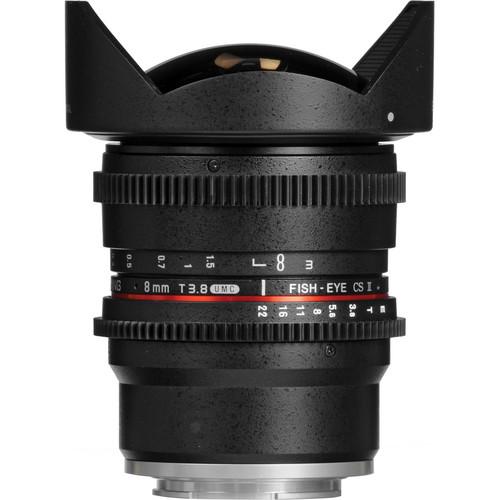

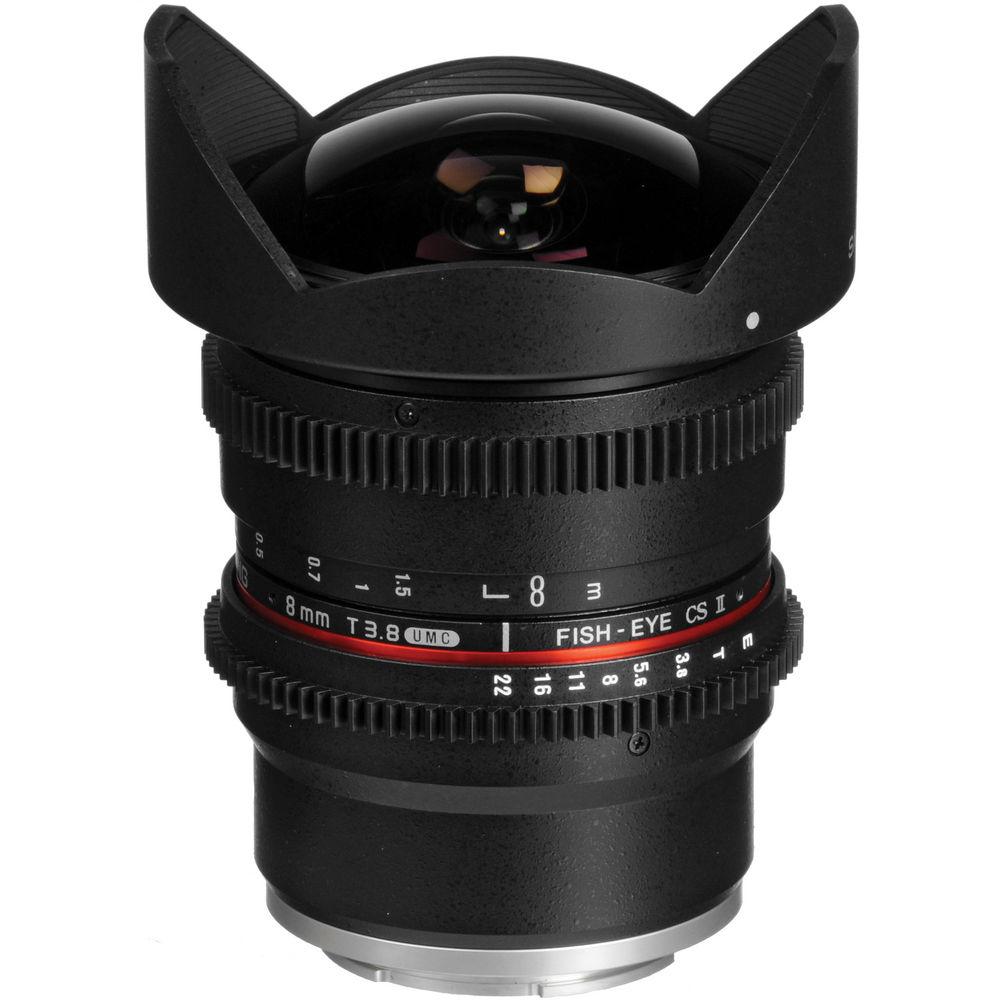

Product description Cinema Lens Care and Maintenance Read More This Sony E Mount Samyang 8mm T3.8 UMC Fish-Eye CS II Lens is a fish-eye cine lens designed for video capture on cameras with APS-C sized sensors. It features an 8mm focal length and a 180° ultra wide angle of view..
Fish-eye lenses aren't for common, everyday shots, but can be excellent for capturing sports stadiums, large halls, highly-packed city sights, and similar scenery in a warped, unconventional fashion. They're also useful in making small rooms look bigger and straight lines or bars appear more oval, in both scenarios as a result of warping the image.
The aperture ranges from T3.8 to T22. T3.8 being its fastest aperture, this lens is best used in environments with sufficient light or with a light source incorporated. The aperture is manually adjustable without click stops with a continuous, smooth aperture ring. Both the aperture ring and focus ring feature a 0.8 gear pitch in case you want to use a follow focus with either. The focus ring is also well-damped and very smooth. The lens doesn't offer auto-focus, but in fish-eye lenses objects appear mostly in focus anyway. The minimum focusing distance is 11.8" (30 cm).

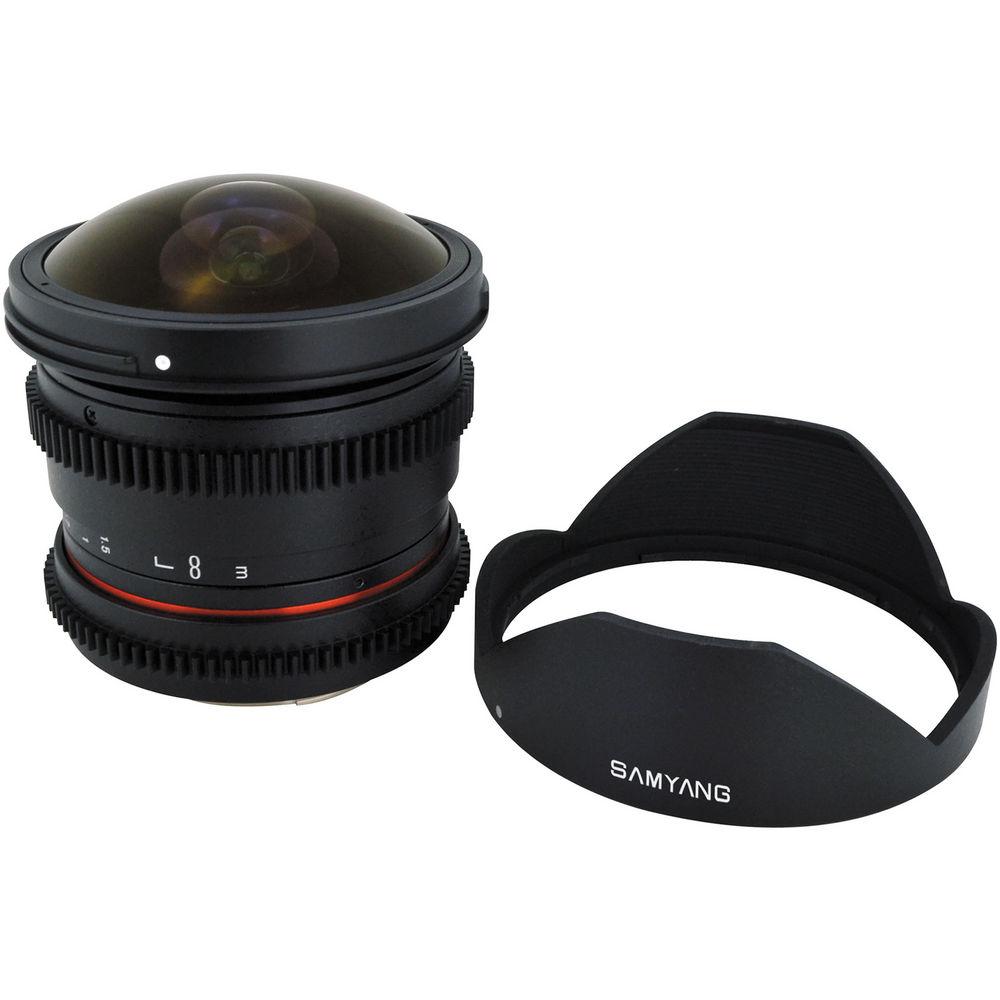

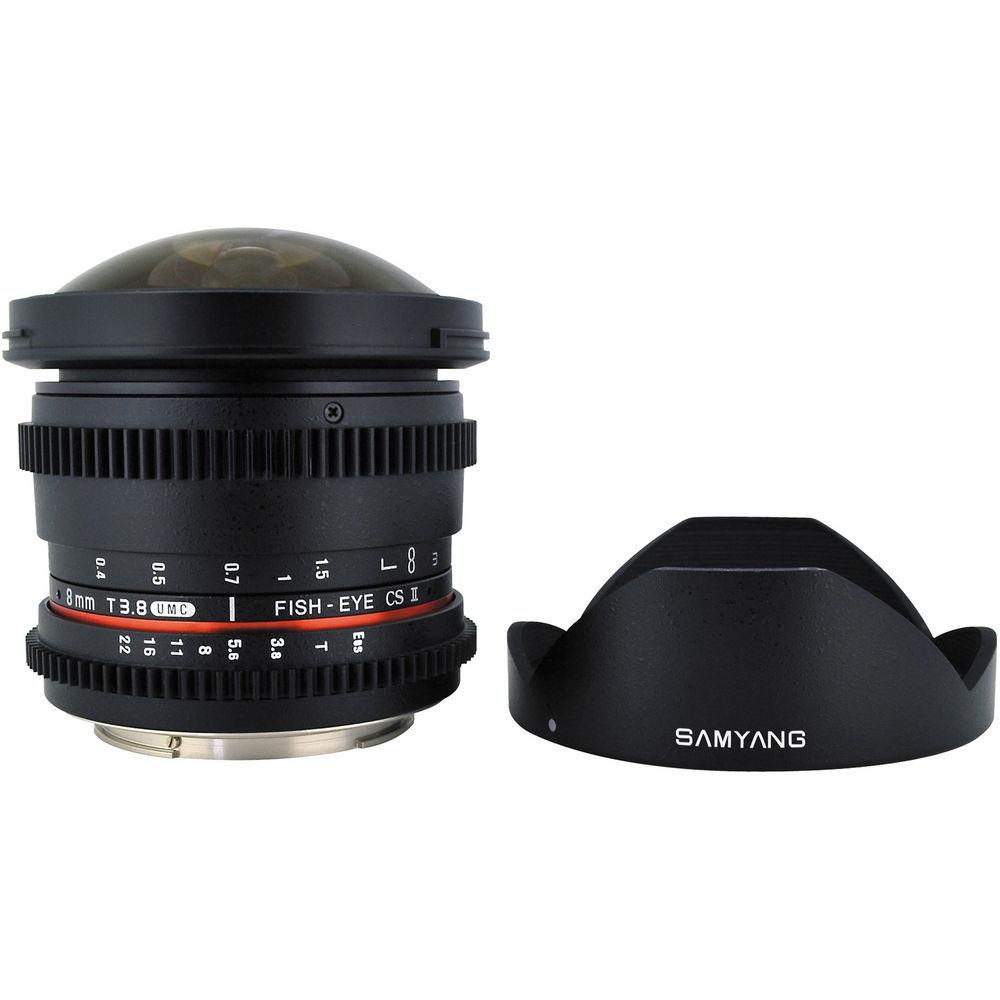

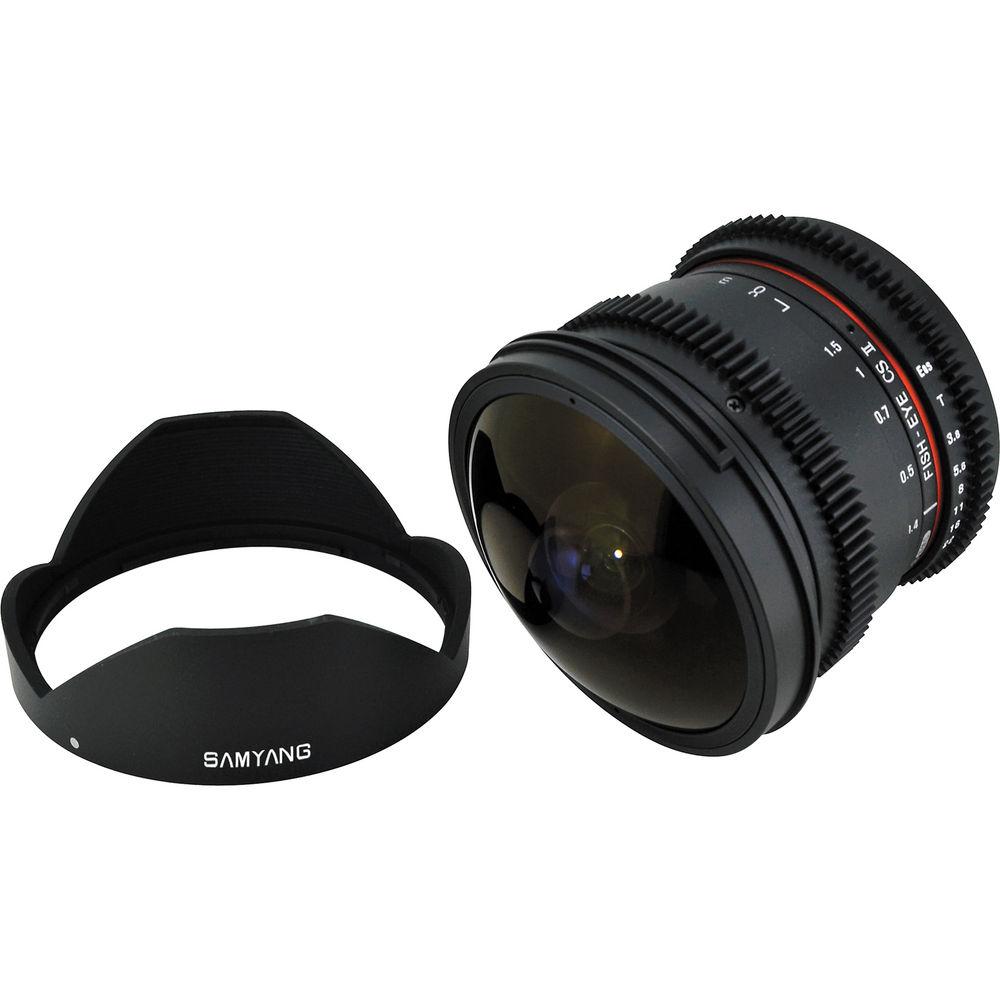

The lens has 10 lens elements arranged in 7 groups. It's coated with Samyang's multi-layered, anti-reflection Ultra Multi Coating (UMC), which suppresses flaring and ghosting. The lens body is made of aluminum and is very robust. A removable, petal type lens hood, and front and rear lens caps are included with the lens. - Key Features
-
- Fish-eye cine lens for cameras with APS-C sized sensors
- 8mm focal length
- 180° ultra wide angle of view
- 6 aperture blades
- T3.8 to T22 aperture range
- Aperture is adjustable by a continuous aperture ring
- 0.8 gear pitch on aperture and focus rings
- Well-damped, very smooth focus ring
- 11.8" (30 cm) minimum focusing distance
- 10 lens elements arranged in 7 groups
- Multi-layered, anti-reflection Ultra Multi Coating (UMC)
- Robust, aluminum body
- Includes removable, petal type lens hood
UPC: 084438762099 In the Box Samyang 8mm T3.8 UMC Fish-Eye CS II Lens (Sony E Mount) Removable Lens Hood Front and Rear Lens Caps Limited 3-Year Warranty User Manual PDF 5.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 8mm T3.8 Cine Fisheye II Specs | Focal Length | 8mm | | Lens Mount | Sony E | | Format | Super35/APS-C | | Maximum T-Stop | T3.8 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Full Frame: 180° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Optical Design | 10 Elements in 7 Groups | | Iris Blades | 6 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 75 mm | | Filter Thread | None | | Length | 4.07" / 103.6 mm | | Weight | 1.0 lb / 465.0 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.7 x 6.7 x 4.9" |
