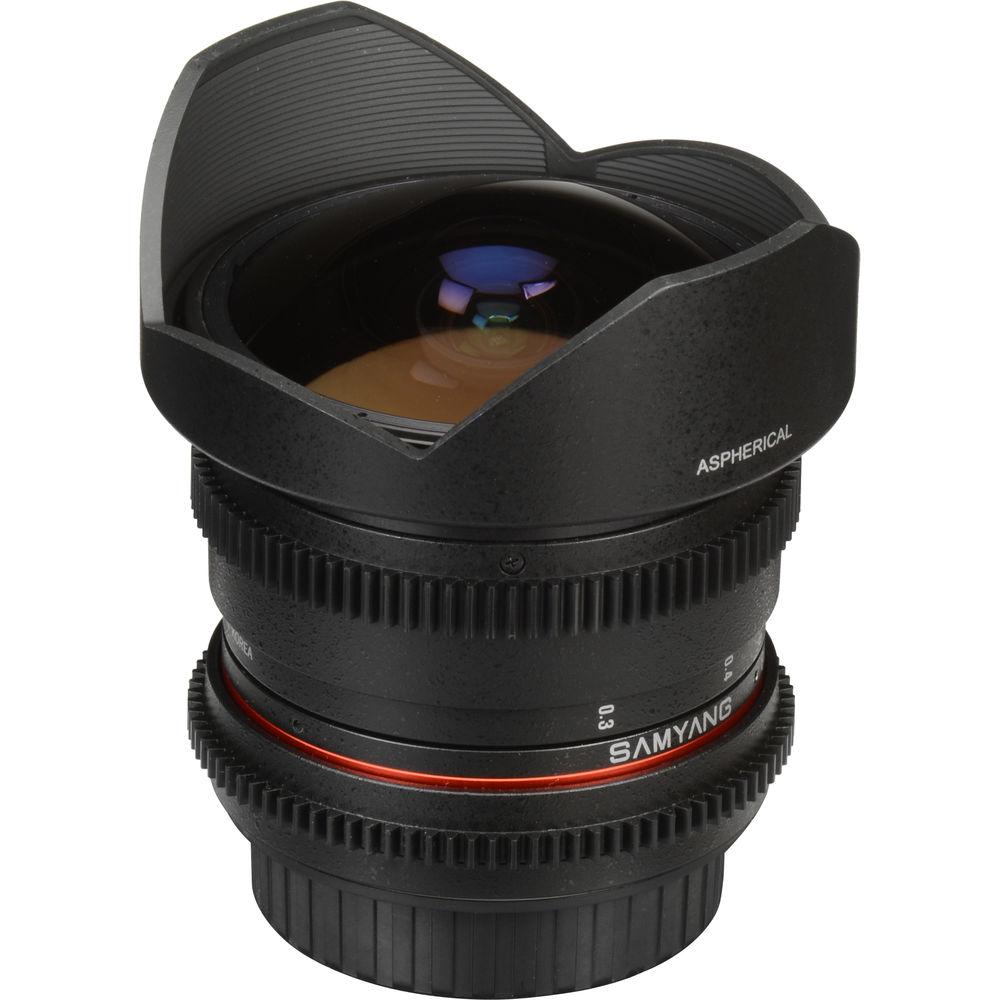

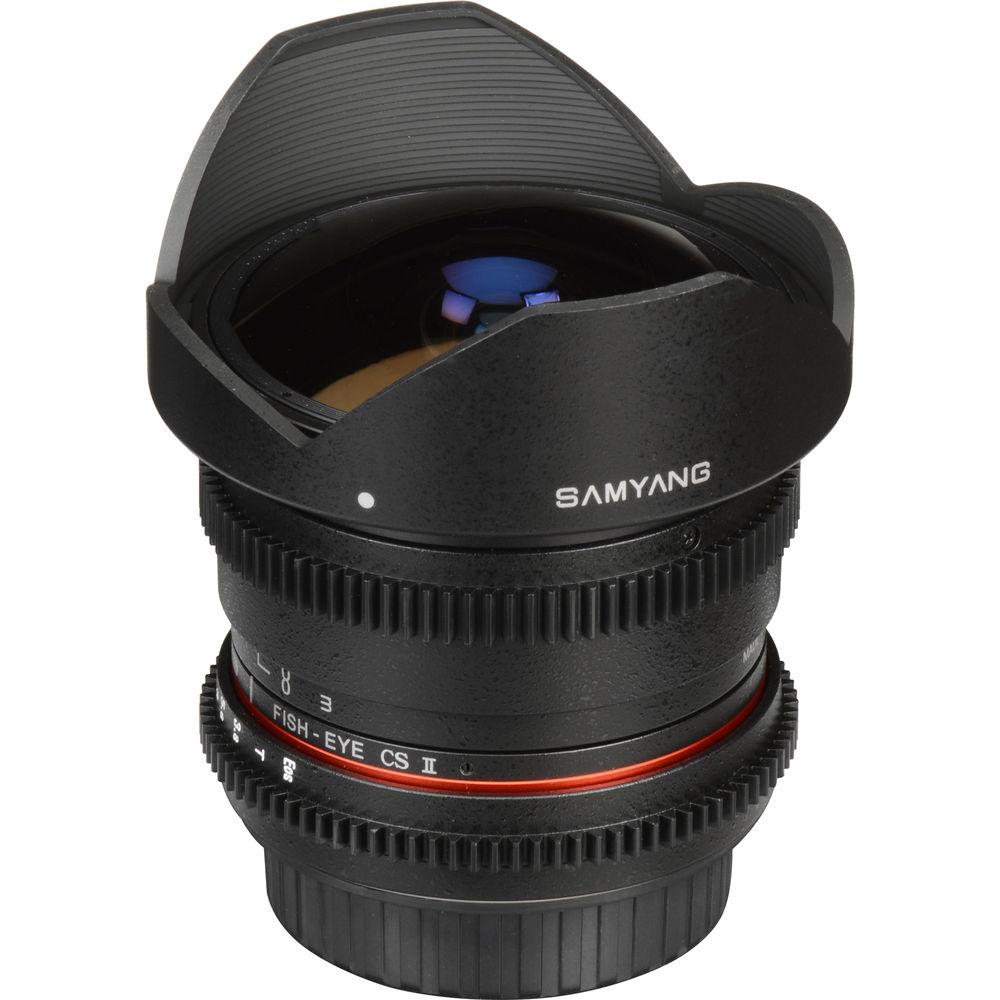

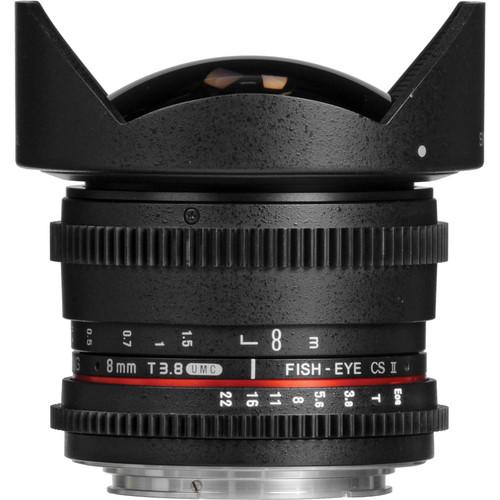

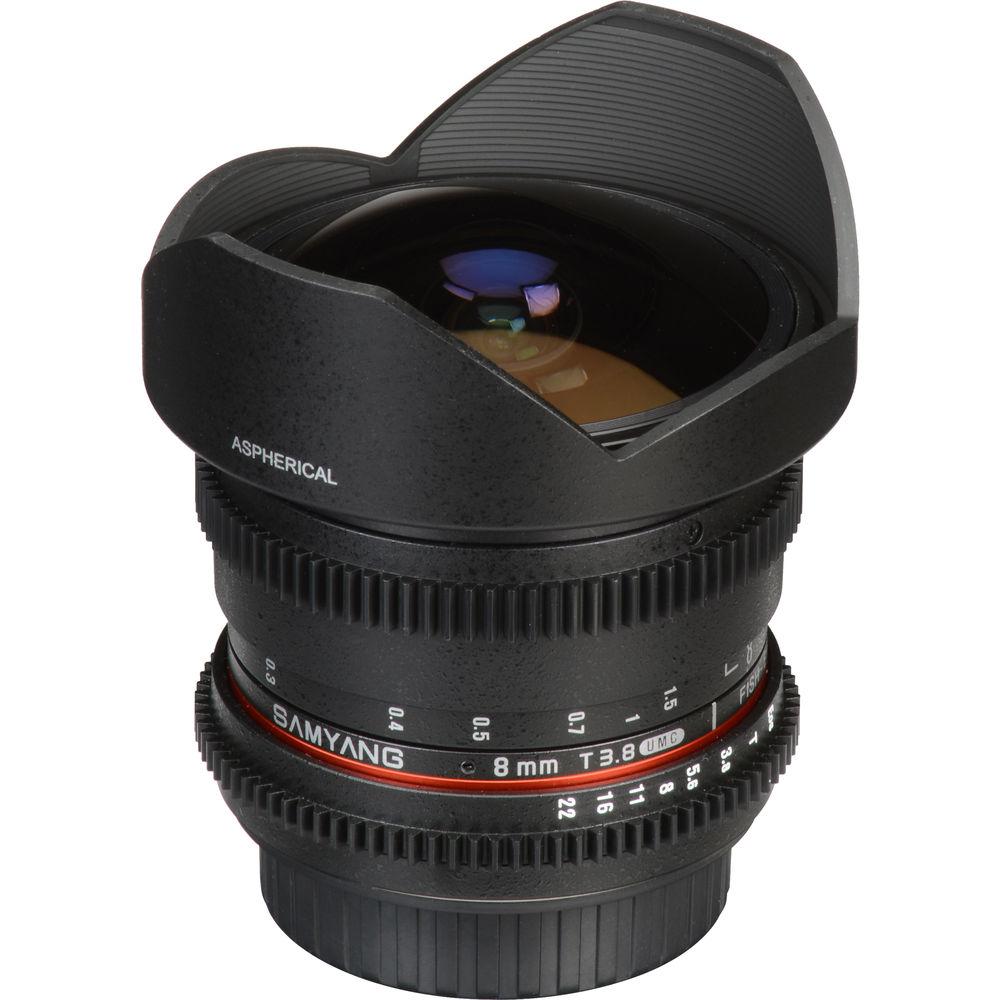

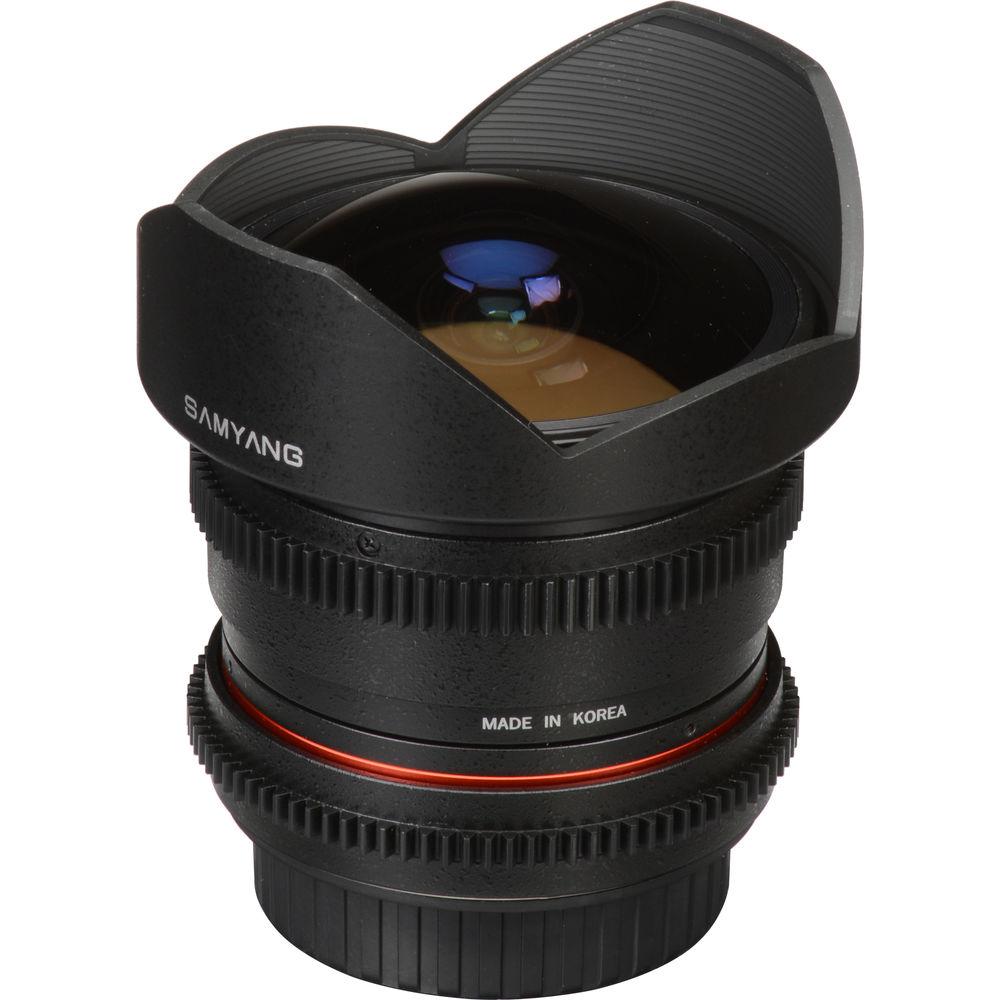

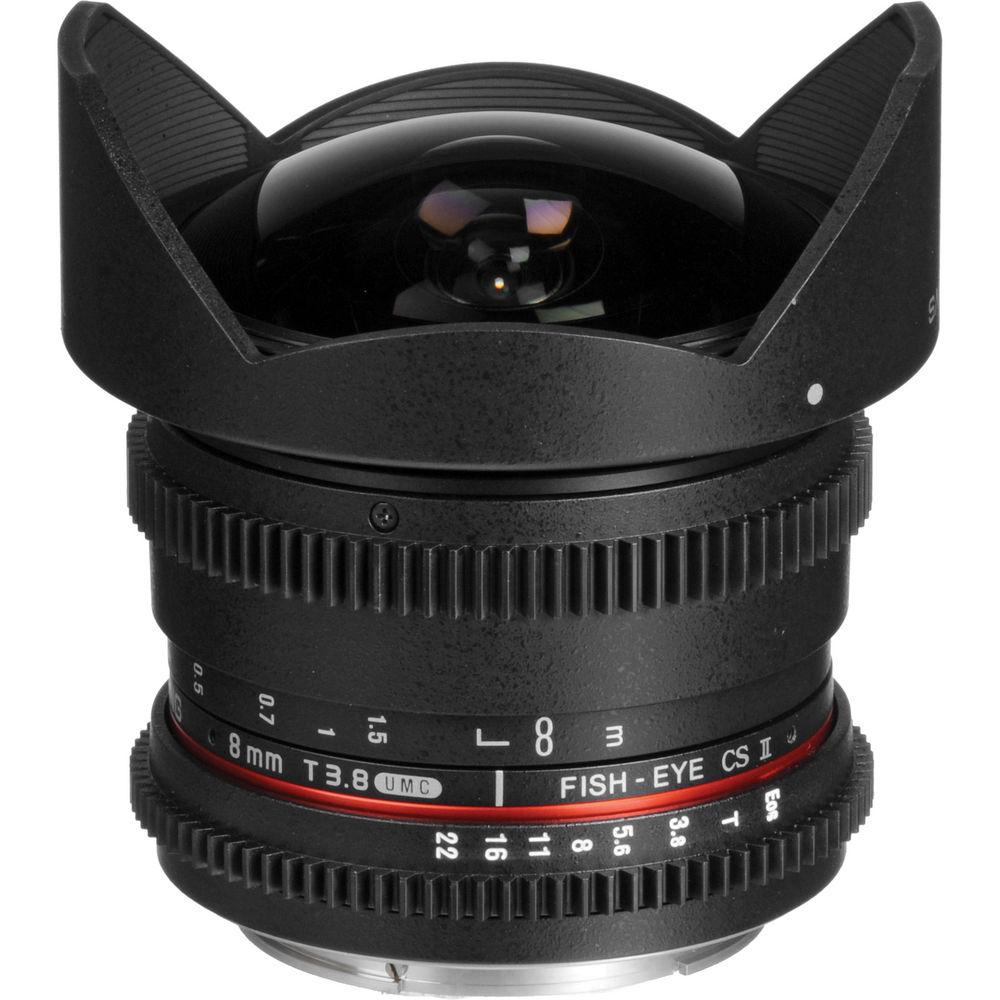

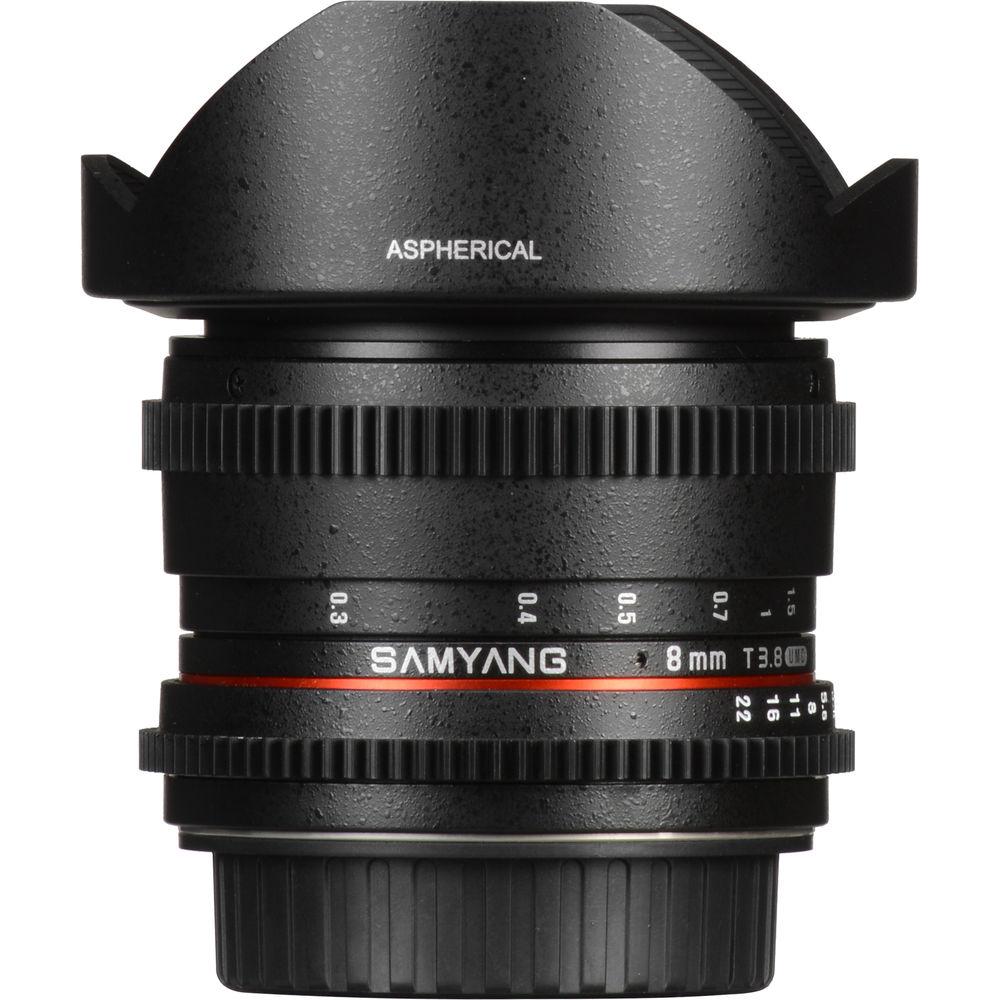

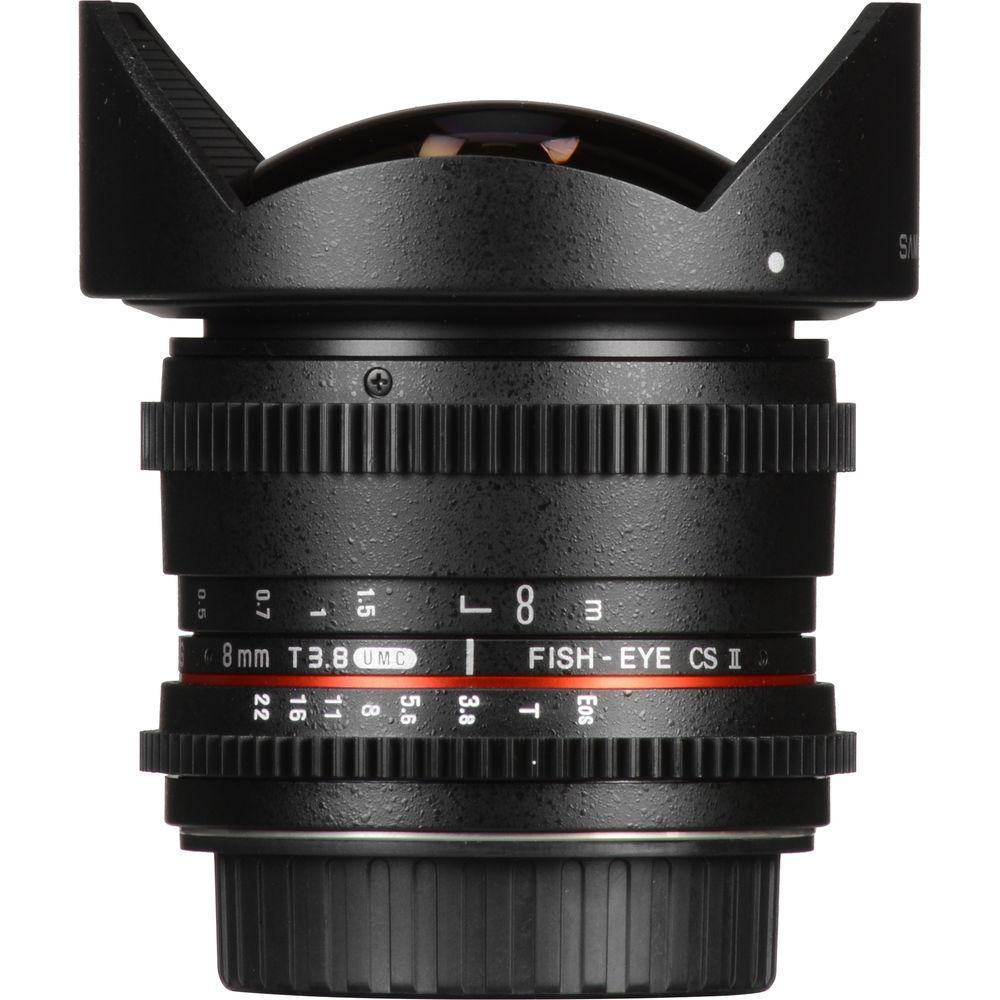

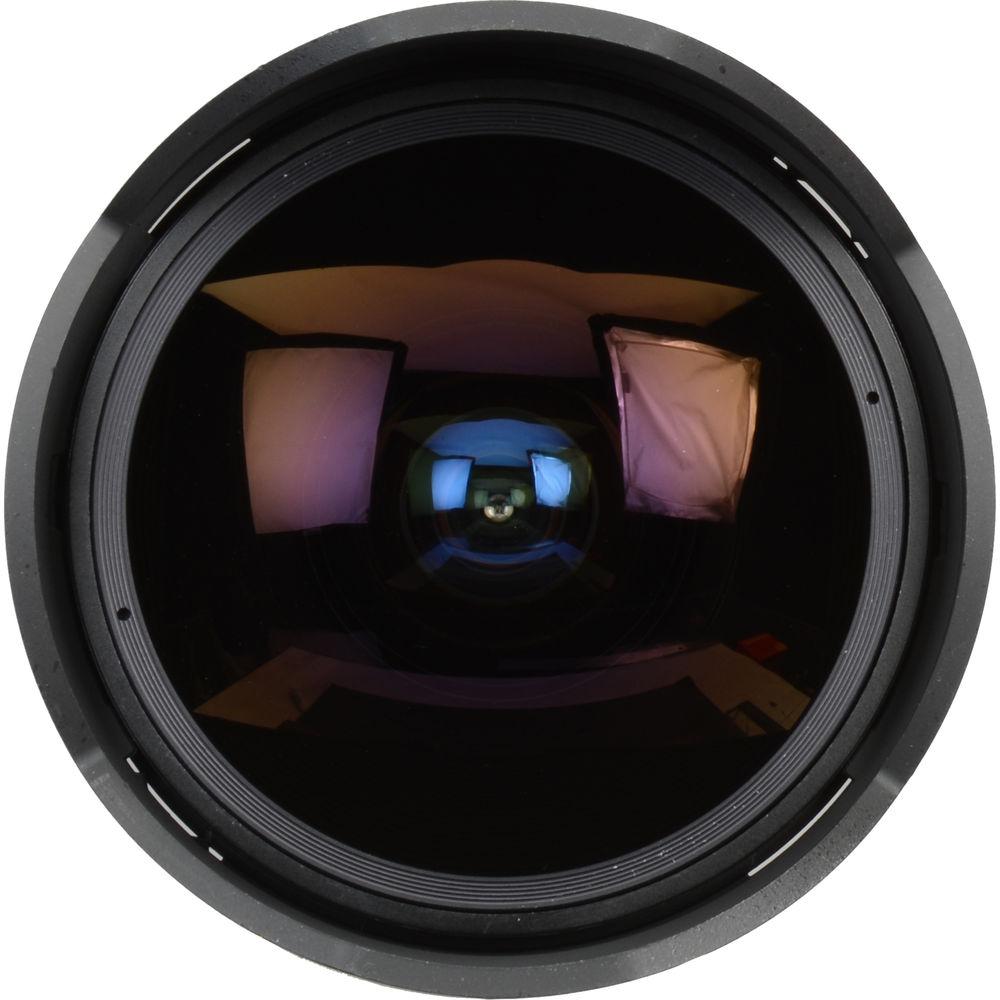

User Manual for Samyang 8mm T3.8 UMC Fish-Eye CS II Lens Click to enlarge the picture
Contents of the user manual for the Samyang 8mm T3.8 UMC Fish-Eye CS
- Product category: Digital Cine Lenses Samyang
- Brand: Samyang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samyang Digital Cine Lenses
 |
User manual for the Samyang 8mm T3.8 UMC Fish-Eye CS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samyang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samyang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samyang product will considerably shorten its lifespan!
|

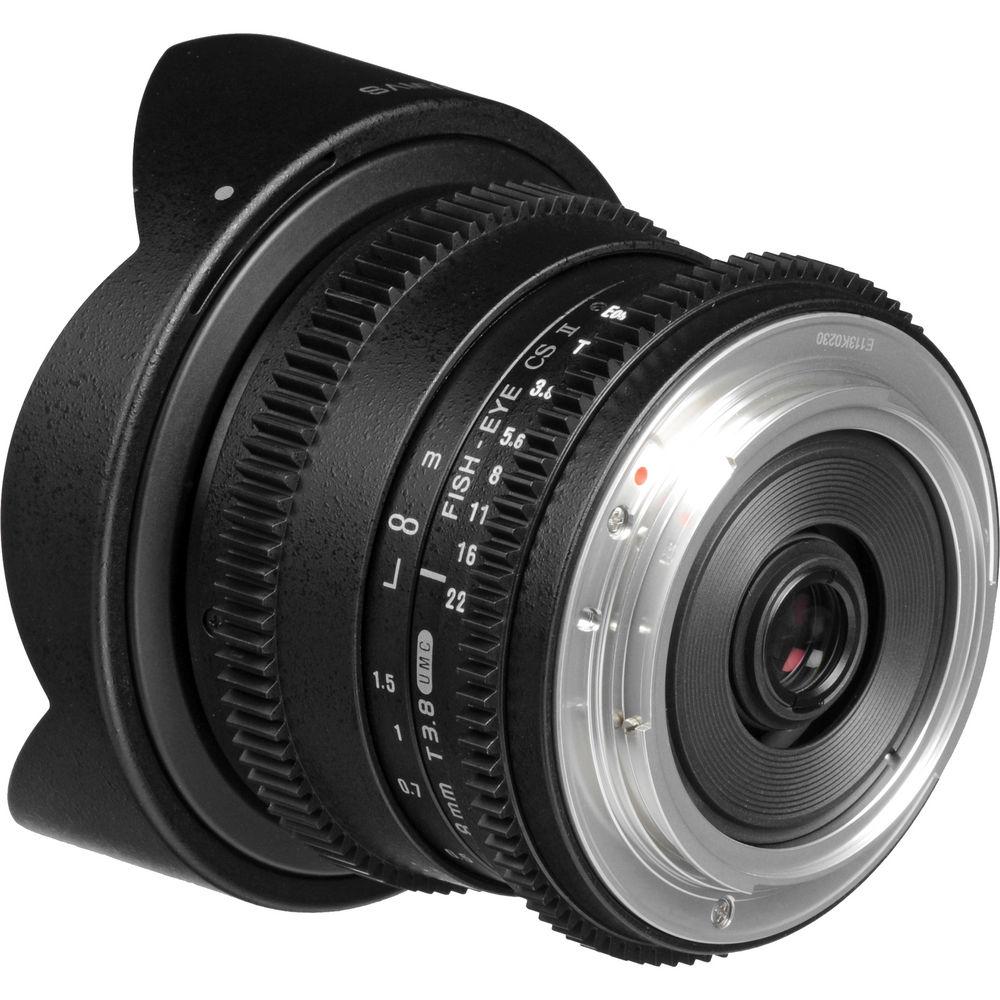

Product description Cinema Lens Care and Maintenance Read More This Canon EF Mount Samyang 8mm T3.8 UMC Fish-Eye CS II Lens is a fish-eye cine lens designed for video capture on cameras with APS-C sized sensors. It features an 8mm focal length and a 180° ultra wide angle of view. This angle of view changes, however, to 167° on Canon cameras because Canon APS-C sized sensors are slightly smaller and have a crop factor of 1.6.
Fish-eye lenses aren't for common, everyday shots, but can be excellent for capturing sports stadiums, large halls, highly-packed city sights, and similar scenery in a warped, unconventional fashion. They're also useful in making small rooms look bigger and straight lines or bars appear more oval, in both scenarios as a result of warping the image.
The aperture ranges from T3.8 to T22. T3.8 being its fastest aperture, this lens is best used in environments with sufficient light or with a light source incorporated. The aperture is manually adjustable without click stops with a continuous, smooth aperture ring. Both the aperture ring and focus ring feature a 0.8 gear pitch in case you want to use a follow focus with either. The focus ring is also well-damped and very smooth. The lens doesn't offer auto-focus, but in fish-eye lenses objects appear mostly in focus anyway. The minimum focusing distance is 11.8" (30 cm).
The lens has 10 lens elements arranged in 7 groups. It's coated with Samyang's multi-layered, anti-reflection Ultra Multi Coating (UMC), which suppresses flaring and ghosting. The lens body is made of aluminum and is very robust. A removable, petal type lens hood, and front and rear lens caps are included with the lens. - Key Features
-
- Fish-eye cine lens for cameras with APS-C sized sensors
- 8mm focal length
- 180° ultra wide angle of view
- 6 aperture blades
- T3.8 to T22 aperture range
- Aperture is adjustable by a continuous aperture ring
- 0.8 gear pitch on aperture and focus rings
- Well-damped, very smooth focus ring
- 11.8" (30 cm) minimum focusing distance
- 10 lens elements arranged in 7 groups
- Multi-layered, anti-reflection Ultra Multi Coating (UMC)
- Robust, aluminum body
- Includes removable, petal type lens hood
UPC: 084438762075 In the Box Samyang 8mm T3.8 UMC Fish-Eye CS II Lens (Canon EF Mount) Removable Lens Hood Front and Rear Lens Caps Limited 3-Year Warranty User Manual PDF 5.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 8mm T3.8 Cine Fisheye II Specs | Focal Length | 8mm | | Lens Mount | Canon EF | | Format | Super35/APS-C | | Maximum T-Stop | T3.8 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 167°
Full Frame: 180° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Optical Design | 10 Elements in 7 Groups | | Iris Blades | 6 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 75 mm | | Filter Thread | None | | Length | 2.95" / 75.1 mm | | Weight | 1.0 lb / 455.0 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.7 x 6.5 x 4.9" |
