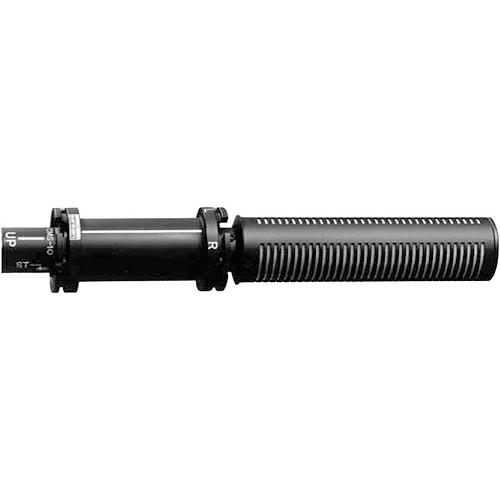

User Manual for Sanken CMS-10 Professional, HD Camera Mountable Shotgun and M-S Stereo Microphone Click to enlarge the picture
Contents of the user manual for the Sanken CMS-10 Professional, HD Camera Mountable
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
|
User manual for the Sanken CMS-10 Professional, HD Camera Mountable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The CMS-10 Stereo Mono Switchable Shotgun Microphone from Sanken is a compact, shotgun and M-S stereo microphone designed for use with HD camcorders. The CMS-10 incorporates a Mid-Side (M-S) capsule design to provide stunning stereo imagery while accurately capturing frontal audio signal with exceptional directionality and accuracy.The result is an audio signal with exceptional rejection of residual noise and just the right amount of ambiance, accurately placed within the stereo field. The wide frequency and exceptional sensitivity response results in pristine audio fidelity with a low noise floor. The CMS-10 features a 5-pin XLR output (cable included), compatible with most HD camera microphone inputs. - M-S Stereo Design
- The M-S stereo capsule provides accurate directionality and exceptional stereo imaging.
- HD Camera Mountable
- Specifically designed for HD cameras the CS-10's compact design allows for camera mounting.
- Minimal Residual Noise
- The highly directional shotgun characteristic reduces unwanted, off-axis residual noise.
- Non-Proximity Effect
- The M-S capsule eliminates the low frequency boost associated with close proximity capturing.
In the Box Sanken CMS-10 Professional, HD Camera Mountable Shotgun and M-S Stereo Microphone (Mono and L/R Output Selector Switch) SH-10 Suspension Camera Mount WSJ-10 Windscreen 2 x Rubber Plate Limited 1-Year Warranty
Includes Free - Remote Audio - 5-Pin Stereo XLR Female to Dual XLR Male Y-Cable - 18" sqqfczqb
User Manual PDF 567.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CMS-10 Professional, HD Camera Mountable Shotgun and M-S Stereo Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CMS-10 Specs | | | Transducer | Condenser | | Polar Pattern | Hypercardioid, Supercardioid | | Pattern Selection | Switched | | Frequency Range | 150 Hz to 20 kHz | | Equivalent Noise Level | Hypercardioid: 20 dB A-Weighted
Supercardioid: 22 dB A-Weighted | | Maximum SPL | 120 dB SPL | | Impedance | 240 Ohms @ 1 kHz | | Sensitivity | Hypercardioid: 50 mV/Pa
Supercardioid: 32 mV/Pa | | | | Output Connectors | 1 x 5-Pin XLR | | Cable Length | 11.8" / 30 cm | | Operating Current Consumption | 2.5 mA | | Operating Voltage | 48 V ± 4 V | | Length | 8.31" / 211 mm | | Diameter | 1.09" / 27.8 mm | | Weight | 6.00 oz / 170 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 13.75 x 4.5 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
