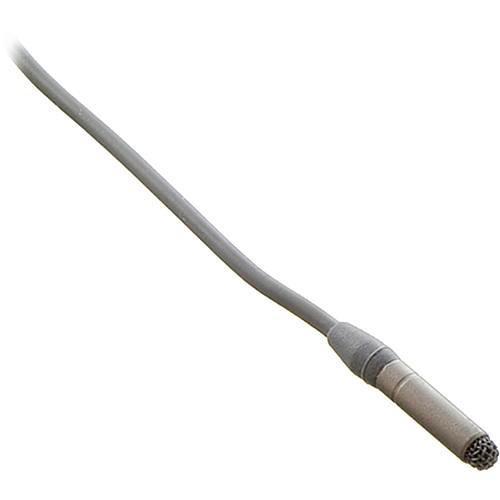

User Manual for Sanken COS-11DBP Miniature Lavalier Microphone with XLR Click to enlarge the picture
Contents of the user manual for the Sanken COS-11DBP Miniature Lavalier Microphone with
- Product category: Lavalier Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Lavalier Microphones
|
User manual for the Sanken COS-11DBP Miniature Lavalier Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More - Sanken COS-11D Lavalier Microphone: Quick Look
The gray Sanken COS-11DBP Miniature Lavalier Microphone delivers the audio performance that meets the standards of digital wireless microphone transmitters. The COS-11DBP addresses the noise issues associated with digital to ensure a pristine audio signal. The wide frequency response ensures accurate, transparent audio reproduction, and its omnidirectional polar pattern provides a generous pickup area while minimizing feedback and off-axis noise.An improved water-resistant mesh screen protects against humidity, perspiration, makeup, bad weather, etc. The miniature profile of the lavalier makes it an ideal solution for professional theater, video recording, film, and broadcast applications. - Optimized for Digital Transmission
- The COS-11DBP addresses the noise issues associated with digital to ensure a pristine audio signal.
- 3-Pin XLR Connections
- The COS-11DBP features a 3-pin XLR connection that houses a AA battery. This version is capable of +48 to +52V phantom or battery operation.
- Meets High-Definition Audio Standards
- The wide frequency response, low noise, and transparent audio reproduction meet the demands of high-definition audio sound reinforcement and recording systems.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides a generous pickup area while minimizing noise and feedback at the off-axis sections.
- Water-Resistant Mesh Screen
- The improved mesh screen protects the element against moisture damage.
- Miniature Profile
- The miniature profile of the lavalier makes it an ideal solution for professional theater, video recording, film, and broadcast applications.
In the Box Sanken COS-11DBP Miniature Lavalier Microphone with XLR (Battery/Phantom) (Gray) HC-11 Holder Clip WS-11 Metal Windscreen RM-11 Rubber Mount Vinyl Case AA Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken COS-11DBP Miniature Lavalier Microphone with XLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken COS-11DBP Specs | Transducer | Self-polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 20 kHz | | Sensitivity | 6 mV/Pa (-44.5 dB,0 dB=1 V/Pa) | | Equivalent Noise Level | 28 dBA | | Maximum Sound Pressure Level (SPL) | 120 dB (1% THD) | | Output Impedance | 200 Ohms (at 1 kHz) | | Power Requirements | +12 to +52 V
AA battery | | Current Consumption | Less than 1 mA (AA battery) | | Output Connectors | 3-pin XLR | | Cable Length | 9.8' / 3.0 m | | Dimensions (LxDiameter) | 0.6 x 0.2" / 1.6 x 0.4 cm | | Weight | 4.3 oz / 122.0 g
4.9 oz / 139.0 g (with AA battery) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.3 x 4.6 x 2.0" |
