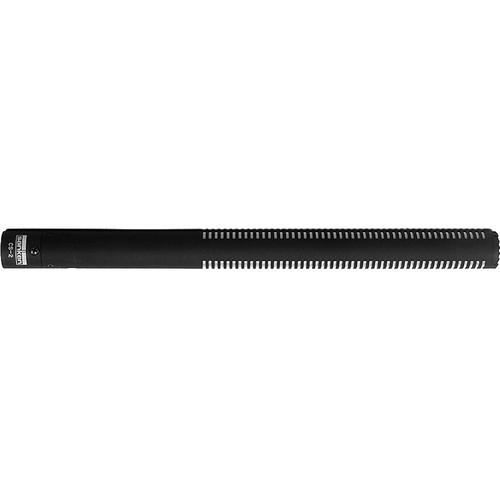

User Manual for Sanken CS-2 Mono Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sanken CS-2 Mono Shotgun Microphone
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
|
User manual for the Sanken CS-2 Mono Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The CS-2 Mono Shotgun Microphone from Sanken is a supercardioid, DC-biased condenser microphone that is 9.84" in length. It can be used to capture audio in indoor and outdoor locations with a rich and natural sound for video, film, and speech applications.Featuring a 4.72" long acoustic tube in a standard 9.84" body, the CS-2 mic offers sharp directivity and is built with a high-boost frequency switch. This allows you to replace some of the presence and high frequencies that are lost while using windscreens. The CS-2 is powered by a +48V phantom power. The long-range pick up and pristine sound quality make it suitable for motion picture audio, broadcasts, sporting events, interviews, and more. - Long range and rich, natural sound
- Sanken's proprietary rectangular capsule results in super sharp directivity
- High-boost switch automatically compensates for the attenuation of high frequencies when the mic is used with a windscreen/windjammer for outdoor use
In the Box Sanken CS-2 Mono Shotgun Microphone WM-23 Urethane Windscreen Vinyl Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CS-2 Mono Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CS-2 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 20 kHz | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 130 dB SPL | | Impedance | 120 Ohms @ 1 kHz | | Sensitivity | 63 mV/Pa | | Low-Cut Filter | 3 dB/Octave @ 8 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V ± 4 V | | Length | 9.84" / 250 mm | | Diameter | 0.75" / 19 mm | | Weight | 3.88 oz / 110 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.6 x 4.3 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
