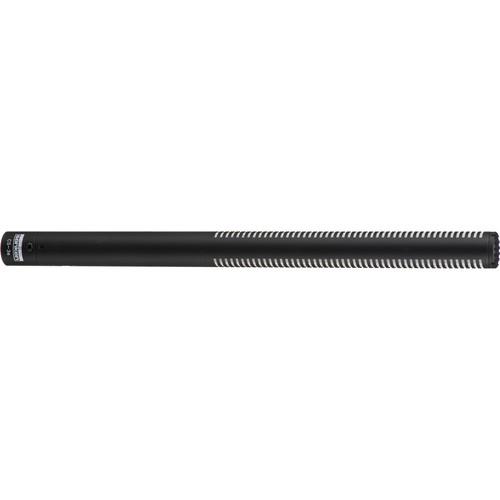

User Manual for Sanken CS-3e Mono Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sanken CS-3e Mono Shotgun Microphone
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
 |
User manual for the Sanken CS-3e Mono Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|

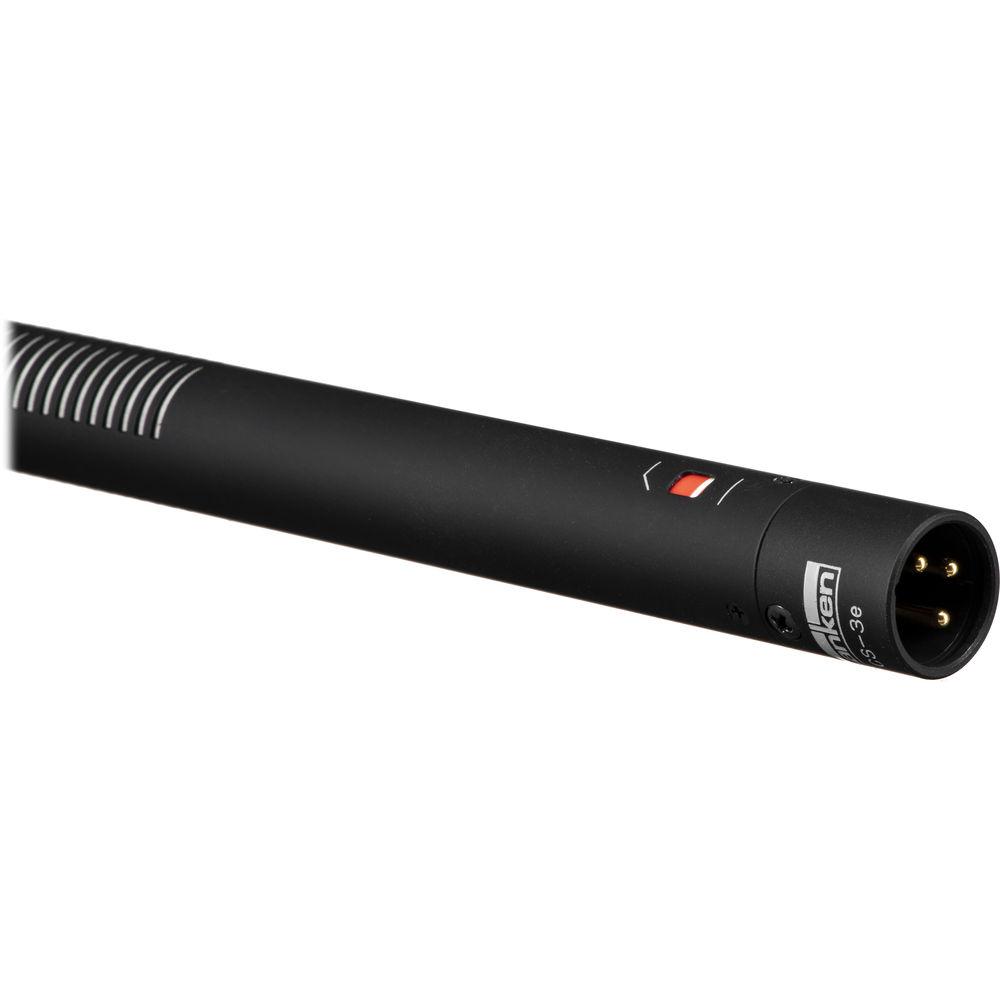

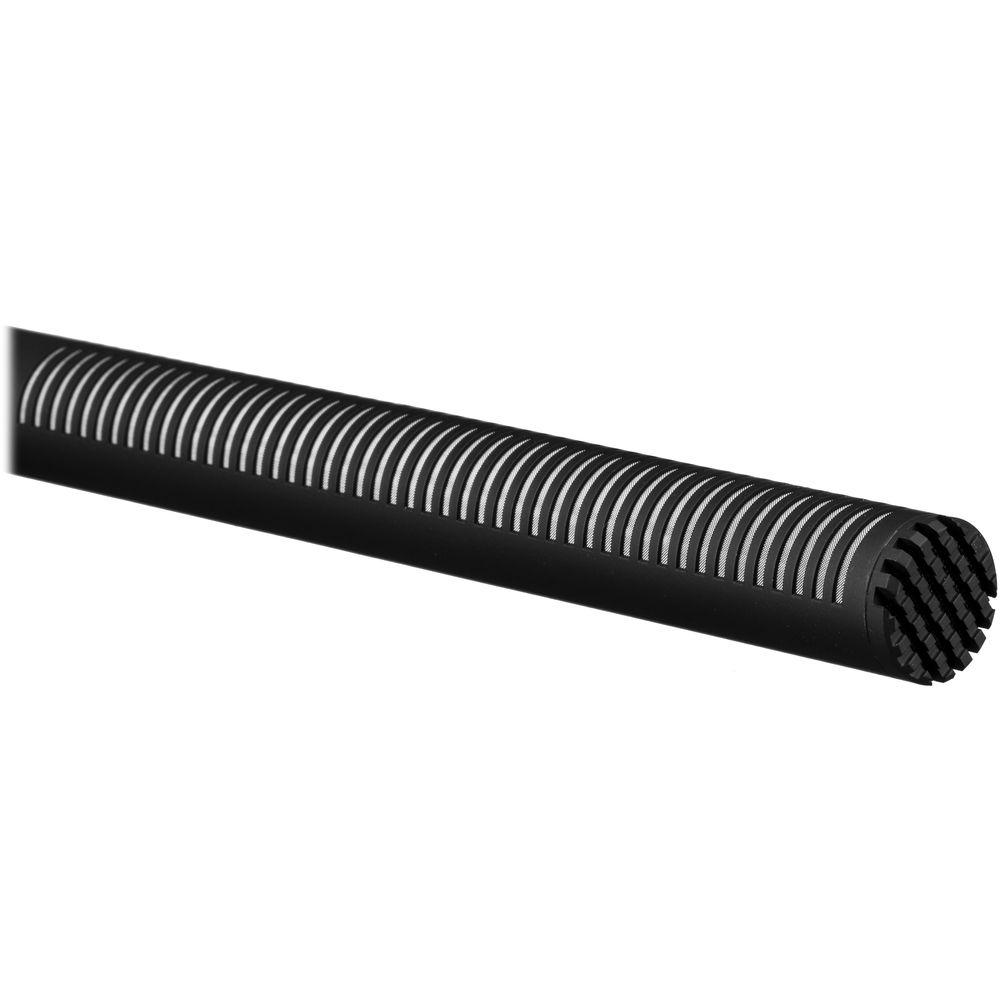

Product description The CS-3e Mono Shotgun Microphone from Sanken provides convenient camera mountable size with the directional signal reproduction and range expected of larger, professional shotgun microphones. The CS-3e is designed for directional dialog capturing in studios or on location. The microphone implements 3 directional capsules arranged in a front-to-back array resulting in phenomenal supercardioid directivity at high, mid and low frequencies.The CS-3e is capable of maintaining high signal quality at longer distances, making it ideal for ceiling and overhead placement. In addition to exceptional super-cardioid off-axis rejection, the microphone capsule eliminates low-frequency proximity effect when used in close proximity to the signal source. Measuring only 10 inches in length, the CS-3e is suitable for camera or boom pole mounting applications. - High Super-Cardioid Directivity
- Three capsules arranged in a linear array provide a supercardioid directional pattern that rivals conventional phase interference shotgun microphones.
- High Pass Filter
- A high pass filter switch eliminates noise and rumble caused by wind, handling and more.
- Eliminates Proximity Effect
- The CS-3e eliminates proximity effect and low-frequency overload caused by close microphone placement.
- Convenient Size
- Measuring about 10 inches, the CS-3e is perfect for both camera or boom pole mounting applications.
In the Box Sanken CS-3e Mono Shotgun Microphone Vinyl Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CS-3e Mono Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CS-3e Specs | | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 20 kHz | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 120 dB SPL | | THD | 1% | | Impedance | 120 Ohms @ 1 kHz | | Sensitivity | 50 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 48 V ± 4 V | | Length | 10.63" / 270 mm | | Diameter | 0.75" / 19 mm | | Weight | 4.23 oz / 120 g | | | | Package Weight | 0.925 lb | | Box Dimensions (LxWxH) | 13.3 x 3.6 x 2.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
