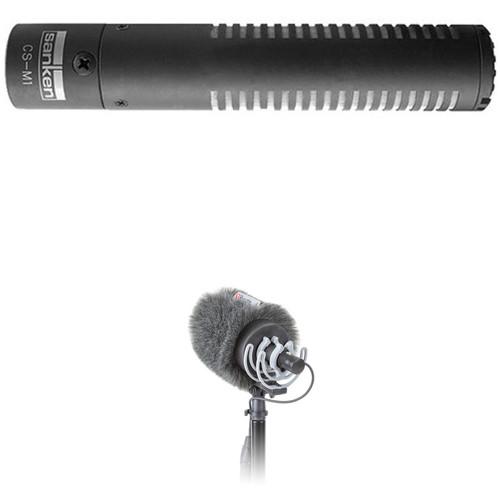

User Manual for Sanken CS-M1 Supercardioid Short Shotgun Microphone and Softie Kit Click to enlarge the picture
Contents of the user manual for the Sanken CS-M1 Supercardioid Short Shotgun Microphone
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
|
User manual for the Sanken CS-M1 Supercardioid Short Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The Sanken CS-M1 Supercardioid Short Shotgun Microphone and Softie Kit from includes the CS-M1 supercardioid 4" short shotgun microphone, a Rycote softie kit for the CS-M1 microphone, foam windscreen, and a vinyl case. This kit can be used to capture audio in various environments for boom operators, videographers, film production, ENG (Electronic News Gathering), and music recording applications. - Sanken CS-M1 Supercardioid Short Shotgun Microphone The Sanken CS-M1 is a compact and rugged supercardioid short shotgun microphone designed to deliver clear close and distant audio capture for boom operators, videographers, and audio engineers in film, television, and video production as well as ENG and music recording applications. Its short 4" length and low 1.9 oz weight make it ideal for mounting on your DSLR or boompole. The supercardioid/lobar polar pattern yields precise directionality and low coloration at the off-axis sections of the capsule. An integrated RFI shield yields enhanced rejection of radio-frequency interference. The electret condenser element is powered via 48V phantom power and produces a frequency response of 100 Hz to 18 kHz. An XLR 3-pin output ensures compatibility with most microphone preamps. Plosives and wind noise can be reduced by attaching the supplied windscreen. The CS-M1 ships with a vinyl case for safe and convenient transport.
- Ideal for mounting on your DSLR or boompole
- Compact 4" body length doesn't interfere with your camera lens
- Weighing less than 2 ounces, it won't weigh down your camera
- Supercardioid/lobar polar pattern yields sharp directivity
- 100 Hz to 18 kHz frequency response naturally attenuates commonly problematic low frequencies
- Included windscreen reduces plosives and wind noise
- Rycote Softie Kit with Windshield and Shockmount for Sanken CS-M1 Microphone Designed for the Sanken CS-M1 microphone, the Rycote Softie Kit is a windshield and shockmount system offering reduction of wind and handling noise for videographers, sound recordists, and more. It includes a Classic-Softie slip-on windshield, an InVision INV-6 shockmount, one shoe adapter, a brush, and a Rycote sticker. Both compact and lightweight, the Softie Kit is well suited to boompole or camera-mounted applications. The supplied shoe adapter enables attachment of the Softie Kit to your camera's hot or cold shoe. The acoustically transparent Softie Kit also protects your mic from dust and dirt.
In the Box - CS-M1 Supercardioid Short Shotgun Microphone euezrerysasbebcfbateeqaqr
- Windscreen
- Vinyl Case
- Limited 1-Year Warranty
- Rycote - Softie Kit with Windshield and Shockmount for Sanken CS-M1 Microphone
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CS-M1 Supercardioid Short Shotgun Microphone and Softie Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sanken CS-M1 Supercardioid Short Shotgun Microphone
| | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 100 Hz to 18 kHz | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | None | | Impedance | 140 Ohms | | Sensitivity | 79 mV/Pa at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4 mA | | Operating Voltage | 48 V ± 4 V | | Length | 4.06" / 103 mm | | Diameter | 0.75" / 19 mm | | Weight | 1.9 oz / 54 g | | | | Box Dimensions (LxWxH) | 10.5 x 4.5 x 3.2" | - Rycote 7cm Classic-Softie Windshield for Sanken CS-M1 Microphone
| Compatible Mic Diameter | 0.748 to 0.87" / 19 to 22 mm | | Inner Depth | 2.8" / 7 cm | | Fur Length | 1" / 2.5 cm | | Outer Diameter | 4.7" / 12 cm | | Length | 3.9" / 10 cm | | Weight | 1.3 oz / 38 g | | | | Box Dimensions (LxWxH) | 13.5 x 5.7 x 3.1" | - Rycote INV-6 InVision Microphone Suspension for Stand and Boompole Mounting
| Dimensions | Lyre (Suspension): 2.75 x 1.57" (70 x 40mm) (WxH)
Clips: 19 to 25mm (0.74 to 0.98") (Both) Standard Bar Size (Small) Length Not Specified
3/8" Threaded Stand Adapter | | | | Box Dimensions (LxWxH) | 5.1 x 3.2 x 3.2" |
