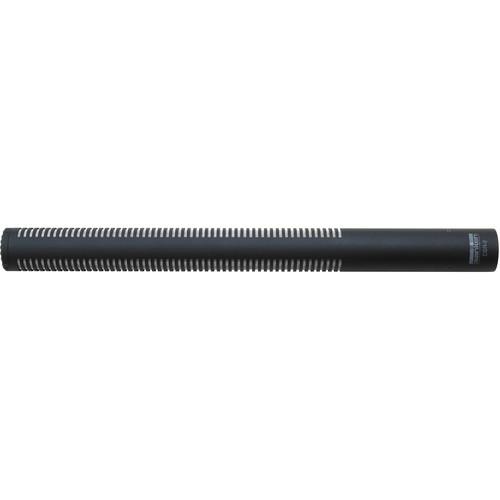

User Manual for Sanken CSR-2 Rear Rejection Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sanken CSR-2 Rear Rejection Shotgun Microphone
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
|
User manual for the Sanken CSR-2 Rear Rejection Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The matte black CSR-2 Rear Rejection Shotgun Microphone from Sanken is used to capture audio in critical applications such as TV, film sound and more. This microphone features a back electret condenser with 3 capsules. It combines the long acoustic tube and rectangular capsule design of the Sanken CS-2 with the mid and low frequency side and rear rejection of the Sanken CS-3e. A switch allows you to turn off the mid and low frequency side and rear rejection capsule to obtain a wider and warmer sound image. The frequency range is 70 to 18kHz. The CSR-2 is built with an XLR connector and is powered by +48V phantom power. Measuring about 10 inches in length and weighing 6 ounces this mic is a candidate for camera or boom pole mounting scenarios. A urethane wind screen and vinyl case is included. - Mid and High Frequency Capsule
- Provides a long reach for the mid and high frequencies and allows for capture of clear dialog
- Side and Rear Capsules
- A switch provides an option for mid and low frequency side and rear rejection capsules allowing them to be turned on or off
- Convenient Size
- Measuring about 10 inches, the CSR-2 can be used for both camera or boom pole mounting applications
In the Box Sanken CSR-2 Rear Rejection Shotgun Microphone (Matte Black) WM-R2 Urethane Wind Screen Vinyl Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CSR-2 Rear Rejection Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CSR-2 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Lobar | | Frequency Range | 70 Hz to 18 kHz | | Equivalent Noise Level | 16 dB | | Maximum SPL | 123 dB SPL | | Impedance | 150 Ohms @ 1 kHz | | Sensitivity | 71 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.5 mA | | Operating Voltage | 48 V ± 4 V | | Length | 9.84" / 250 mm | | Diameter | 0.87" / 22 mm | | Weight | 6.00 oz / 170 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.6 x 4.4 x 3.1" |
