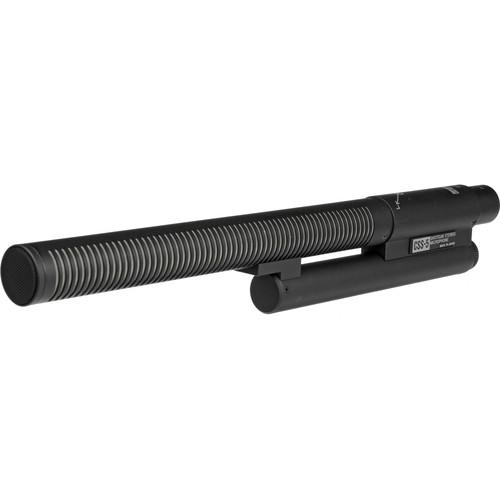

User Manual for Sanken CSS-5 Stereo Mono Switchable Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sanken CSS-5 Stereo Mono Switchable Shotgun
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
|
User manual for the Sanken CSS-5 Stereo Mono Switchable Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The CSS-5 Stereo Mono Switchable Shotgun Microphone from Sanken is designed for capturing stereo or mono signal and can be used for television, film, concert recording, sound design and much more. The flexibility of the CSS-5 lies within it's ability to capture in Normal (stereo), Mono and Wide (stereo) modes.The accurate, transparent signal reproduction is based on an array of five directional condenser elements, with PPS (Polyphenylene-Sulfide) diaphragms to provide optimum humidity / temperature stability. The CSS-5 is equally responsive in the horizontal and vertical planes with high sensitivity, wide frequency response and excellent dynamic range. The CSS-5 is small and lightweight with switchable mono / stereo functions. The standard 19mm diameter permits use of a wide range of accessories developed for enhanced performance and field mobility. - Stereo (Normal) Mode
- Normal mode provides an accurate, transparent stereo pick up of the targeted source. Stereo angle is approximately 115 degrees.
- Stereo Wide Mode
- Wide mode provides a generous stereo pick up area and is ideal for ambiance or sound effect recording for film, sound design etc. Wide mode allows a 140 degree pick up area.
- Mono Mode
- Mono mode provides sharp directivity over a wide frequency range. Signal is accurately reproduced at the front of the microphone capsule while off-axis ambient sound is greatly reduced.
- Eliminates Proximity Effect
- Close range, low-frequency proximity effect is eliminated due to the sophisticate array of the capsules.
In the Box Sanken CSS-5 Stereo Mono Switchable Shotgun Microphone CSS-5 Vinyl Case (Replacement) fzbeezyxyddzxburrvaebqvxddt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CSS-5 Stereo Mono Switchable Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CSS-5 Specs | | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 100 Hz to 15 kHz | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 120 dB SPL | | THD | 1% | | Impedance | 240 Ohms @ 1 kHz | | Sensitivity | 71 mV/Pa | | | | Output Connectors | 1 x 5-Pin XLR | | Operating Current Consumption | 2.5 mA | | Operating Voltage | 48 V ± 4 V | | Length | 11.81" / 300 mm | | Diameter | 1.77" / 45 mm | | Weight | 8.82 oz / 250 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 13.2 x 3.4 x 2.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
