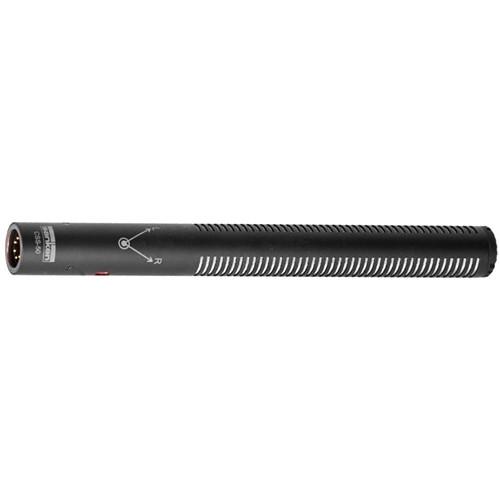

User Manual for Sanken CSS-50 Short Stereo Shotgun Microphone with Three Modes Click to enlarge the picture
Contents of the user manual for the Sanken CSS-50 Short Stereo Shotgun Microphone
- Product category: Shotgun Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Shotgun Microphones
|
User manual for the Sanken CSS-50 Short Stereo Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The CSS-50 from Sanken is a three-diaphragm, electret condenser short shotgun microphone that uses pressure gradient technology and supercardioid diaphragms to offer three distinct operational modes. The microphone is suitable for capturing audio in video, broadcast TV, and film applications. The shotgun mic is small and lightweight with three switchable modes, mono, normal (stereo), and wide (stereo) to satisfy the various needs of location and studio recording solutions. In normal mode, the stereo angle is approximately 115°, and the microphone picks up the targeted sound as well as extremely accurate stereo localization. Other modes include mono, which provides sharp directivity, and is maintained over a wide frequency range for the aimed frontal sound sources. It picks up the chosen sound source clearly in noisy ambient situations or in a long reverberation space. Finally, wide mode is designed for stereo recording of sound effects where dialogue will be dubbed in at a later date. This mode allows for a wider 140° pickup pattern compared to conventional M-S microphones, which have a maximum of 127°. - The CSS-50 is Sanken's easy-to-operate and flexible stereo shotgun for use in broadcasting and film. It is a 3-diaphragm electret condenser mic that offers innovative technology in a short, practical form factor
- The CSS-50 offers three distinct operation modes. Mono mode offers sharp shotgun directivity, normal (stereo) mode provides precise stereo localization, and wide (stereo) mode allows for expanded 140° stereo, which is ideal for cinematic ambience and sound effects
- Thanks to Sanken's original thin square capsule design, the capsules can be stacked in the short sound tube, providing performance equivalent to the CSS-5 in a more compact body. The high-performance electret condenser capsules are equivalent in response to DC-biased capsules
In the Box Sanken CSS-50 Short Stereo Shotgun Microphone with Three Modes Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CSS-50 Short Stereo Shotgun Microphone with Three Modes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CSS-50 Specs | | | Sound Field | Mono, Stereo, Surround | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Polar Pattern | Lobar, Stereo Mode, Supercardioid | | Pattern Selection | Switched | | Frequency Range | 60 Hz to 20 Hz | | Equivalent Noise Level | 16 dB A-Weighted
17 dB A-Weighted | | Maximum SPL | 120 dB SPL Peak | | Impedance | 140 Ohms | | Sensitivity | 56 mV/Pa
100 mV/Pa
141 mV/Pa | | | | Output Connectors | 1 x 5-Pin XLR | | Operating Voltage | 48 V ± 4 V | | Length | 8.5" / 215.90 mm | | Diameter | 0.87" / 22.10 mm | | Weight | 5.6 oz / 159 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.6 x 4.3 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
