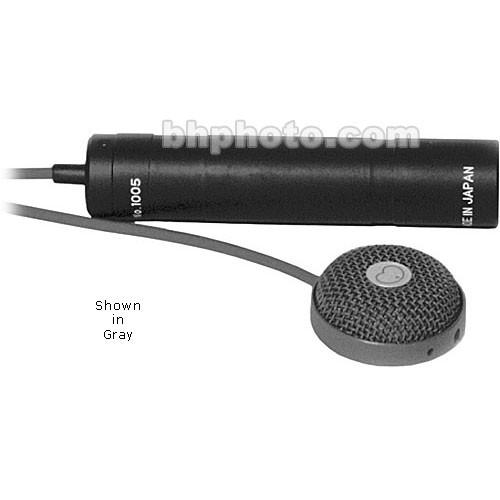

User Manual for Sanken CUB-01 Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Sanken CUB-01 Boundary Microphone
- Product category: Boundary Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Boundary Microphones
|
User manual for the Sanken CUB-01 Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The beige CUB-01 from Sanken is a boundary microphone that features a small profile while delivering a sound synonymous with large diaphragm microphones. The CUB-01 is an excellent choice for conferences, boardrooms, courtrooms, news broadcasts, film and more. The microphone features a unique square-shaped cardioid capsule, which significantly enlarges the area of the diaphragm. This proprietary design results in a rich, natural, "full-bodied" sound quality that is often associated with large diaphragm condenser microphones.The CUB-01 is easily installed into any surface with minimal effort and its miniature profile renders the microphone inconspicuous. The wide frequency response effectively reproduces speech, instruments and ambiance. The cardioid polar pattern effectively minimizes off-axis noise and ambiance while providing a focused pick up. - Hemispherical - Cardioid Polar Pattern
- The CUB-01 features a cardioid pick up pattern at the upper-hemisphere of the capsule. The result is excellent noise and phase suppression at the surface while maintaining a generous pick up area at the top.
- Miniature Design
- The miniature design results in inconspicuous, low profile microphone placement.
- Square Capsule Design
- The square diaphragm results in a larger diaphragm area. The result is a sound quality synonymous with large diaphragm condenser microphones.
- XLR Output Connector
- The CUB-01 features a standard 3-pin XLR male output and is powered with 48V phantom power.
In the Box Sanken CUB-01 Boundary Microphone (Beige) 2 x Rubber Bases Urethane Windscreen Vinyl Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken CUB-01 Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CUB-01 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 60 Hz to 15 kHz | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 122 dB SPL | | THD | 1% | | Impedance | 180 Ohms @ 1 kHz | | Sensitivity | 40 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 1.8 mA | | Operating Voltage | 48 V ± 4 V | | Diameter | 1.28" / 32.5 mm | | Weight | 1.59 oz / 45 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.5 x 4.65 x 2.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
