User Manual for Sanken Gooseneck Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sanken Gooseneck Condenser Microphone
- Product category: Gooseneck Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Gooseneck Microphones
|
User manual for the Sanken Gooseneck Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|

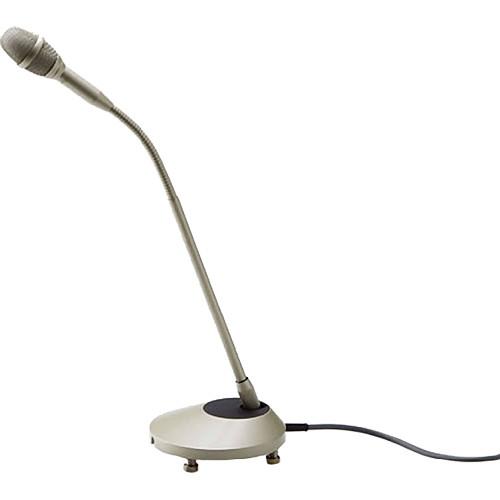

Product description Sanken's Gooseneck Condenser Microphone (300mm) is specially designed for the announcer's voice in TV and radio broadcasting. Using a DC-biased condenser capsule and a carefully designed transducer, this microphone provides a great sound for the human voice. The frequency response is specifically focused for "speech" and picks up the human voice very clearly and naturally. Also, this microphone features cardioid directivity with approximately 20 dB rejection on axis versus 180 degrees. The system is very effective for isolation from vibration noise because the resonance of the shock absorber is set to lower than 20 Hz. - Clear and natural human voice because of exclusively designed frequency response
- Superb isolation from table vibration using a unique absorbing system
- Small and slim adjustable design
- Titanium diaphragm is durable and immune to humidity
- Gooseneck section is removable from the base
In the Box Sanken Gooseneck Condenser Microphone (300mm) Stand Base Vinyl Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken Gooseneck Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken CUS-101B/300 Specs | Directivity | Cardioid | | Transducer | DC Biased Condenser | | Frequency Range | 50 Hz-10 kHz | | Sensitivity | 5.6 mV/Pa (-45 dB, 0 dB=1 V/Pa) | | Equivalent Noise Level | 22 dBA | | Maximum SPL | 125 dB SPL | | Output Impedance | 250 Ω | | Current Consumption | <0.85 mA | | Power | +48±4 V Phantom | | Surface Finish | Satin Nickel | | Connector | XLR 3-Pin Male | | Diameter | 15.82 x 0.96" (402 x 24.4 mm) (Metal Mesh) | | Weight | Microphone: 2.89 oz (82 g)
Stand Base: 22.61 oz (641 g) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
