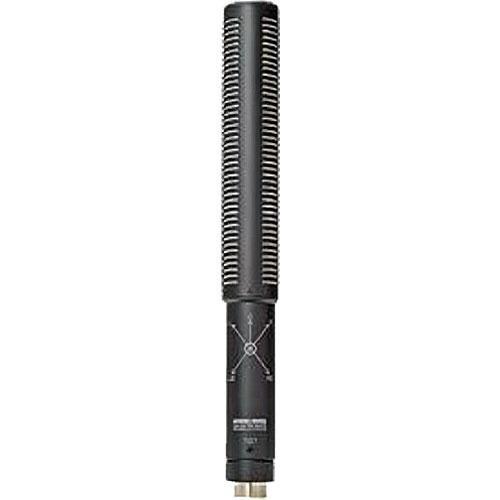

User Manual for Sanken WMS-5 Five-Channel Surround Microphone Click to enlarge the picture
Contents of the user manual for the Sanken WMS-5 Five-Channel Surround Microphone
- Product category: Stereo & Specialty Microphones Sanken
- Brand: Sanken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sanken Stereo & Specialty Microphones
|
User manual for the Sanken WMS-5 Five-Channel Surround Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sanken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sanken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sanken product will considerably shorten its lifespan!
|
Product description The WMS-5 Five-Channel Surround Microphone from Sanken is a professional field microphone designed to capture audio for five-channel surround recordings. The three capsules (mid-front, side, mid-rear) are placed to maintain precise phase-coherence and deliver accurate five-channel surround sound for HDTV broadcast and film applications.Five discrete balanced XLR outputs send audio to separate recorder tracks, mixer channels, etc. M-S (mid-side) to left/right stereo matrix circuitry is built into the microphone, making it easy to use. The WMS-5 Five-Channel Surround Microphone delivers high-quality audio and flexibility that is suitable for feature film audio, broadcast audio, sound design recordings, and more. - Five Channel Surround
- The WMS-5 is designed to capture and reproduce audio in five-channel surround.
- Three Mic Capsules in One Body
- The WMS-5 features 3 capsules (2 mid capsules for the front and rear, along with a third capsule for the sides) that are placed for precise phase coherence and accurate surround reproduction.
- Five Discrete Output Channels
- Five discrete balanced XLR output connectors isolate surround audio to separate mixer channels and recorder tracks.
In the Box Sanken WMS-5 Five-Channel Surround Microphone 12-pin XLR Cable with - L, C, R, LS, and RS 3-pin XLR Connections Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sanken WMS-5 Five-Channel Surround Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSanken WMS-5 Specs | | | Sound Field | Surround | | Transducer | Condenser | | Polar Pattern | Hypercardioid, Supercardioid | | Frequency Range | 50 Hz to 20 kHz | | Equivalent Noise Level | 20 dB A-Weighted
22 dB A-Weighted | | Maximum SPL | 120 dB SPL Peak | | Impedance | 120 Ohms | | Sensitivity | 44.7 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 12-Pin Multi | | Operating Voltage | 48 V | | Length | 9.25" / 235 mm | | Diameter | 1.09" / 27.8 mm | | Weight | 8.29 oz / 235 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 14.0 x 7.0 x 5.0" |
