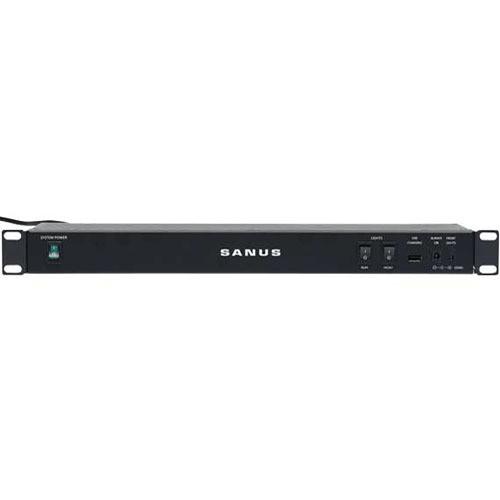

Product description The SANUS CAPT01 MultiVolt Power Supply is a 1 RU rackmountable power supply designed to power lights, fans, USB components, and 12V devices in A/V racks and server rooms. It fits in standard 19” equipment racks and includes power ports on the front and rear.On the front panel, there is a 5V USB Type-A port, a 12V “always on” jack, light connection, and switches for front/rear lights and overall power. The rear panel features three 5V USB ports, four 12V lights-only connections, six 12V power connections (always on), four thermostat-controlled 12V connections, and a thermostat port. The included thermostat kit monitors the rack temperature and automatically activates connected fans (not included) whenever the temperature crosses 85°F, then deactivates them when the temperature falls below 70°F.The CAPT01 ships with mounting clips and a cable channel for an easy and clean-looking installation. - Powers multiple USB and 12V devices connected to the front and rear of the unit
- Front-panel switches control power to the connected components
- Included thermostat kit monitors the rack temperature, automatically activating or deactivating fans (not included) at preset temperatures
- Front panel includes a 5V USB port, 12V "always on" jack, and light connection
- Rear panel has three 5V USB ports, four 12V lights-only connections, six 12V power connections (always on), four thermostat-controlled 12V connections, and a thermostat port
UPC: 793795524140 In the Box SANUS CAPT01 MultiVolt Power Supply Thermostat 2 x Clips Cable Channel IEC Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SANUS CAPT01 MultiVolt Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSANUS CAPT01-B1 Specs | Rack Height | 1 RU | | Cable Length | Thermostat: 6' / 1.8 m | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 3 A maximum | | Power Outputs | 4 x USB Type-A: 5 V, 2.1 A maximum
5 x Lights: 12 V, 1.2 A maximum
7 x Always On: 12 V, 2.5 A maximum
4 x Thermostat Controlled: 12 V, 2.5 A maximum | | Automatic Thermostat | Cycle on at 85°F / 29°C
Cycle off at 70°F / 21°C
±6° variance | | Dimensions (W x H x D) | Power Supply: 18.9 x 1.7 x 4.5" / 480.8 x 44.0 x 114.3 mm
Thermostat: 1.5 x 1.2 x 1.1" / 38.0 x 29.5 x 29.0 mm (excluding cable) | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 20.7 x 10.5 x 4.0" |
