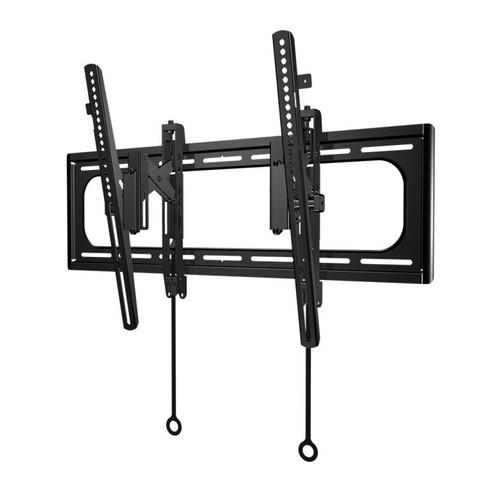

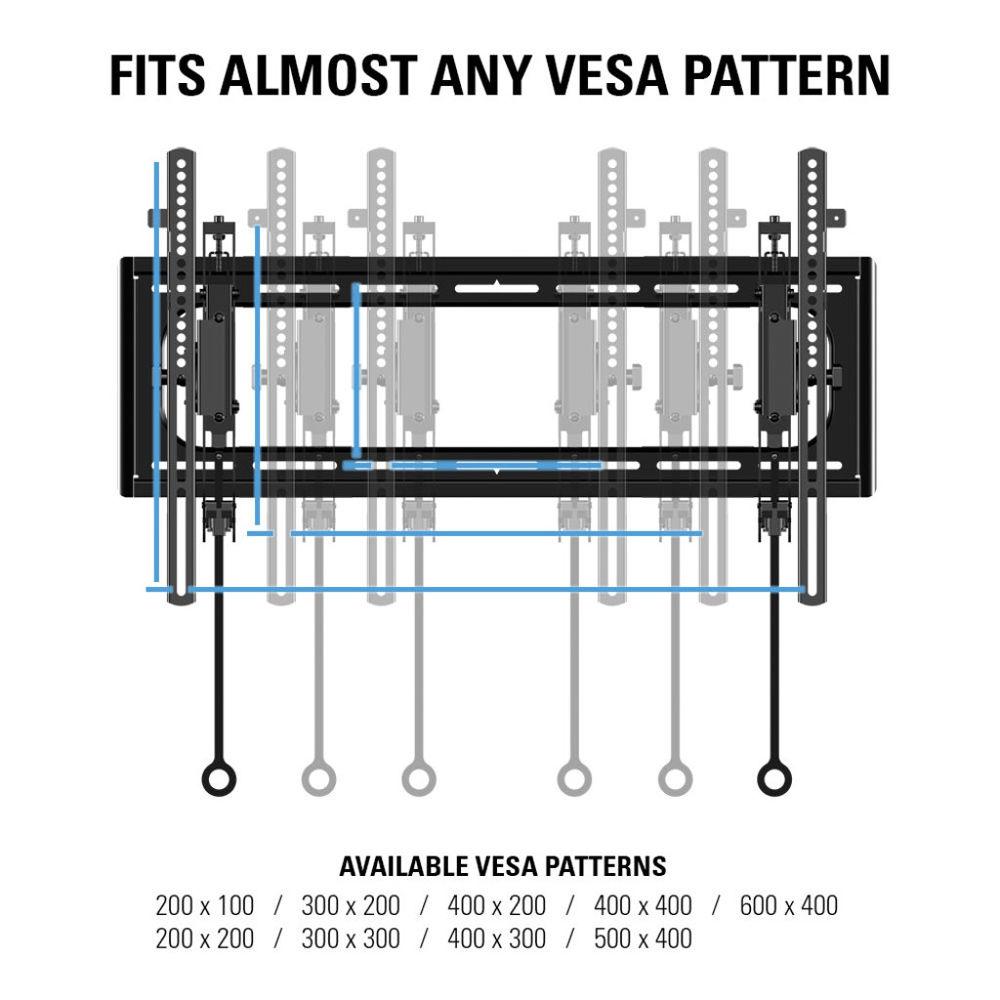

Product description Mount your 46 to 90" flat-panel display only 2.75" off a wall with the Sanus VLT6-B1 Advanced Tilt Premium TV Wall Mount. It supports displays weighing up to 150 pounds with mount patterns ranging from 200 x 100 to 690 x 415 and provides -12 to 7° of tilt adjustment. You also have side-to-side shift and post-install height and level adjustments. ClickStand technology provides access to the rear of the display for simplified input/output access. Features - Designed to fit a 46 to 90" display and hold up to 150 pounds

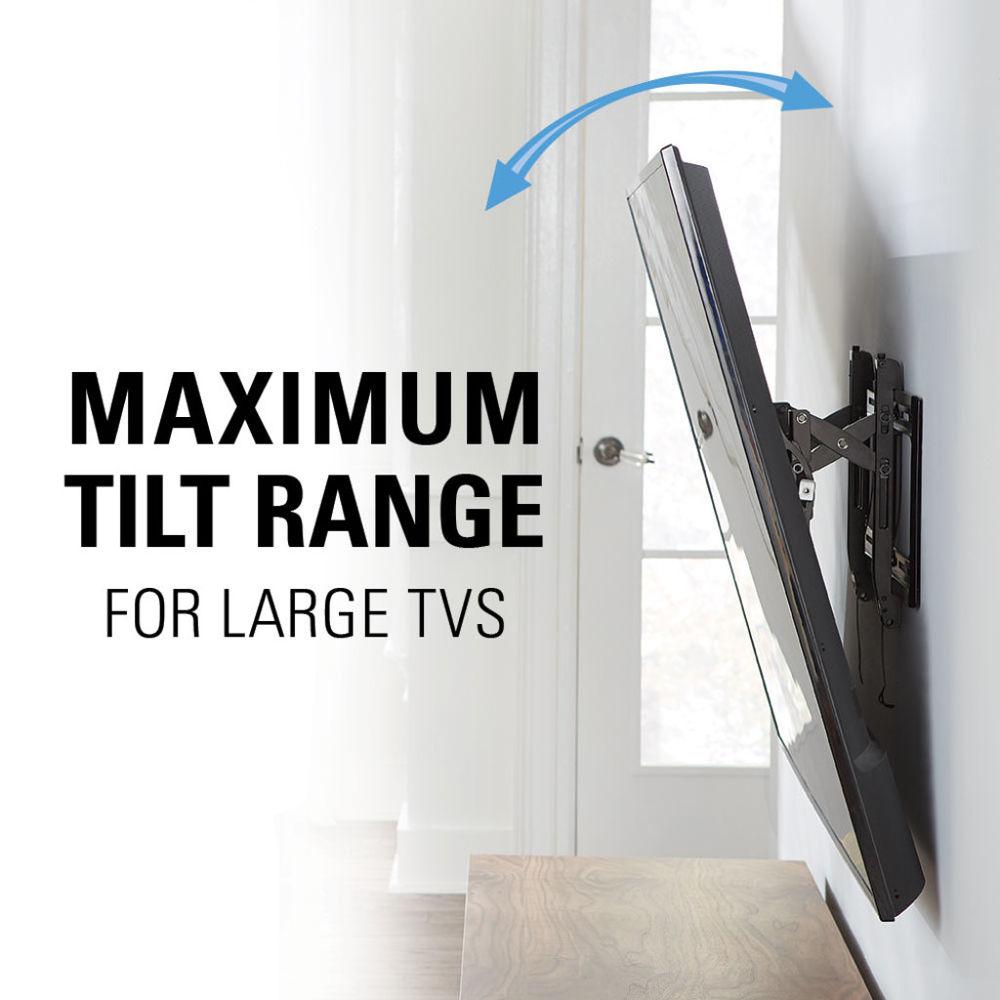

- Features a 5.7" extension on a tilting mount, allowing even 90" TVs to get the maximum tilt range possible and eliminate screen glare

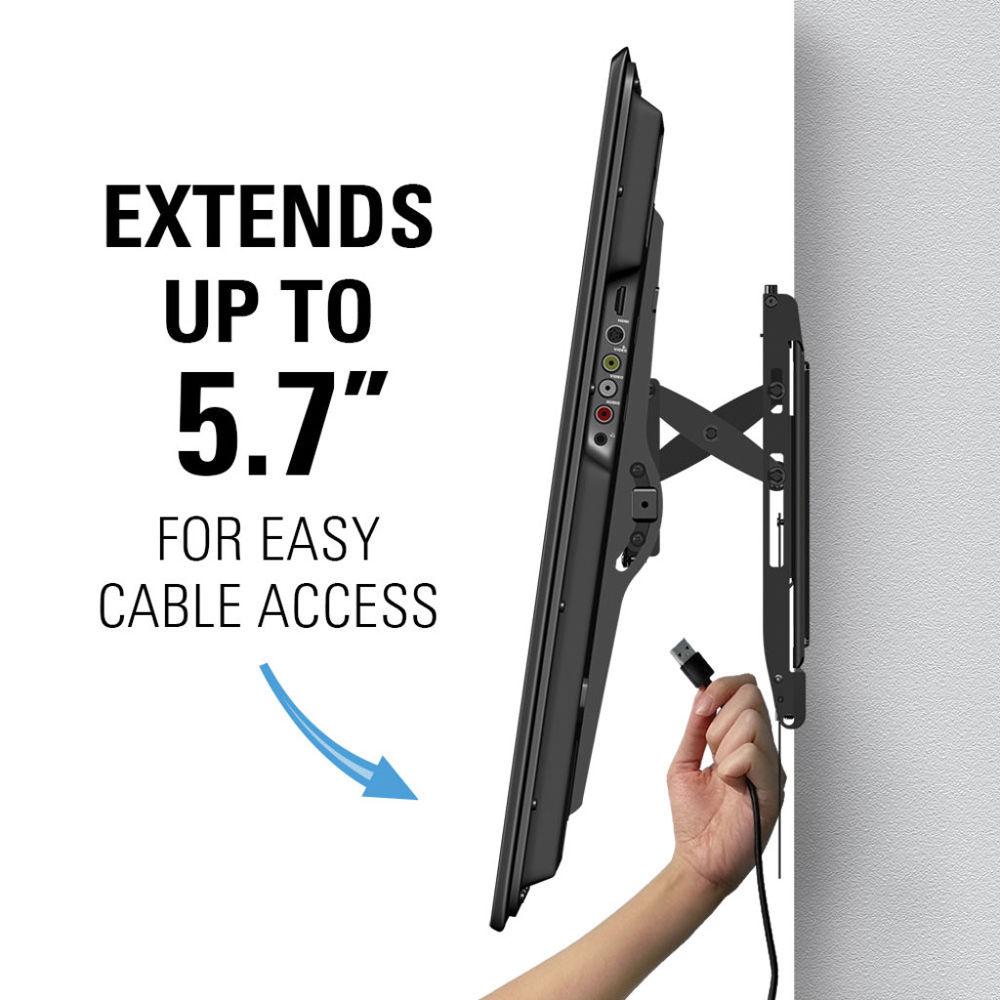

- Extending from the wall also gives you easy access to cables behind the screen

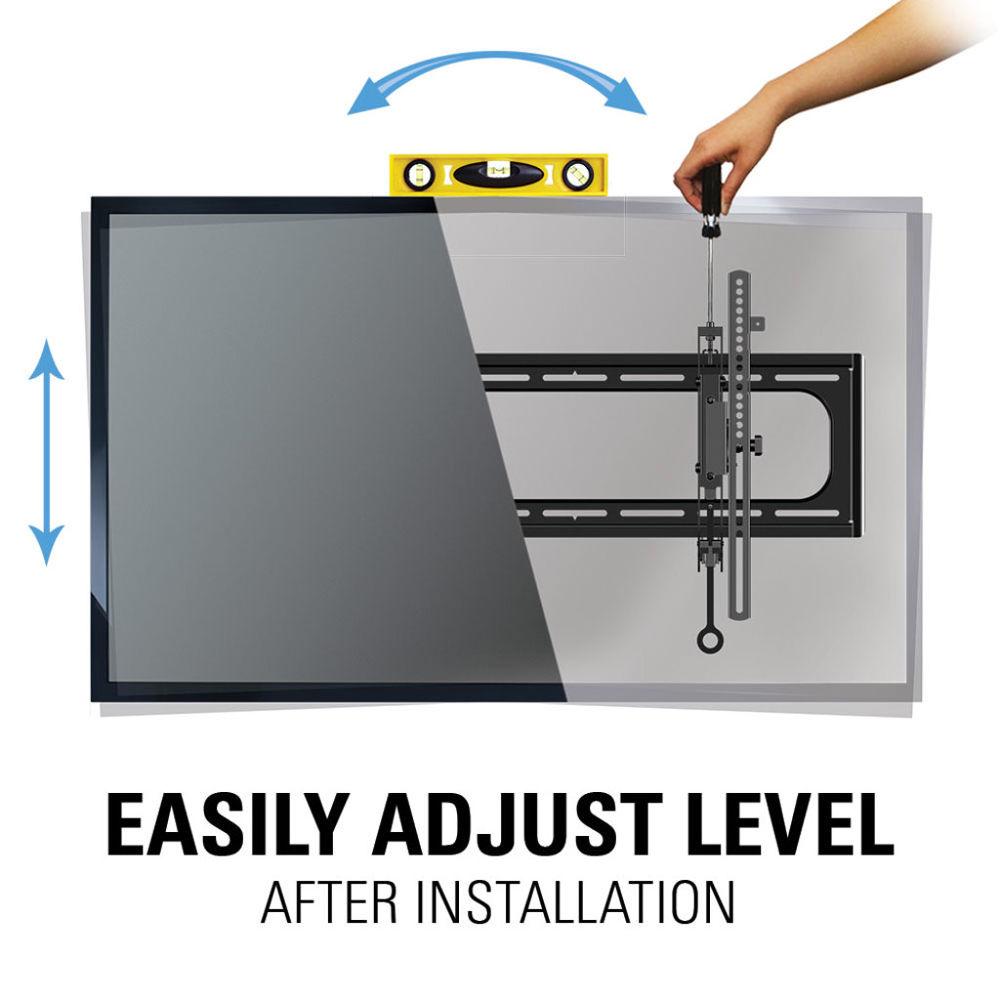

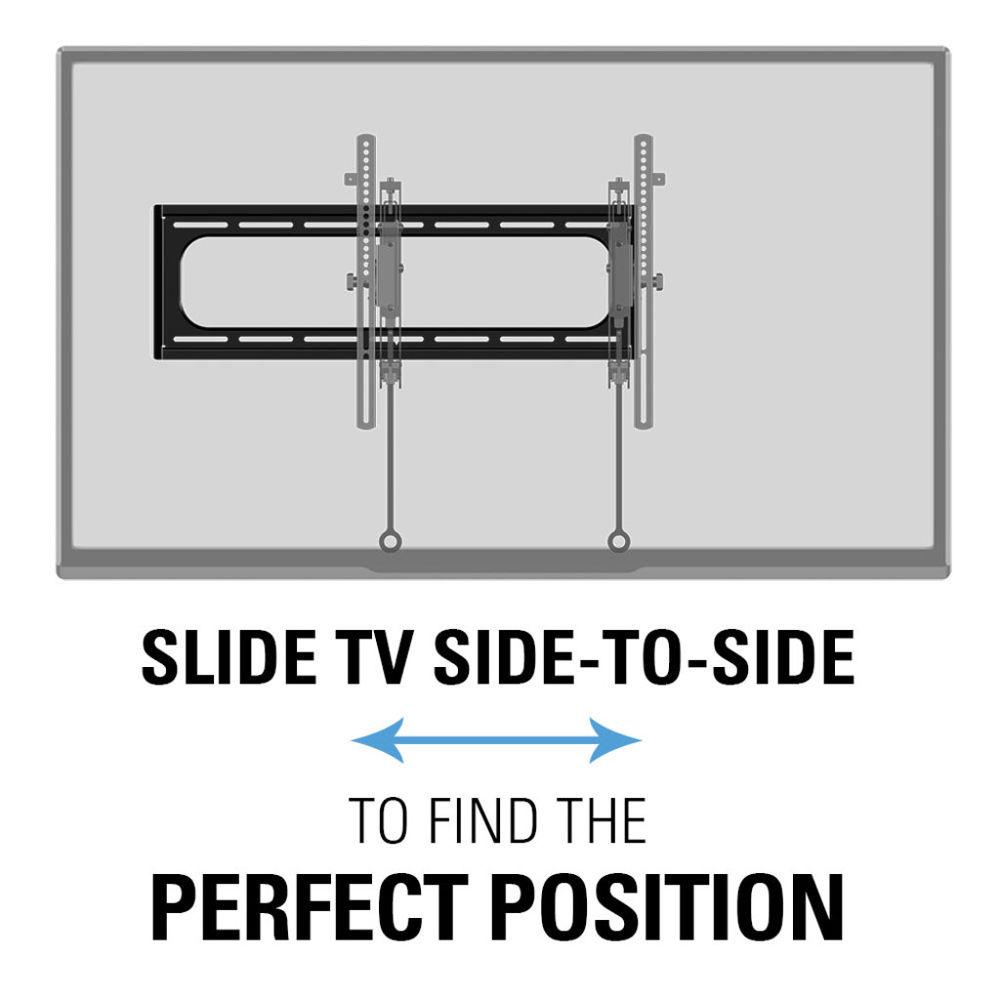

- With side-to-side shift and post-install height and level adjustments, you can put the finishing touches on your TV mount

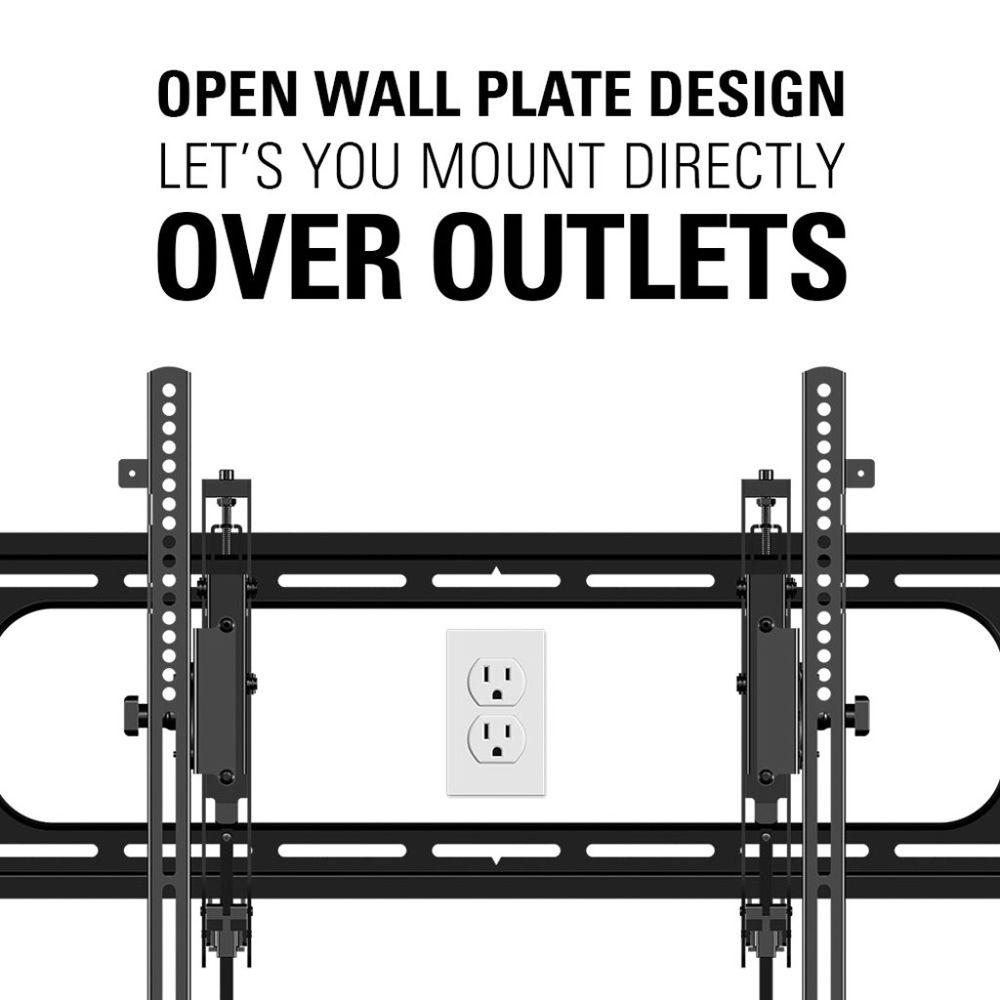

- An open wall plate design means the VLT6 can be mounted directly over electrical outlets for a simple power connection
- The 3-step installation process is made to be simple and the VLT6 mount is UL-listed for quality and safety
- The VLT6 mount comes with 7-day customer service for additional help
UPC: 793795530936 In the Box SANUS VLT6-B1 Advanced Tilt Premium TV Wall Mount for 46-90" Displays Assembly Hardware Mounting Hardware Limited 10-Year Warranty More info from SANUS Table of Contents
|
Upload User Manual
Have you got an user manual for the SANUS VLT6-B1 Advanced Tilt Premium TV Wall Mount for 46-90" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

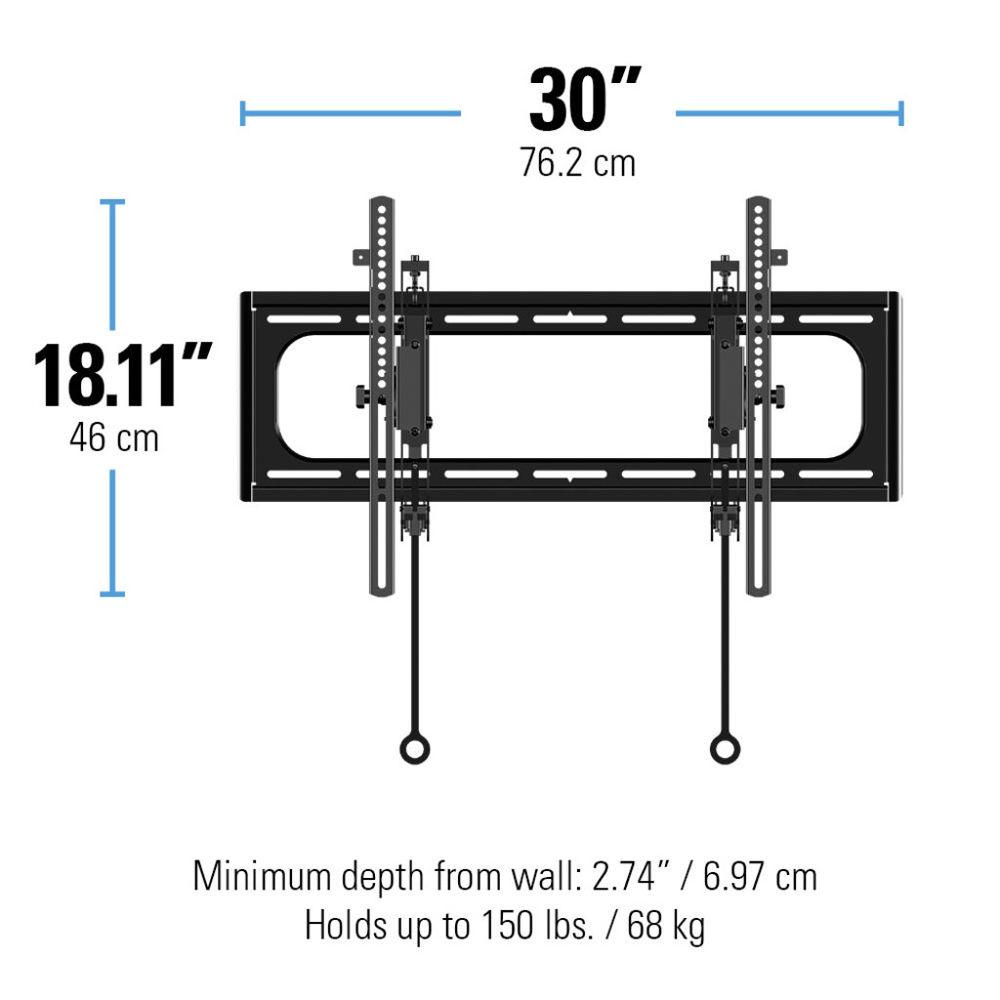

Technical parametersSANUS VLT6-B1 Specs | TV Size Range | 46-90" / 116.84-228.60 cm | | Maximum Weight | 150 lbs / 68.04 kg | | Universal Mounting Pattern | 200 x 100 through 690 x 415 mm | | VESA Pattern | 200 x 100 200 x 200 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 500 x 400 600 x 400 | | Tilt | -12 to 7° | | Dimensions (W x H x D) | 30.00 x 18.11 x 2.75 - 5.75" / 76.20 x 46.00 x 6.99 - 14.61 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 32.0 x 10.75 x 3.0" |
