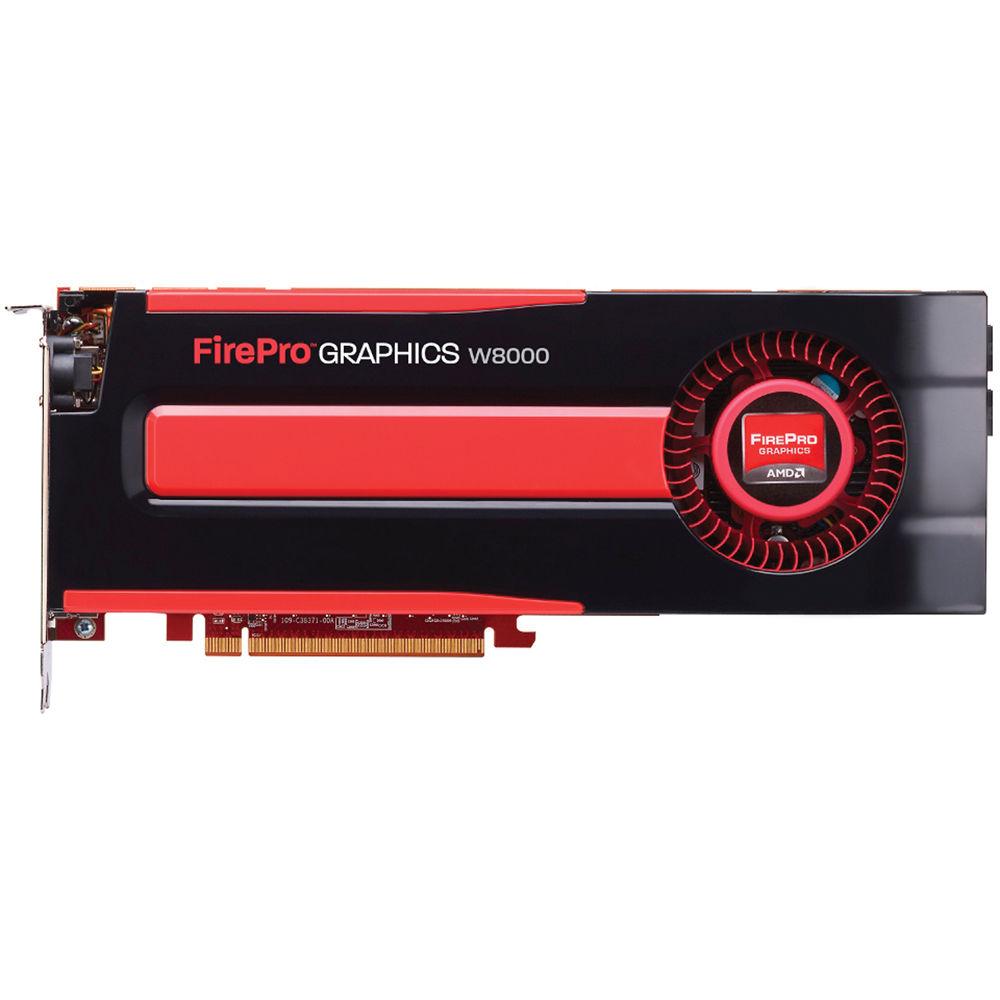

Product description The FirePro W8000 Workstation Graphics Card from Sapphire is designed for use in applications that demand high-performance dedicated graphics processing power. Although this can card can drive up to six displays at DCI 4K (4096 x 2160) resolution, it is capable of much more than just rendering display graphics. The parallel processing power locked up in the GPU can be leveraged for a wide range of computationally intensive tasks, including transcoding video, rendering 3D objects and environments for CAD, analysis of complex data sets, and more. The card features a 900 MHz core clock speed, and has 4GB of GDDR5 RAM over a 256-bit memory interface providing a memory bandwidth of up to 176 GB/s.

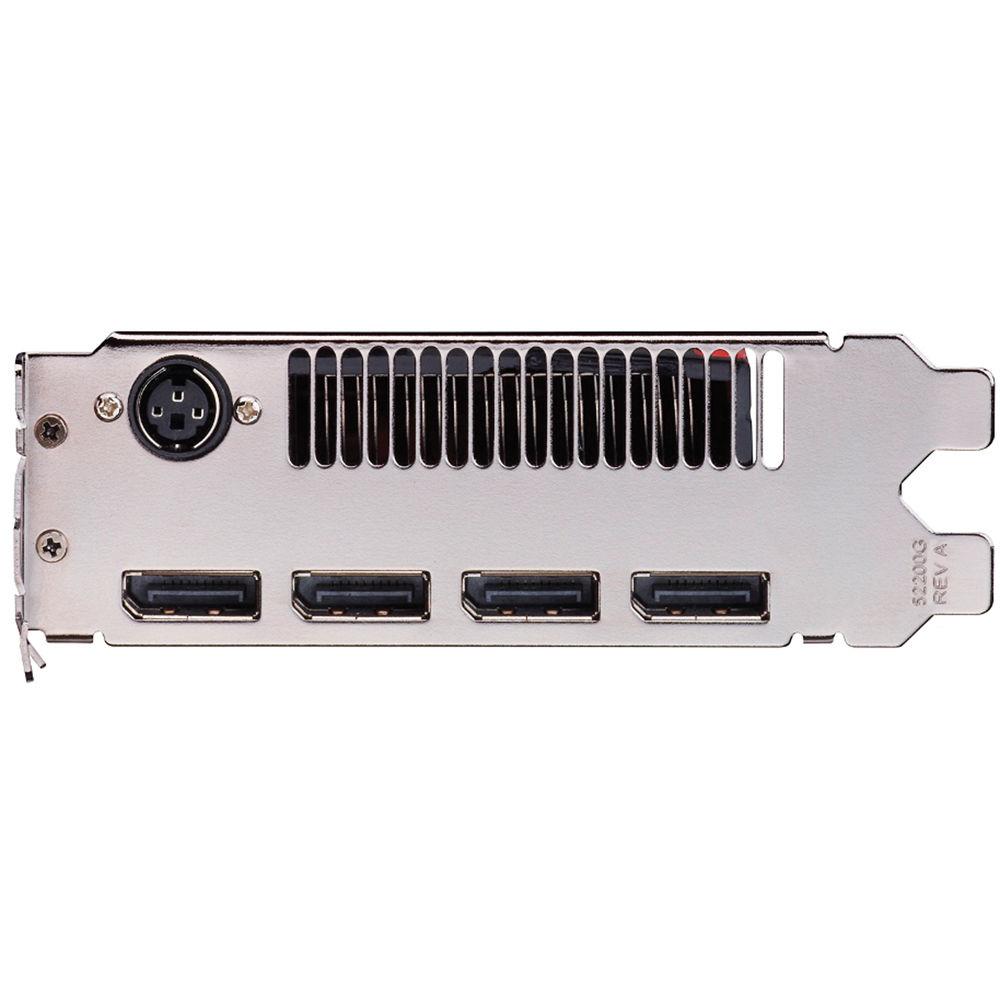

Four DisplayPort outputs allow you to connect the card to a variety of display types, including computer monitors, HDTV TVs, digital signage displays, projectors, and many 4K and 3D devices. Two DisplayPort to dual-link DVI adapters are included. Additionally, the outputs can be adapted to HDMI using separately available adapters or cables. Using DisplayPort 1.2-compliant displays the card supports a maximum resolution of 4096 x 2160 and with DisplayPort 1.1 displays, 2560 x 1600. There is a stereo connector to trigger left/right eye alterations in active 3D systems that support AMD HD3D technology. - Popular API Support
- DirectX 11.1, OpenCL 1.2, OpenGL 4.3 and Shader Model 5.0 support allows GPU-aware applications to benefit from the acceleration provided by a dedicated graphics card, taking much of the workload off the computer's CPU
- 3.23 TFLOPs Performance
- This card is capable of processing up to 3.23 trillion single-precision floating point operations per second as well as 806 billion double-precision floating point operations per second
- AMD Eyefinity Technology
- Eyefinity helps you manage multi-display setups, providing flexible configuration options beyond what the operating system offers for applications as diverse as video walls to immersive viewing
- GeometryBoost
- Allows the GPU to process geometry data at a rate of twice per clock cycle resulting in a doubling in the rate of primitive and vertex processing. Triangle rates increase two-fold relative to a GPU that does not possess GeometryBoost
- Partially Resident Textures (PRT)
- PRT can utilize texture files up to 32 terabytes large typically with minimal performance impact. PRT accomplishes this by streaming small bits of these massive textures into the GPU as needed, giving compatible applications a virtually endless supply of unique texture data
- AMD Power Tune
- Dynamically boosts the core clock speed up to 30% wherever possible to allow applications to maximize the processing power they have available while reducing it when not required to conserve energy
- Unified Driver
- A unified driver across the entire FirePro line simplifies IT maintenance and administration
- AMD Graphics Core Next (GCN) Architecture
- Features a 28nm core architecture designed to increase efficiency by putting more transistors in less space. In addition, the architecture is engineered to be capable of performing many of the processing tasks that previously could only be handled by a computer's CPU
- DirectGMA Support
- Enables low latency peer to peer data transfers between devices on the bus and AMD FirePro GPUs. Devices supporting DirectGMA can write directly into the local memory of the GPU and vice versa - the GPU can directly access the memory of a peer device
- D.O.P.P.
- By enabling application access to the frame buffer before content reaches the display engine, ISVs are granted the ability to create new GPU-based solutions
- AutoDetect Technology
- As a user moves between applications, or opens new ones, the graphics driver settings are automatically configured for maximum performance
- Full 30-Bit Display Pipeline
- When connected to 30-bit displays, enables four times more color values than 24-bit devices for more accurate color reproduction and superior visual fidelity
- HydraVision
- Use HydraVision to manage desktop displays and workspaces in multi-display environments:
- Explicitly set the behavior of pop-up windows and dialogs in different applications though Desktop Manager
- Provide multiple layers of the desktop workspace through Multi Desktop
- Restrict application window placement across multiple desktops through HydraGrid
- AMD ZeroCore
- Give the card the ability to power down when any attached displays are off - also known as the "long idle state"
- Framelock/Genlock
- Genlock facilitates synchronization to external sources, such as a common house clock in a broadcast studio. Meanwhile Framelock synchronizes 3D rendering across multiple GPUs installed in different machines
- Video Codec Engine (VCE)
- A multi-stream hardware H.264 HD encoder, for significantly faster H.264 encoding than is generally possible when relying on the CPU
- ECC Memory Support
- Designed to help ensure the accuracy of computations by correcting single or double bit errors caused by naturally occurring background radiation
- PCI Express 3.0 x16 Support
- Provides twice the bandwidth of PCI Express 2.0; for example, an x8 PCI Express 3.0 slot has the same bandwidth as a x16 PCI 2.0 slot. In addition, the card remains backward-compatible with motherboards using earlier generations of PCI Express
In the Box Sapphire FirePro W8000 Workstation Graphics Card - 2 x Active DisplayPort to Dual-Link DVI Adapter
- AMD CrossFire Pro Connector
- Limited 3-Year Warranty
Brochure PDF 1.4mbetcxfvwcvvrzxytdrctxyzwx Table of Contents
|
Upload User Manual
Have you got an user manual for the Sapphire FirePro W8000 Workstation Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSapphire W8000 Specs | | | GPU | FirePro W8000 | | GPU Clock | 900 MHz | | Memory | 4 GB | | Memory Type | GDDR5 | | Memory Interface | 256-bit | | Memory Bandwidth | 176 GB/s | | Error Correction (ECC) | Yes | | Compute Performance | Single Precision: 3.23 TFLOPs
Double Precision: 806 GFLOPs | | | | Outputs | 4 x DisplayPort
1 x Stereo 3D connector on 3-pin mini DIN | | Maximum Resolution | DisplayPort 1.2: 4096 x 2160
DisplayPort 1.1: 2560 x 1600 | | Host Interface | PCI-E 3.0 x16 | | | | Hardware | 1 x Free PCI-E x16 expansion slot - use PCI-E 3.0 x16 for best performance
2 x PCI-E slots physical
2 x 6-pin PCI-E power connector
2 GB or more system memory
Internet connection for driver installation | | Software | Windows (32- and 64-bit): 8, 7, Vista, XP
Linux (32- and 64-bit): Support varies depending on distribution | | | | Supported APIs | DirectX 11.1, OpenGL 4.3, OpenCL1.2, Shader Model 5.0 | | Thermal Solution | Active fansink | | Power Consumption | Maximum: <225 W | | Form Factor | Dual-slot; full height, full length | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
