User Manual for Saramonic BMCC-A01 2-Channel XLR Audio Adapter for Blackmagic Cinema Camera Click to enlarge the picture
Contents of the user manual for the Saramonic BMCC-A01 2-Channel XLR Audio Adapter
- Product category: Camcorder XLR Adapters Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Camcorder XLR Adapters
 |
User manual for the Saramonic BMCC-A01 2-Channel XLR Audio Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

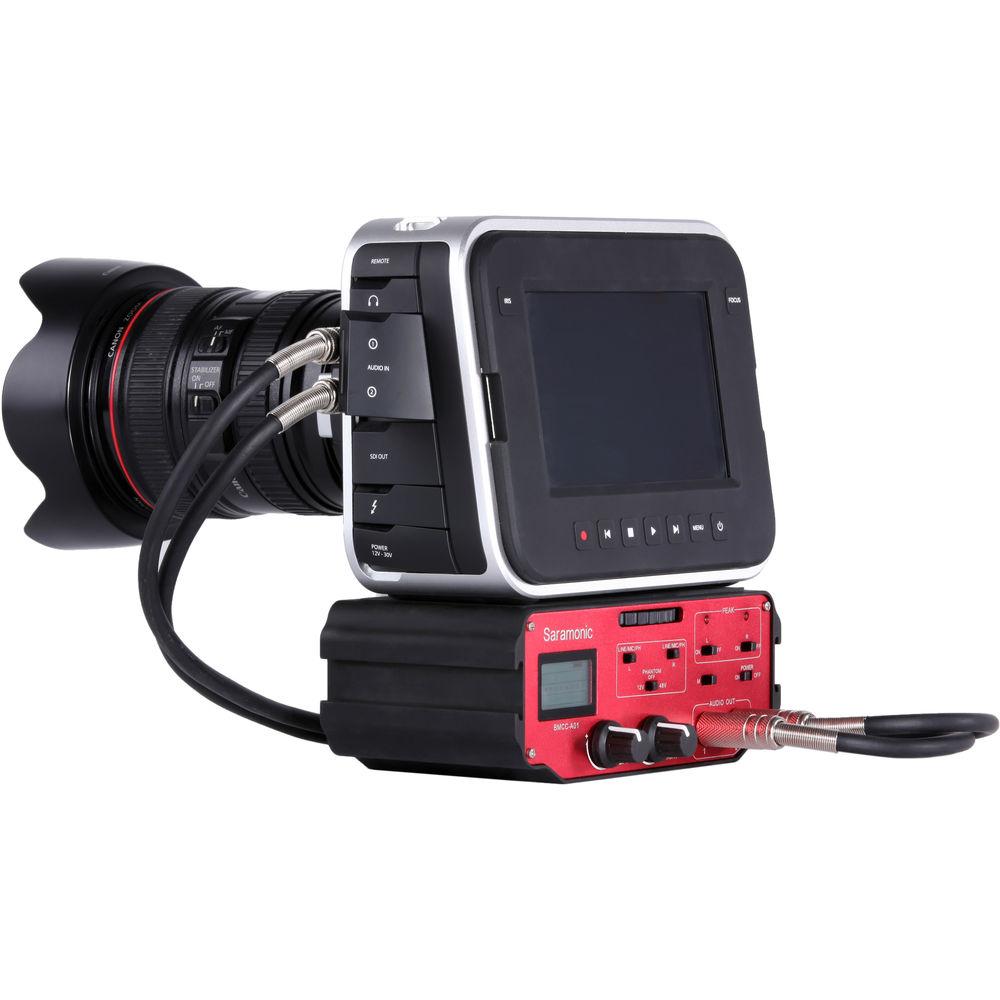

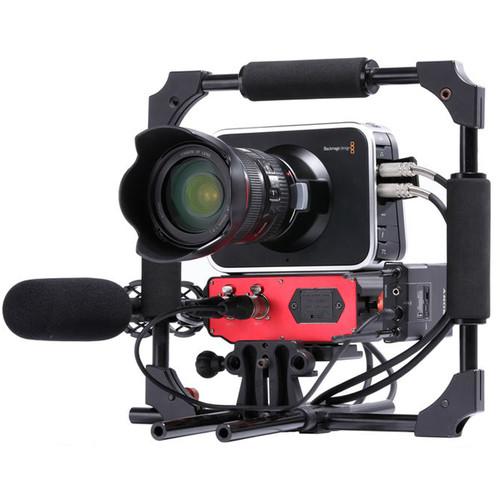

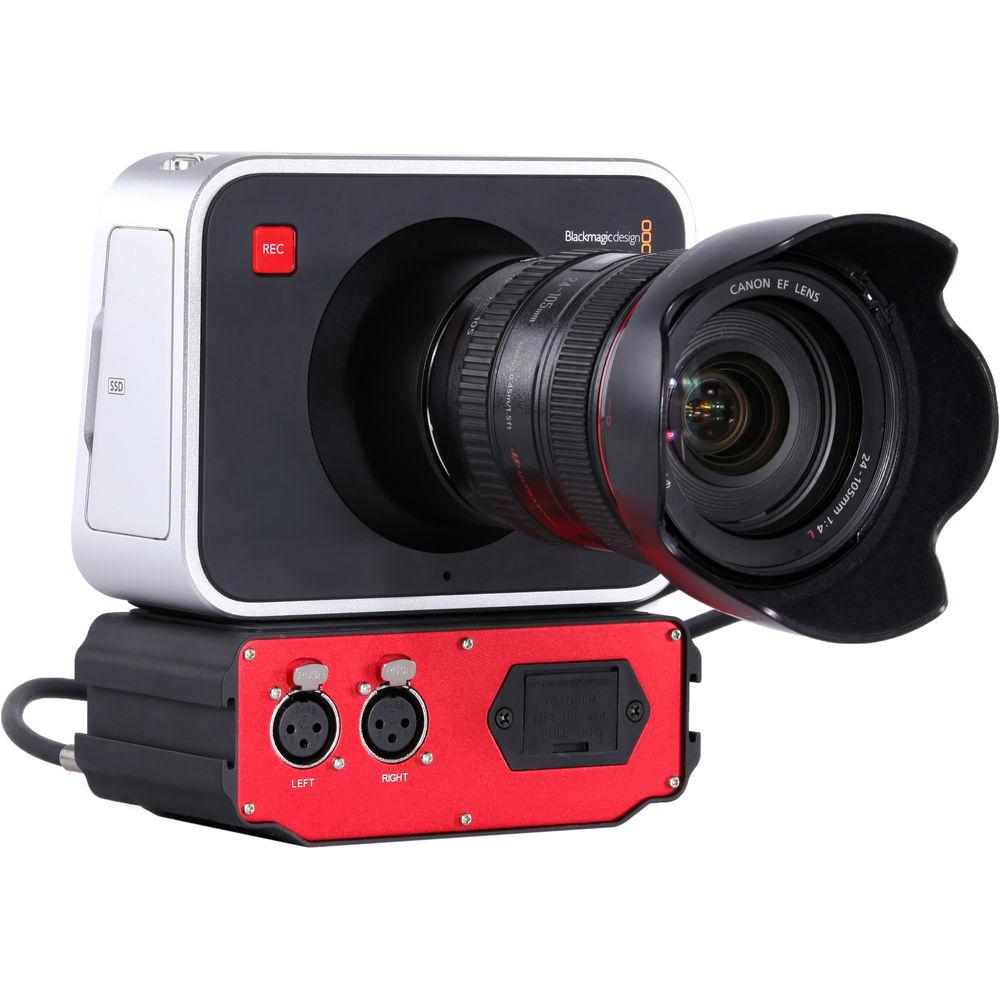

Product description The Saramonic BMCC-A01 2-Channel XLR Audio Adapter from IndiPro Tools is a 2-channel XLR audio adapter featuring phantom power controls and is designed specifically for the Blackmagic Cinema Camera. The BMCC-A01 allows you to connect microphones, wireless microphones, digital recorders, external audio mixers, soundboards, and more to the BMCC via two balanced XLR inputs and two 1/4" outputs. The BMCC-A01 is designed to save hours in post-production. - -18 to +3 dB in 3 dB increments
- Level controls allow you to balance both input levels
- Phantom power switch allows you to select 0, 12, or 48V of phantom power
- Auto Gain Control switch reduces noise during quiet moments of recording by cutting our your camera's Auto Gain Control function
UPC: 685248988107 In the Box Saramonic BMCC-A01 2-Channel XLR Audio Adapter for Blackmagic Cinema Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic BMCC-A01 2-Channel XLR Audio Adapter for Blackmagic Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Saramonic BMCC-A01 2-Channel XLR Audio Adapter for Blackmagic Cinema Camera can be downloaded in PDF format at the link stated below.

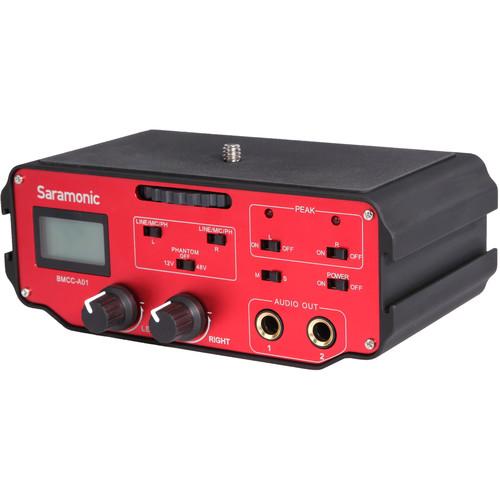

Technical parametersSaramonic BMCC-A01 Specs | Connectors | 2x XLR, balanced input
2x 1/4" (6.3 mm) TRS, audio output | | Controls and Indicators | 1x Switch, LIN/MIC/PH left
1x Switch, LIN/MIC/PH right
1x Switch, Phantom Power 12V/48V/Off
2x Switch, Peak LED light On/Off, Left/Right
1x Switch, Main Power On/Off
1x Switch, Mono/Stereo output
2x Knob, Trim Controls Left/Right
2x LED red, Overload
1x Level Meter | | Input Level | MIC: 0 dB on the Level meter at -44 dBu input
LINE: 0 dB on the Level meter at +10 dBu input | | Gain | Unity | | Phantom Power | 0, 12, or 48 V | | Frequency Response | 10 Hz to 100 kHz (+/-0.5 dB) | | THD | Less than 0.01% @ 1 kHz, -30 dBu input | | SNR | 80 dB @ 1 kHz, -30 dBu input | | Level Metering | -18 to +3 dB in 3 dB increments | | Power Requirements | 9 V battery (not included) | | Battery Life | Alkaline: 6 hours, typical
Lithium: 12 hours, typical | | Dimensions | 6.1 x 3.9 x 2.5" (15.5 x 9.8 x 6.4 cm) | | Weight | 21.7 oz (615 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.5 x 7.0 x 3.7" |
