User Manual for Saramonic Mix-Adapter, 2-Channel XLR On-Camera Audio Adapter and Mixer Click to enlarge the picture
Contents of the user manual for the Saramonic Mix-Adapter, 2-Channel XLR On-Camera Audio
- Product category: Camcorder XLR Adapters Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Camcorder XLR Adapters
 |
User manual for the Saramonic Mix-Adapter, 2-Channel XLR On-Camera Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

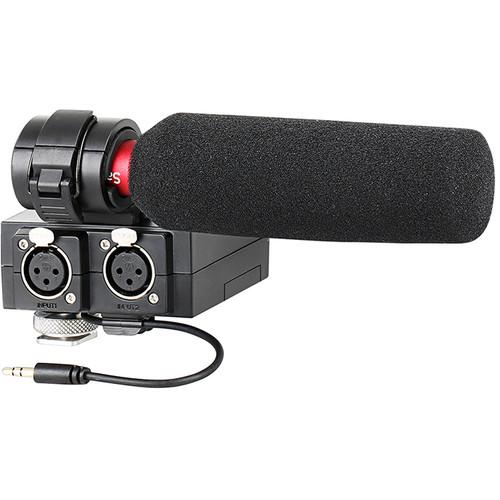

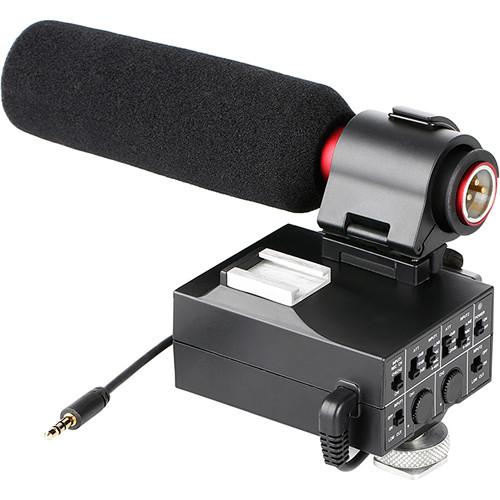

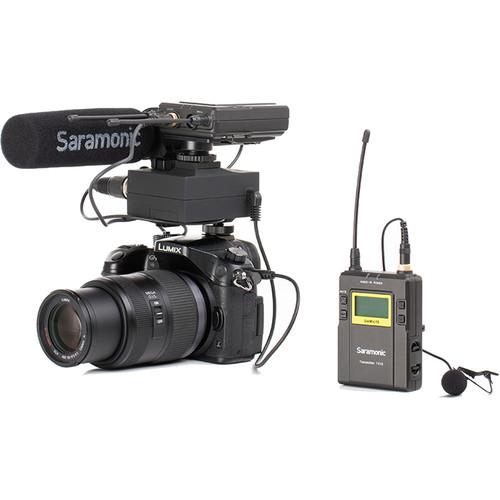

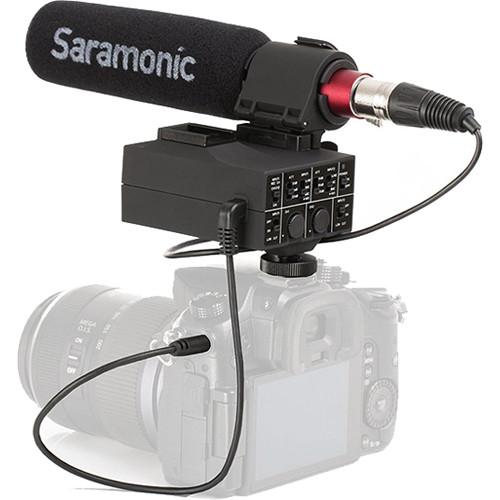

Product description The Mix-Adapter, 2-Channel XLR On-Camera Audio Adapter and Mixer from Saramonic is an ultra-compact and lightweight audio adapter for DSLR, mirrorless, and consumer video cameras. It can be used when paired with a microphone to capture broadcast-quality audio in outdoor and indoor environments. It provides all the controls and features necessary to achieve perfect sound in any shooting situation. The Mix-Adapter bridges the gap between DSLR and professional video cameras by enabling professional audio features such as +48V phantom power, XLR mic inputs, line inputs, and gain control for each microphone input to facilitate high-quality audio for recording directly to the camera. It is powered by a single 9V battery (sold separately). Furthermore, the top of the Mix-Adapter features an integrated microphone holder with a built-in shockmount, which is ideal for holding a professional shotgun mic. A built-in female shoemount is provided for mounting a wireless microphone receiver, an on-camera light or other gear. In addition, a metal shoemount is on the bottom for attaching your camera, and it also has a 1/4-20 tripod thread for further mounting options. It includes a short XLR cable. In the Box Saramonic Mix-Adapter, 2-Channel XLR On-Camera Audio Adapter and Mixer XLR Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic Mix-Adapter, 2-Channel XLR On-Camera Audio Adapter and Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic MIX-ADAPTER Specs | Inputs | 2 x Balanced XLR Inputs | | Output | 1/8" / 3.5 mm TRS Mini-Jack Output Cable (For Cameras and Camcorders) | | Power Requirements | 9 V Battery | | Frequency Response | 20 Hz to 20 kHz, ±0.5 dB | | Signal to Noise Ratio | 80 dB @ 1 kHz, -30 dBu input | | Dimensions (W x L x H) | 3.3 x 3.9 x 3.3" / 84 x 100 x 83 mm | | Weight | 5.9 oz / 167.3 g | | | | Package Weight | 0.985 lb | | Box Dimensions (LxWxH) | 7.8 x 5.6 x 4.55" |
