User Manual for Saramonic RX-XLR9 Dual-Channel Wireless Plug-On Receiver for UwMic9 System Click to enlarge the picture
Contents of the user manual for the Saramonic RX-XLR9 Dual-Channel Wireless Plug-On Receiver
- Product category: Wireless Receivers Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Wireless Receivers
 |
User manual for the Saramonic RX-XLR9 Dual-Channel Wireless Plug-On Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

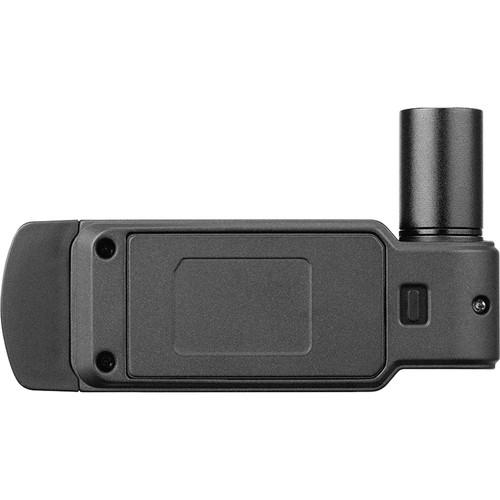

Product description Add the capability of wireless audio reception to your camera, mixer, or audio recorder with the Saramonic RX-XLR9, an XLR-equipped, dual-channel wireless plug-on receiver designed for UwMic9 systems. Connect it directly to your device's XLR input, or use the included XLR to 3.5mm cable and shoe mount to integrate it into your camera-based setup. Since the receiver rotates up to 320 degrees, it can easily be positioned to make room for other gear. The RX-XLR9 works with one or two compatible transmitters (available separately) at a maximum operating range of 330 feet. With automatic scanning and 96 selectable channels in two groups across the 514 to 596 MHz UHF spectrum, the RX-XLR9 ensures reliable wireless signal reception for your interviews, film/TV projects, ENG, EFP, and more. A backlit LCD screen ensures clear viewing of vital information such as the battery status, group, and channel. In addition to the balanced 3-pin XLR output, the RX-XLR9 features a 3.5mm TRS headphone jack for convenient signal monitoring. Power the receiver via two AA batteries or an external USB battery pack (available separately). - Delivers broadcast-quality sound for interviews, film dialog, field recording, TV, and news gathering
- Offers 96 selectable channels in the 514 to 596 MHz in the UHF spectrum
- Auto-scan feature locates the ideal channel, and infrared sync makes setup quick
- Ultra-compact housing featuring durable metal construction
- Mounts directly to an XLR input a professional video camera, mixer, or portable audio recorder
- Includes camera shoe mount with an integrated metal 1/4"-20 tripod thread for easy attachment to DSLR or mirrorless camera

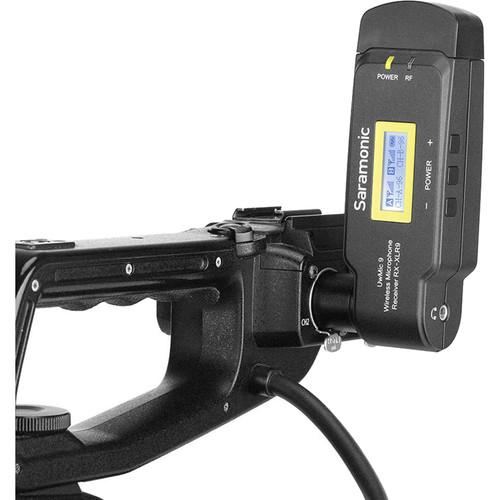

- Rotates up to 320° to make room for other equipment when mounted to a camera
- Works with one or two transmitters such as the TX9 bodypack transmitter, the TX-XLR9 plug-on transmitter, and the HU9 handheld wireless microphone (all available separately)
- Runs on two AA batteries, or can be powered by an external USB battery pack (available separately)
- 3.5mm TRS stereo headphone output for convenient audio monitoring
- Includes 13" XLR female to gold-plated 3.5mm TRS male cable for connecting the RX-XLR9 to the 3.5mm input of a camera
- Includes 4' gold-plated USB Type-C to USB Type-A cable

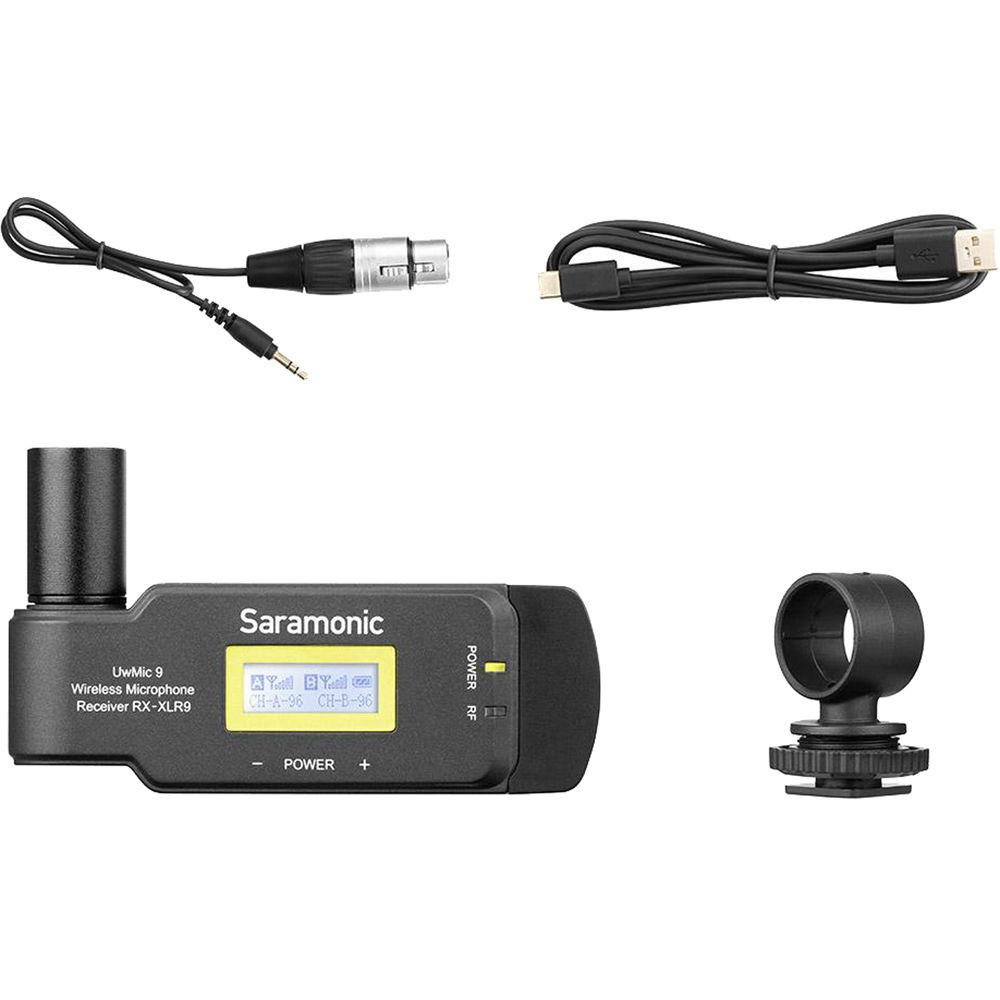

In the Box Saramonic RX-XLR9 Dual-Channel Wireless Plug-On Receiver for UwMic9 System (514 to 596 MHz) Camera Shoe Mount with 1/4"-20 Thread 13" XLR Female to 3.5mm TRS Male Cable 4' USB Type-C to USB Type-A Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic RX-XLR9 Dual-Channel Wireless Plug-On Receiver for UwMic9 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic UWMIC9RX-XLR9 Specs | Wireless Transmission | Digital UHF | | Number of RF Channels | 96 | | Diversity | Non-Diversity | | RF Frequency Band | 514 to 596 MHz | | Latency | 12 ms | | | | Form Factor | Portable | | Mounting Options | Plug-In, Shoe-Mount | | Antenna | 1 x 1/4 Wave Wire, Fixed | | Number of Audio Channels | 1 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output | | Audio Output Level | XLR Output:
-60 dBV
1/8" / 3.5 mm Output:
| | Frequency Response | 40 Hz to 18 kHz
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
