User Manual for Saramonic SmartRig 2-Channel XLR Microphone Audio Mixer Click to enlarge the picture
Contents of the user manual for the Saramonic SmartRig 2-Channel XLR Microphone Audio
- Product category: Audio Interfaces & Systems Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Audio Interfaces & Systems
 |
User manual for the Saramonic SmartRig 2-Channel XLR Microphone Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

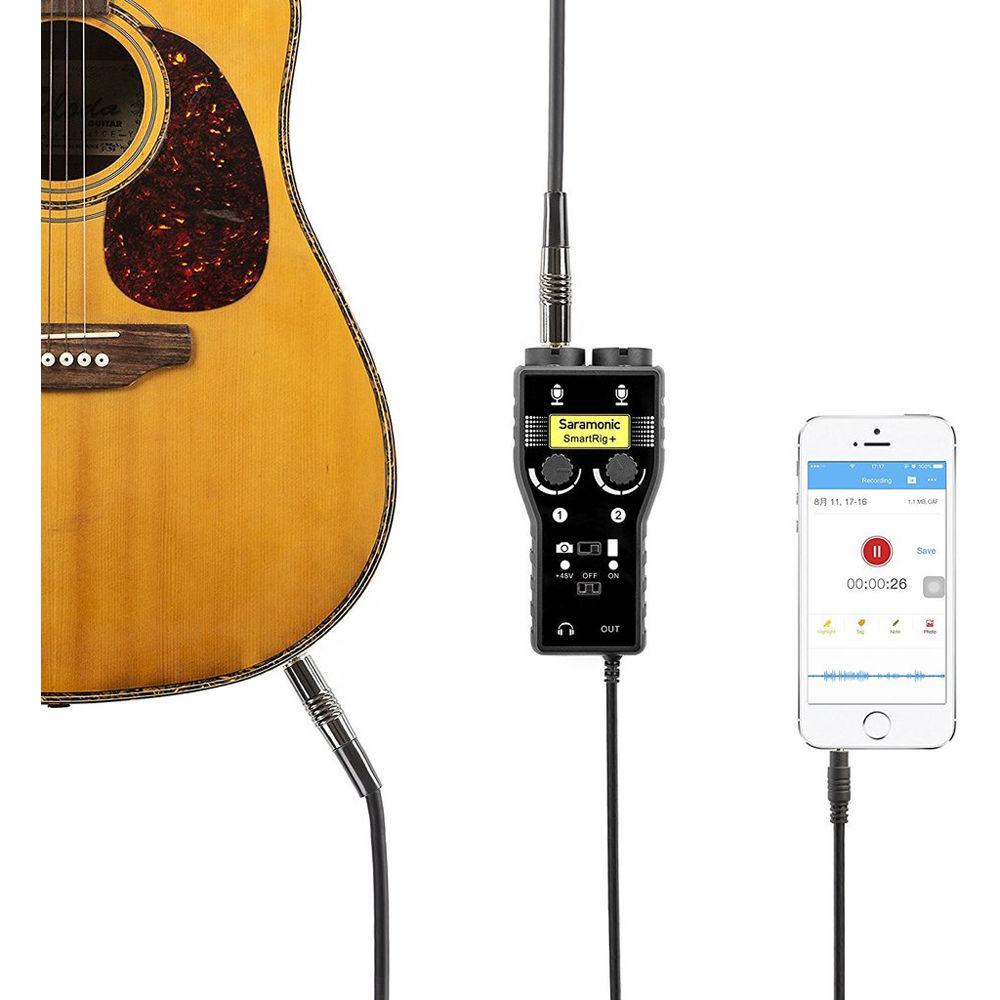

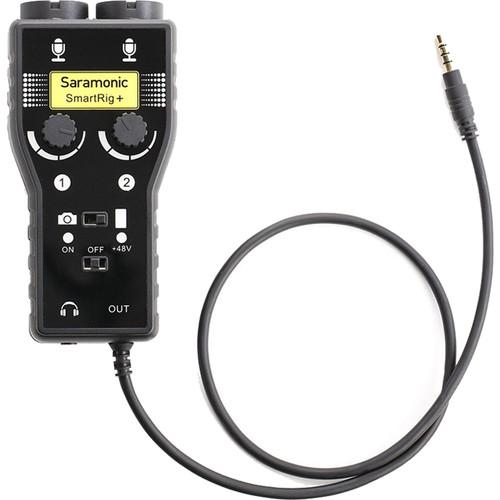

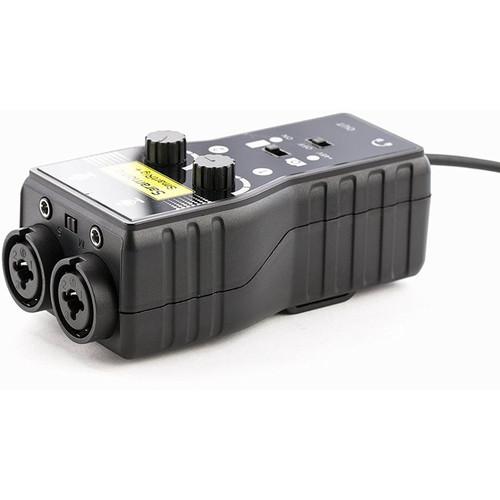

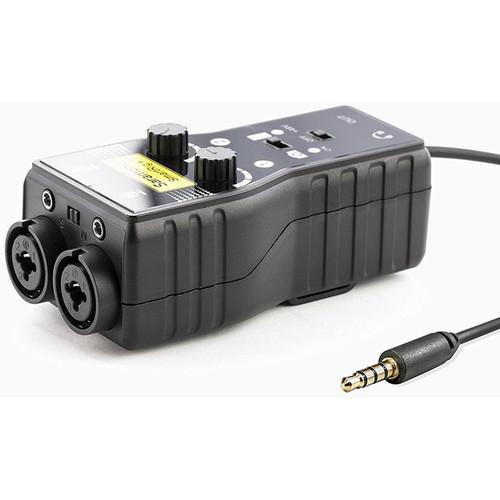

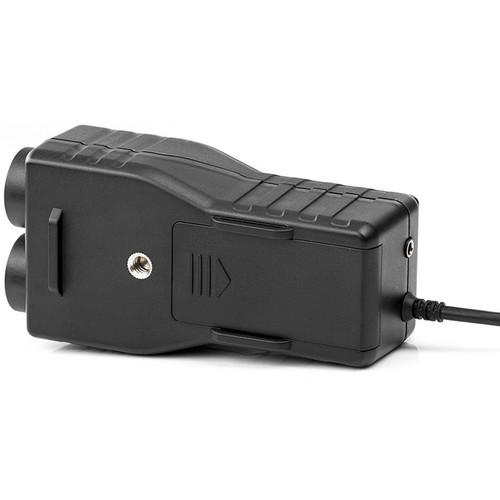

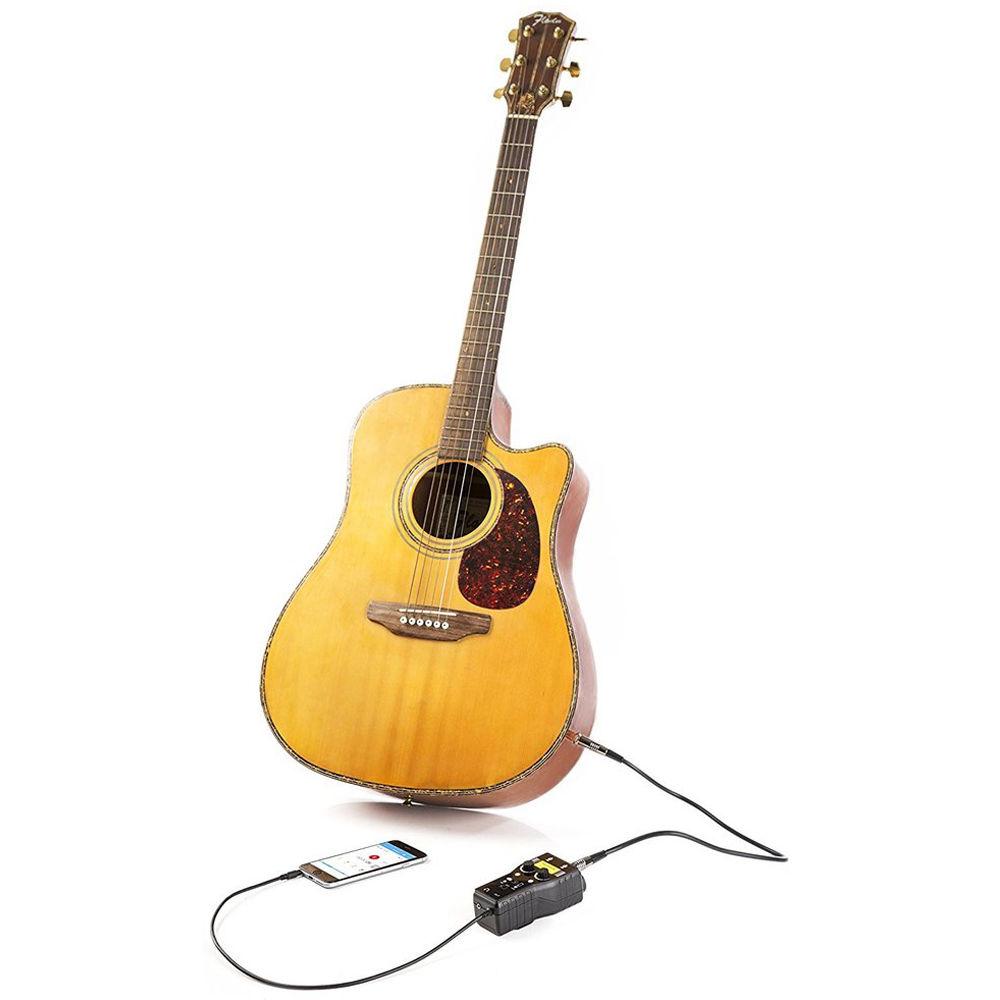

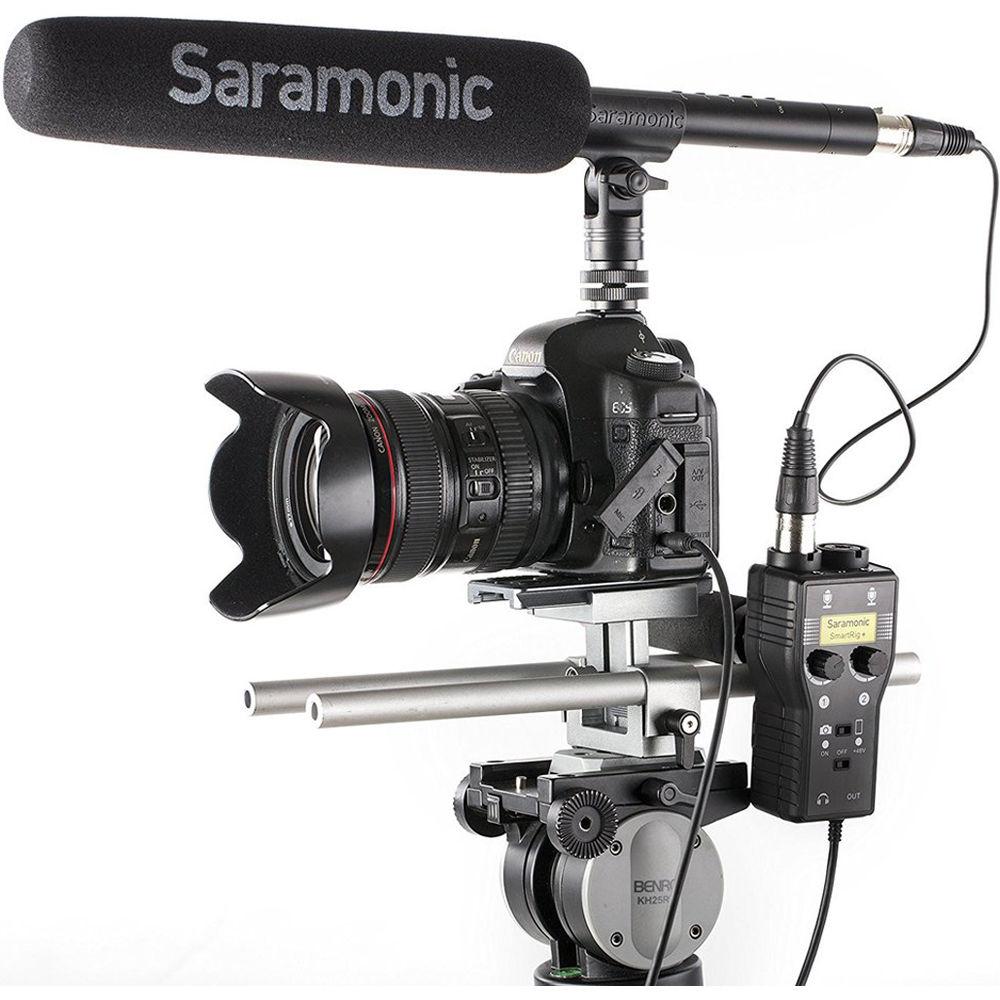

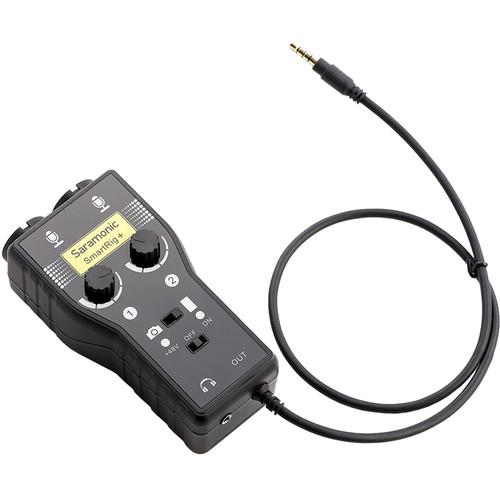

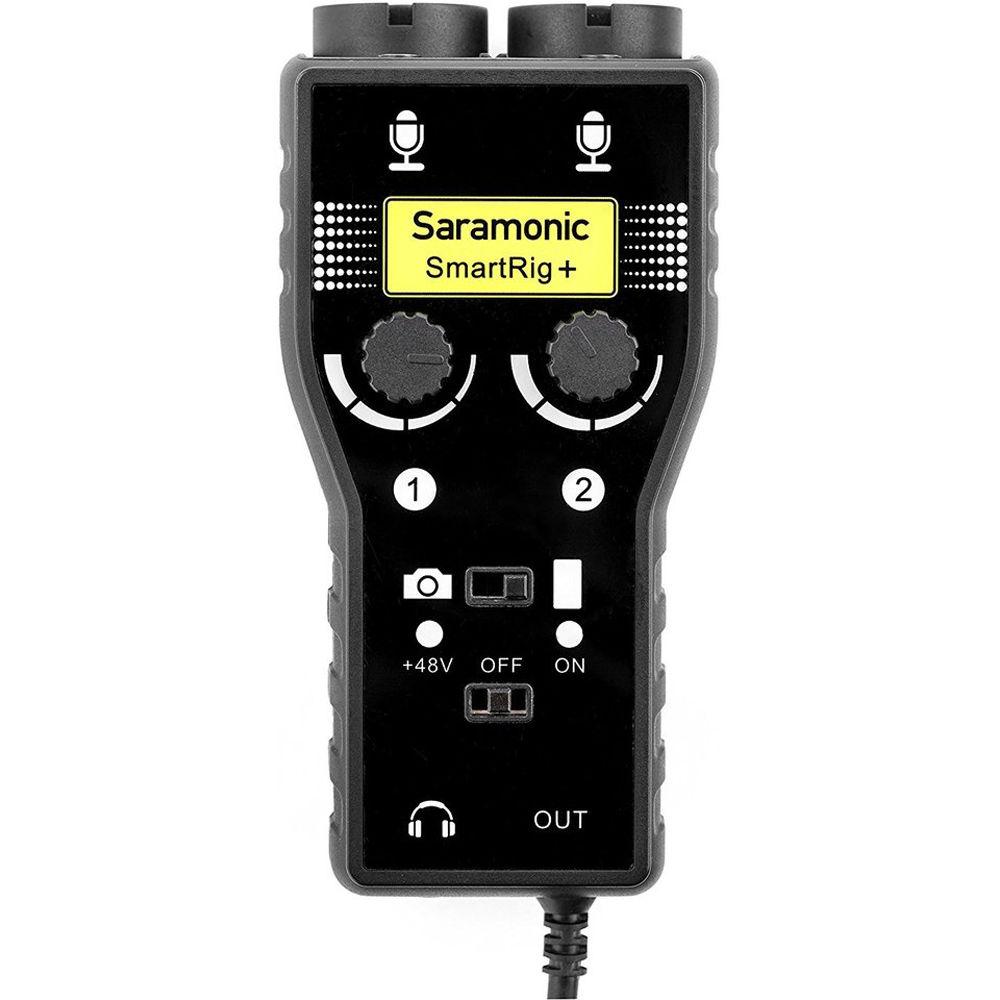

Product description The SmartRig+ 2-Channel XLR Microphone Audio Mixer from Saramonic is a portable microphone/guitar interface for recording professional-quality audio. The SmartRig+ makes your recording work easier by connecting professional microphones and guitars (or other instruments) to your smartphone, tablet, DSLR camera, or video camera. With two independent channels, it allows you to connect and control gain on multiple microphones or guitars at the same time. The interface also features three types of inputs to accommodate any setup: two combo XLR / 1/4" inputs, and two 1/8" jack inputs for connecting any instrument or microphone. It allows you to toggle between mono and stereo output modes as necessary. - Outputs to a standard 1/8" cable for use with smartphones, cameras, and other devices
- Provides 48V phantom power for microphones
- 3.5mm headphone output for real-time sound monitoring
- Two gain control thumbwheels make it easy to set precise levels
- Powered by one 9V battery
In the Box Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SmartRig 2-Channel XLR Microphone Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SMARTRIG+ Specs | Frequency Response | 20 Hz to 20 kHz (±0.5 dB) | | Distortion | Less than 0.01% @ 1 kHz, -30 dBu input | | Signal to Noise Ratio | 80 dB @ 1 kHz, -30 dBu input | | Gain | 20 dB to Infinity | | Power Requirements | 1 x 9 VDC battery, alkaline or lithium | | Phantom Power | 48 V phantom power switch | | Channels | 2 independent channels | | Mono/Stereo | Mono/stereo toggle output switch | | Inputs | 2 x combo XLR / 1/4"
2 x 3.5 mm TRS | | Outputs | Output switch for smartphone (TRRS) or Camera/Camcorder/Recorder (TRS)
3.5 mm headphone output jack for monitoring | | Dimensions | 4.7 x 1.6 x 1.6" (12 x 4 x 4 cm) | | Weight | 4.6 oz (130 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.2 x 3.7 x 2.8" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
