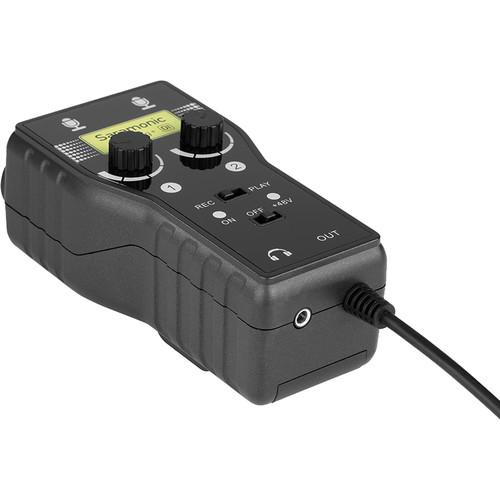

User Manual for Saramonic SmartRig Di, Two-Channel Mic and Guitar Interface with Lightning Connector for iOS Devices Click to enlarge the picture
Contents of the user manual for the Saramonic SmartRig Di, Two-Channel Mic and
- Product category: Audio Interfaces Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Audio Interfaces
 |
User manual for the Saramonic SmartRig Di, Two-Channel Mic and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

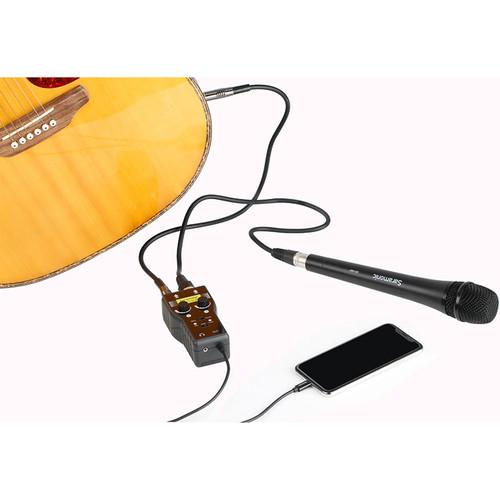

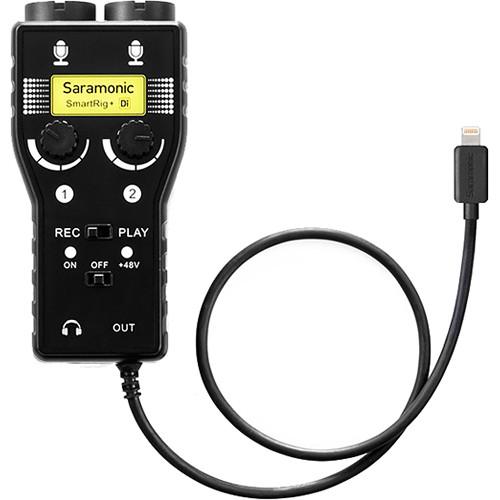

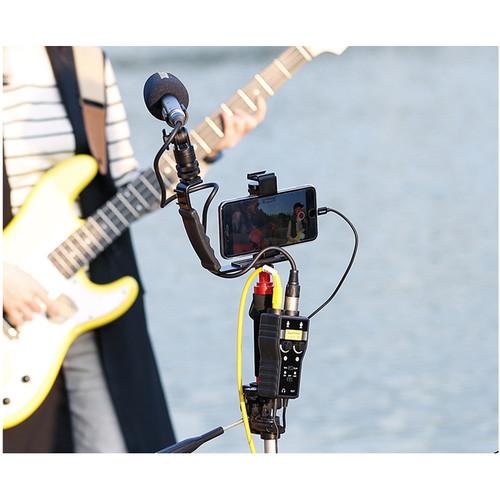

Product description The SmartRig+ Di from Saramonic is a two-channel audio interface that allows you to connect professional microphones or guitars to your iPhone, iPad, and iPod touch device. With a lightning connector output, the interface can be used to record stereo sound or music to your iOS portable device.The SmartRig+ Di provides 48V phantom power for condenser microphones and is equipped with two XLR inputs, two 1/8" inputs, and two 1/4" inputs, and an 1/8" headphone output for real-time monitoring. There are two gain-control thumbwheels that make it easy to set levels for each channel separately. In the Box Saramonic SmartRig+ Di, Two-Channel Mic and Guitar Interface with Lightning Connector for iOS Devices Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SmartRig Di, Two-Channel Mic and Guitar Interface with Lightning Connector for iOS Devices in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

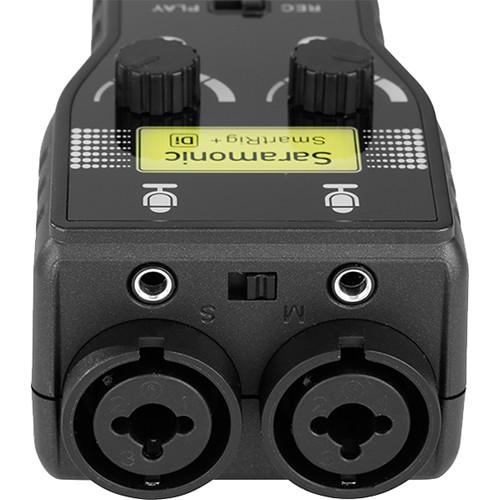

Technical parametersSaramonic SMARTRIG+ DI Specs | Frequency Response | 20 Hz to 20 kHz +/-0.5 dB | | Total Harmonic Distortion (THD) | Less than 0.01% @ 1 kHz, -30 dBu input | | Signal to Noise Ratio | 78 dB @ 1 kHz, -30 dBu input | | Sample Rate | 44.1 kHz or 48 kHz | | Input 1 | 1 x XLR mic input
1 x 1/4" / 6.35 mm guitar input
1 x 1/8" / 3.5 mm input | | Input 2 | 1 x XLR mic input
1 x 1/4" / 6.35 mm guitar input
1 x 1/8" / 3.5 mm input | | Output | Lightning connector output cable | | Headphone Out | 1/8" / 3.5 mm jack | | Gain | + 25 dBu to - ∞ | | Phantom Power | 48 V power supplies | | Power Requirements | 1 x 9 V alkaline or lithium battery | | Dimensions (L x W x H) | 4.7 x 1.6 x 1.6" / 120.0 x 40.0 x 40.0 mm | | Weight | 4.6 oz / 130.0 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.5 x 4.0 x 3.0" |
