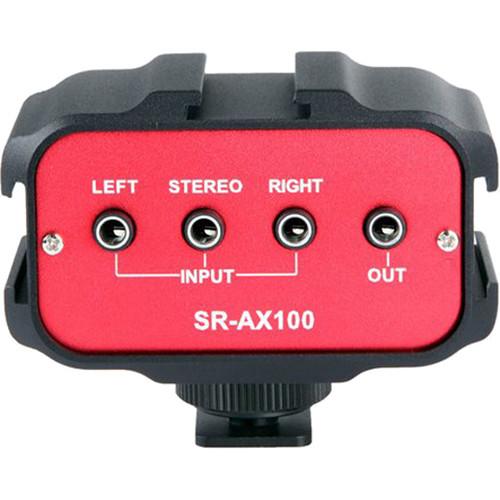

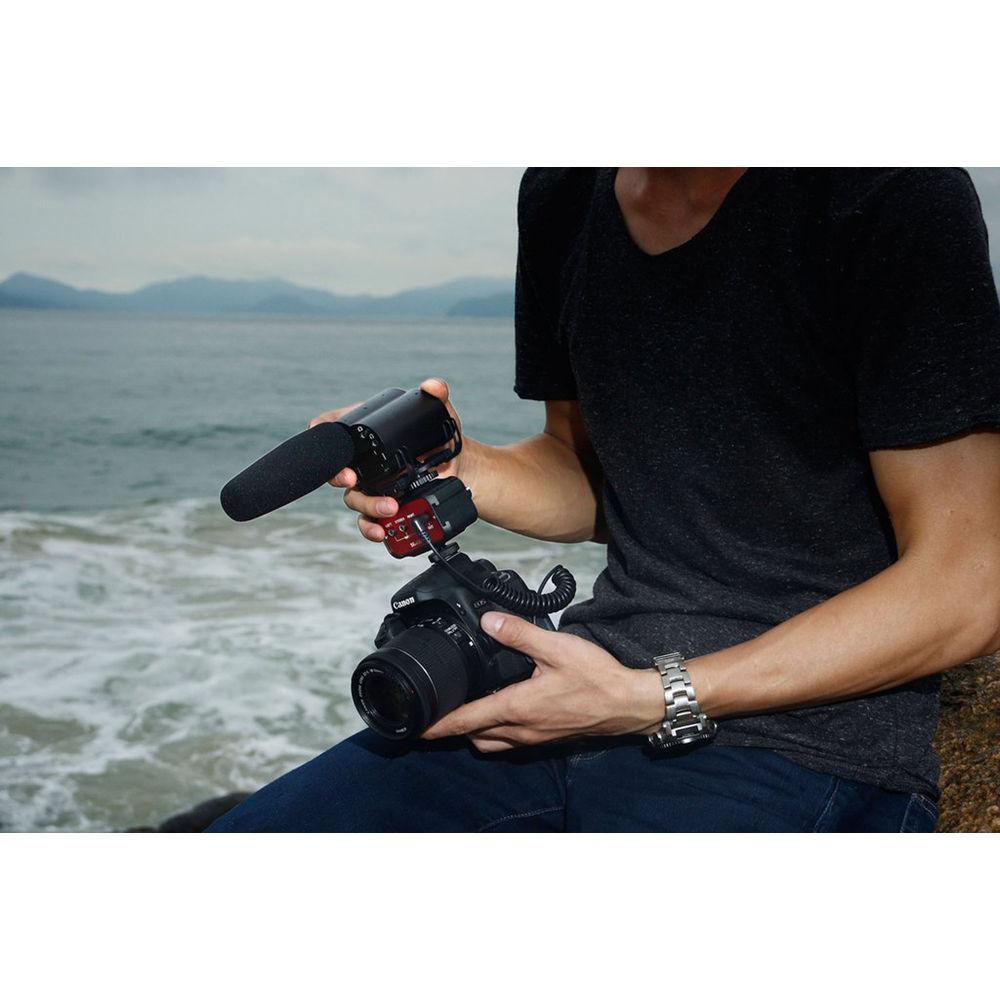

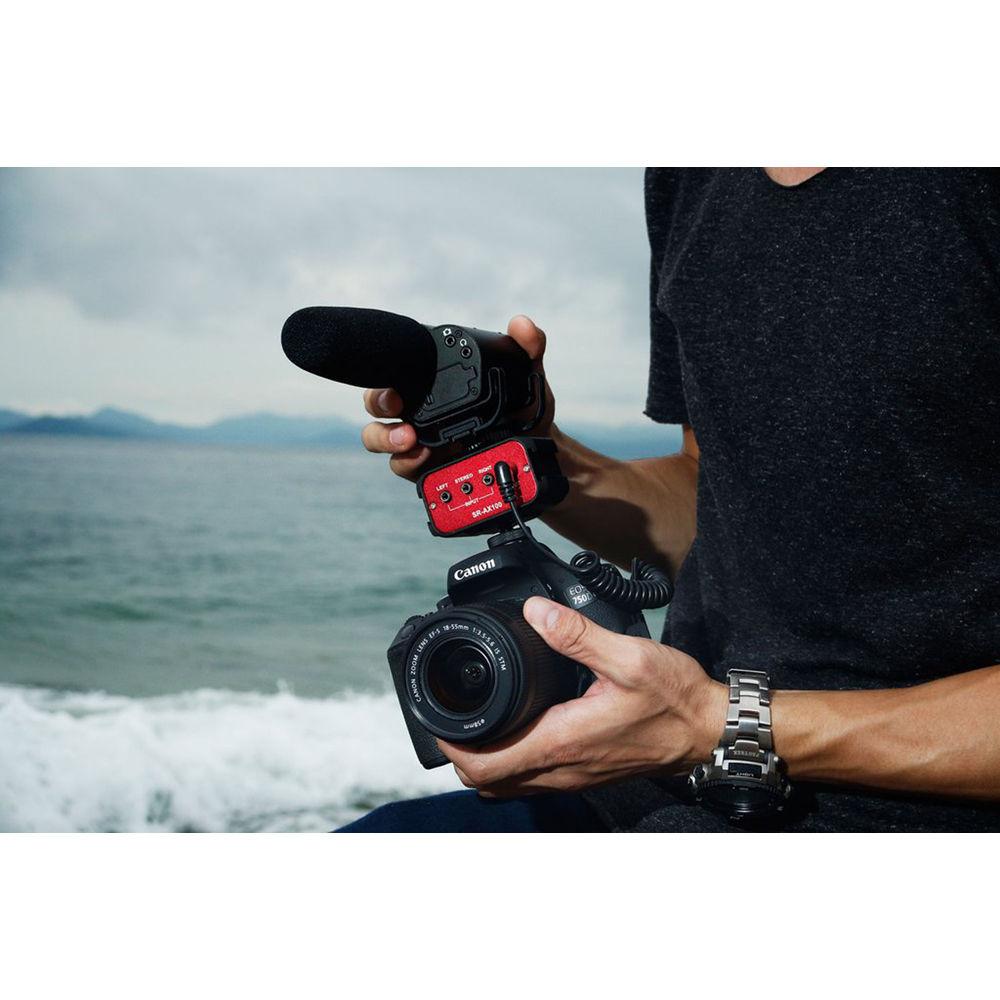

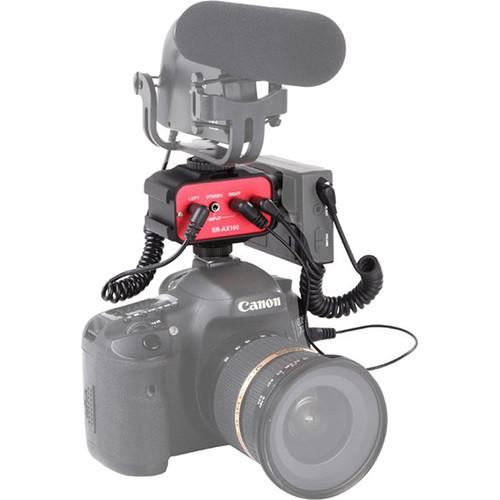

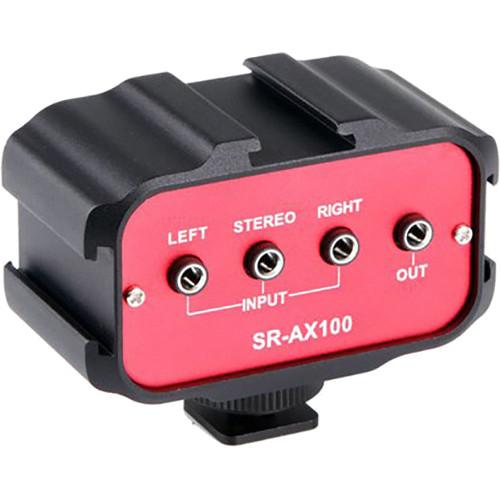

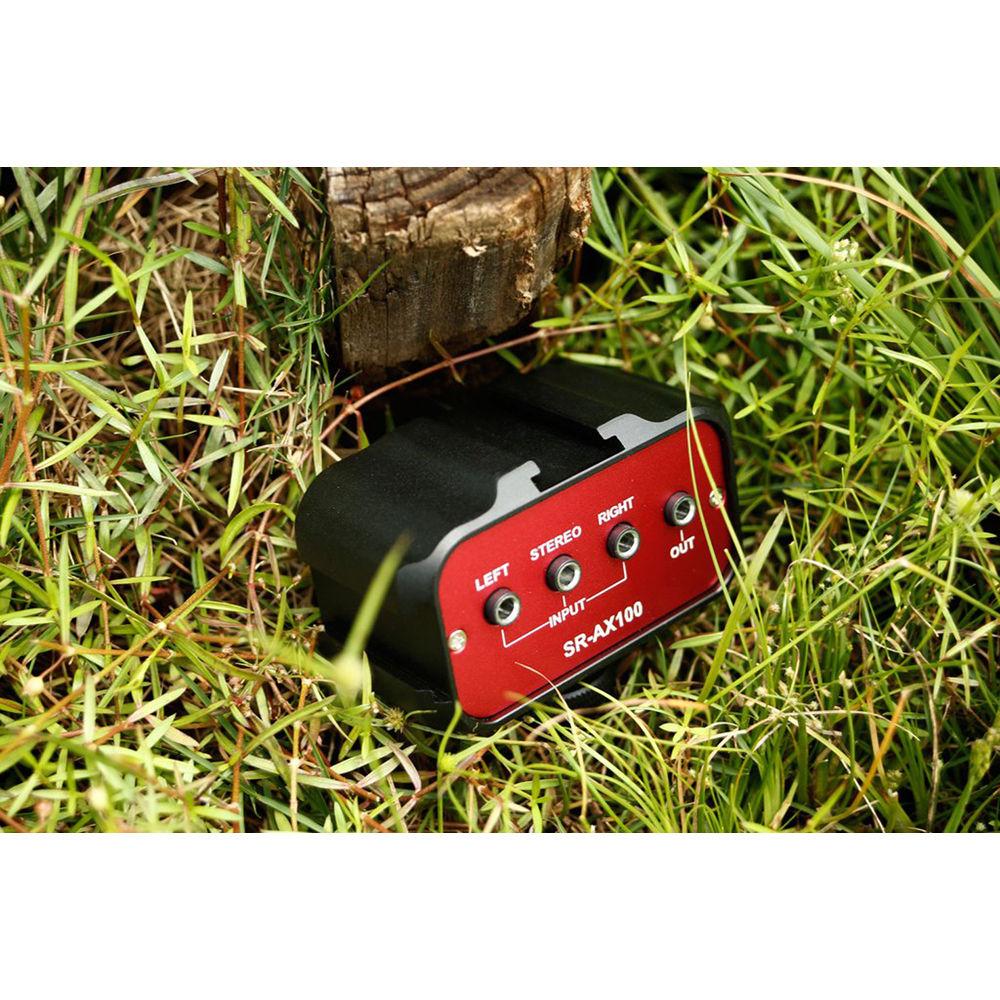

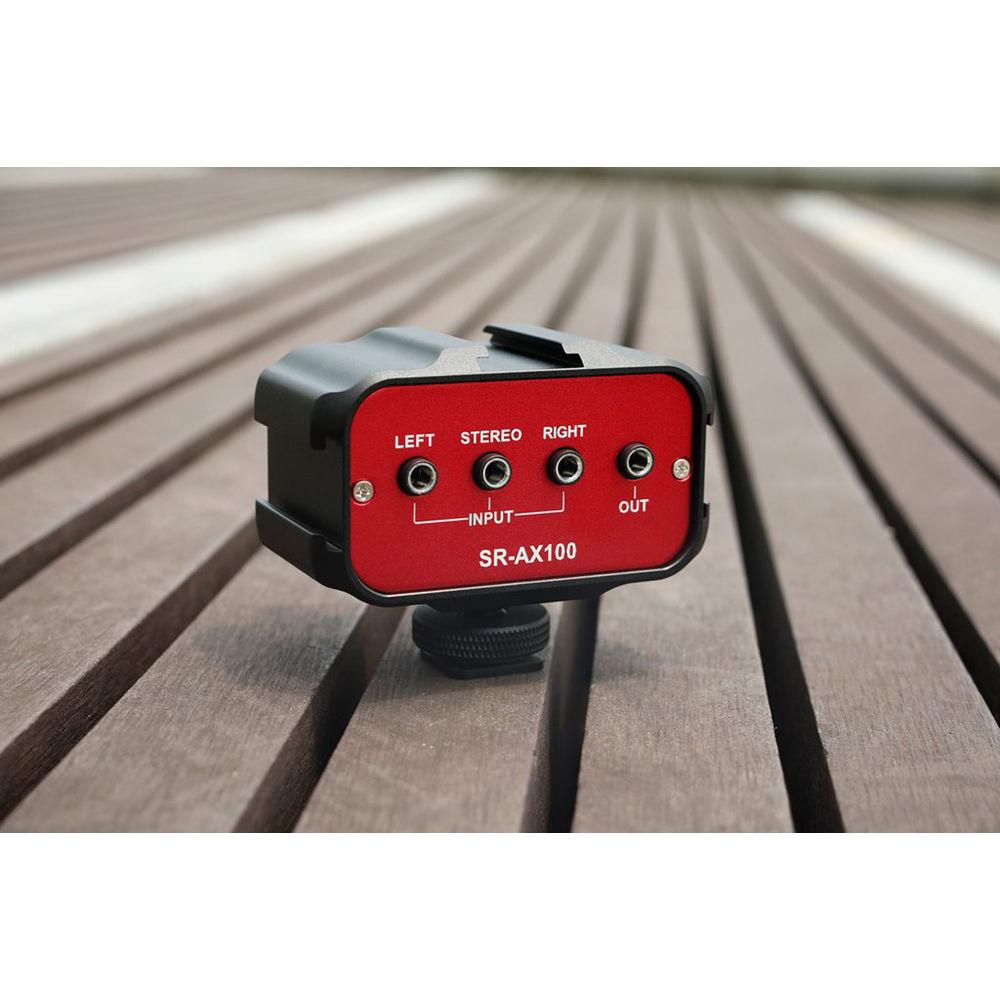

Product description The SR-AX100 from Saramonic is a passive 2-channel audio adapter designed to provide a compact solution for recording two signals to any DSLR or camcorder that has a standard mounting shoe and a built-in audio jack. It features left and right trim controls, and requires no power source.It has three integrated mounting shoes for attaching mics or wireless receivers. Connect inputs via two mono 3.5mm (1/8") jacks or the single stereo 3.5mm (1/8") jack. Route the stereo 3.5mm (1/8") output to your DSLR or camcorder. The output can be set to mono or stereo via the M/S switch. - Dual Trim Control Knobs
- You can adjust the signal to each channel to set your optimum recording levels
- Mono/Stereo Switch
- You can select mono or stereo output mode
- Three Integrated Mounting Shoes
- You can attach a variety of mics or wireless receivers
- Passive Operation with No Batteries
- Compact shape with die-cast aluminum chassis
In the Box Saramonic SR-AX100 Passive 2-Channel Audio Adapter for DSLR Cameras Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-AX100 Passive 2-Channel Audio Adapter for DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-AX100 Specs | Inputs | 1 x 1/8" (3.5 mm) stereo mini-jack input
2 x 1/8" (3.5 mm) mono mini-jack inputs | | Output | 1 x 1/8" (3.5 mm) stereo mini-jack output | | Input Level | MIC Setting: -35 dBu minimum | | Gain | Unity | | Frequency Response | 10 Hz to 100 kHz (±1.5 dB) | | Dimensions | 3.0 x 2.3 x 2.2" / 76 x 59 x 55 mm | | Weight | 5.4 oz / 153.1 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 3.85 x 3.45 x 3.45" |
