User Manual for Saramonic SR-AX107 2-Channel XLR Audio Adapter with Isolation Transformer for DSLRs Click to enlarge the picture
Contents of the user manual for the Saramonic SR-AX107 2-Channel XLR Audio Adapter
- Product category: Camcorder XLR Adapters Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Camcorder XLR Adapters
 |
User manual for the Saramonic SR-AX107 2-Channel XLR Audio Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

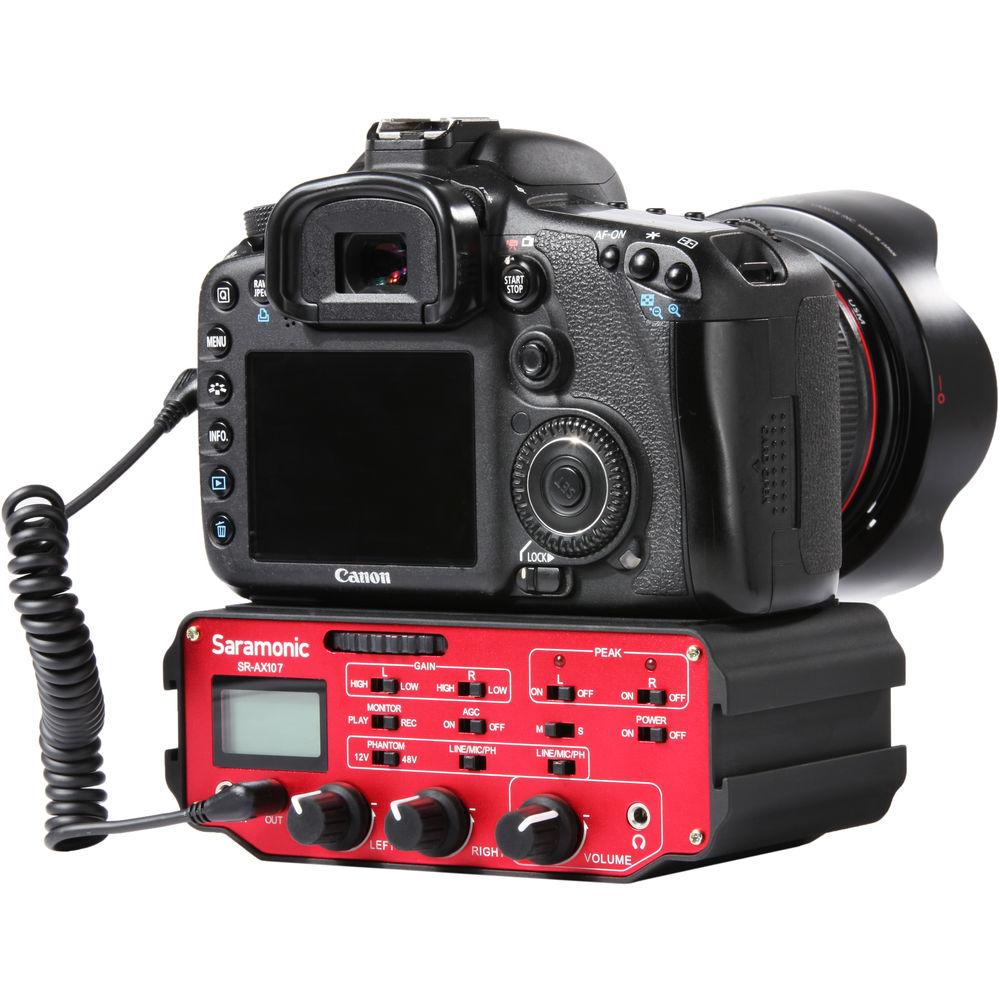

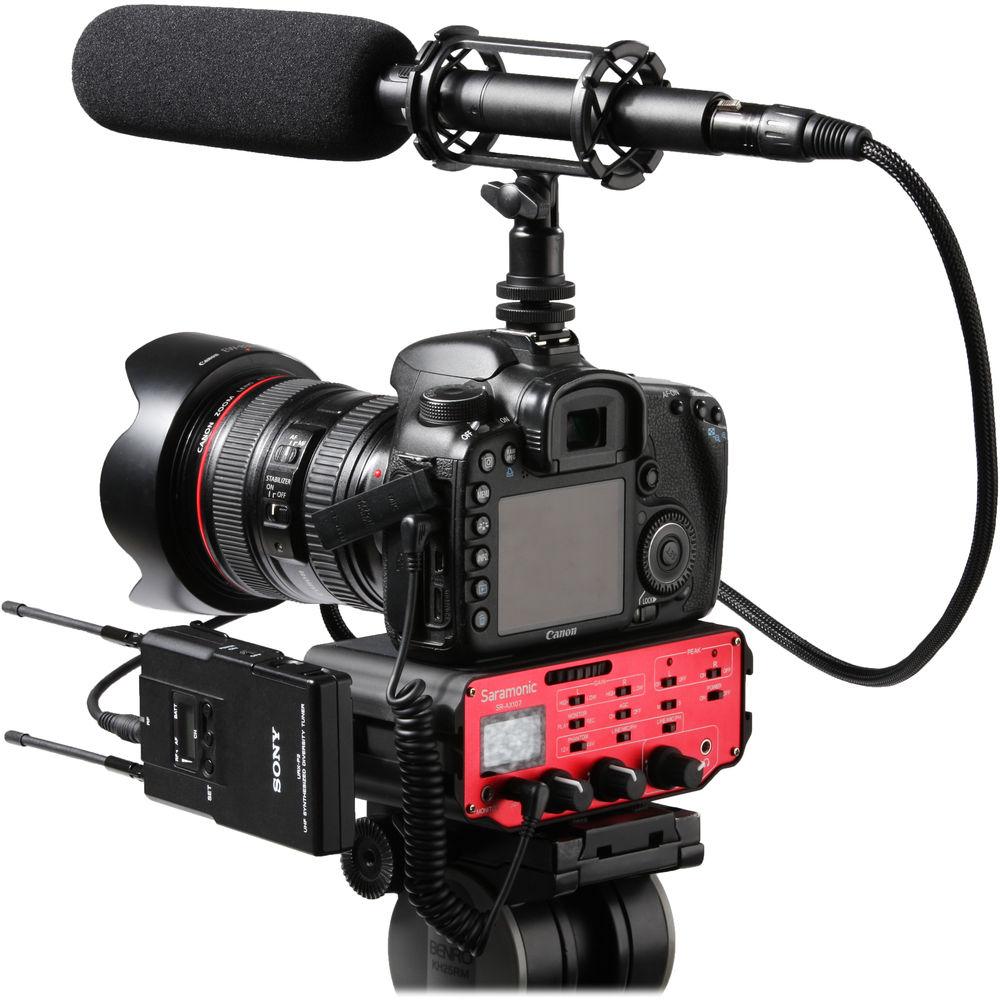

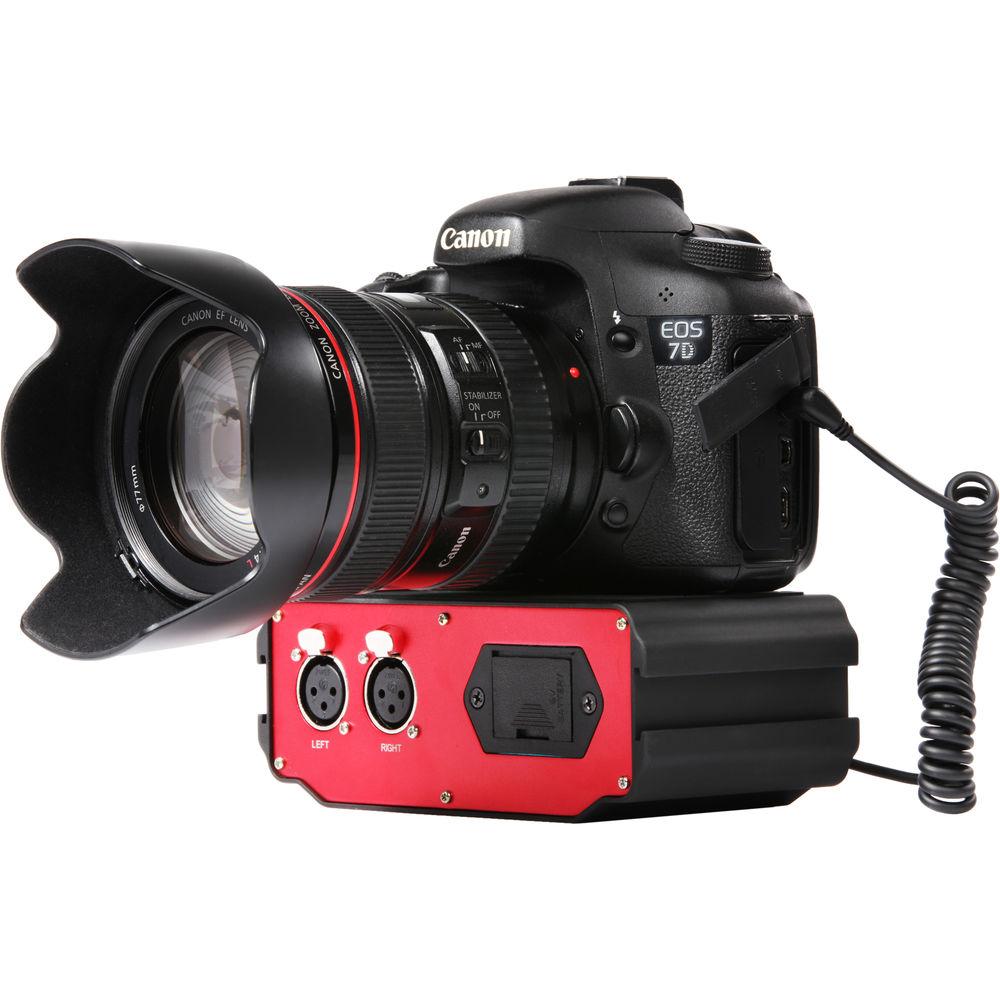

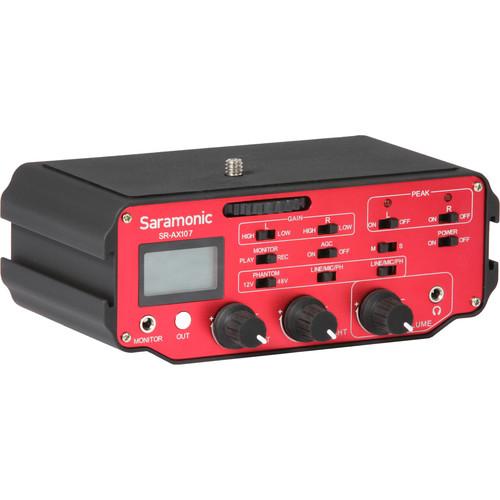

Product description The Saramonic SR-AX107 2-Channel XLR Audio Adapter from IndiPro Tools is a 2-channel XLR audio adapter featuring an isolation transformer which provides a pure, noise-free sound, as well as preamplifier and phantom power controls. The device allows you to connect microphones, wireless microphones, digital recorders, external audio mixers, soundboards, and more to your DSLR camera or camcorder via two balanced XLR inputs.
The unit is designed to save hours in post-production. An on-board level meter allows you to verify the proper input levels in real time, and the output signal can be adjusted by the level controls for optimum recording. The dual headphone jacks feature isolated volume controls, and allow you monitor the audio from the adapter at the input and output points. Left and right Peak switches allow you to turn on/off the LED signal indicators which flash red for overload, and the ACG on/off switch reduces noise during quiet moments of recording by cutting out your camera's Auto Gain Control function. - Isolation Transformer provides a pure, noise-free sound
- Level controls allow you to balance both input levels
- Phantom power switch allows you to select 0, 12, or 48V of phantom power
- Auto Gain Control switch reduces noise during quiet moments of recording by cutting our your camera's Auto Gain Control function
UPC: 685248988114 In the Box Saramonic SR-AX107 2-Channel XLR Audio Adapter with Isolation Transformer for DSLRs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-AX107 2-Channel XLR Audio Adapter with Isolation Transformer for DSLRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-AX107 Specs | Connectors | 1x 1/8" (3.5 mm) phone jack, monitor output | | Controls and Indicators | 1x Switch, Monitor Play/Rec | | Input Level | Not specified by the manufacturer | | Gain | Low: Unity
High: 20 dB boost | | Phantom Power | 0, 12, or 48 V | | Frequency Response | Not specified by the manufacturer | | THD | Not specified by the manufacturer | | SNR | Not specified by the manufacturer | | Level Metering | Not specified by the manufacturer | | Power Requirements | 9 V battery (not included) | | Battery Life | Not specified by the manufacturer | | Dimensions | 6.00 x 3.75 x 1.75" (15.2 x 9.5 x 4.4 cm) | | Weight | 18 oz (0.51 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.6 x 6.9 x 3.8" |
Rating64% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
