User Manual for Saramonic SR-M500 Compact Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Saramonic SR-M500 Compact Cardioid Condenser Microphone
- Product category: Small Diaphragm Condenser Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Small Diaphragm Condenser
 |
User manual for the Saramonic SR-M500 Compact Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

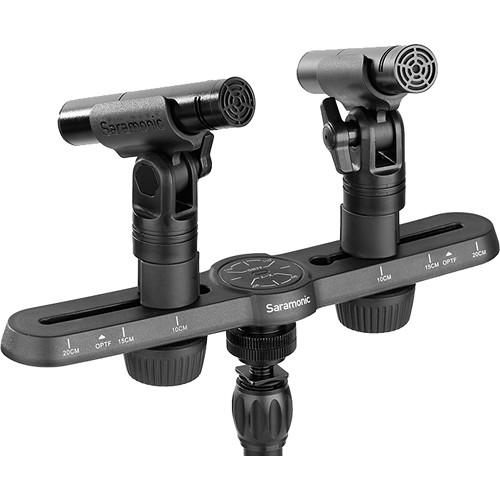

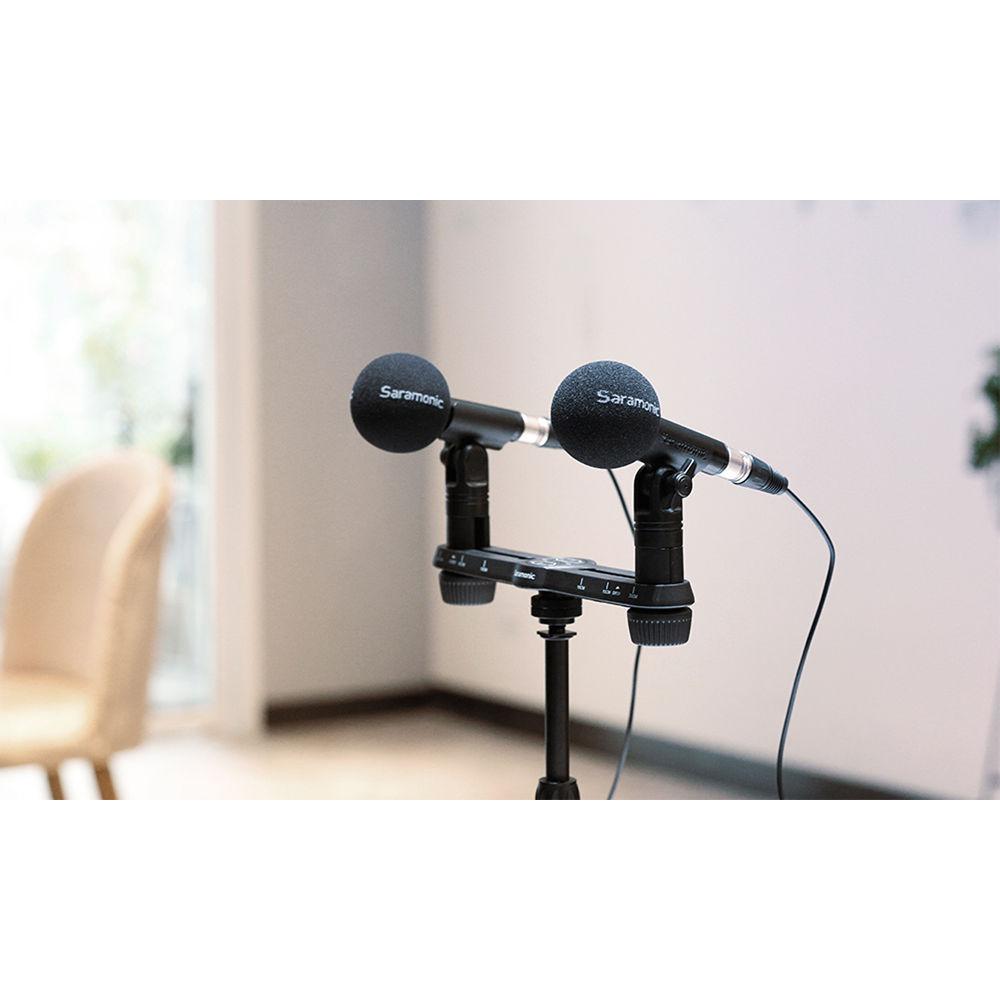

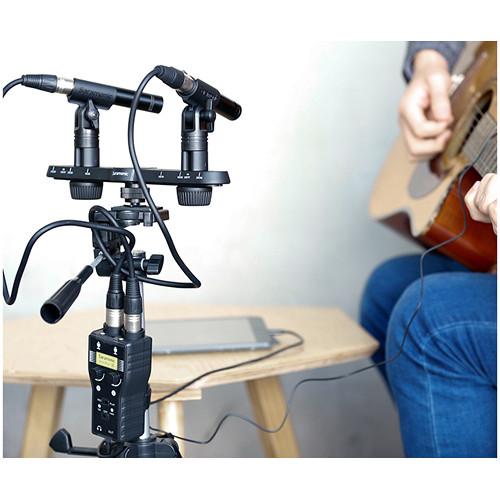

Product description The matched pair of SR-M500 Compact Cardioid Condenser Microphones from Saramonic are studio-quality microphones with a 22 Hz to 18 kHz frequency range. They can be used to capture audio in stereo recordings like drum overheads, acoustic instruments, choirs, and more, for studio recording and live stage applications.The small-diaphragm condenser microphones can be used individually or as a stereo array and are powered by 24V or 48V phantom power. Each microphone is built with a gold-plated 3-pin XLR connector. The SR-M500 Compact Cardioid Condenser Microphones includes two stand mounts, a stereo base, a cold-shoe mount, and two windshields. In the Box Saramonic SR-M500 Compact Cardioid Condenser Microphone (Matched Pair) 2 x Stand Mounts Spacing Bar Mounting Bracket Cold-Shoe Mount 2 x Windshields Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-M500 Compact Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-M500 Specs | | | Sound Field | Mono, Stereo | | Transducer | Condenser | | Diaphragm | 0.55" / 14 mm | | Polar Pattern | Cardioid | | Frequency Range | 22 Hz to 18 kHz | | Signal to Noise Ratio | 75 dB A-Weighted | | Maximum SPL | 135 dB SPL Peak | | Impedance | 200 Ohms | | Sensitivity | -40 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 to 48 V | | Length | 3.94" / 100 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.38 oz / 39 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
