User Manual for Saramonic SR-PAX1 Two-Channel Audio Mixer, Preamp, Microphone Adapter Click to enlarge the picture
Contents of the user manual for the Saramonic SR-PAX1 Two-Channel Audio Mixer, Preamp,
- Product category: Camcorder XLR Adapters Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Camcorder XLR Adapters
 |
User manual for the Saramonic SR-PAX1 Two-Channel Audio Mixer, Preamp, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

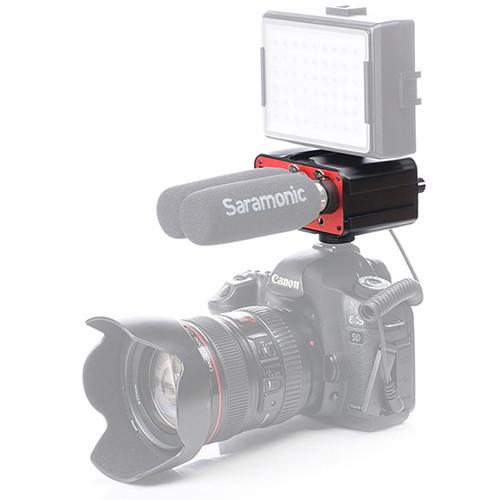

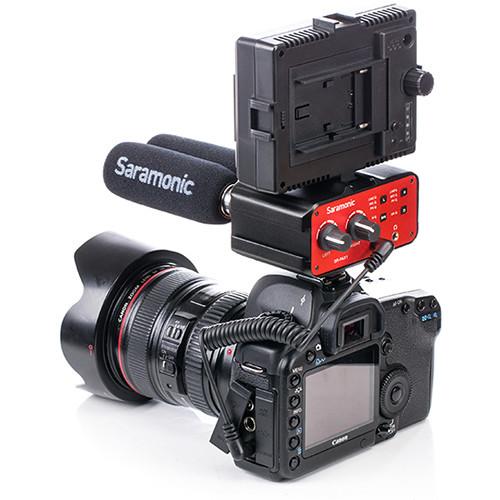

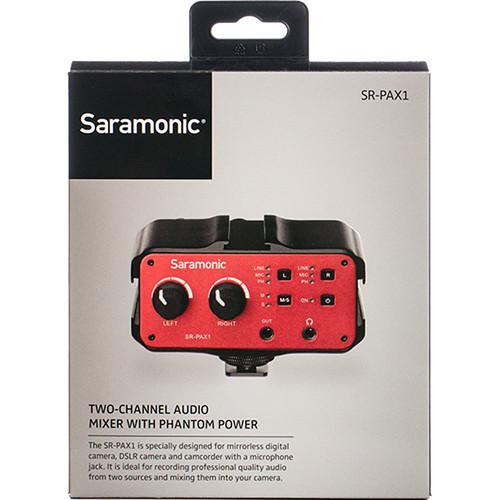

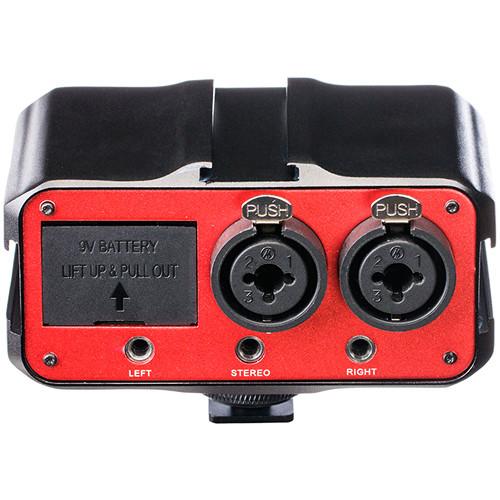

Product description The SR-PAX1 Two-Channel Audio Mixer, Preamp, Microphone Adapter from Saramonic is a compact, two-channel active audio mixer with pre-amplifier and phantom power that is designed for DSLR cameras and camcorders. It can be used to record professional-quality audio from two independent sources and mix them into your camera simultaneously. The SR-PAX1 attaches to the base of a camera, and a threaded socket on its base allows for mounting on a tripod or case. The two-channel audio mixer features two XLR inputs, two 3.5mm TRS inputs, and two 1/4" inputs with a 3.5mm TRS output jack. The input levels of each channel can be controlled with the two gain-control knobs. In addition, a phone jack allows you to monitor the audio in real time. In the Box Saramonic SR-PAX1 Two-Channel Audio Mixer, Preamp, Microphone Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-PAX1 Two-Channel Audio Mixer, Preamp, Microphone Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-PAX1 Specs | Inputs | 2 x balanced XLR
2 x 1/8" / 3.5 mm TRS
2 x 1/4" / 6.5 mm | | Outputs | 1/8" / 3.5 mm TRS | | Headphone Monitoring | 1/8" / 3.5 mm jack | | Frequency Response | 20 Hz to 20 kHz, ±1 dB | | Signal to Noise Ratio | 74 dBu @ 1 kHz, -30 dBu input | | Phantom Power | +48 V (XLR), +5 V 1/8" / 3.5 mm | | Battery | Single 9 V | | Dimensions (L x W x H) | 4.0 x 3.3 x 2.5" / 10.2 x 8.4 x 6.4 cm | | Weight | 12.6 oz / 357.2 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.5 x 5.5 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
