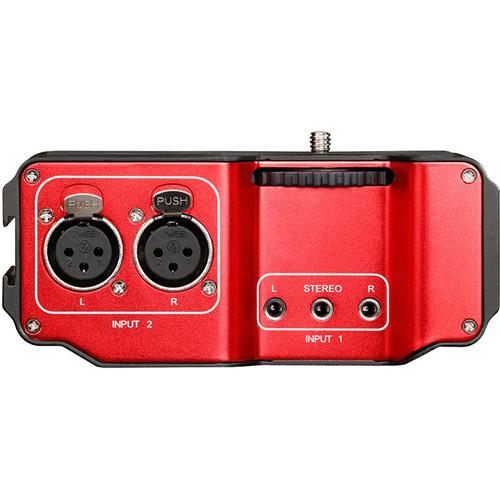

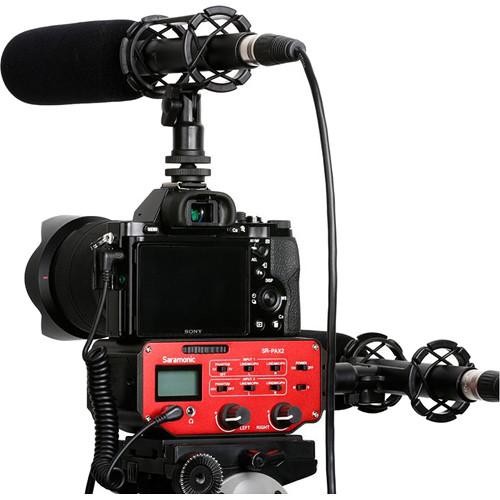

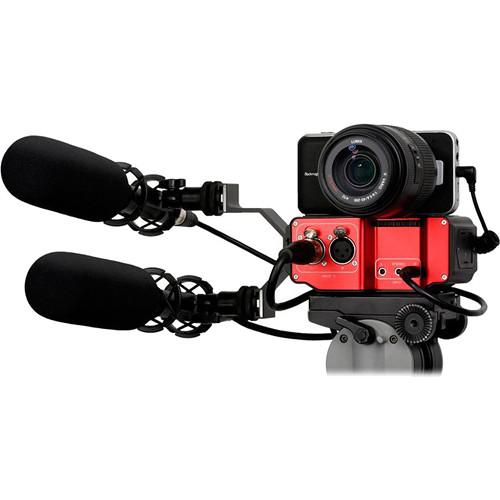

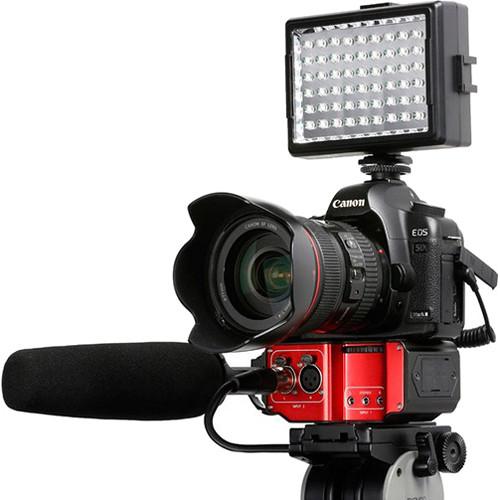

Product description The SR-PAX2 from Saramonic is an active 2-channel audio adapter designed to provide a compact solution for recording two signals to any DSLR or camcorder that has a standard mounting base, and a built-in audio jack. It features left and right gain controls and meters, supplies phantom power, and is powered by a 9V battery (available separately).It attaches to the base of a camera, and can be mounted on a tripod or case. Connect inputs via two mono 3.5mm (1/8") jacks, the single stereo 3.5mm (1/8") jack, or two XLR jacks. Route the stereo 3.5mm (1/8") output to your DSLR or camcorder. The output can be set to mono or stereo via the M/S switch. A dedicated stereo 3.5mm (1.8") headphone output allows quick monitoring of the mic signals. -
- Two 1/8" (3.5 mm) stereo line/mic inputs
- Two XLR microphone inputs
- One 1/8" (3.5mm) stereo line output to phone
- One 1/8" (3.5mm) headphone monitor output
- Volume control knob
- Independent input control switch
- Independent L/R level meters
- Independent phantom power control for inputs
- Includes 3.5mm audio cable
In the Box Saramonic SR-PAX2 Active 2-Channel Audio Adapter for DSLR Cameras 1/8" (3.5mm) Audio Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-PAX2 Active 2-Channel Audio Adapter for DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-PAX2 Specs | Inputs | 2 x XLR 3-pin
3 x 1/8" (3.5 mm) mini jacks (one stereo, two mono) | | Outputs | 1 x 1/8" (3.5 mm) mini jack for stereo line output
1 x 1/8" (3.5 mm) mini jack for headphone output | | Frequency Response | 20 Hz to 20 kHz, ±0.5 dB | | THD | Less than 0.01% @ 1 kHz, -30 dBu input | | SNR | 80 dB @ 1 kHz, -30 dBu input | | Input Gain | Input 1:
Line: 0 dB
Mic/Phone: 20 dB
Input 2:
Line: 0 dB
Mic/Phone: 20 dB | | Phantom Power | Input 1: 5 V / 3 V power supply
Input 2: 48 V power supply | | Level Meters | -18 dB to +3 dB in 3 dB increments | | Power Requirements | 9 V alkaline or lithium battery | | Battery Duration | 5 hours, typical with alkaline battery
3 hours, typical with lithium battery | | Dimensions (L x W x H) | 5.4 x 3.2 x 2.5" / 136.0 x 80.5 x 62.5 mm | | Weight | 13.5 oz / 382.7 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.1 x 5.9 x 3.6" |
