User Manual for Saramonic SR-TM1 Cardioid Condenser Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Saramonic SR-TM1 Cardioid Condenser Shotgun Microphone
- Product category: Shotgun Microphones Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Shotgun Microphones
 |
User manual for the Saramonic SR-TM1 Cardioid Condenser Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

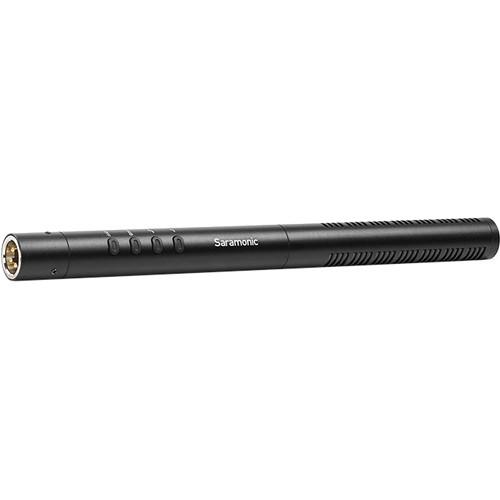

Product description The Saramonic SR-TM1 is a medium-length cardioid condenser shotgun microphone offering high SPL handling and full-bandwidth frequency reproduction for sound recordists, boom operators, and videographers in broadcast, video, and television production. The cardioid polar pattern ensures reliable directivity with enhanced rejection of signal at the rear of capsule. Operate the SR-TM1 via 48 VDC phantom power or the internal lithium-ion battery, which delivers up to 150 hours of use and recharges through the supplied micro-USB cable. Selection of the -10 dB pad allows the SR-TM1 to capture loud sound sources without inducing distortion while the 40 Hz to 20 kHz frequency response accurately conveys your source's tone. Customize the SR-TM1's sonic performance with the switchable 150 Hz high-pass filter for minimized low-frequency rumble, and the 6 dB high-frequency boost for improved vocal clarity. Connect the SR-TM1 to your mixer or microphone preamp via the XLR 3-pin output. It includes a foam windscreen, short XLR cable, and mic clip with a camera shoe mount. - Ideal for use in film/video/TV production, broadcast, ENG/EFG, vlogging, and YouTubing
- Cardioid polar pattern provides enhanced rejection of signal at the rear of the capsule
- 40 Hz to 20 kHz frequency response for accurate audio capture
- Supports operation via 48 VDC phantom power or the internal 150-hour rechargeable lithium-ion battery
- Switchable -10 dB pad inhibits distortion when miking loud sources
- Selectable high-pass filter at 150 Hz minimizes rumble and bass build-up
- Selectable 6 dB high-frequency boost improves vocal intelligibility and clarity
- Convenient on/off switch enables easy battery conservation
- Power indicator changes color to show energy source and battery life
- Illuminated button settings are recalled upon power cycling
- Durable 11" medium-length metal housing

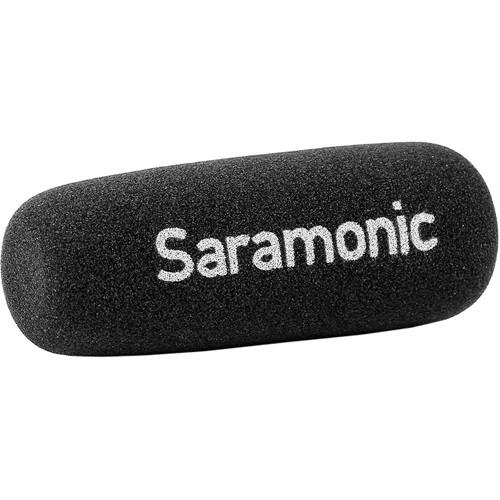

- Includes foam windscreen to reduce noise from wind and HVAC systems
- XLR 3-pin output allows easy connectivity with most mixers and mic preamps

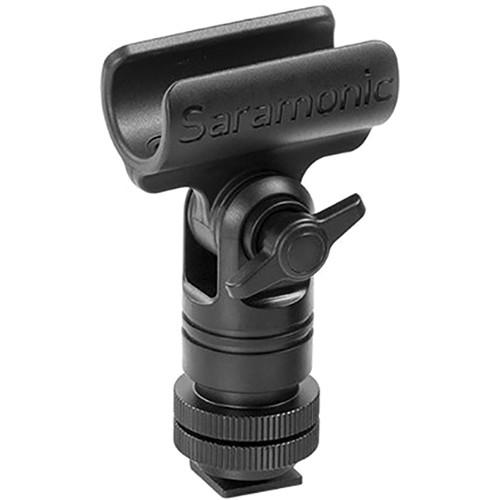

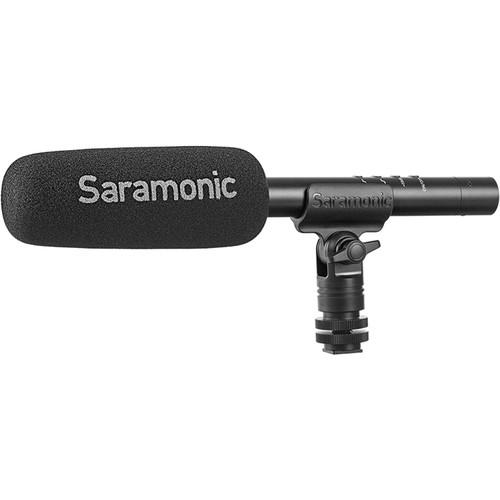

- Included mic clip and camera shoe mount allow simple mounting on mic stands, boompoles, or cameras

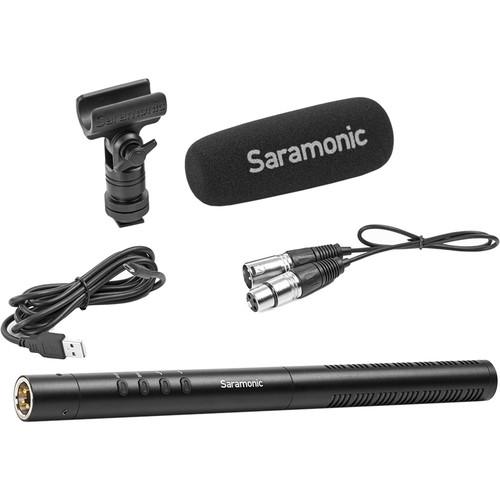

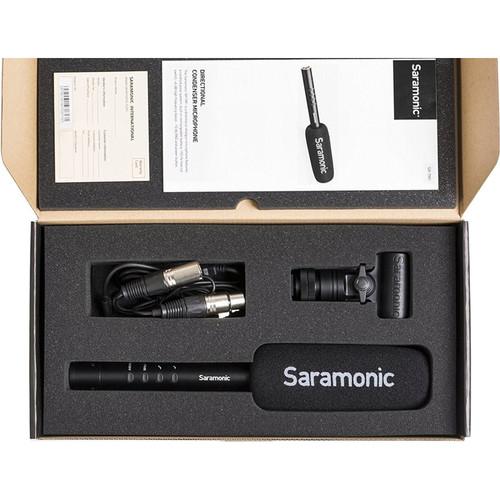

In the Box Saramonic SR-TM1 Cardioid Condenser Shotgun Microphone Micro-USB Cable Mic Clip with Camera Shoe Mount Foam Windshield 1' XLR Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-TM1 Cardioid Condenser Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-TM1 Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB | | Maximum SPL | 135 dB SPL | | Pad | -10 dB | | Impedance | 200 Ohms | | Sensitivity | -35 dB | | Low-Cut Filter | @ 150 Hz | | Dynamic Range | 119 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 1' / 30.48 cm | | Battery Type | 1 x Built-In | | Operating Voltage | 48 V | | Length | 11" / 27.94 cm | | Diameter | 0.9" / 22.86 mm | | Weight | 6 oz / 170 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 13.9 x 6.9 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
