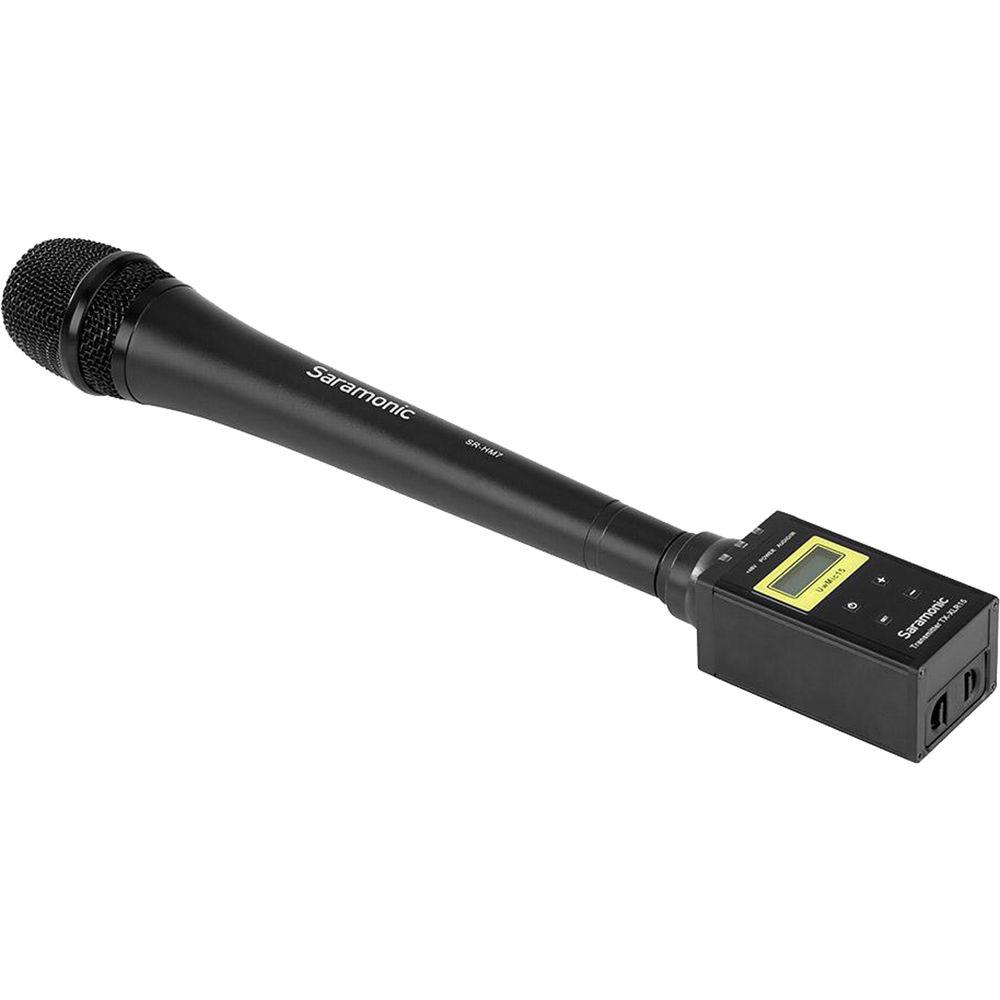

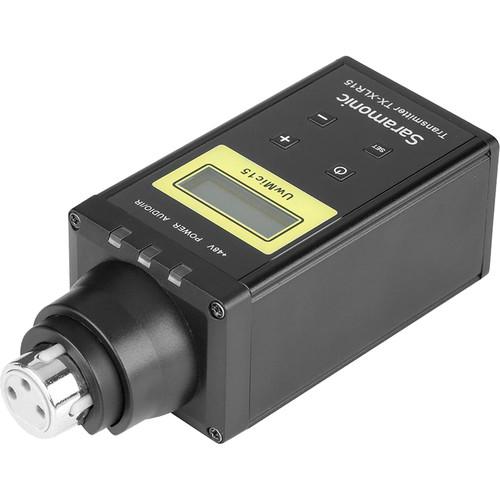

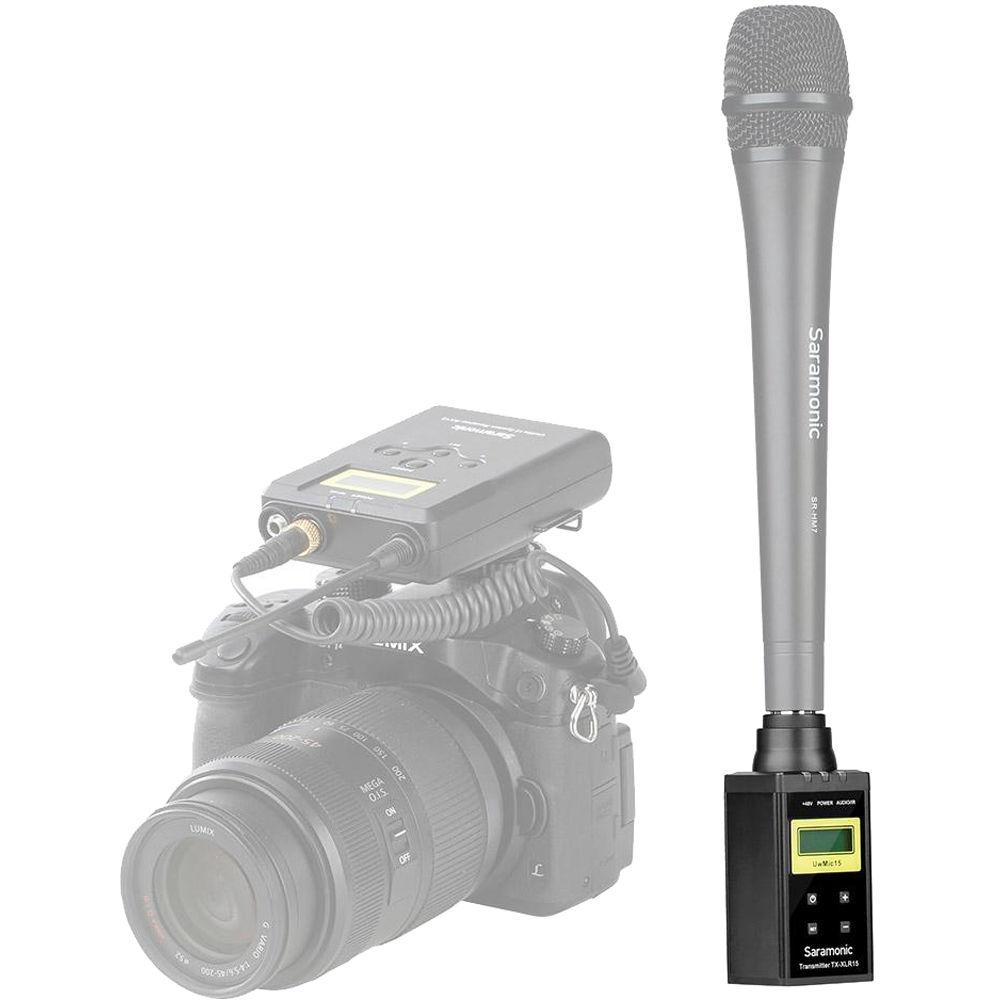

Product description Well suited for broadcast, video, and television production, the Saramonic SR-XLR15 is an XLR plug-on transmitter offering easy IR sync and auto-scan configuration when integrated into a UwMic15 wireless system. It provides 16 channels over 24 MHz of bandwidth in the UHF spectrum from 555 to 579 MHz. Its locking 3-pin XLR female jack allows simple, secure connection to your preferred XLR-equipped microphone such as a handheld dynamic or shotgun condenser. 48V phantom power is selectable from the SR-XLR15's menu. The backlit LCD shows vital information such as frequency and battery level while LEDs indicate presence of audio signal as well as phantom power and battery status. The transmitter's power button also affords simple mute functionality. Power for the SR-XLR15 is sourced from two AA batteries (available separately), which fit into the supplied removable battery compartment. - Compact transmitter with crystal-controlled PLL synthesizer

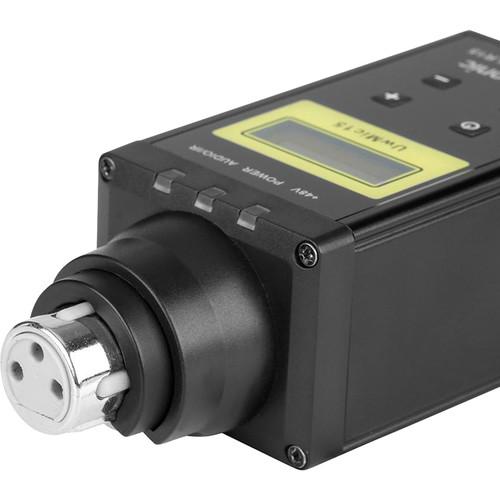

- Locking 3-pin XLR mic input jack
- Convenient muting function

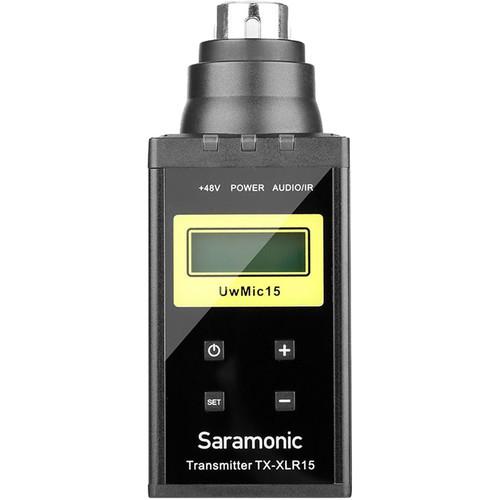

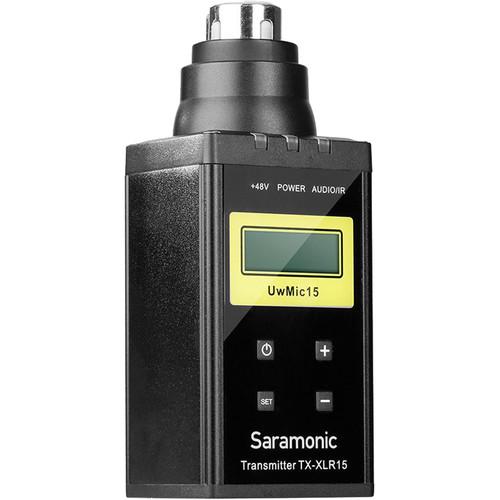

- Backlit LCD screen shows channel, frequency, mute status, and battery level
- Easy menu structure for access to settings such as 48 VDC phantom power, power key lock, IR match, and more
- Dedicated LEDs for battery status (sufficient or low), audio/IR indication, and phantom power status

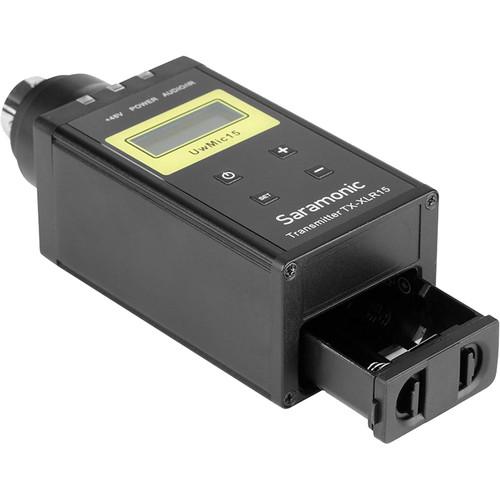

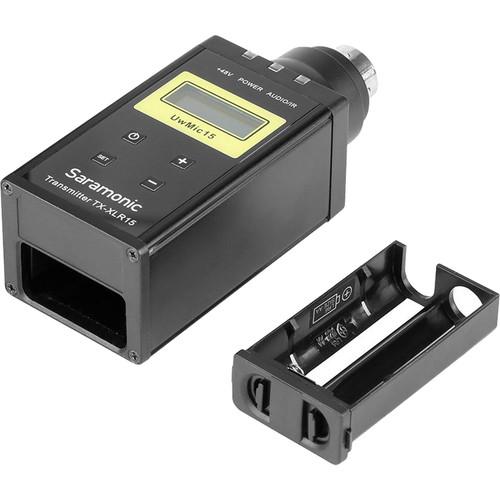

- Removable battery compartment holds two AA alkaline/NiMH/lithium batteries (available separately)
- Operating range up to 330'
In the Box Saramonic SR-XLR15 XLR Plug-On Transmitter for UwMic15 System (555 to 579 MHz) SR-UMBC1 Battery Compartment for Wireless Microphone Systems Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic SR-XLR15 XLR Plug-On Transmitter for UwMic15 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-XLR15 Specs | Wireless Transmission | Digital UHF | | RF Frequency Band | 555 to 579 MHz | | RF Bandwidth | 24 MHz | | Max Operating Range | 330' / 100.6 m | | Latency | 12 ms | | Encryption | None | | | | Form Factor | Plug-On | | Audio I/O | 1 x XLR 3-Pin Female Balanced Input (Lockable) | | Phantom Power | +48 V | | Pad | None | | Muting | Mute Switch | | Audio Input Level | -60 dBV | | Signal Processing | None | | Sync Method | IR | | Antenna | 1 x Internal | | Power Requirements | Battery | | Battery Type | 2 x AA (Not Included) | | USB Port | None | | Display & Indicators | 1 x Back-Lit LCD (Battery Status, Channel, Mute)
1 x LED (Power)
1 x LED (Audio Level)
1 x LED (Phantom Power) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 131°F / -20 to 55°C | | Dimensions | 1.7 x 4.1 x 1.4" / 4.2 x 10.5 x 3.5 cm | | Weight | 4.9 oz / 139.0 g (without Batteries) |
