User Manual for Saramonic UwMic15 UHF Wireless Lavalier Microphone System Click to enlarge the picture
Contents of the user manual for the Saramonic UwMic15 UHF Wireless Lavalier Microphone
- Product category: Wireless Systems Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Wireless Systems
 |
User manual for the Saramonic UwMic15 UHF Wireless Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

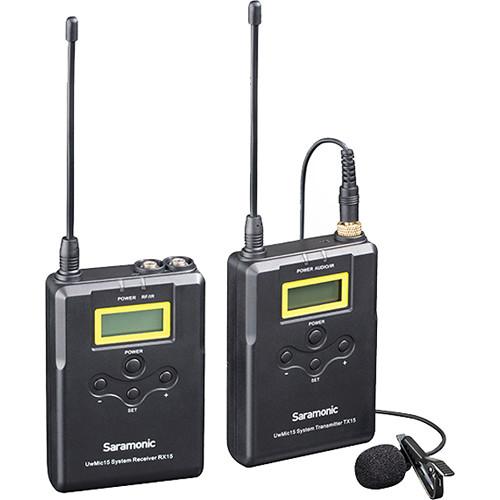

Product description Step your next video project up to broadcast-quality audio with the Saramonic UwMic15 Camera-Mount Wireless Lavalier Microphone System, a portable UHF wireless system for capturing audio from a single subject. It includes one portable receiver, a bodypack transmitter with an omnidirectional lavalier microphone, and a bundle of cables and accessories. With a maximum operating range of 330 feet, it can be effectively used in an array of environments for video, interview, broadcast TV, and ENG applications. The system's RX15 receiver features an easy-to-read LCD screen, support for camera- or belt-mounting configurations, and 16 selectable channels. It boasts infrared synchronization with the transmitter and two locking audio outputs—a 3.5mm line out, and a 3.5mm headphone jack for real-time monitoring. Use the supplied 3.5mm and XLR output cables to connect the RX15 directly to the input of your camera, mobile device, or mixer. The bodypack transmitter employs a crystal-controlled PLL synthesizer, and a power button that also provides quick access to mute functionality. It sports a locking 3.5mm input jack for compatibility with the included omnidirectional lav microphone or your favorite lav/headset mic. The transmitter and receiver are each powered by two AA batteries (available separately). - Broadcast-quality UHF wireless lavalier microphone system with camera-mountable portable receiver
- Well suited for capturing interviews, presentations, field recording, broadcast TV, news gathering, vlogging, wedding videography, and more

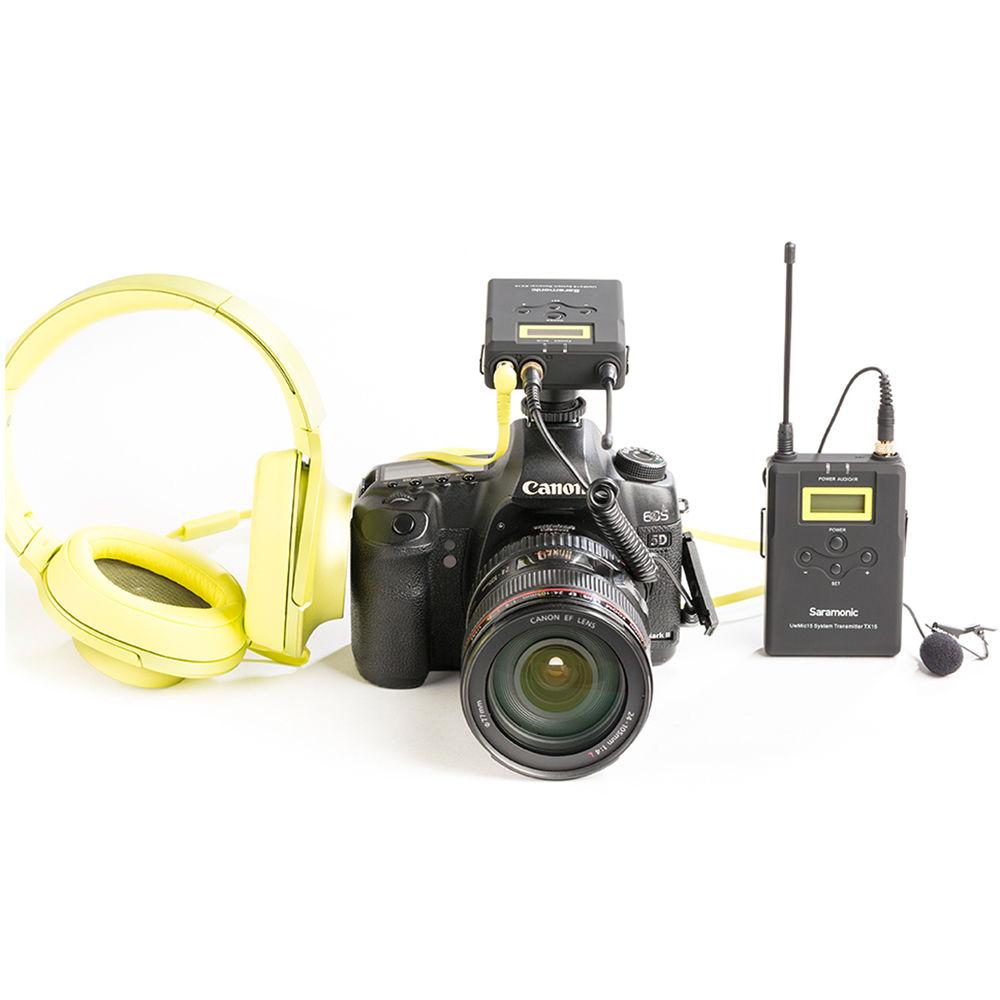

- Includes locking 3.5mm and XLR output cables for easy and secure connection to DSLRs, mirrorless cameras, video cameras, or portable audio recorders
- Plug-and-play operation, simple IR sync, and 16 selectable channels
- Easy-to-read backlit LCD displays on both units
- Dedicated 3.5mm headphone output for real-time monitoring even if the recording device lacks a headphone jack
- Supports multiple simultaneous UwMic15 systems (available separately)
- Selectable power-lock function on transmitter prevents the subject from accidentally turning off the mic
- Receiver and transmitter each powered via two AA batteries (available separately)
- Includes removable belt clip and camera shoe mount

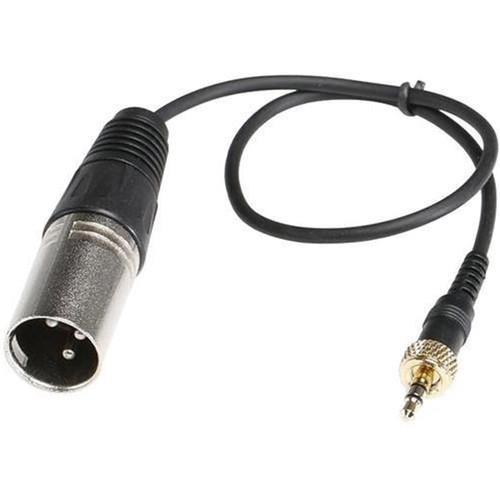

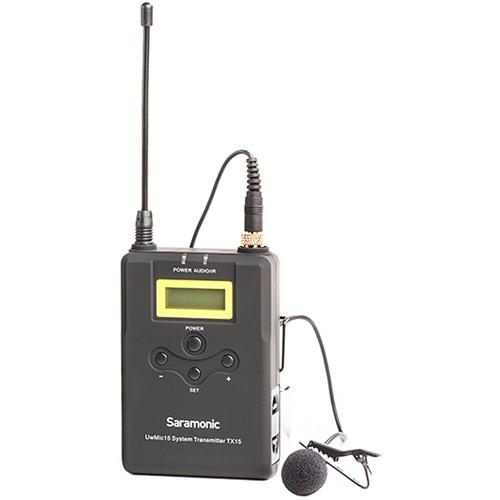

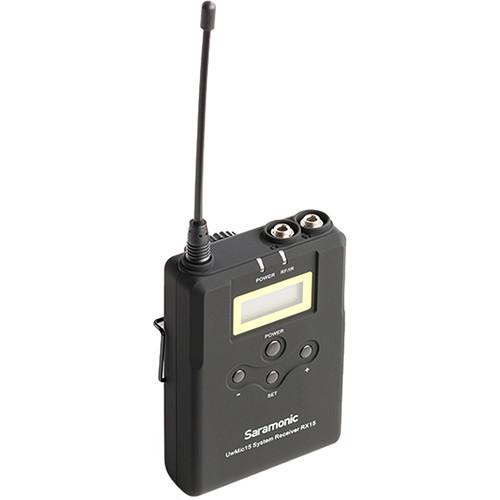

In the Box Saramonic UwMic15 UHF Wireless Lavalier Microphone System (555 to 579 MHz) RX15 Portable Receiver SR-TX15 Bodypack Transmitter for UwMic15 System (555 to 579 MHz) dzezdzqscvxqcxfbsyeaeseew SR-UM10-M1 Omnidirectional Lavalier Microphone with Locking 3.5mm Plug Camera Shoe Mount with 1/4"-20 Tripod Thread Locking 3.5mm Coiled Cable Locking 3.5mm to XLR Male Cable Alligator-Style Mic Clip Windscreen 2 x Belt Clips 2 x SR-UMBC1 Battery Compartment for Wireless Microphone Systems Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic UwMic15 UHF Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic UWMIC15 Specs | | | Wireless Transmission | Digital UHF | | Number of RF Channels | 16 | | Included Transmitters | 1 x Bodypack with Microphone | | Diversity | Non-Diversity | | RF Frequency Band | 555 to 579 MHz | | RF Bandwidth | 24 MHz | | Max Operating Range | 330' / 100.6 m | | Latency | 12 ms | | Encryption | None | | Deviation | ±5 kHz | | | | Form Factor | Portable | | Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) | | Antenna | 1 x 1/4 Wave Wire (Top-Mount) | | Number of Audio Channels | 1 | | Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable) | | Audio Output Level | 1/8" / 3.5 mm Output:
-60 dBV | | Frequency Response | 40 Hz to 18 kHz
