Product description - Saramonic UwMic9 System
- Saramonic UwMic9 Optional Cable Add-Ons

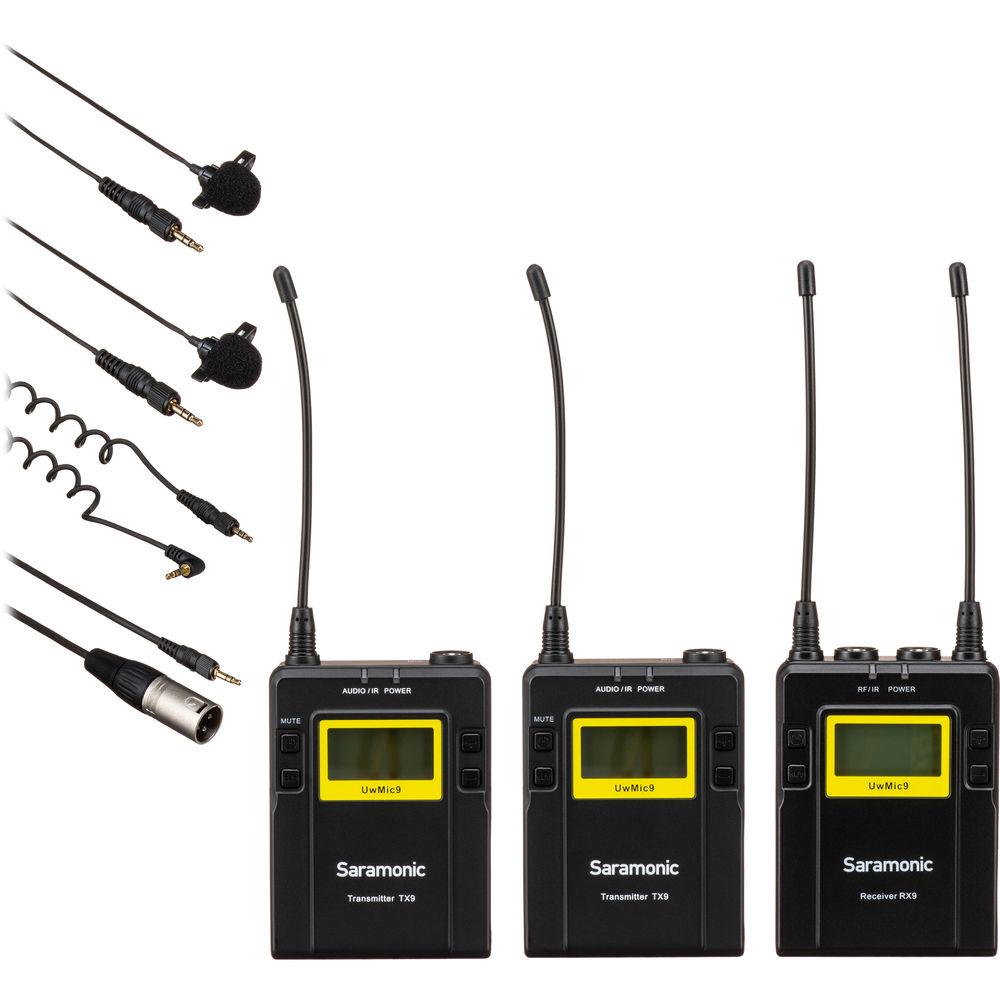

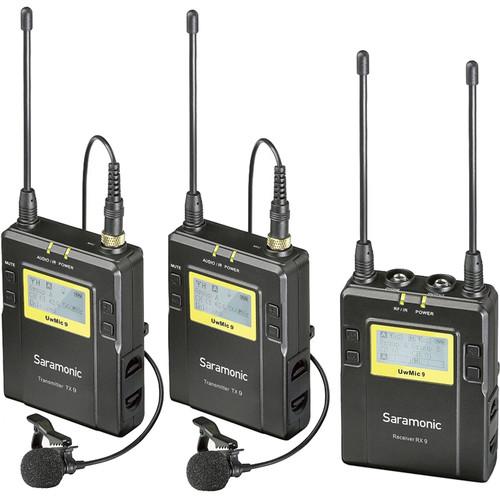

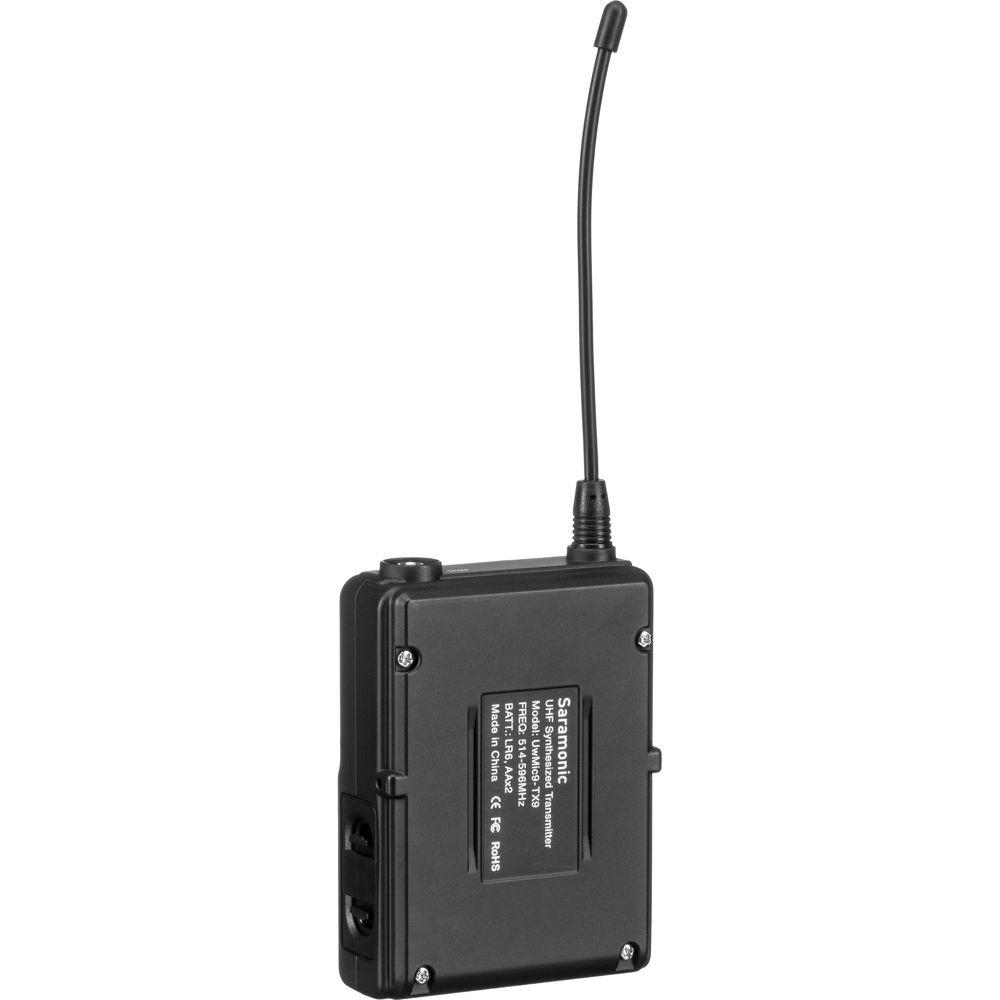

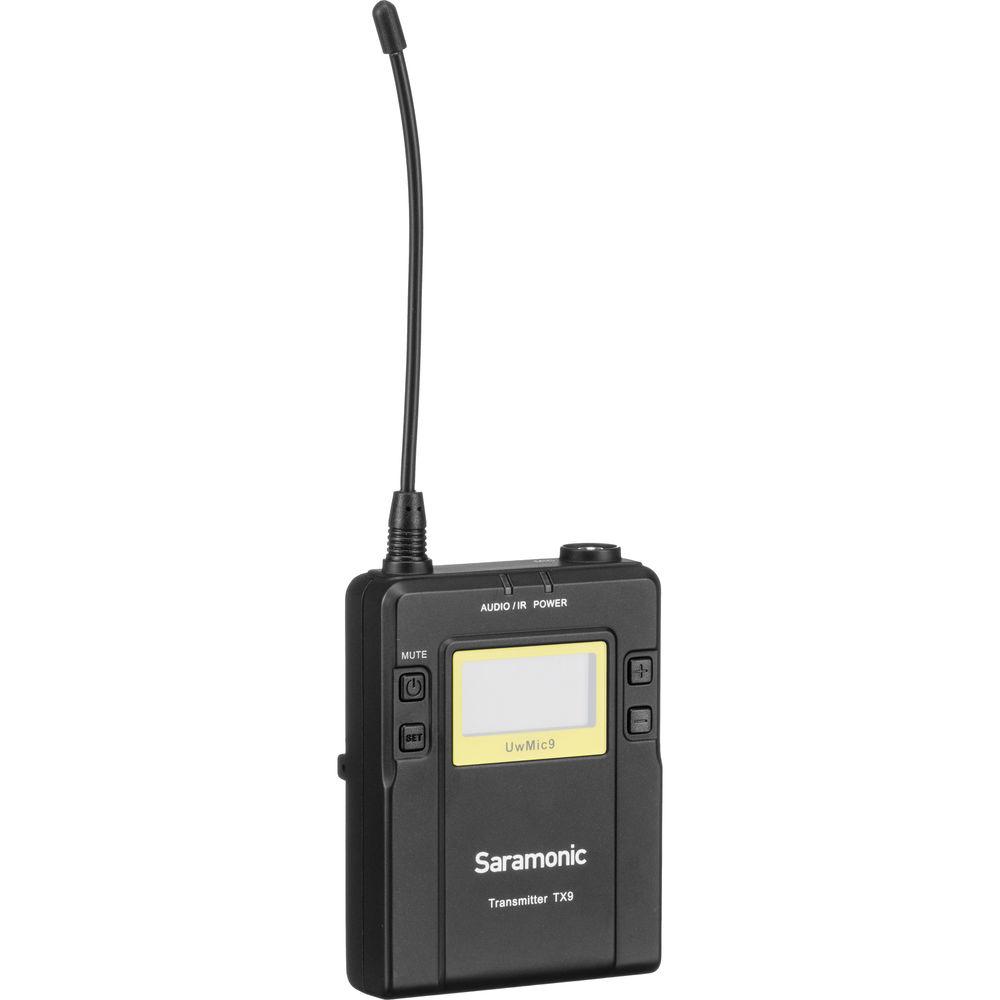

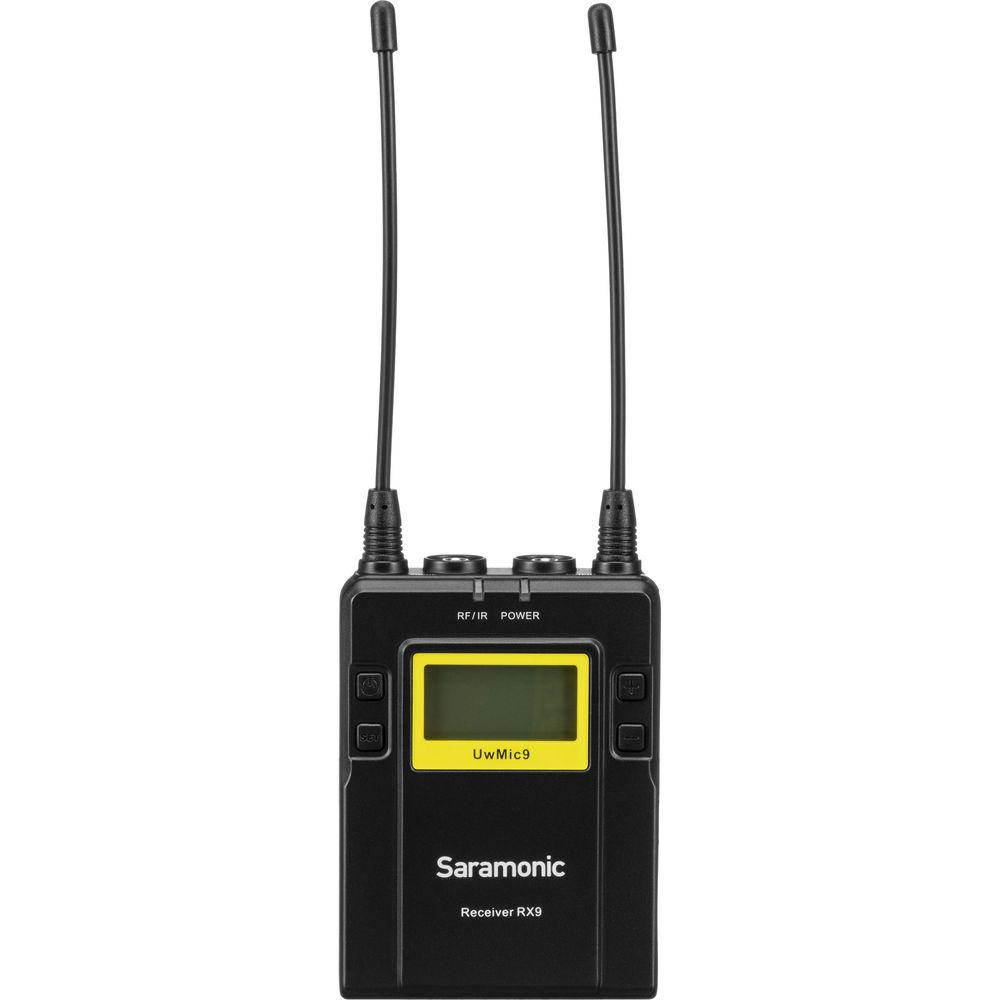

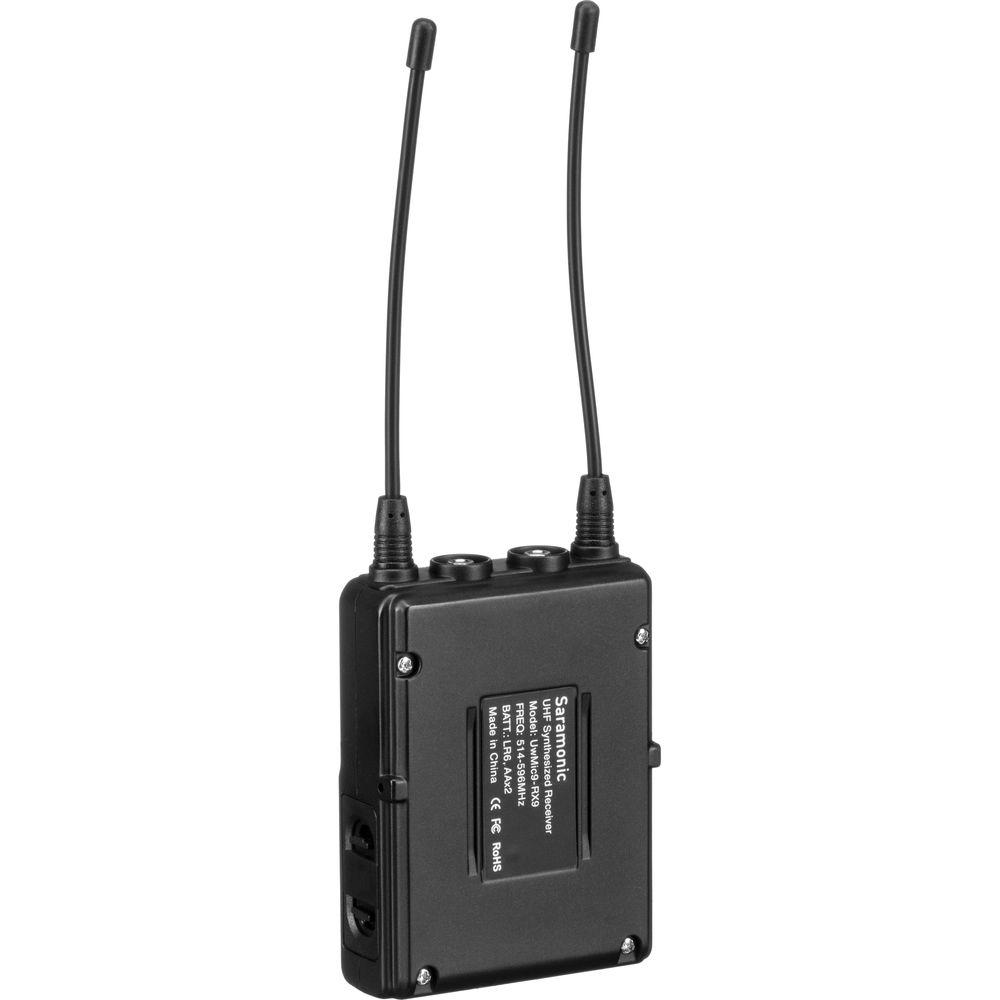

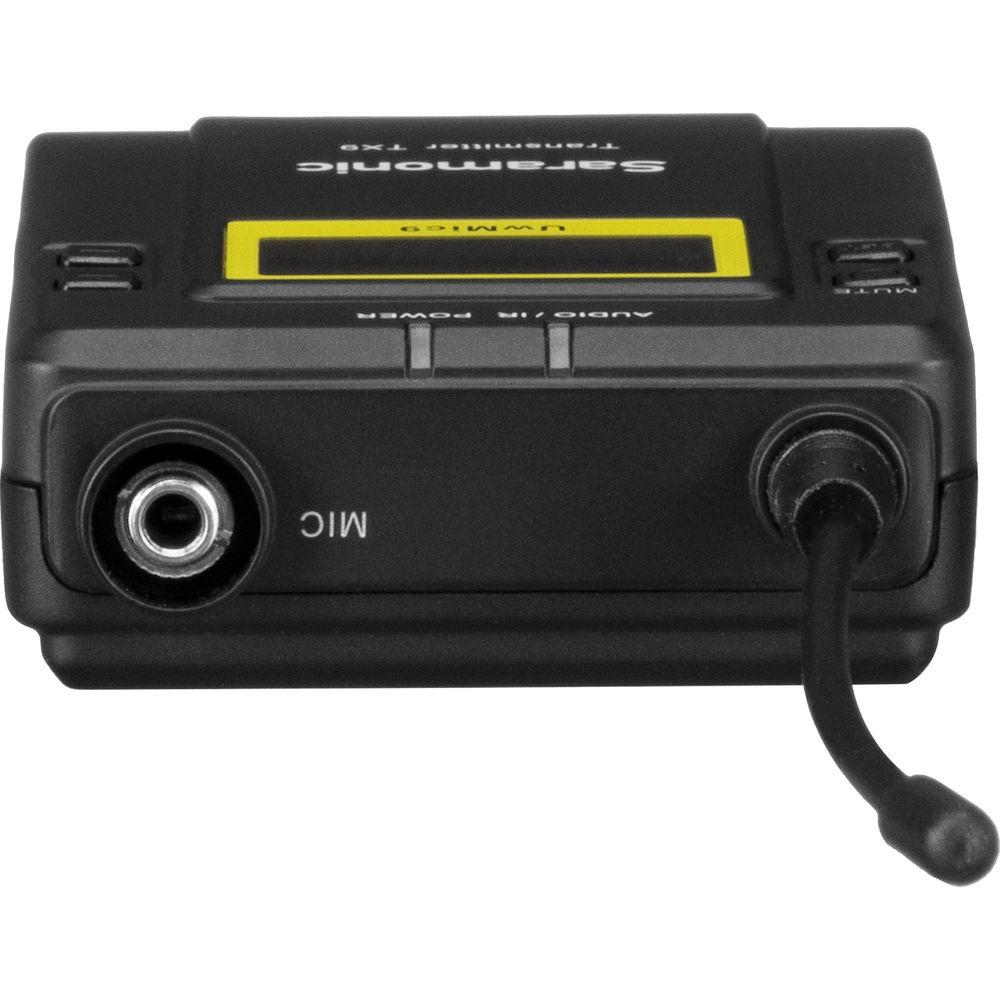

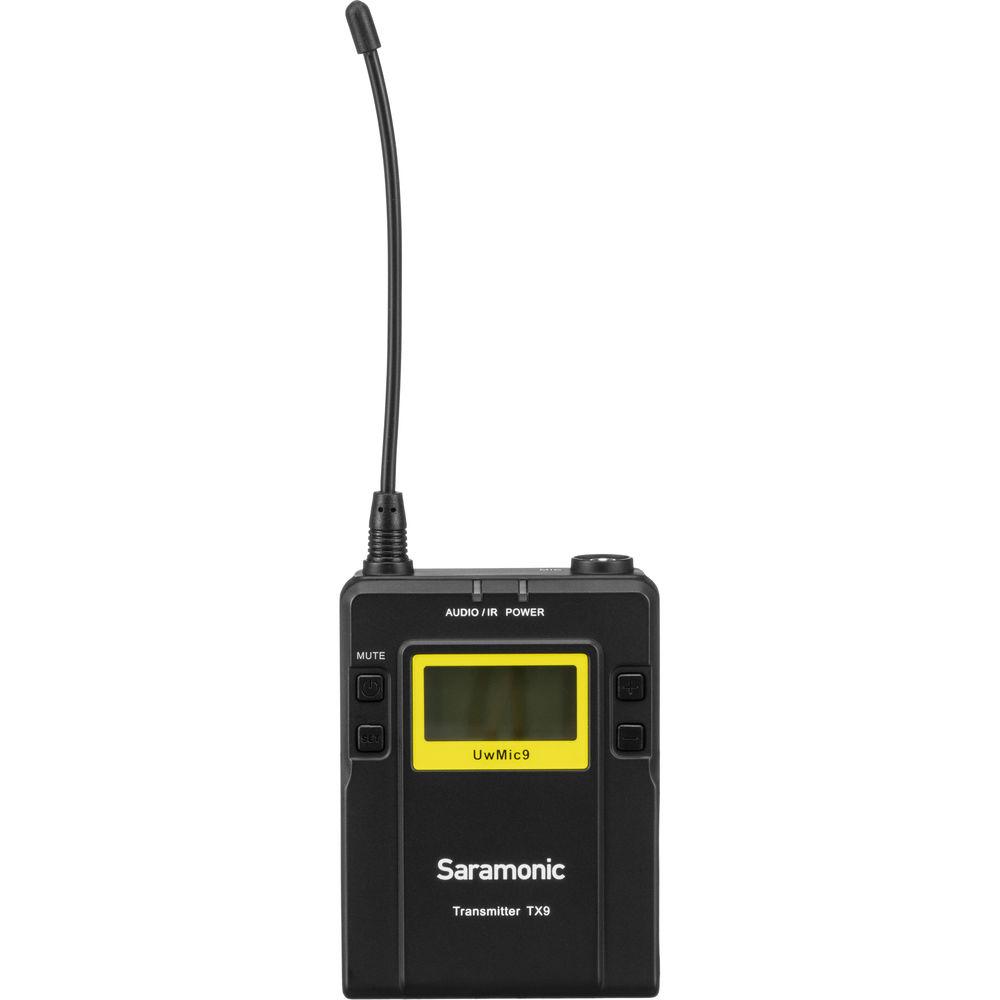

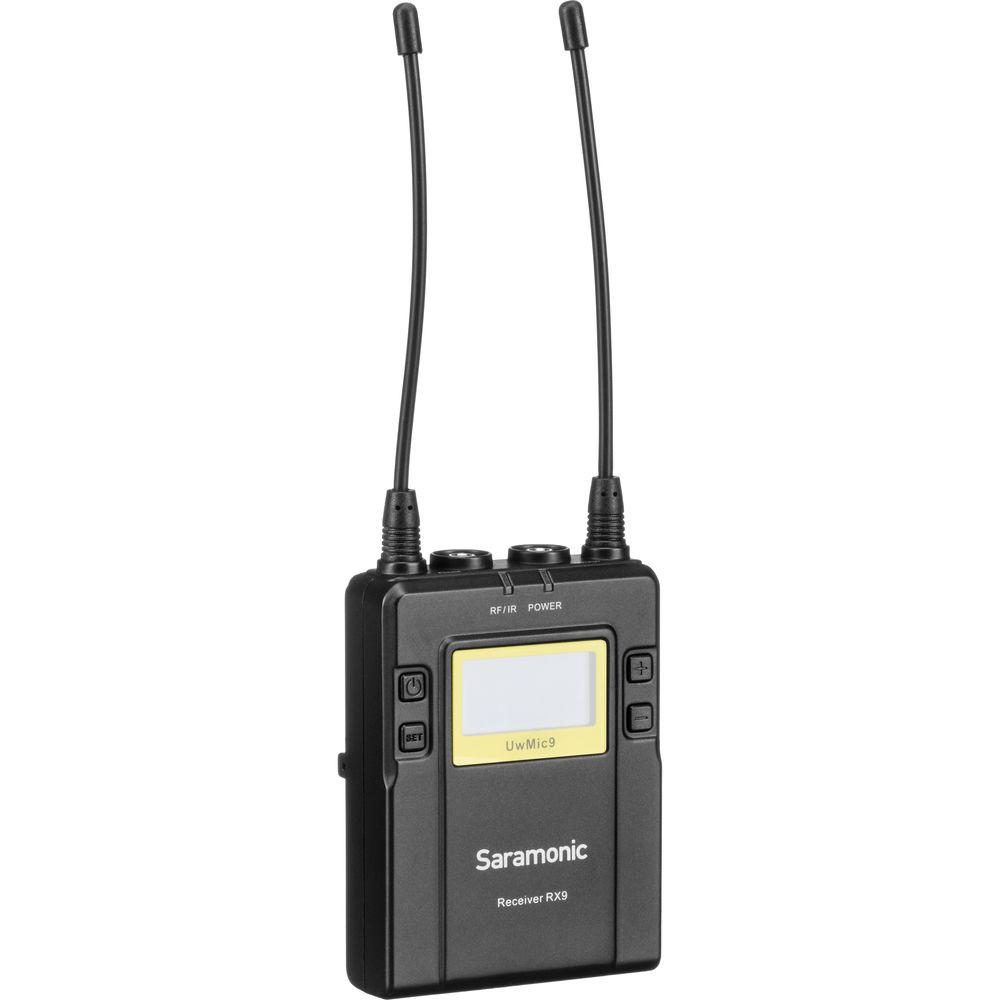

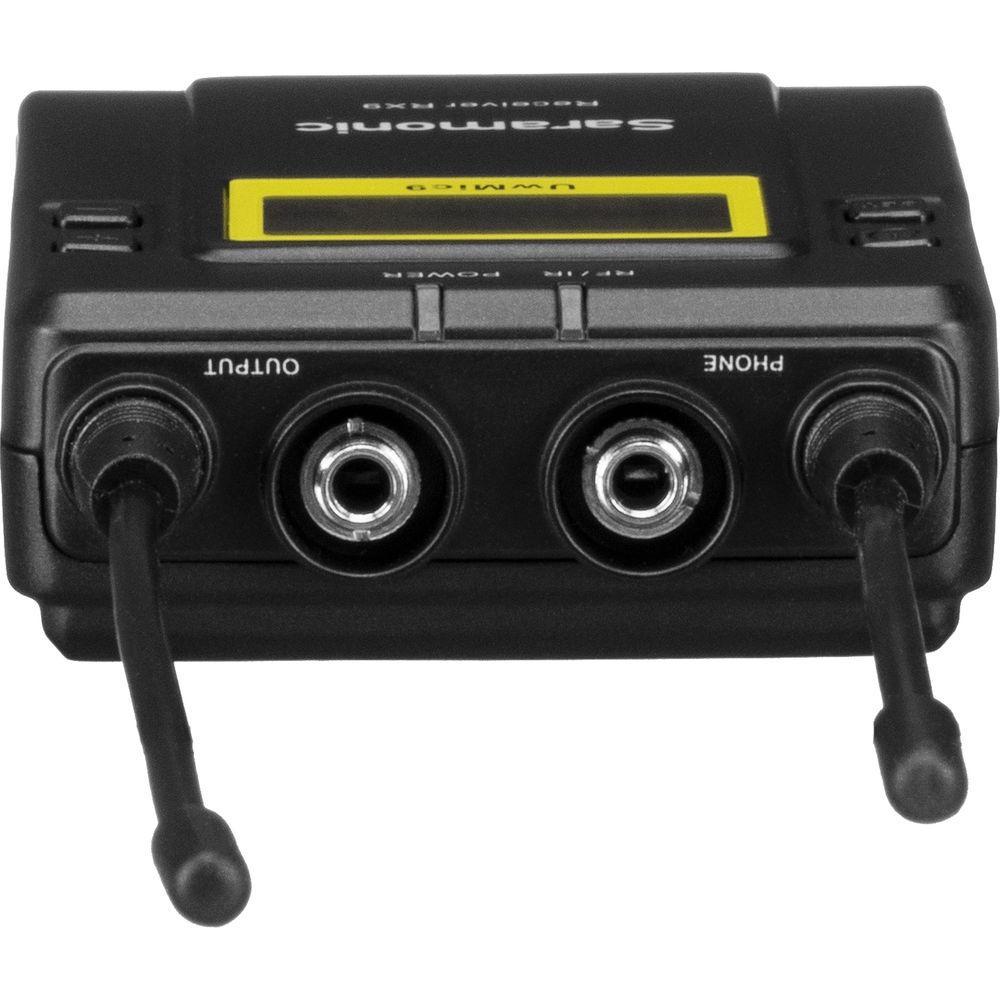

The Saramonic UwMic9 2-Person Camera-Mount Wireless Omni Lavalier Microphone System is a portable wireless system for capturing audio with dual subjects. It can be used in several environments for video, field recording, interview, broadcast TV, and ENG applications. The system's RX9 camera-mountable receiver features a wide-switching RF bandwidth and an easy-to-read LCD display. It is built with infrared synchronization between transmitter and receiver, an auto-scan function, and can search for an available transmission frequency. The headphone jack provides real-time monitoring with headphones, which is useful for cameras that lack a monitor output. The two compact transmitters employ a crystal-controlled PLL synthesizer and are equipped with a muting function. Their RF power output can be switched between high, middle, and low settings. In addition, each transmitter is built with a 1/8" type mic input. Also, included with this system are two lavalier microphones, a shoe-mount adapter, a single 1/8" to XLR output cable, and a single 1/8 to 1/8" output cable. In the Box Saramonic UwMic9 2-Person Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz) RX9 Portable Receiver 2 x TX9 Bodypack Transmitters Shoe-Mount Adapter 2 x Lavalier Microphones 1/8" to XLR Output Cable 1/8 to 1/8" Output Cable 2 x Windscreen 2 x Belt Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic UwMic9 2-Person Camera-Mount Wireless Omni Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic UWMIC9TX9TX9RX9 Specs | | | Channels | Dual Channel Available | | Frequencies | 96, A & B group | | Oscillator Type | PLL synthesizer | | Audio Output Connector | 1/8" (3.5 mm) jack | | Antenna | 1/4 wave wired | | Audio Output Level | -60 dBV | | Headphone Output Level | 30 mW (16 Ohms) | | Receiving Frequency | 514 to 596 MHz | | Receiving Sensitivity | -95 dBm | | Signal to Noise Ratio | 70 dB or more | | Voice Delay | 12 ms | | Reference Deviation | ±5 kHz (-60 dBV, 1 kHz input) | | Frequency Response | 40 Hz to 18 kHz (±3 dB) | | Distortion | 0.5% or less | | Spurious and Harmonic Suppression | -60 dB | | Batteries | Two AA size batteries | | Dimensions | 6.7 x 2.5 x 1.2" (17 x 6.4 x 3.0 cm) | | Weight | Approx. 7.72 oz (219 g) excluding batteries | | | | Channels | 96, A & B group | | Oscillator Type | PLL synthesizer | | Audio Carrier Frequencies | 514 to 596 MHz | | Reference Deviation | ±5 kHz (-60 dBV, 1 kHz input) | | Signal to Noise Ratio | 70 dB or more | | Spurious and Harmonic Suppression | -60 dB | | Voice Delay | 12 ms | | Antenna | 1/4 wave wired | | Audio Input Connectors | 1/8" (3.5 mm) jack | | Audio Input | -60 dBV (MIC input, 0 dB attenuation) | | RF Output Level | 30 mW / 20 mW / 10 mW selectable | | Battery | 2 x AA size batteries | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 131°F (-20 to +55°C) | | Distortion | 0.5% or less | | Dimensions | 6.7 x 2.5 x 1.2" (17 x 6.3 x 3.0 cm) | | Weight | Approximately 7.46 oz (211.4 g) excluding batteries | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 13.4 x 9.9 x 2.1" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
