User Manual for Saramonic UwMic9 UHF Wireless Lavalier Mic System with Plug-On Receiver Click to enlarge the picture
Contents of the user manual for the Saramonic UwMic9 UHF Wireless Lavalier Mic
- Product category: Wireless Systems Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Wireless Systems
 |
User manual for the Saramonic UwMic9 UHF Wireless Lavalier Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

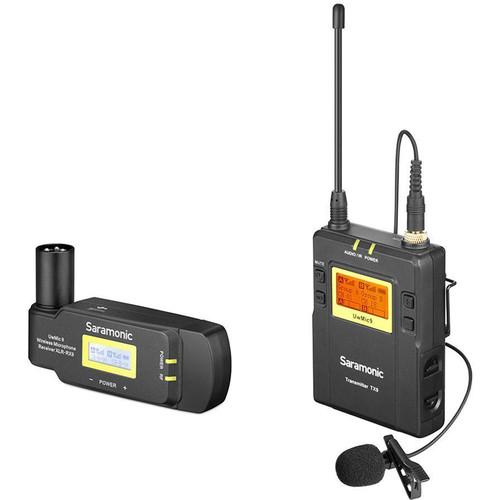

Product description Step your next video project up to broadcast-quality audio with the Saramonic UwMic9 UHF Wireless Lavalier Mic System with Plug-On Receiver, a portable wireless system ready to capture audio from a single subject, and for easy expansion by adding a second transmitter and microphone. It includes one dual-channel receiver, one bodypack transmitter with an omnidirectional lavalier microphone, and a bundle of cables and accessories. With a maximum operating range of 330 feet, it can be effectively used in an array of environments for video, field recording, interview, broadcast TV, and ENG applications.The system's RX-XLR9 plug-on receiver features an easy-to-read LCD screen, rotatable positioning, and a wide-switching RF bandwidth with 96 channels. It boasts infrared synchronization with the transmitter, an auto-scan function, and two audio outputs—a balanced 3-pin XLR, and a 3.5mm jack for real-time monitoring with headphones. Connect it directly to your mixer's XLR input, or use the supplied shoe mount to attach it to your camera.The compact transmitter employs a crystal-controlled PLL synthesizer and a convenient muting function. The RF power output can be switched between high, middle, and low settings to accommodate a range of shooting distances and session durations. The 3.5mm input can accept mic- or line-level signal, making it compatible with sources such as microphones and mixers. - TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz) The TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic from Saramonic is a compact transmitter that employs a crystal-controlled PLL synthesizer. It can be used when paired with an RX9 receiver (sold separately) to capture audio for interviews, broadcast TV, electronic news gathering (ENG), and other audio broadcasting and recording applications.Featuring 96 channels in two groups, an easy-to-read LCD display, over 330' operating range, a mute function, and a BMP-type 1/8" mic input, the bodypack transmitter has an RF power output that can be switched among high, middle, and low settings. It is designed to capture rich, crystal-clear sound and includes a lapel clip, and a windscreen.

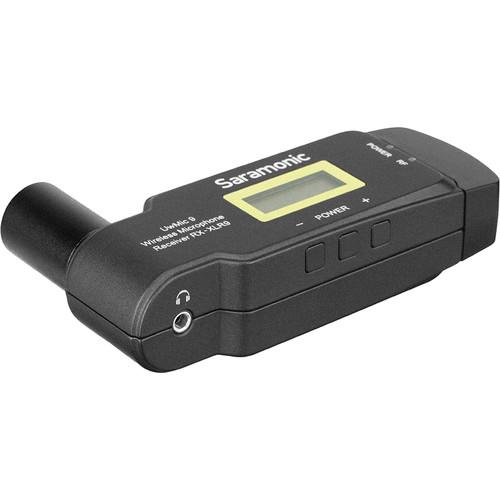

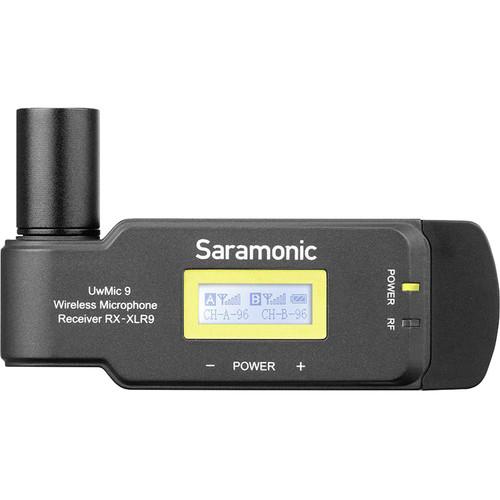

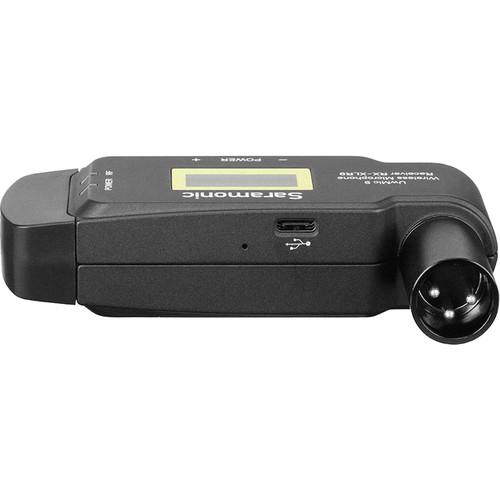

- RX-XLR9 Dual-Channel Wireless Plug-On Receiver for UwMic9 System (514 to 596 MHz) Add the capability of wireless audio reception to your camera, mixer, or audio recorder with the Saramonic RX-XLR9, an XLR-equipped, dual-channel wireless plug-on receiver designed for UwMic9 systems. Connect it directly to your device's XLR input, or use the included XLR to 3.5mm cable and shoe mount to integrate it into your camera-based setup. Since the receiver rotates up to 320 degrees, it can easily be positioned to make room for other gear. The RX-XLR9 works with one or two compatible transmitters (available separately) at a maximum operating range of 330 feet. With automatic scanning and 96 selectable channels in two groups across the 514 to 596 MHz UHF spectrum, the RX-XLR9 ensures reliable wireless signal reception for your interviews, film/TV projects, ENG, EFP, and more. A backlit LCD screen ensures clear viewing of vital information such as the battery status, group, and channel. In addition to the balanced 3-pin XLR output, the RX-XLR9 features a 3.5mm TRS headphone jack for convenient signal monitoring. Power the receiver via two AA batteries or an external USB battery pack (available separately).
- Delivers broadcast-quality sound for interviews, film dialog, field recording, TV, and news gathering
- Offers 96 selectable channels in the 514 to 596 MHz in the UHF spectrum
- Auto-scan feature locates the ideal channel, and infrared sync makes setup quick
- Ultra-compact housing featuring durable metal construction

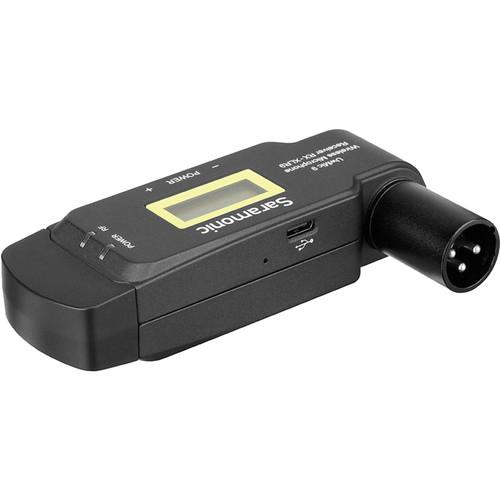

- Mounts directly to an XLR input a professional video camera, mixer, or portable audio recorder

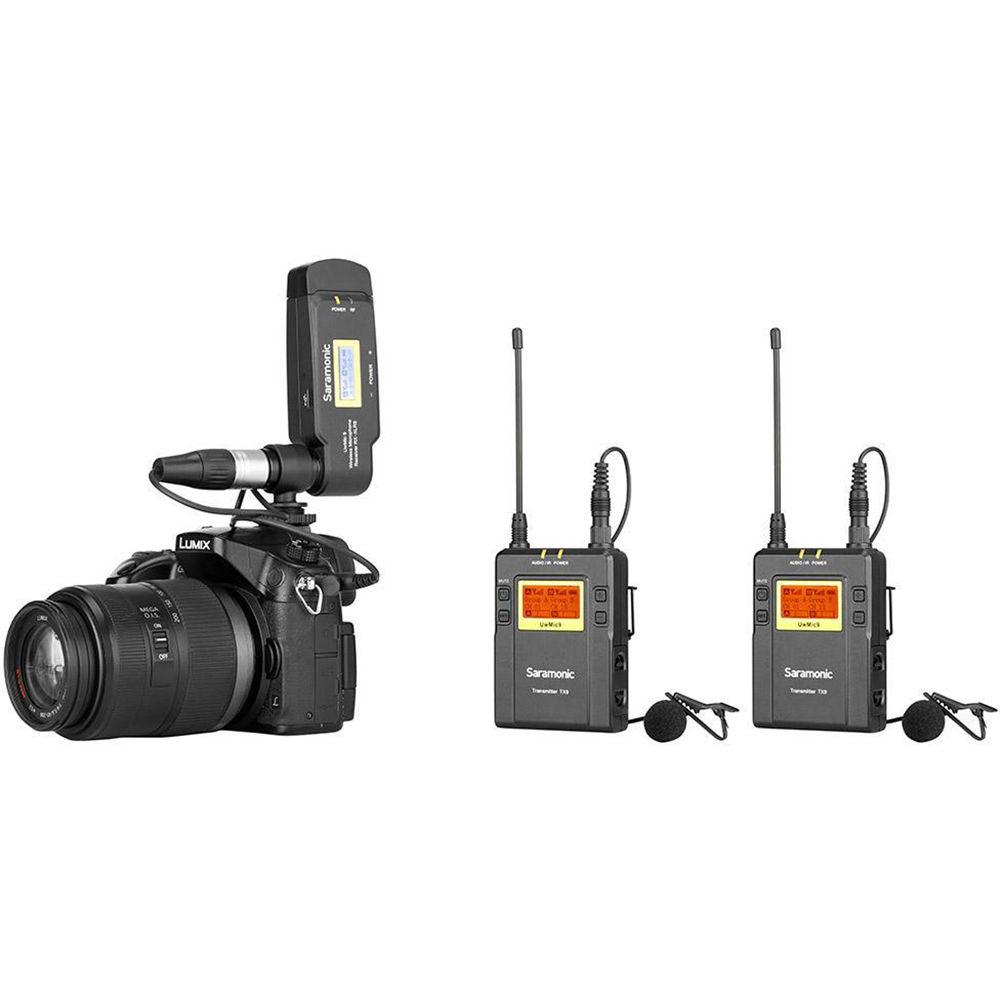

- Includes camera shoe mount with an integrated metal 1/4"-20 tripod thread for easy attachment to DSLR or mirrorless camera
- Rotates up to 320° to make room for other equipment when mounted to a camera
- Works with one or two transmitters such as the TX9 bodypack transmitter, the TX-XLR9 plug-on transmitter, and the HU9 handheld wireless microphone (all available separately)

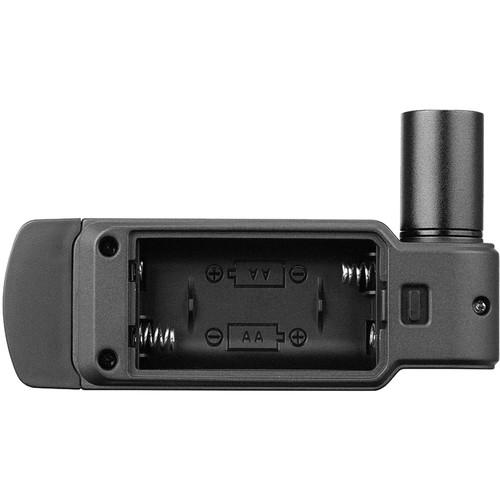

- Runs on two AA batteries, or can be powered by an external USB battery pack (available separately)

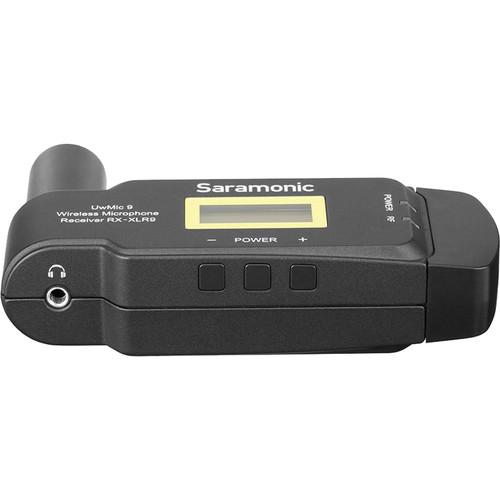

- 3.5mm TRS stereo headphone output for convenient audio monitoring
- Includes 13" XLR female to gold-plated 3.5mm TRS male cable for connecting the RX-XLR9 to the 3.5mm input of a camera
- Includes 4' gold-plated USB Type-C to USB Type-A cable

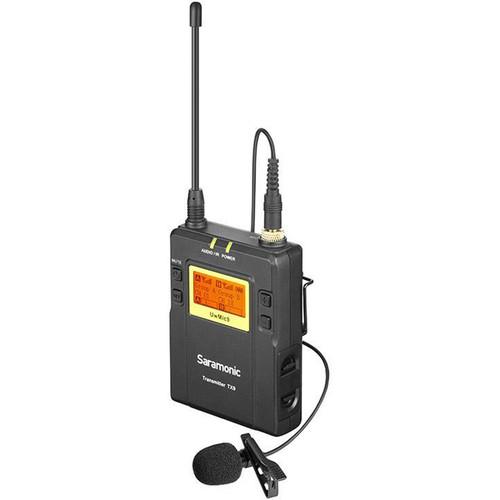

In the Box Bundle Items TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz) wdtxvtruawecrsybuyfuydxxsstvrrccvzyxx - Omnidirectional Lavalier Mic
- SR-UMBC1 Battery Compartment for Wireless Microphone Systems
RX-XLR9 Dual-Channel Wireless Plug-On Receiver for UwMic9 System (514 to 596 MHz) - Camera Shoe Mount with 1/4"-20 Thread
- 13" XLR Female to 3.5mm TRS Male Cable
- 4' USB Type-C to USB Type-A Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic UwMic9 UHF Wireless Lavalier Mic System with Plug-On Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
| Channels | 96 | | Groups | A and B | | Oscillator Type | PLL Synthesizer | | Carrier Frequency | 514 to 596 MHz | | Reference Deviation |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
