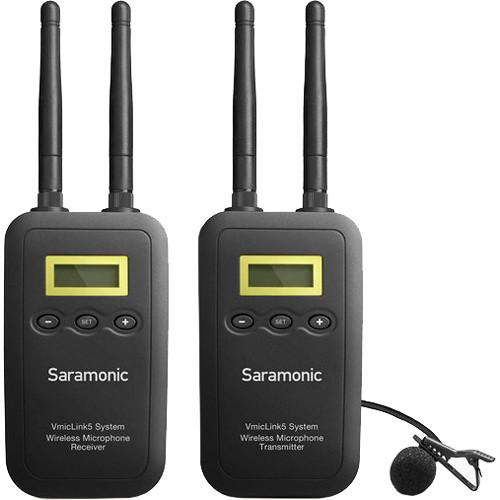

User Manual for Saramonic VmicLink5 5.8 GHz SHF Wireless Lavalier System and Receiver Click to enlarge the picture
Contents of the user manual for the Saramonic VmicLink5 5.8 GHz SHF Wireless
- Product category: Wireless Systems Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Wireless Systems
|
User manual for the Saramonic VmicLink5 5.8 GHz SHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|
Product description The VmicLink5 5.8 GHz SHF Wireless Lavalier Mic System and Receiver from Saramonic includes one portable VmicLink5-RX HiFi receiver with detachable antennas, as well as a VmicLInk5 TX HiFi bodypack transmitter, one lavalier microphone, and two lithium-ion rechargeable batteries. The system can be used to capture audio for DSLR video, field recording, filmmaking, and broadcast TV applications.The VmicLink5-RX is a camera-mountable integrated wireless receiver. Featuring an easy-to-read LCD display and DigRF synchronization between transmitter and receiver, the receiver has a selectable output mode that allows you to choose the output signal in mono or stereo.The VmicLink5 TX transmitter is equipped with a crystal-controlled PLL synthesizer and is built with a mute function. It has lock-type mic and line-input connectors and is designed to work in the 5725 to 5875 MHz frequency band.In addition, the VmicLink5 5.8 GHz SHF Wireless Lavalier Mic System and Receiver can constantly monitor and hop between frequencies and maintain the strongest possible signal level at a range of up to 30 meters. Included with the system are rechargeable lithium-ion batteries, belt clips, a shoe mount adapter, a battery charger, and a microphone-holder clip. - The 5.8 GHz frequency provides high-quality audio
- Record audio up to 30 meters away with no obstacle
- Automatic channel-switch program to avoid interference from multiple systems in the same environment
- Line and mic inputs provide a wide range of input options
- Real-time headphone monitor jack
- Detachable and flexible antenna can be rotated 360°accordingly for best sound
- Rechargeable li-ion batteries (included)
In the Box Saramonic VmicLink5 5.8 GHz SHF Wireless Lavalier System and Receiver (5725 to 5875 MHz) VmicLink5-RX5 VmicLink5-TX5 Shoe Mount Adapter Omnidirectional Lavalier Microphone 2 x Belt Clips Microphone Holder Clip XLR to 3.5mm Audio Cable, Locking-Type 3.5mm Audio Cable, Locking-Type Battery Charger 2 x Lithium-Ion Batteries 4 x Detachable Receiver Antennas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic VmicLink5 5.8 GHz SHF Wireless Lavalier System and Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic VMICLINK5HIFI Specs | Power Consumption | Receiver: 180 mA, 6 V | | Receiver Sensitivity | 198 dB | | Frequencies | 5725 to 5875 MHz | | Receiver Output | Phone: Maximum 70 mW/32 Ohm, 10 VDC isolation | | Line Out | Receiver: 4 x mic in gain, 50 VDC isolation | | Total Harmonic Distortion (THD) + N | -92 dB | | Frequency Response | 40 Hz to 18 kHz ± 1 dB | | Sample Rate | 16-bit/48 kHz | | Voice Delay | 18 ms | | Battery Type | 7.2 V, 1000 mAh li-ion | | Battery Life | 6.5 hours | | Antenna Gain | 3 dBi | | Dimensions (L x W x H) | Receiver and Transmitter: 4.4 x 2.5 x 1.1" / 11.3 x 6.4 x 2.8 cm | | Weight | 6.0 oz / 169 g (battery included) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.8 x 9.4 x 3.4" |
