Product description

Works Right Out of the Box
• • The system operates in the less congested 5.8 GHz frequency band to deliver a clean signal with less chance of drop outs. It selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 98' line of sight.
  • Built-in rechargeable batteries provide up to 6 hours of shooting time.

Clear, Intelligible Speech
• • The SR-M1 lavalier microphone features an omnidirectional pickup pattern that delivers a clear and consistent sound, even when the talent's head moves away from the mic.

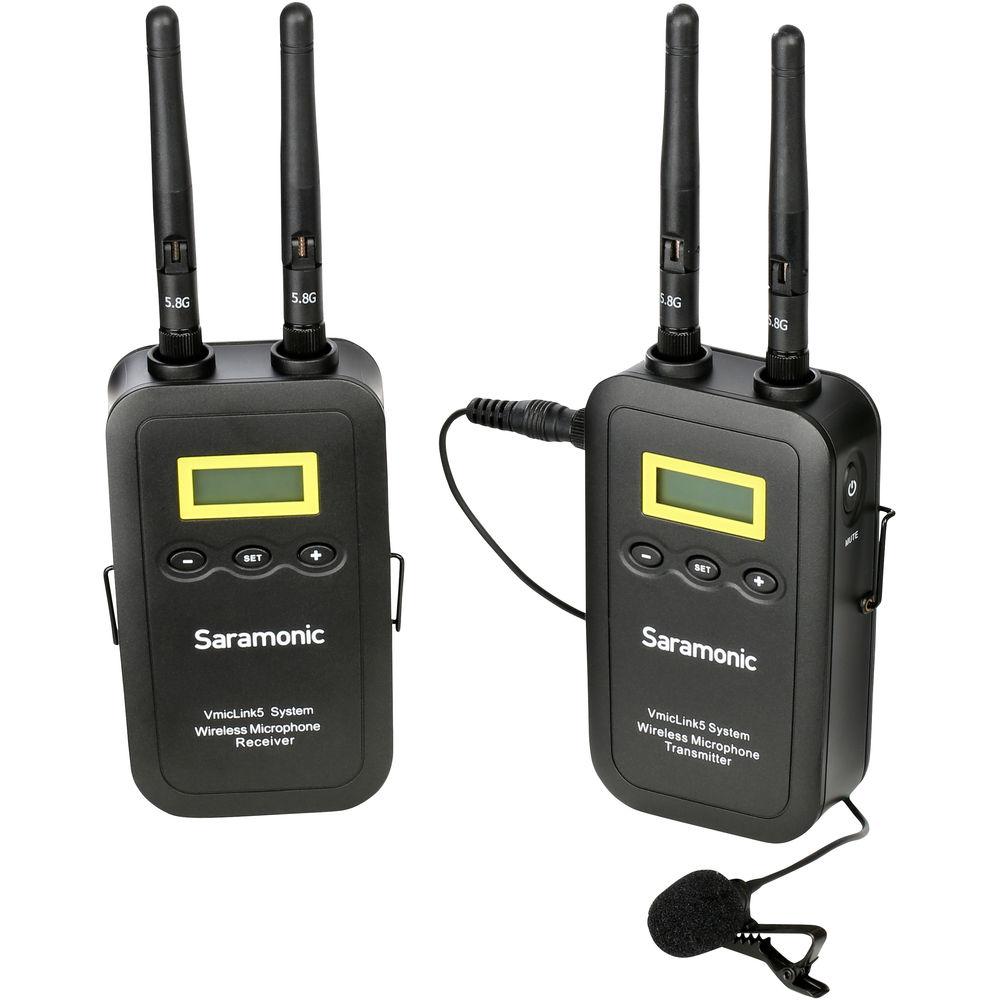

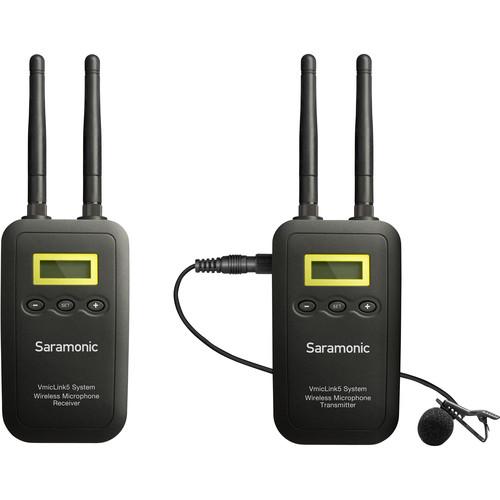

Bodypack Transmitter
• • Transmitter features a locking 3.5mm microphone input connector for the lavalier mic.
  • Dedicated line-level inputs on a locking 3.5mm connector makes capturing audio from an auxiliary source a snap.
  • Transmitter features a combination Power/Mute button, which can be locked when in use to prevent accidental muting or powering off.

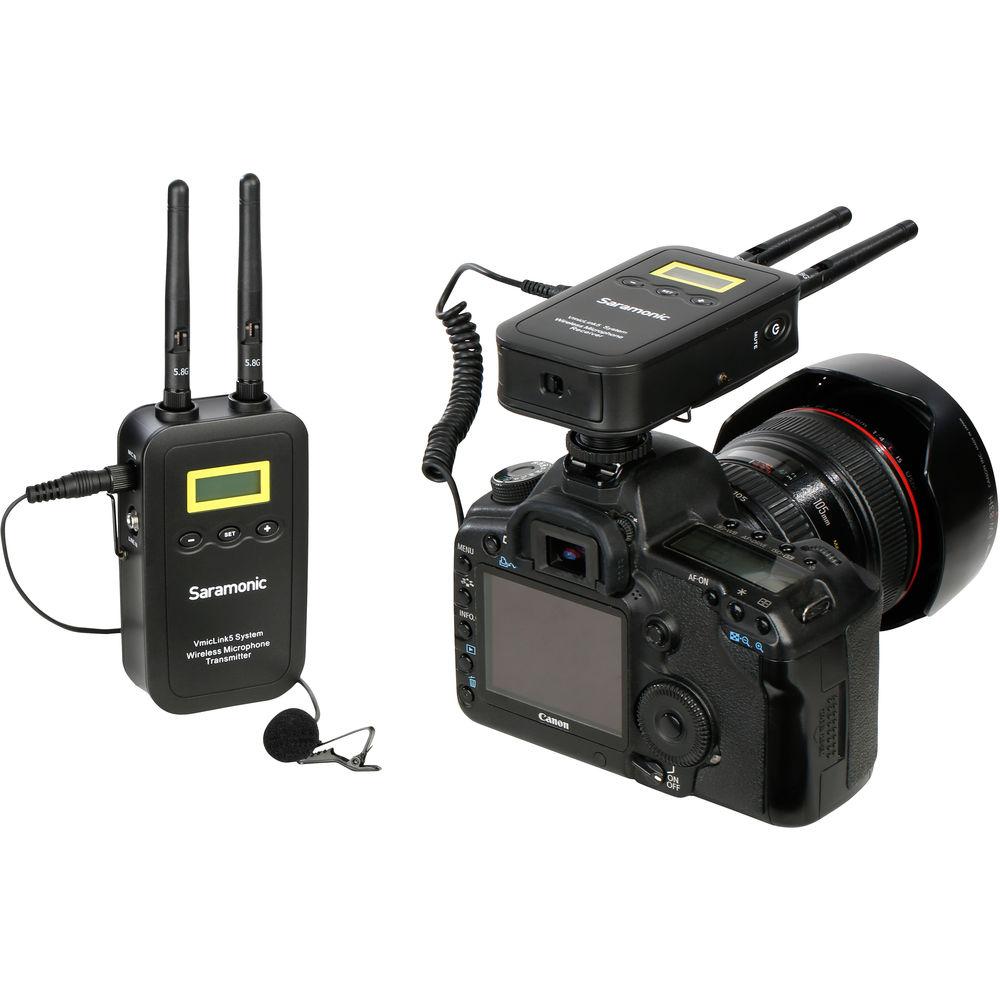

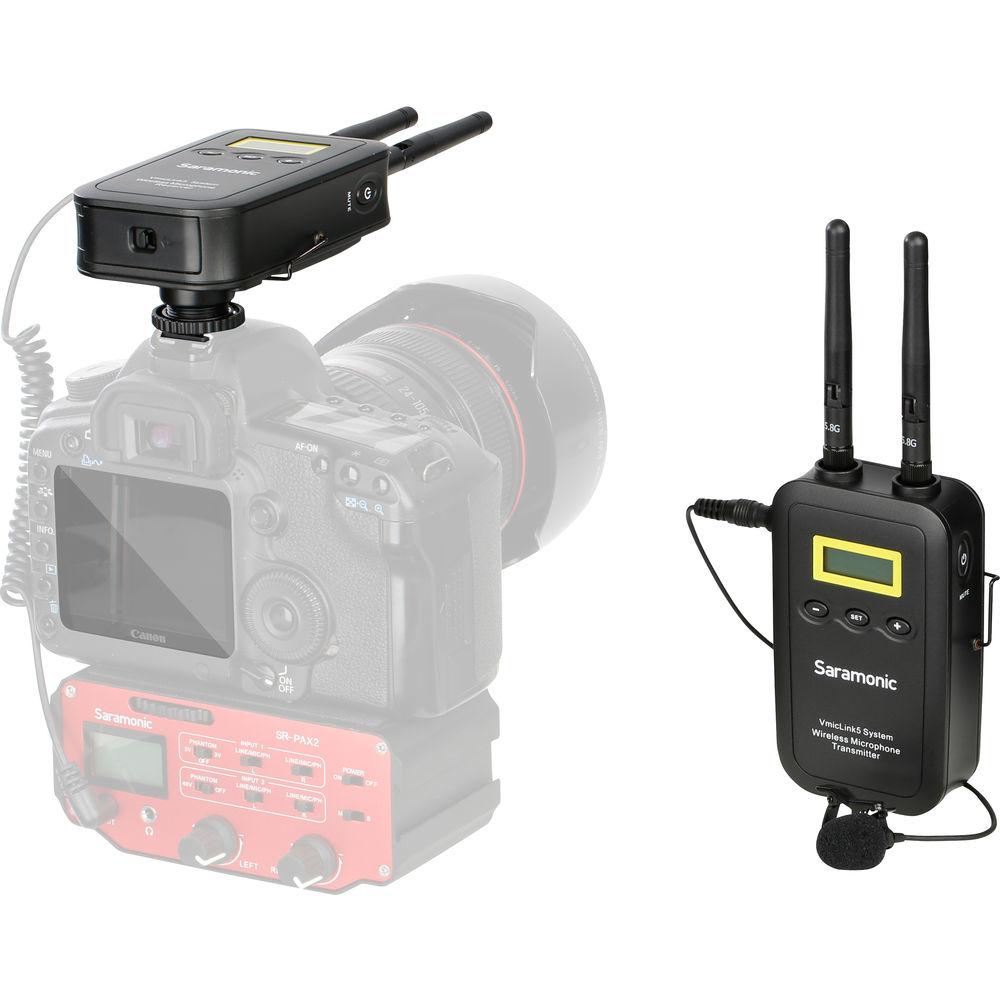

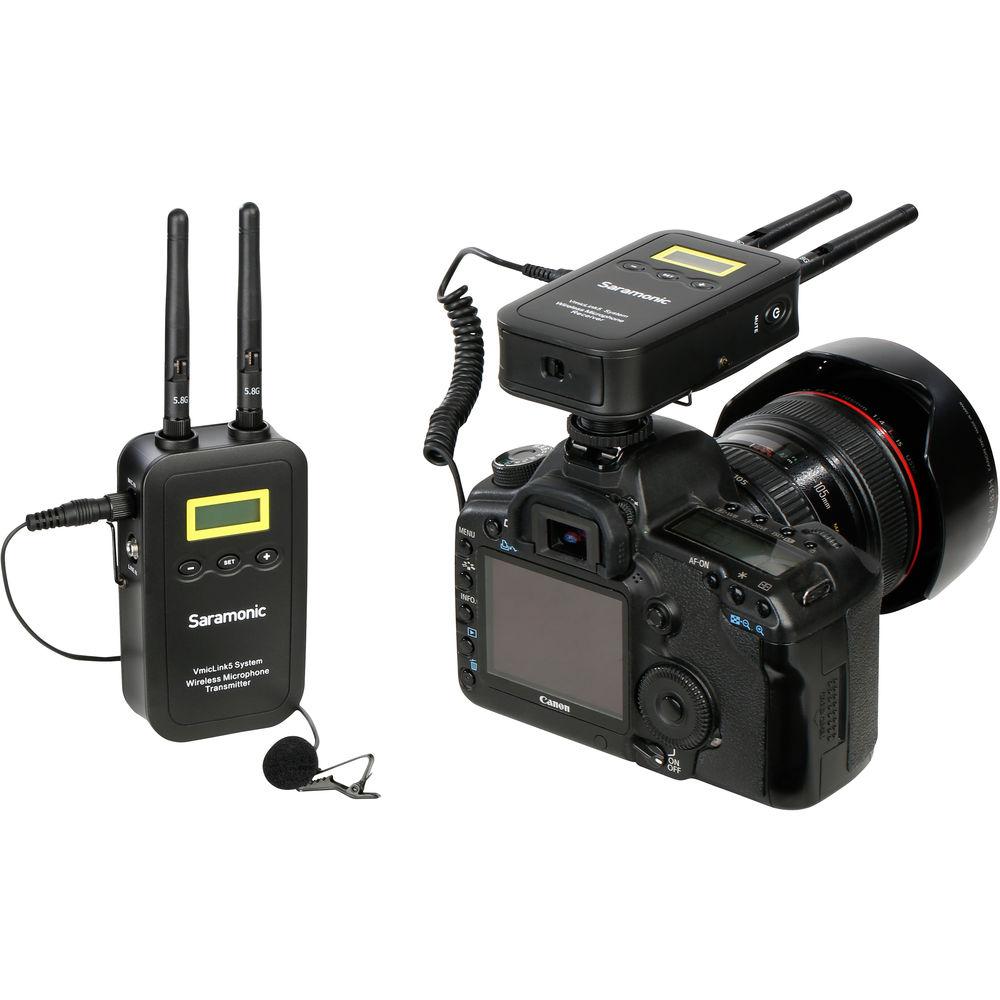

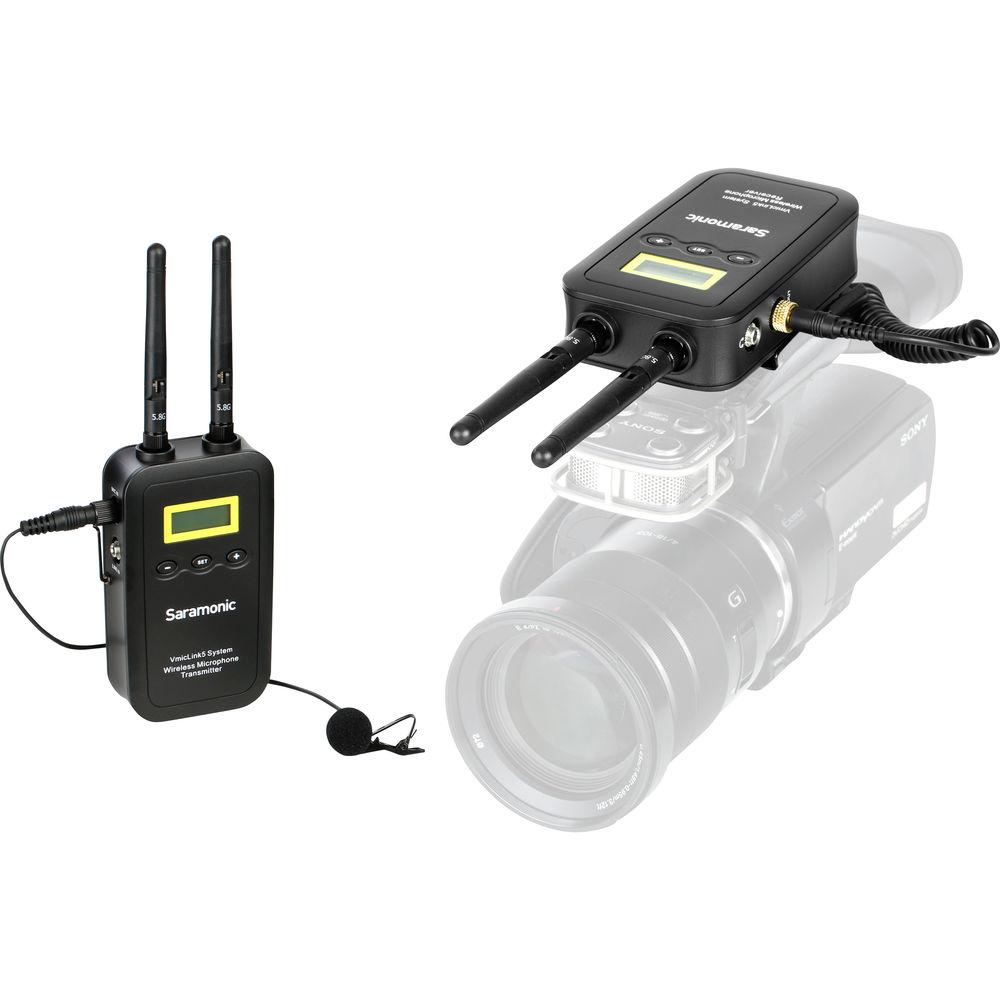

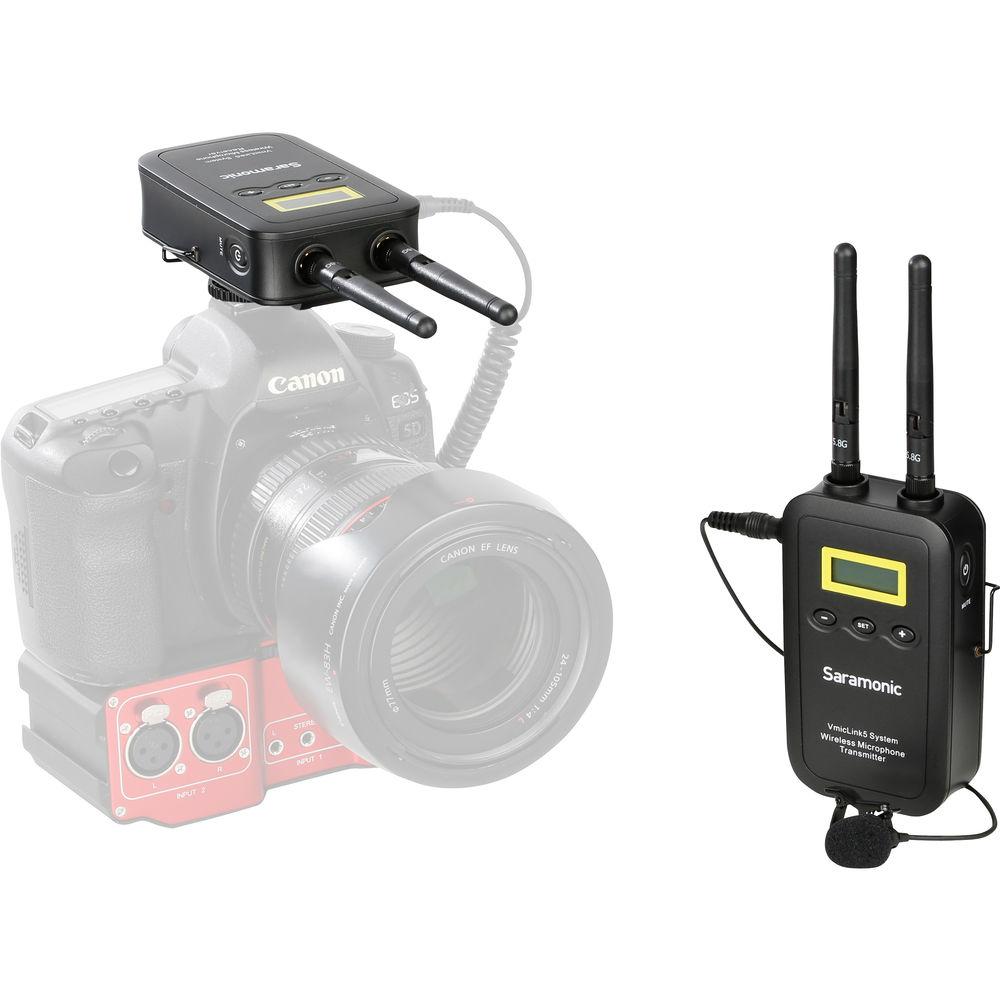

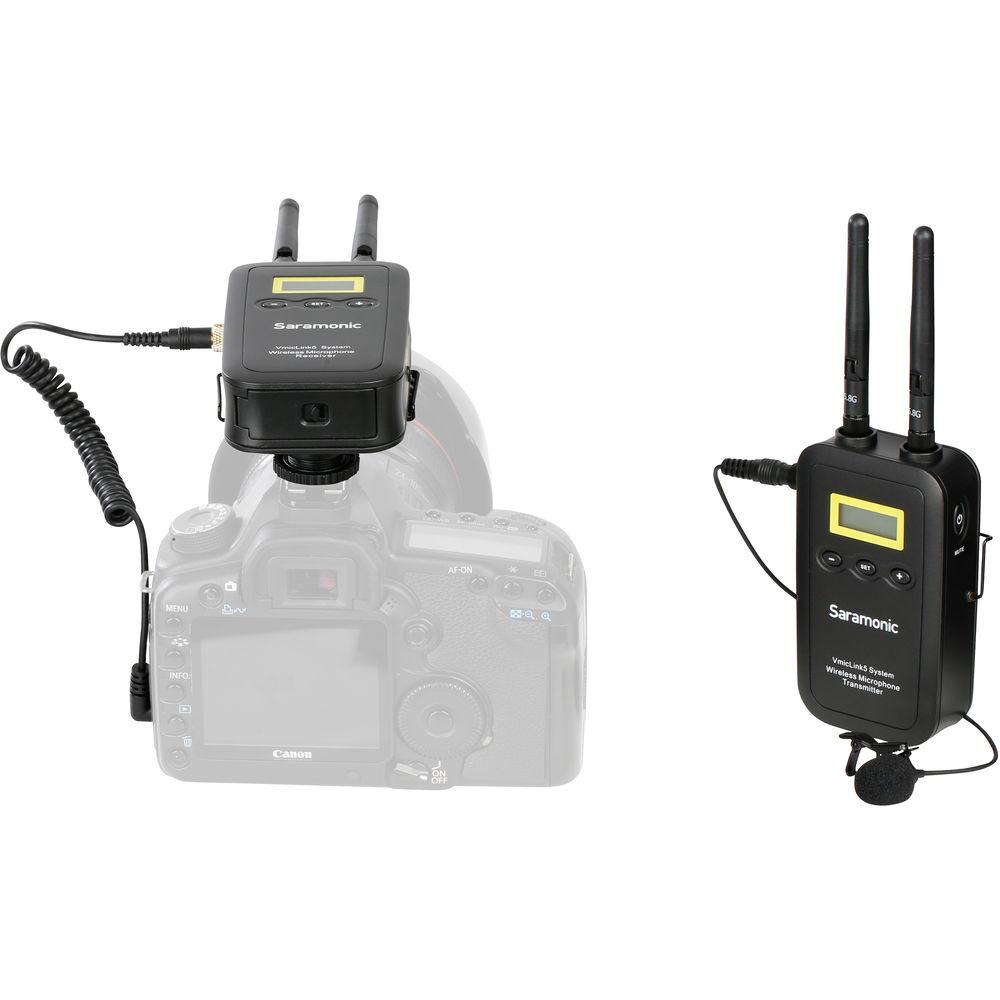

Camera-Mount Receiver
• • The low-profile receiver easily mounts to your camera without weighting it down.
  • Locking 3.5mm mini-plug and XLR output cables are both included to connect the receiver to DSLR, mirrorless, and professional video cameras, or to a recorder.
  • Headphone output enables real-time audio monitoring, great if your camera lacks a headphone jack.
  • Should you need to add more mics to your system, the receiver is ready to receive signal for up to three transmitters simultaneously.

Do More with your System
• • Saramonic offers several cable options that allow you to connect your system to iOS and Android smartphones/tablets, USB computers, and a wide variety of professional A/V gear.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Saramonic VMICLINK5RX+TX Specs

Channels	3 Channels Total
RF Frequency Range	5.725 GHz to 5.875 GHz
Operating Range	98.4' / 30 m, Line of Sight
Frequency Response	40 Hz to 18 kHz, Rating 90% users recommend this product to others. And what about you? This product has already been rated by 66 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
