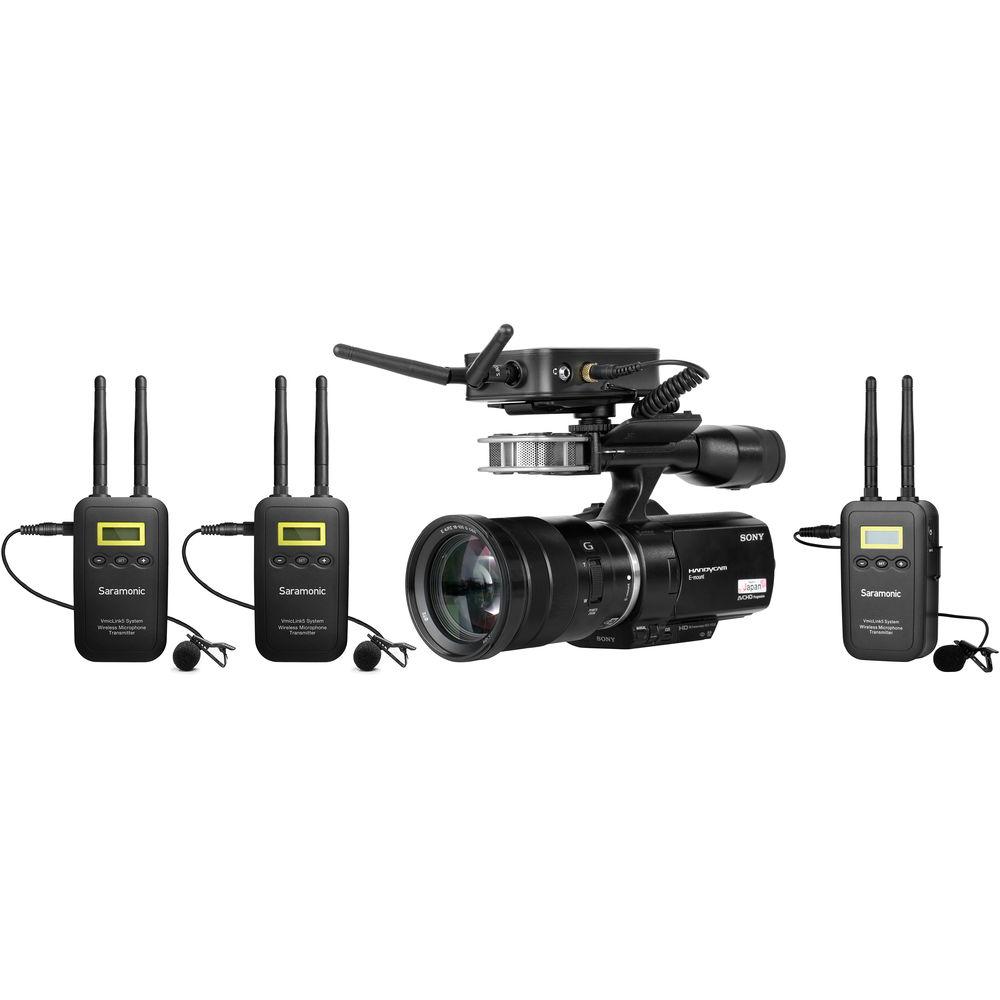

User Manual for Saramonic VmicLink5 RX TX TX TX Camera-Mount Digital Wireless Microphone System with Three Bodypack Transmitters and Lavalier Mics Click to enlarge the picture
Contents of the user manual for the Saramonic VmicLink5 RX TX TX TX
- Product category: Wireless Systems Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Wireless Systems
 |
User manual for the Saramonic VmicLink5 RX TX TX TX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

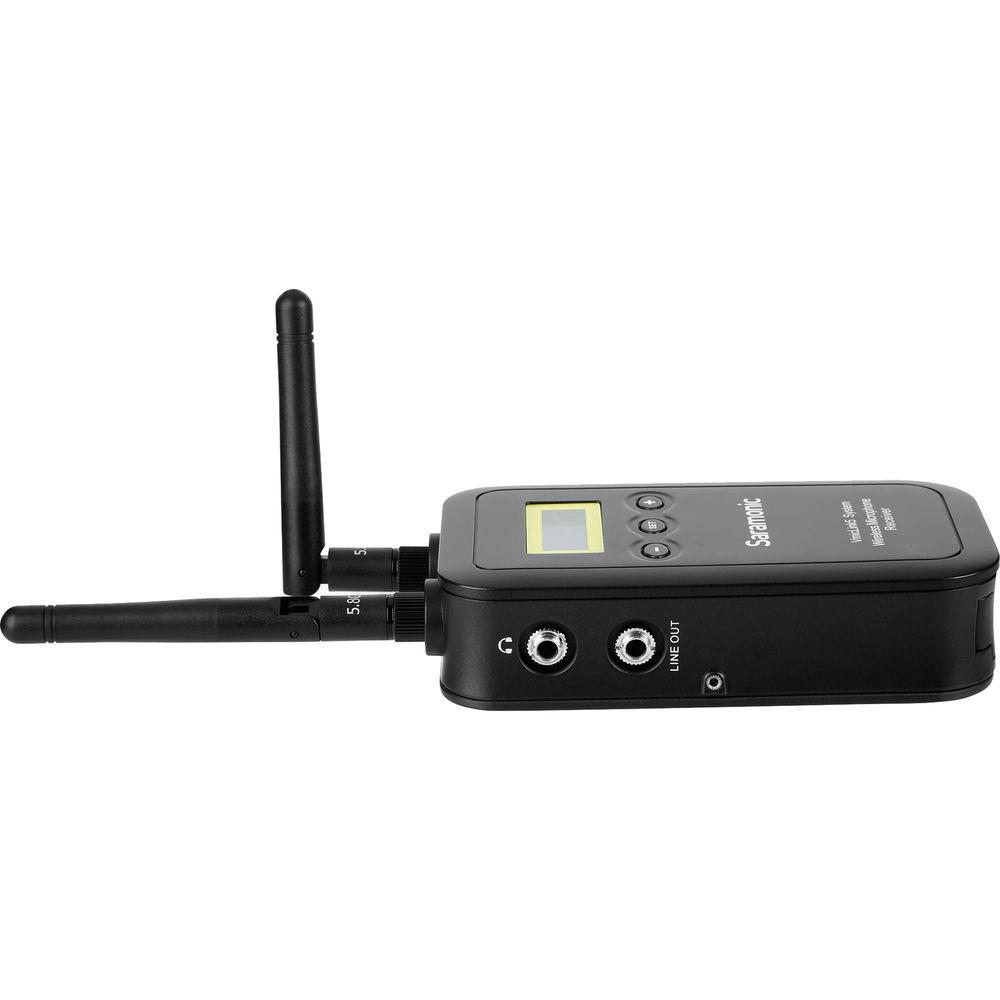

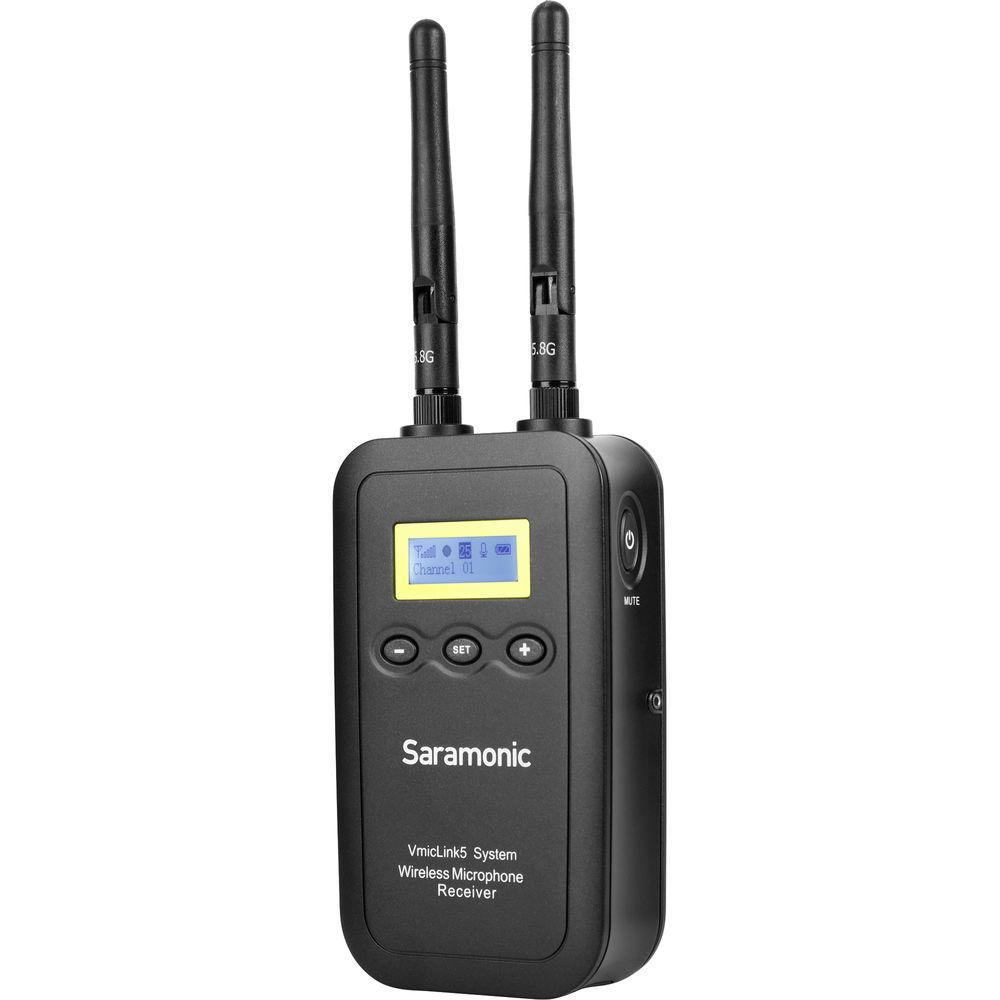

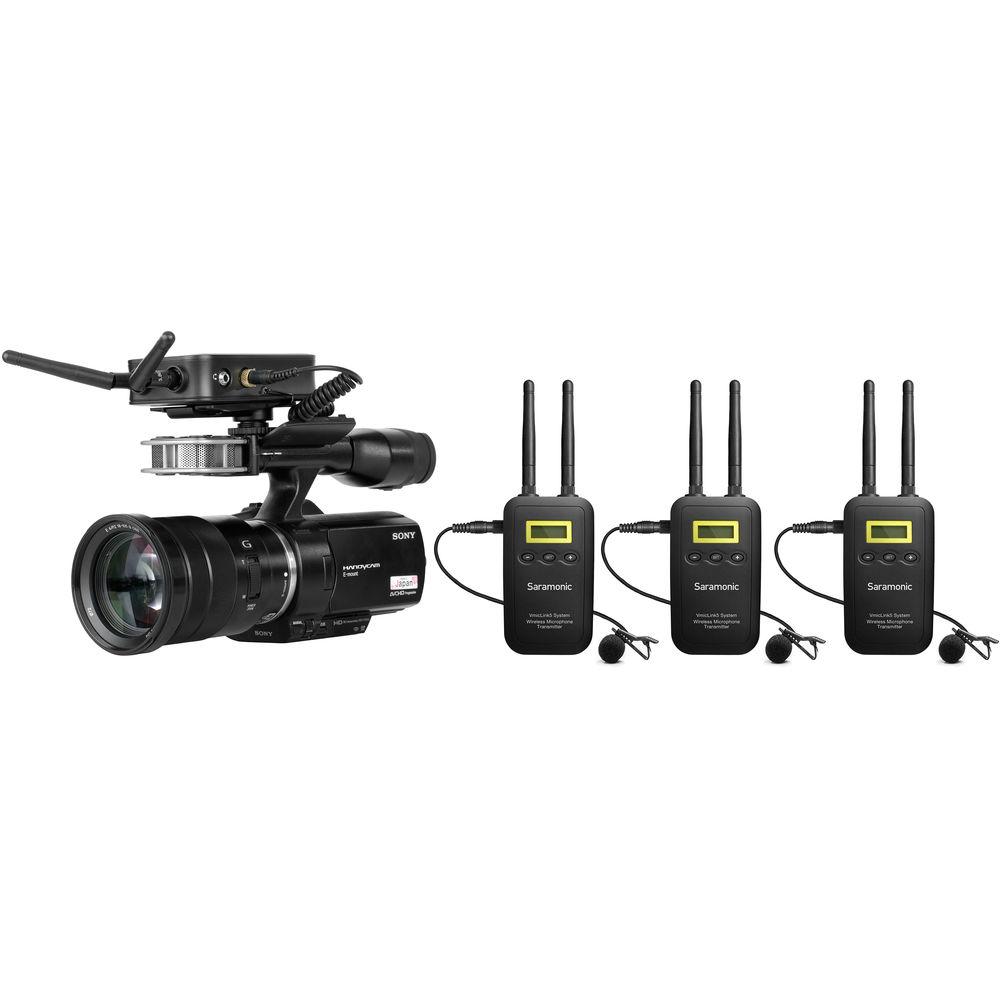

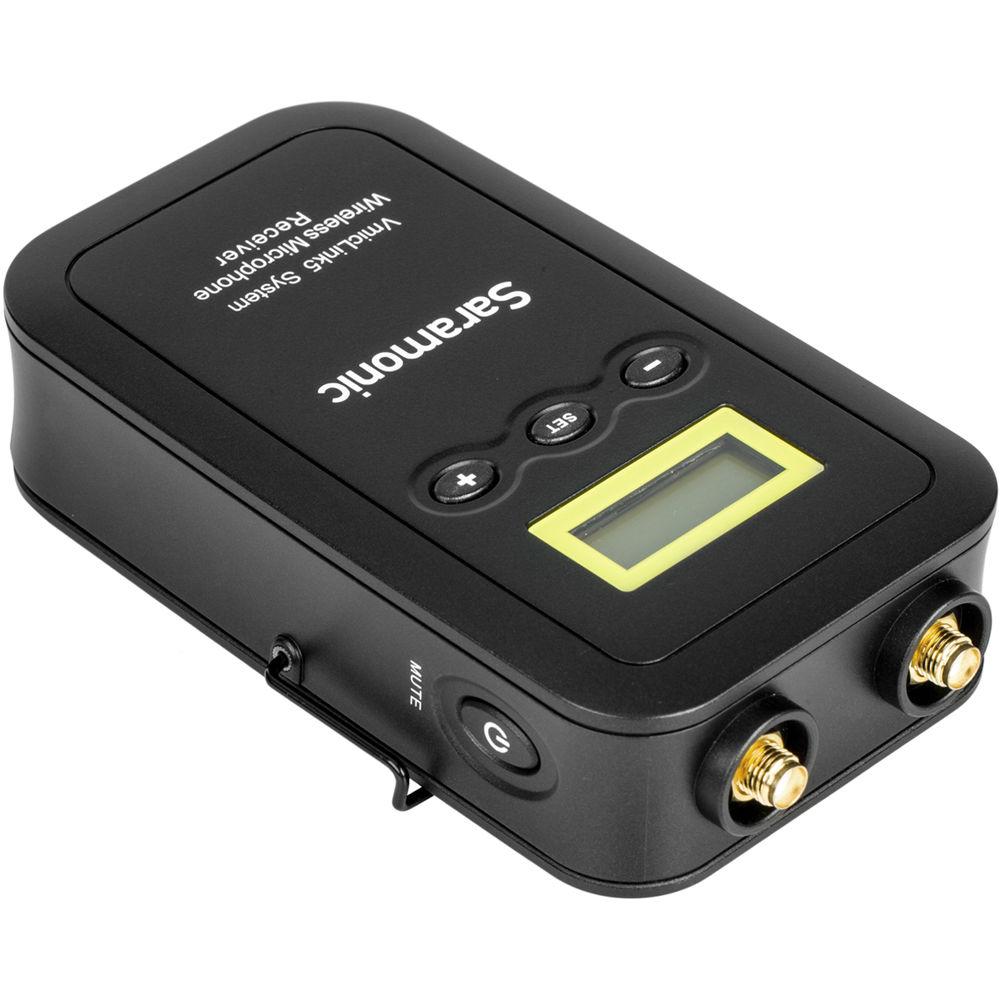

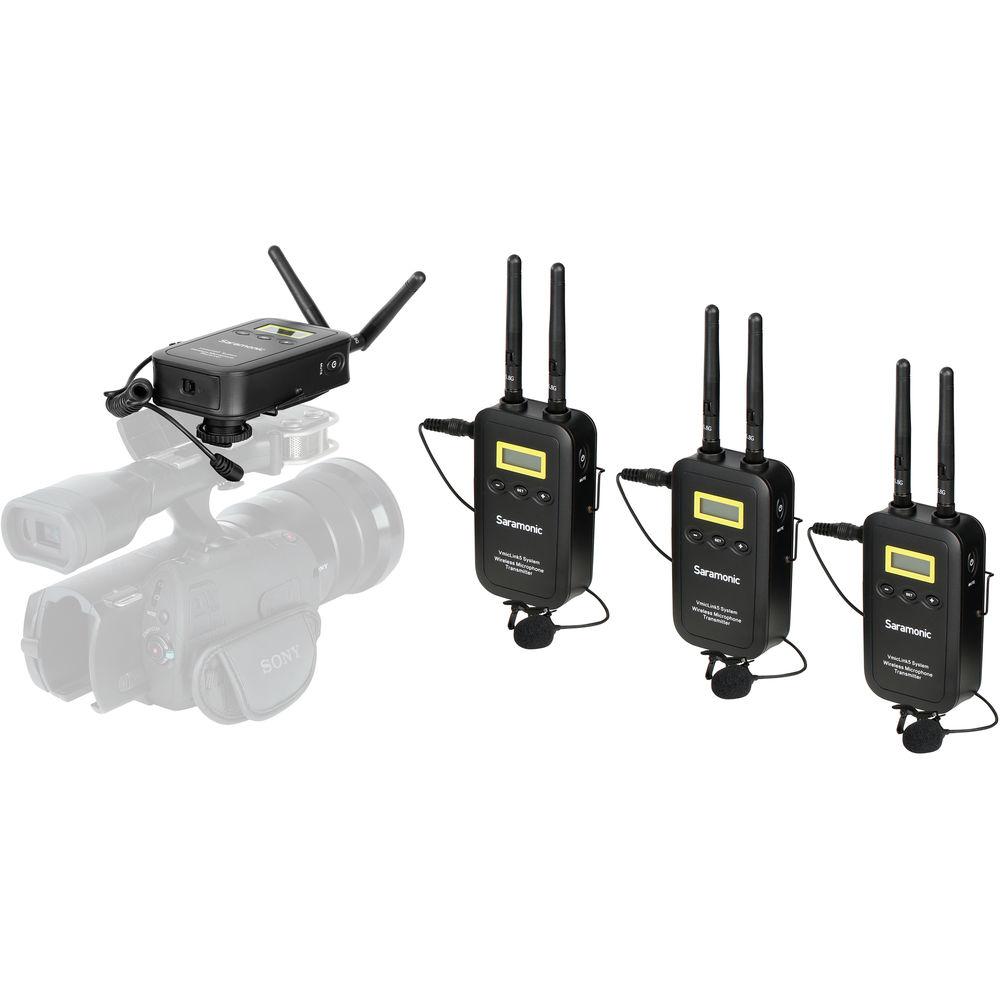

Product description The VmicLink5 RX+TX+TX+TX Camera-Mount Digital Wireless Microphone System with Three Bodypack Transmitters and Lavalier Mics from Saramonic includes one portable VmicLink5-RX receiver with detachable antennas, three VmicLInk5 TX bodypack transmitters, three lavalier microphones, and four lithium-ion rechargeable batteries. The three-channel system can be used to capture audio for DSLR video, field recording, filmmaking, and broadcast TV applications with up to three subjects simultaneously. The VmicLink5-RX is a camera-mountable integrated wireless receiver. Featuring an easy-to-read LCD display and DigRF synchronization between transmitter and receiver, the receiver has a selectable output mode that allows you to choose the output signal in mono or stereo. The VmicLink5 TX transmitter is equipped with a crystal-controlled PLL synthesizer and is built with a mute function. It has lock-type mic and line-input connectors and is designed to work in the 5.725 to 5.875 GHz frequency band. In addition, the VmicLink5 5.8 GHz Three Wireless Lavalier Mic and Receiver System can constantly monitor and hop between frequencies and maintain the strongest possible signal level at a range of up to 98.4'. - The 5.8 GHz frequency provides high-quality audio.
- Record audio up to 30 meters away with no obstacle.
- Automatic channel-switch program to avoid interference from multiple systems in the same environment.
- Built with three discrete channel groups.
- One receiver can work with up to three transmitters simultaneously.
- Line and mic inputs provide a wide range of input options.
- Real-time headphone monitor jack.
- Detachable and flexible antenna can be rotated 360° accordingly for best sound.

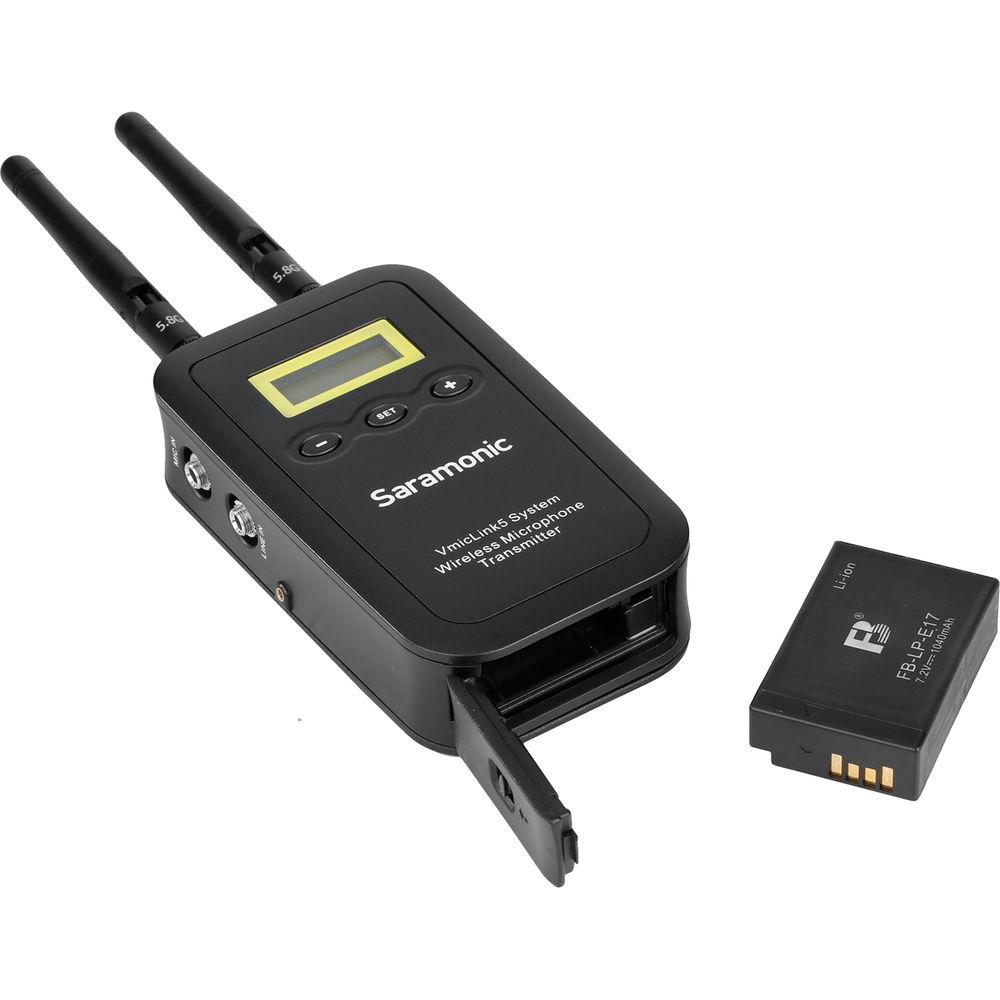

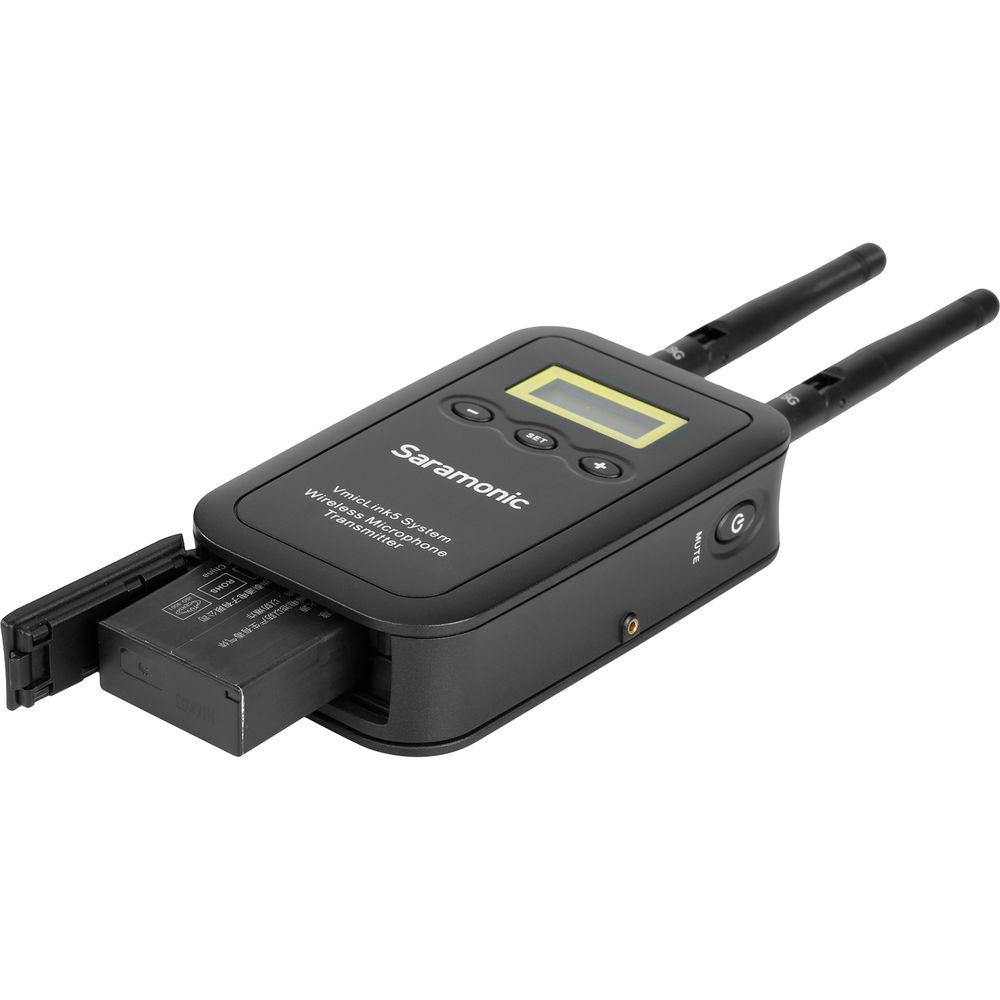

- Rechargeable Li-ion batteries (included).

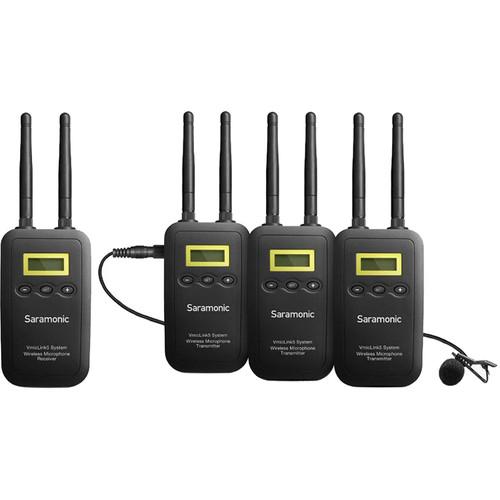

In the Box Saramonic VmicLink5 RX+TX+TX+TX Camera-Mount Digital Wireless Microphone System with Three Bodypack Transmitters and Lavalier Mics (5.8 GHz) VMICLink5-RX Receiver 3 x VmicLink5-TX Bodypack Transmitters 3 x Lock-Type Lavalier Microphones with Clip and Windscreens 8 x Detachable Antennas Dual-Battery Charger USB Charging Cable 4 x Lithium-Ion Batteries Camera Shoe Mount 4 x Belt Clips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic VmicLink5 RX TX TX TX Camera-Mount Digital Wireless Microphone System with Three Bodypack Transmitters and Lavalier Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic VmicLink5 Specs | Channel Combinations | 3 Channels | | Operating Range | 98.4' / 29.9 m | | Power Consumption | Receiver: 180 mA, 6 V | | Receiver Sensitivity | 198 dB | | Frequencies | 5.725 to 5.875 GHz | | Receiver Output | Phone: Maximum 70 mW/32 Ohm, 10 VDC Isolation | | Line Output | Receiver: 4x Mic-In Gain, 50 VDC Isolation | | Total Harmonic Distortion (THD) + N | 92 dB | | Frequency Response | 40 Hz to 18 kHz ±1 dB | | Sample Rate | 16-bit/48 kHz | | Voice Delay | 18 ms | | Battery Type | 7.2 V, 1000 mAh Li-Ion | | Battery Life | 6.5 Hours | | Antenna Gain | 3 dBi | | Dimensions (L x W x H) | Receiver and Transmitter: 4.4 x 2.5 x 1.1" (11.3 x 6.4 x 2.8 cm) | | Weight | Receiver and Transmitter: 6.0 oz (169 g) (battery included) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 16.7 x 10.7 x 3.5" |
