User Manual for Saramonic Wireless 4-Channel VHF Lavalier Omnidirectional Microphone System Click to enlarge the picture
Contents of the user manual for the Saramonic Wireless 4-Channel VHF Lavalier Omnidirectional
- Product category: Wireless Systems Saramonic
- Brand: Saramonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Saramonic Wireless Systems
 |
User manual for the Saramonic Wireless 4-Channel VHF Lavalier Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Saramonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Saramonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Saramonic product will considerably shorten its lifespan!
|

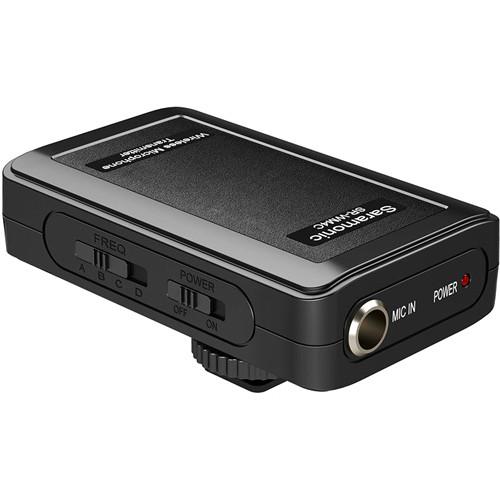

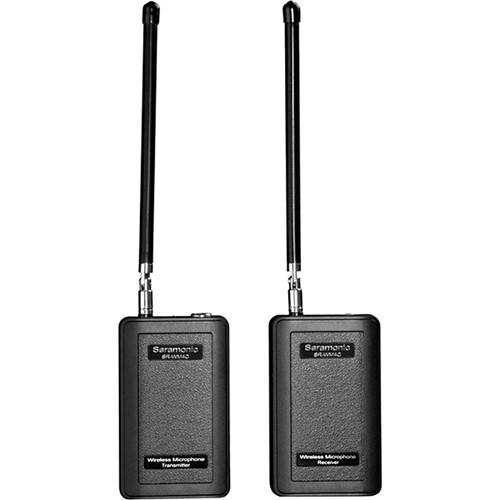

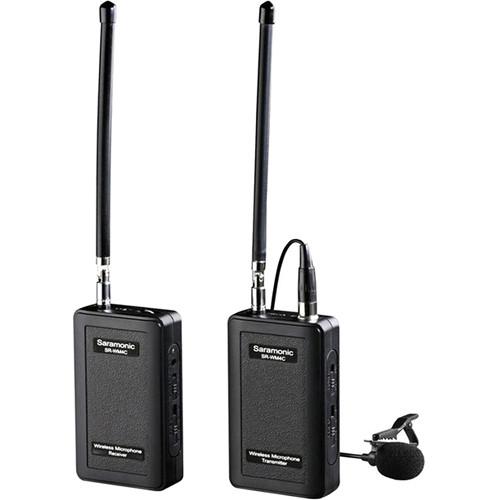

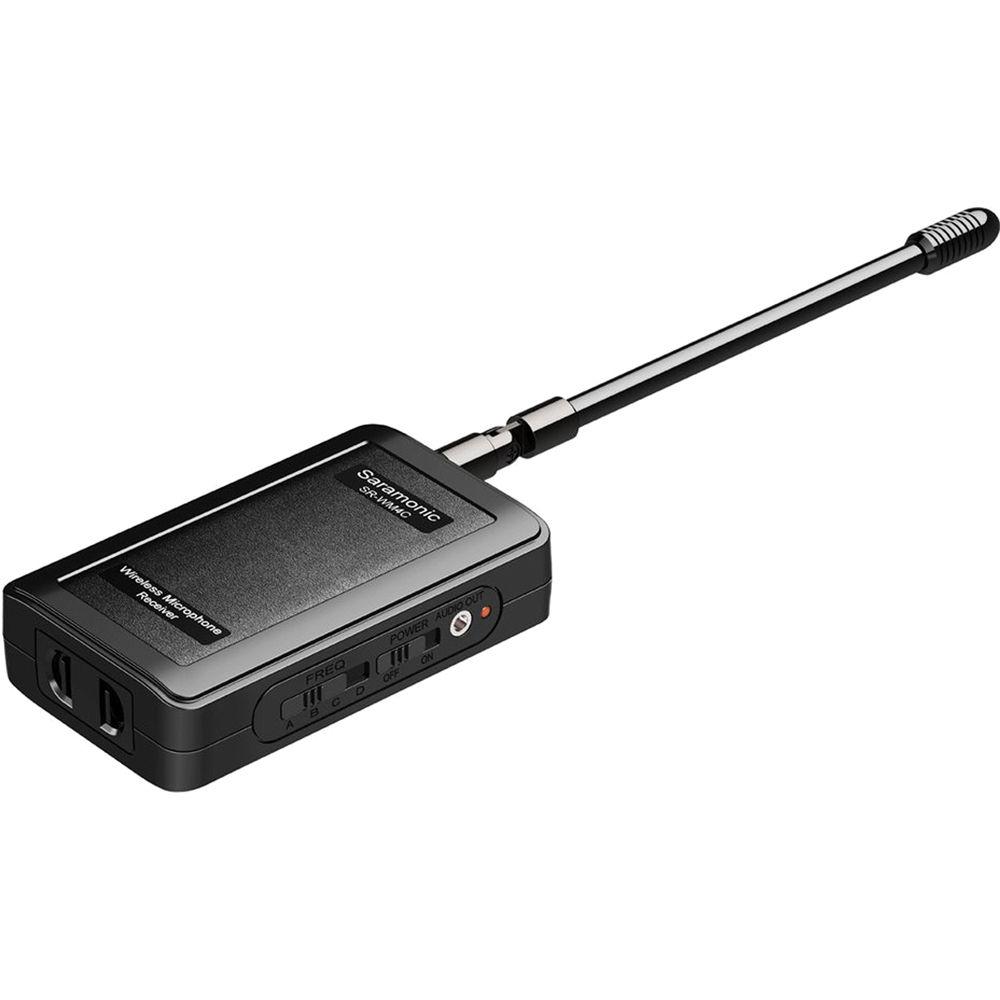

Product description The compact Wireless 4-Channel VHF Lavalier Omnidirectional Microphone System from Saramonic is an audio recording solution which includes a camera-mountable receiver, beltpack transmitter and omnidirectional lavalier microphone. The slim and low-profile omnidirectional microphone transmits its signal via the transmitter to the receiving unit. Both the receiver and transmitter are lightweight and easy to use, offering flexibility without sacrificing high-quality audio. This system is ideal for film making, conducting broadcast interviews and business presentations, or other applications that require portability. -
- Four switchable channels to keep you free from interference
- Detachable and flexible antenna can be rotated 360° accordingly as per sound requirement
- High-band VHF provides pure sound
- Records audio up to 197’ away with no obstacle
- Real-time monitoring
- Volume control wheel
- LED indicator light indicates battery life
- Power provided by two AA size alkaline batteries
- Includes a beltpack transmitter, camera-mountable receiver and an omnidirectional lavalier microphone
In the Box Saramonic Wireless 4-Channel VHF Lavalier Omnidirectional Microphone System Receiver Beltpack Transmitter 1/8" Cable Lavalier Microphone Pop Shield 2 x Belt Clips Cold Shoe Mount Adapter Limited 1-Year Warranty User Manual PDF 365.7kbbzxcqcfaarevfu Table of Contents
|
Upload User Manual
Have you got an user manual for the Saramonic Wireless 4-Channel VHF Lavalier Omnidirectional Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSaramonic SR-WM4C Specs | Operating Frequencies | Channel A: 203.65 MHz
Channel B: 207.75 MHz
Channel C: 211.55 MHz
Channel D: 215.35 MHz
Transmitter/Receiver: 203 to 216 MHz | | Transmitter | Sensitivity: 6 mV input for full deviation | | Receiver | Reception System: FM Superheterodyne
Reception Sensitivity: 2 µV for 30 dB S/N | | Output Connector | Output Connector: 1/8" (3.5 mm) TRS
DC Input: 9 VDC (center-positive) | | Battery | Transmitter: 2 x AA (LR6) alkaline battery (not included)
Receiver: 2 x AA (LR6) alkaline battery (not included) | | Current Consumption | Transmitter: 150 mA
Receiver: 150 mA | | Battery Life | Transmitter: 5 hours
Receiver: 5 hours | | Antenna Length | Receiver/Transmitter: 7.1" (18 cm) | | Dimensions | Receiver/Transmitter: 3.9 x 2.4 x 1.7" (10 x 6.2 x 4.5 cm) | | Weight | Receiver/Transmitter: 2.8 oz (80 g) without battery | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 10.55 x 5.75 x 2.15" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
