User Manual for Savage Edge Lit Pro LED Light Click to enlarge the picture
Contents of the user manual for the Savage Edge Lit Pro LED Light
- Product category: LED Lights Savage
- Brand: Savage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Savage LED Lights
 |
User manual for the Savage Edge Lit Pro LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Savage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Savage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Savage product will considerably shorten its lifespan!
|

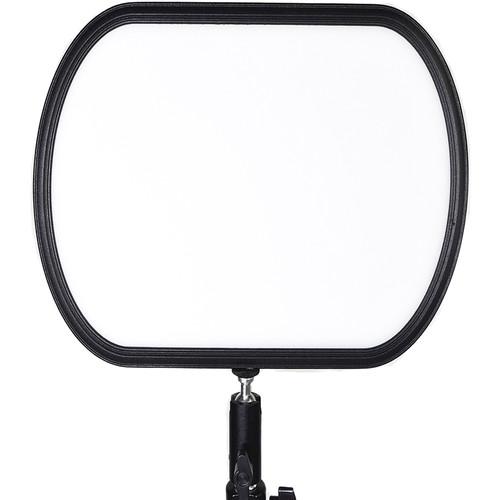

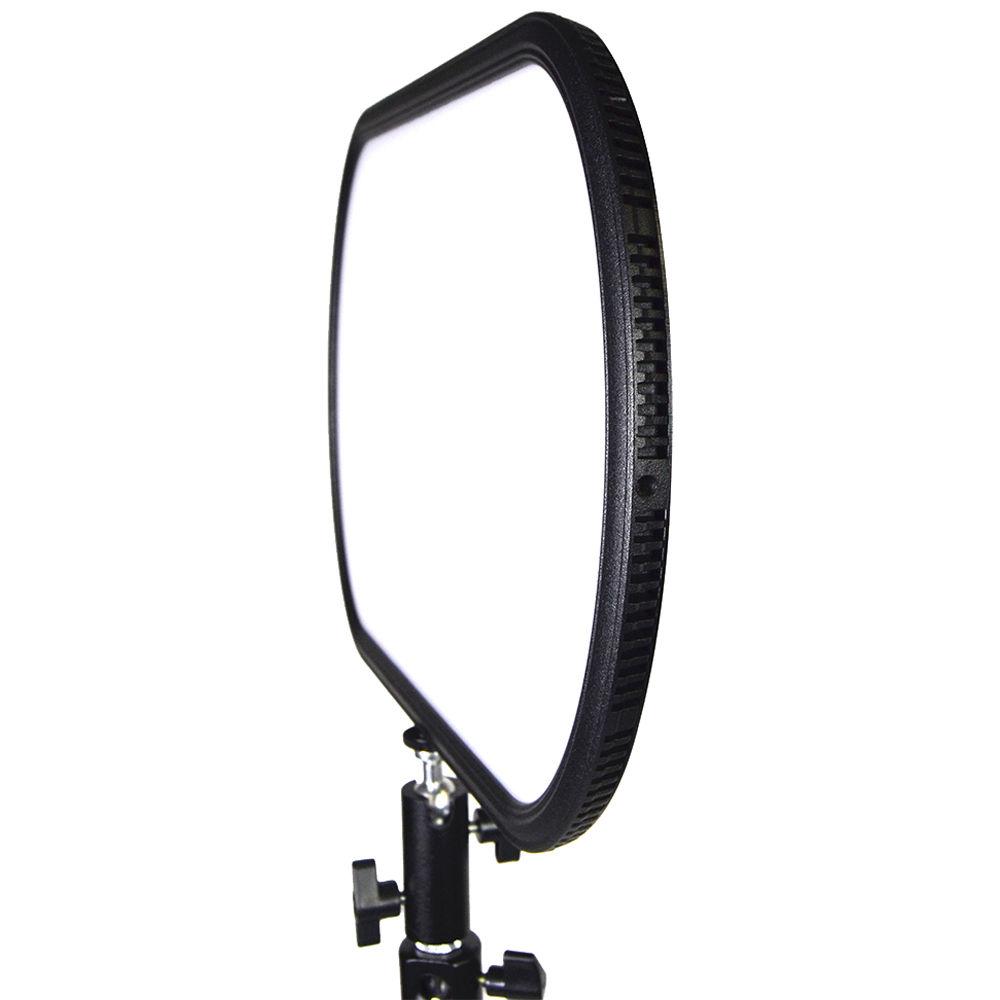

Product description New LED Ring and Softlights from Savage Read More scudyfscrebb Slim and versatile, the Edge Lit Pro LED Light from Savage is a uniquely shaped 12.6 x 8.6" diffused light source producing a soft and controllable quality of light. Using neutral white front diffusion and inward-facing LEDs, the light output is especially smooth and even to reduce harsh shadows and provide a softbox-like quality. The light also has a high CRI of 95 and the color temperature can be adjusted between 3200-5500K to match varying ambient light sources.

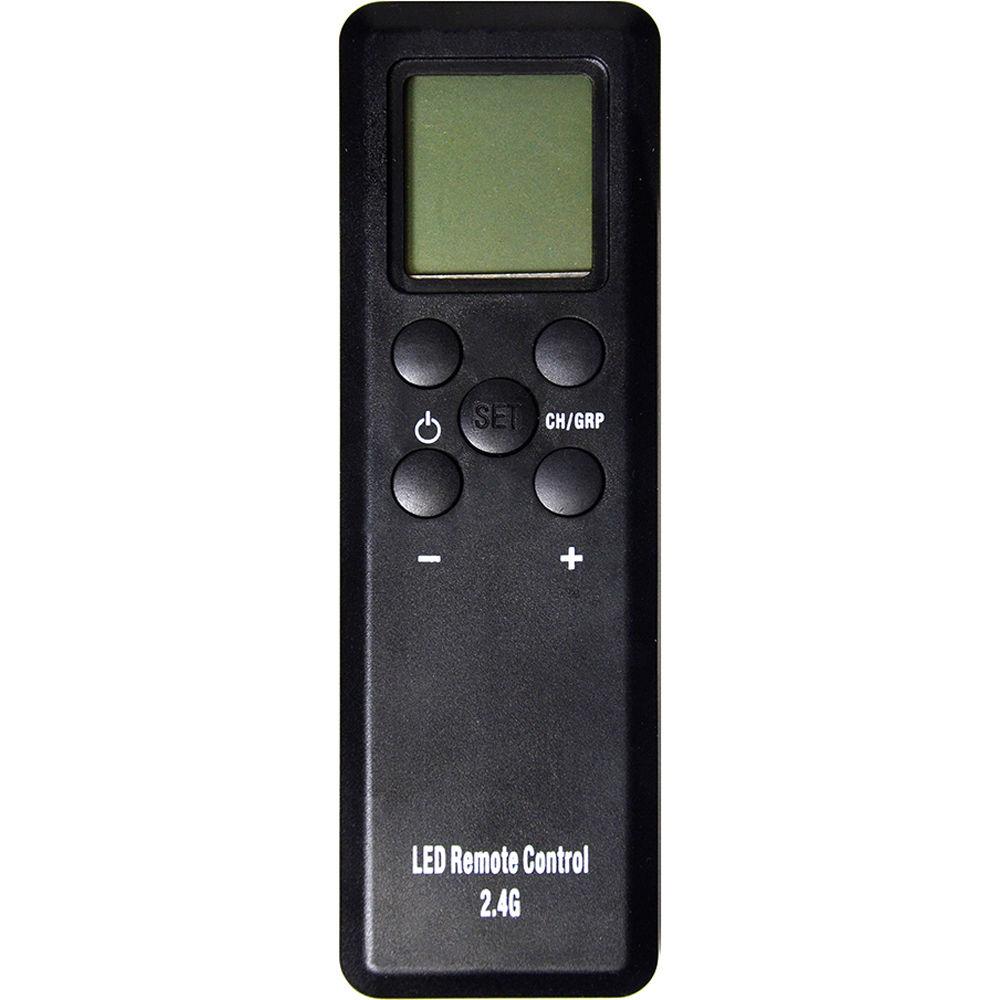

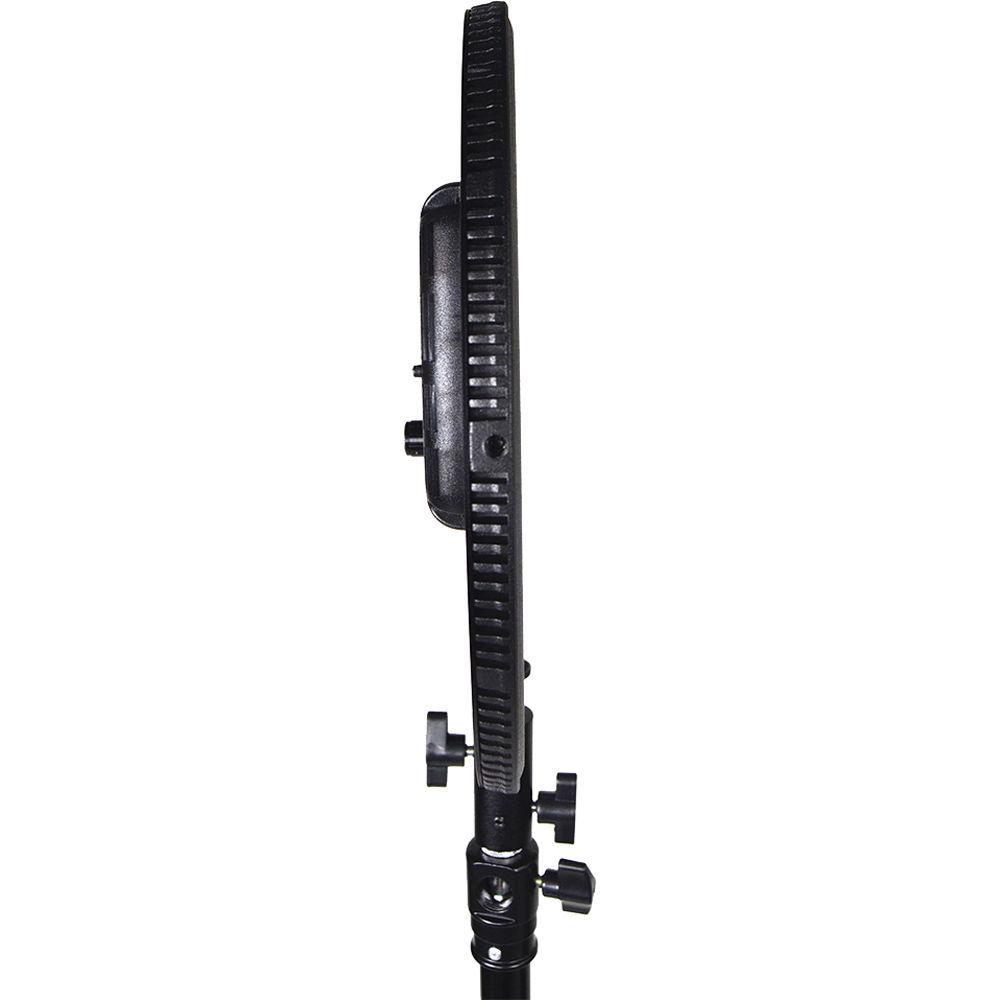

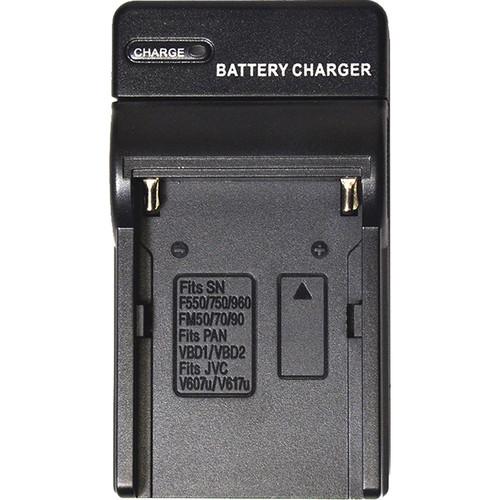

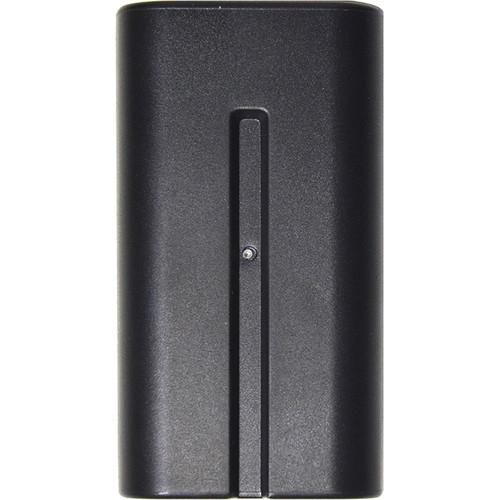

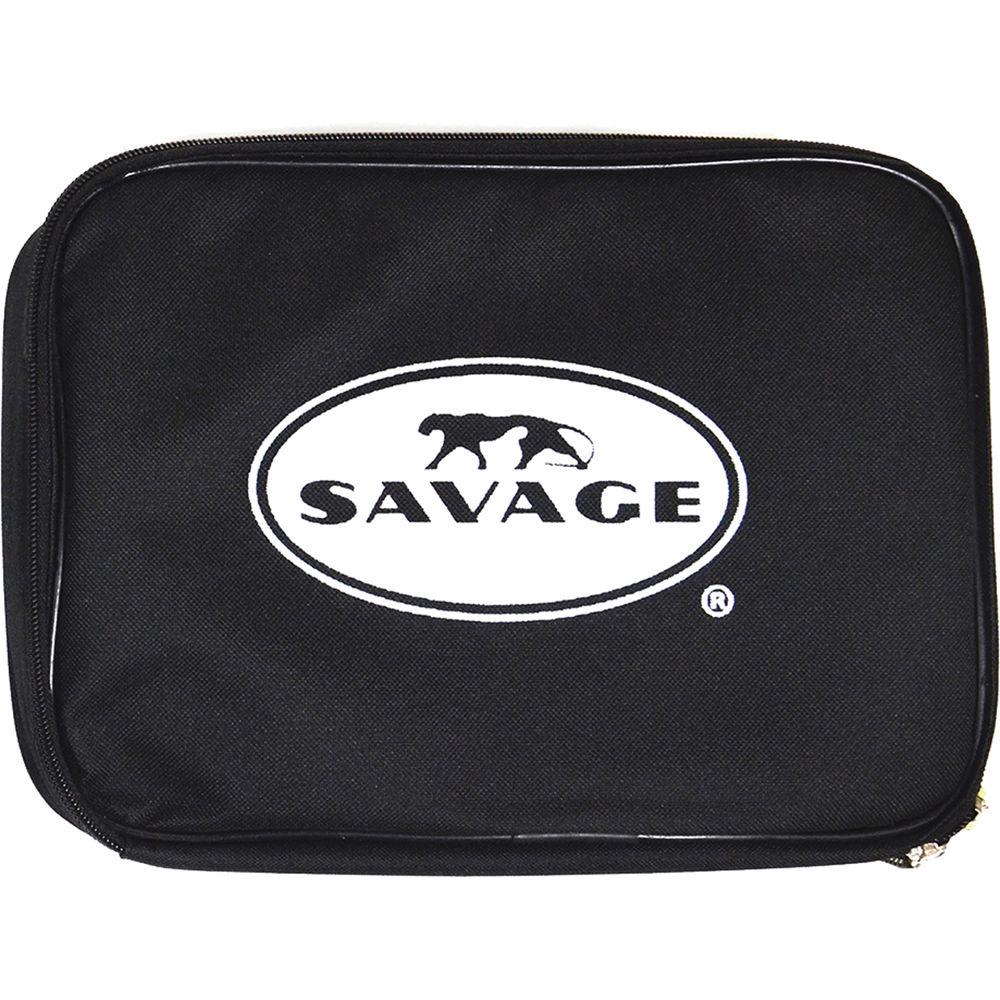

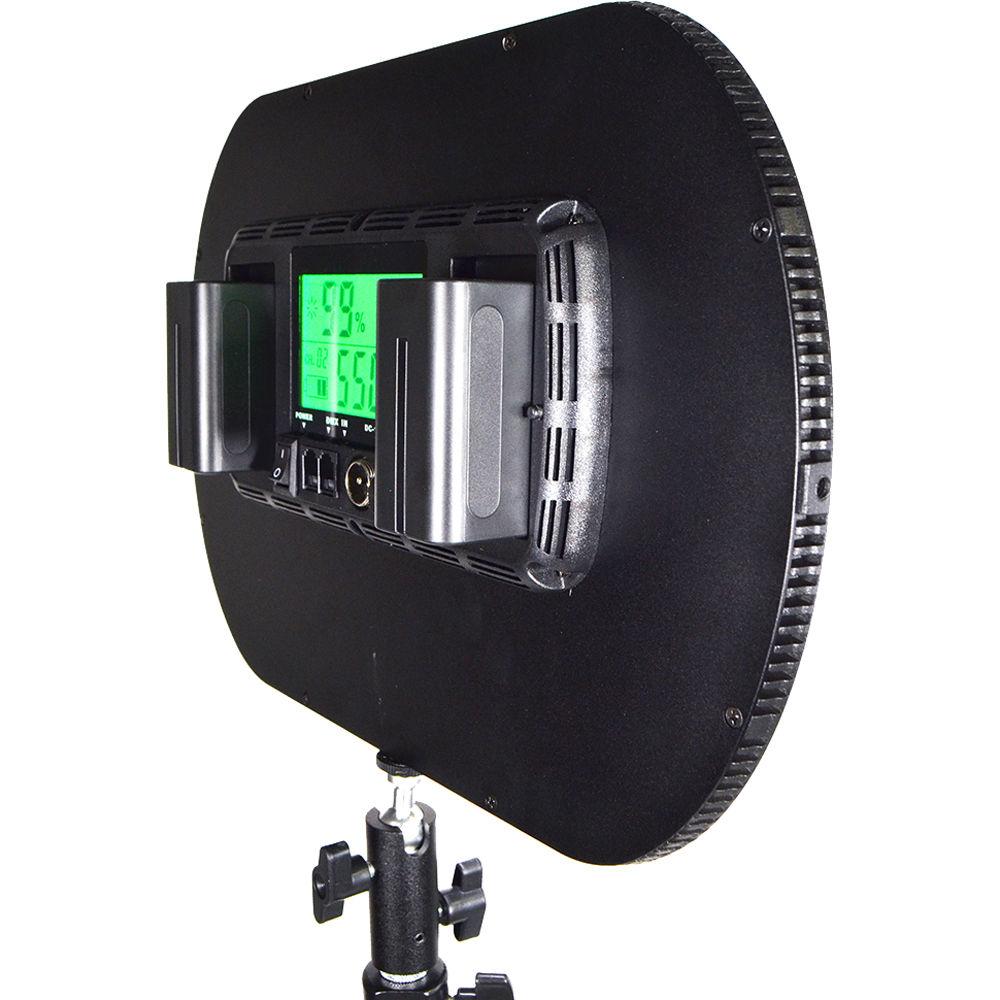

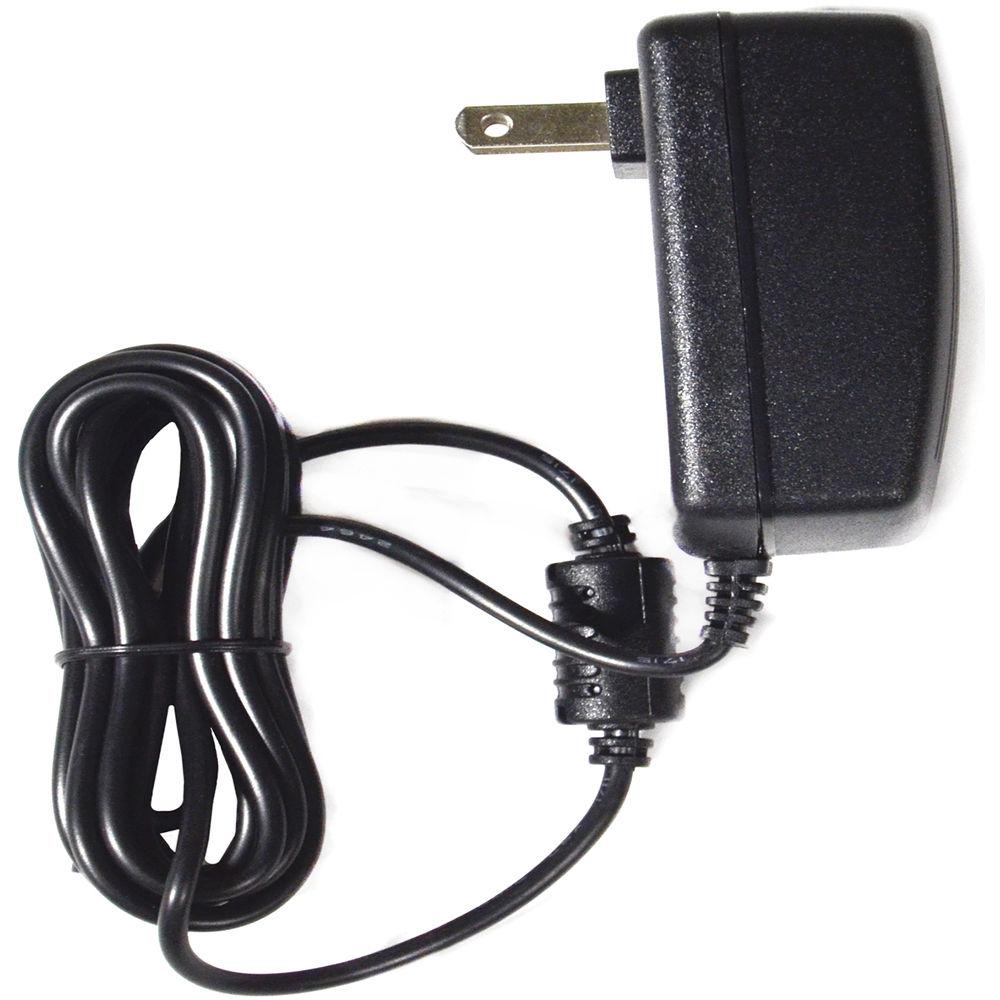

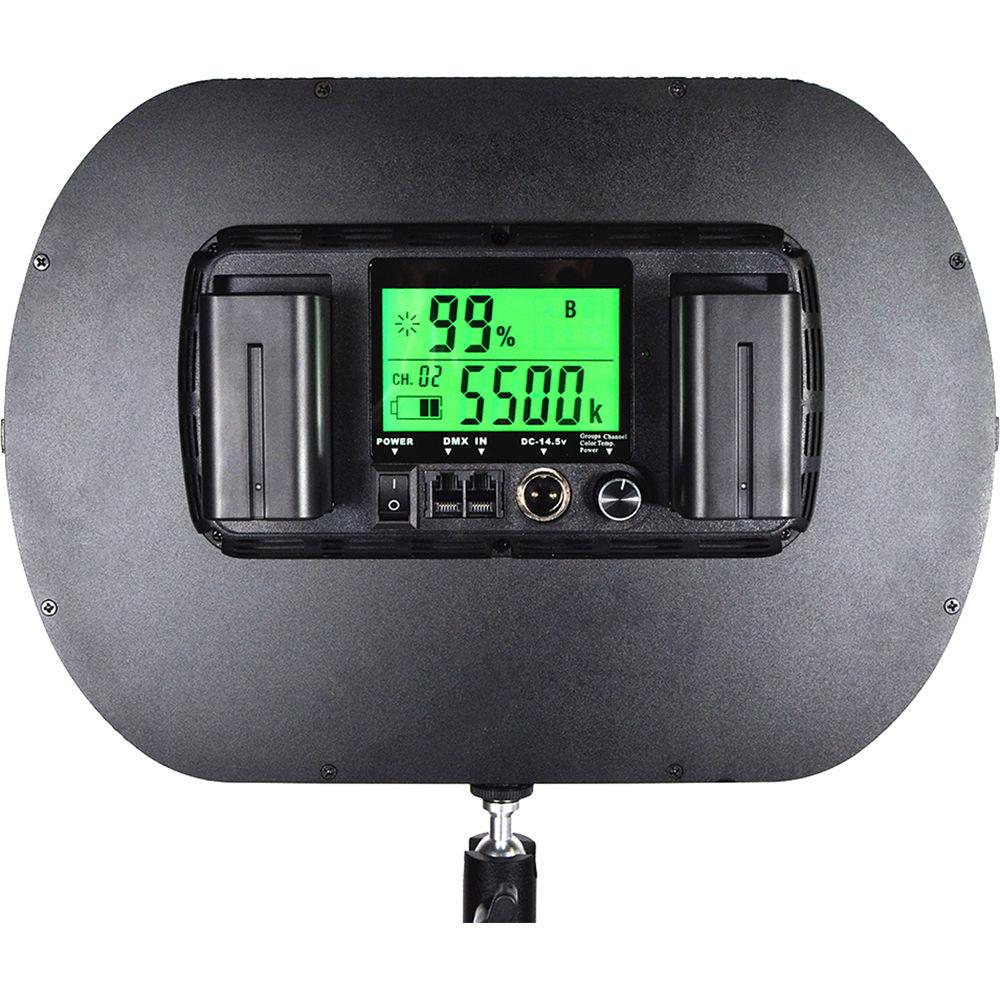

Complementing the lighting versatility, the panel also sports a notably slim design for portability and ease in setting up in tight working conditions. This sleek form factor is further benefitted by AC or DC power support, with the ability to be run using the included 100-240 VAC power adapter or from two included NP-F750 batteries for working on location. With two fully-charged batteries, the run time is approximately 75 minutes. Additionally, the light can be controlled using on-board adjustments and a built-in LCD screen, via the included multi-channel wireless remote, or with an RJ11 DMX connection. UPC: 731409711906 In the Box Savage Edge Lit Pro LED Light Rotating Light Stand Adapter Multi-Channel Remote Control Padded Carry Bag 2 x Sony NP-F750 Batteries with Chargers AC Power Cord Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Savage Edge Lit Pro LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSavage Edge Lit Pro Specs | | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | CRI 95 | | Display | LCD | | Housing Material | Metal | | Lumens | 1677 | | Rectangular Panel Size | 12.6 x 8.6" / 32.00 x 21.84 cm | | Fixture Weight | 5.07 lb / 2.3 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Power Input Connector | Proprietary | | DMX Connector | RJ11 | | | | Fixture Mount | 1/4"-20 Female Thread | | Mount via Included Adapter | 5/8" Receiver | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 18.5 x 14.4 x 4.3" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
