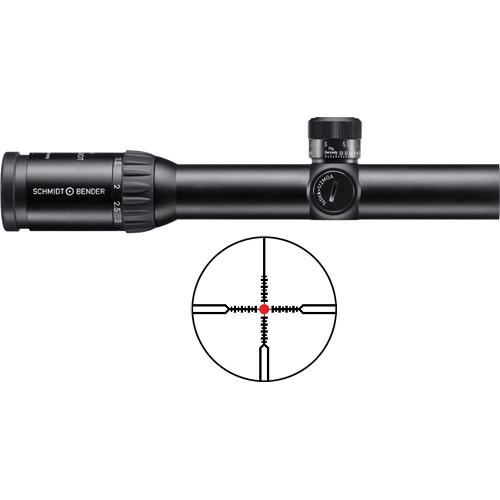

Product description Designed for use by police and military tactical personnel, the Schmidt & Bender 1.1-4x20 PM Short-Dot Riflescope combines the accuracy of a magnified optic with the fast target acquisition and tracking capabilities of a red-dot sight. To help compensate for the smaller objective and boost image brightness, index-matched anti-reflection lens coatings are employed that are custom-engineered to the lens glass for maximum light transmission. A modified duplex ranging reticle is etched on the glass for use at long range, while a red illuminated dot is projected into the center of the crosshairs for close engagements with both-eyes-open use. The dot has eleven intensity levels that allow it to be easily seen in all light, and 'off' positions between each level provides fast access to preferred settings.This version of the PM features turrets that rotate in counter-clockwise direction with 1/4 MOA windage and elevation impact point correction, and ±13 MOA windage and -25 MOA elevation adjustment ranges. Four ballistic drop compensation (BDC) dials, calibrated for popular loads, are included to get users on-target faster. Choose the dial that matches your ammo and install it on the elevation turret. The reticle is parallax-free at 33.', and the side parallax correction turret allows users to maintain reticle focus from 33' / 10m to infinity. The scope's housing features a large 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the PM fogproof performance in all weather, and O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 1.1-4x zoom magnification
- 20mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Full zoom range covered in a single 180° turn
- 96-30' wide field of view at 100yd
- CQB Reticle
-
- Positioned on first (front) focal plane
- Modified duplex ranging reticle
- Thick outer posts on the horizontal and lower vertical axes draw the eye to the thin center hairs
- Center illuminated red aiming dot to use scope as a pseudo red dot sight
- Dot completely disappears when turned off for unobstructed view of target and reticle
- Eleven adjustable aiming point intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Use and Handling
-
- 1/2 MOA per-click impact point correction
- ±13 MOA windage and -25 MOA elevation adjustment range
- Covered windage and tall exposed elevation turrets
- Locking turrets rotate in a counter-clockwise direction
- Ballistic drop compensator (BDC) dials for popular loads: 5.56 62gr and 75gr, 7.62 62gr and 75gr
- Parallax-free at 330' / 100 m
- Rubberized and knurled zoom collar
- Construction Details
-
- 30mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
- Runs on included one CR2032 coin-cell battery
- Manufactured by hand
In the Box Schmidt & Bender 1.1-4x20 PM Short-Dot Riflescope (CQB Illuminated Reticle) 4 x BDC Dials Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.1-4x20 PM Short-Dot Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 649-811-917-12-13TS Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 20 mm | | Field of View | 1.1x: 96' @ 100 yd / 32 m @ 100 m
4x: 30' @ 100 yd / 10 m @ 100 m | | Exit Pupil Diameter | 1.1x: 14 mm
4x: 5 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | CQB with Aiming Dot Reticle | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment |
