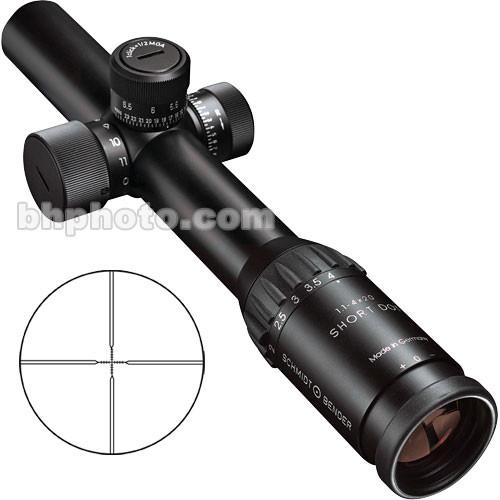

User Manual for Schmidt & Bender 1.1-4x20 Short Dot CQB Riflescope with CQB Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 1.1-4x20 Short Dot
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 1.1-4x20 Short Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Previously, choosing a sighting system for urban combat environments meant having to compromise with a sighting system would be obviously lacking in one or more areas of concern. The Schmidt & Bender 1.1-4x20 Short Dot CQB Riflescope meets and exceeds the requirements of professional marksmen who need to move from CQB to long range engagements quickly, effectively, and of course, successfully. This is a highly specialized urban combat sight with a 30mm main tube, tactical BDC reticle & an extremely wide angle of view. Handling much like a traditional open collimating sight at 1.1x, this scope is quick to acquire with both eyes open, while at 4x the optical clarity and brightness levels are astounding. This version of the Short Dot CQB scope features a variable intensity range finding reticle, and is compatible with night vision devices. With proper co-alignment of this scope with a NVD, your day time optic can become part of a highly specialized night vision sighting system. - +2/-3 Dioptric correction
- 1/2" MOA precision adjustments
- Totally waterproof and fogproof
- Parallax free at 100 yds (91 m)
- 1.1-4x Magnification delivers rapid target acquisition
- 30mm One piece aluminum alloy main tube provides stability
- Night Vision Compatible
- Three illumination settings were designed for use with NVDs and will not interfere with their light amplification system and, the low 1.1x magnification is compatible with night vision optics
- Bullet Drop Compensation
- Four bullet drop compensator rings are provided for the following calibers:
5.56x45 (.223): M855 (62 gr) & Hornady TAP (75 gr)
7.62x51 (.308): M118LR (175 gr) 16" & 20" barrels - Variable Intensity Illuminated Reticle
- Levels 1-3: Varying illumination intensities at very low levels, designed for use with night vision devices.
Levels 4-6: provide slightly higher levels of intensity to be used by the naked eye in low light conditions, allowing target acquisition against a dark target that would obscure non-illuminated reticles.
Stops 7-11: High intensity illumination.
When the illumination switched off, the CQB Short Dot functions as a standard scope with non-illuminated crosshairs. - Illuminated Range Finding CQB Reticle
- This illuminated tactical reticle is extremely fine at low magnifications, while the center section becomes usable for precise range finding at higher magnifications. The outline of four long tapered posts draws your eye to the center of the sight picture where fine cross hairs indicate your point of aim. Along the cross hairs there are many hash marks for accurate range finding. The skeleton post system obscures less than a solid post, offering a cleaner field of view.
Illuminated dot subtension: 4.5" @ 100 yds (15cm @ 100m)
First focal plane placement of the reticle ensures accurate distance ranging across the entire zoom range. In the Box Schmidt & Bender 1.1-4x20 Short Dot CQB Riflescope with CQB Reticle Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.1-4x20 Short Dot CQB Riflescope with CQB Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 946SD Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 20 mm | | Field of View | 1.1x: 96' @ 100 yd / 31.8 m @ 100 m
6x: 30' @ 100 yd / 9.9 m @ 100 m | | Exit Pupil Diameter | 1.1x: 14 mm
4x: 5.5 mm | | Eye Relief | 3.4" / 85 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment |
