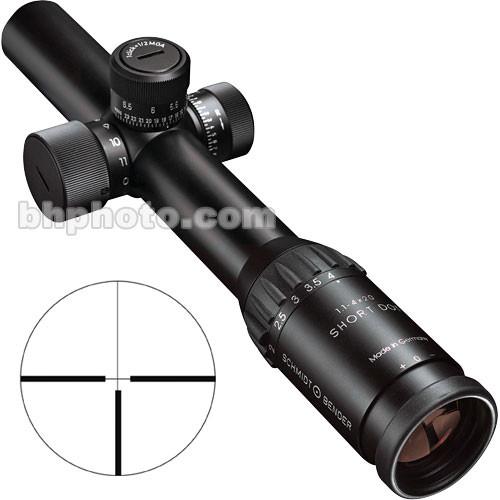

User Manual for Schmidt & Bender 1.1-4x20 Short Dot Police Marksman II Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 1.1-4x20 Short Dot
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 1.1-4x20 Short Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that hunters and tactical marksmen rely on to deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. Previously, choosing a sighting system for urban combat environments meant having to compromise with a sighting system would be obviously lacking in one or more areas of concern. The 1.1-4x20 Short Dot Police Marksman II Riflescope meets and exceeds the requirements of professional marksmen who need to move from CQB to longer range engagements quickly, effectively, and of course, successfully. This is a highly specialized urban combat sight with a 30mm main tube, #7 reticle, and an extremely wide angle of view. Handling much like a red-dot sight at 1.1x, this scope is quick to acquire with both eyes open, while at 4x the optical clarity and brightness levels are astounding. This is the original version of the Short Dot scope. The simple and uncluttered reticle in the first focal plane makes it the preferred choice amongst military, law enforcement, and Spec. Ops personnel. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 1/2" MOA precision adjustments
- Totally water and fog proof
- Parallax free at 100 yds (91 m)
- 30mm One piece aluminum alloy main tube provides stability
- Bullet Drop Compensation
- Four bullet drop compensator rings are provided for the following calibers:
5.56x45 (.223): M855 (62 gr) & Hornady TAP (75 gr)
7.62x51 (.308): M118LR (175 gr) 16" & 20" barrels - #7 Reticle
- The #7 reticle offers the advantages of both a German #4 and a standard 'plex' type reticle. Three long, medium weight, non-tapered posts stand out clearly at 3, 6, and 9 o'clock while a single stadia sits vertically at 12 o'clock. Fine cross hairs intersect in the center, indicating your point of impact. This reticle stands out against heavy cover extremely well, while the fine stadia obscure a minimal amount of area in your sight picture for quick target acquisition.
First focal plane positioning of the reticle ensures consistent shot placement and accurate ranging calculations across the entire zoom range. In the Box Schmidt & Bender 1.1-4x20 Short Dot Police Marksman II Riflescope (Matte) Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.1-4x20 Short Dot Police Marksman II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 946SD7 Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 20 mm | | Field of View | 1.1x: 96' @ 100 yd / 32 m @ 100 m
6x: 30' @ 100 yd / 10 m @ 100 m | | Exit Pupil Diameter | 1.1x: 14 mm
4x: 5.5 mm | | Eye Relief | 3.4" / 85 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment |
