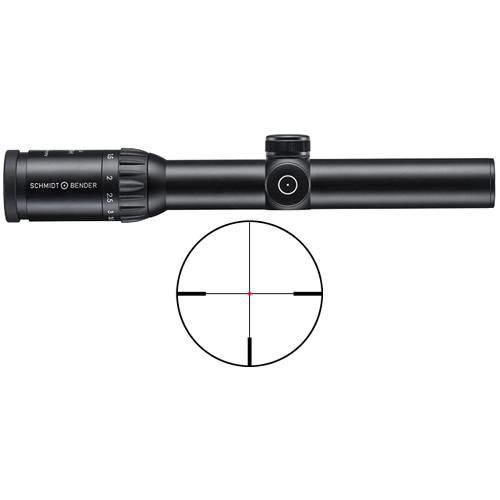

User Manual for Schmidt & Bender 1.1-4x24 Zenith LM Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 1.1-4x24 Zenith LM
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 1.1-4x24 Zenith LM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender designed the 1.1-4x24 Zenith LM Riflescope as the ideal optic to complement a large caliber or double-barrel rifles being used to go after large or dangerous game such as buffalo or wild boar. At the low magnification range enables both-eyes-open use for fast target acquisition and tracking, the 4x power extends the accuracy from close to medium-long range while the FD7 modified duplex crosshair FlashDot reticle, with eleven intensity settings, is easy to see in all light without obstructing your target or interring with your view. To get you precisely on-target is 0.15 mrad/click impact point correction with a windage and elevation adjustment range of ±2.25 mrad to compensate for most terrain or wind conditions.Its housing features a 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. Since the scope was made to live on large caliber rifles, it is recoil resistant to withstand years of shocks. The housing is nitrogen-filled to provide the Zenith fogproof performance in all weather, and O-ring sealed to be waterproof to 300mbar of pressure. - Optical Performance
-
- 1.1-4x zoom magnification
- 24mm objective lens
- Anti-reflection fully multicoated optics
- 108-27.6' field of view at 100 yards
- Reticle
-
- FD7 FlashDot reticle on second (rear) focal plane
- Modified duplex crosshair design with short thick posts on horizontal and lower vertical axes and thin crosshairs in the center aiming with red illuminated dot
- Eleven adjustable FlashDot intensity levels
- FlashDot completely disappears when turned off for unobstructed view of reticle and target
- Runs on one CR2032 battery with 100 hour runtime
- Automatic shut-off after 6 hours of operation
- Use and Handling
-
- 1.5cm/click impact point correction
- ±2.25 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Fast-zoom mechanism goes from min to max in 180° rotation
- 3.5mm long eye relief and 7-14.4mm exit pupil
- Construction Details
-
- 30mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Mount, rail, or rings required
- Nitrogen filled, fogproof and waterproof. Tested to 300mbar
- Runs on one included CR2032 coin-cell battery
- Spare battery pack in the side cover
- Manufactured by hand
In the Box Schmidt & Bender 1.1-4x24 Zenith LM Riflescope (FD7 FlashDot Reticle) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.1-4x24 Zenith LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 776-811-708 Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1.1x: 108' @ 100 yd / 36 m @ 100 m
4x: 27.6' @ 100 yd / 9.2 m @ 100 m | | Exit Pupil Diameter | 1.1x: 14.1 mm
4x: 5.9 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | FD7 FlashDot Duplex Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
