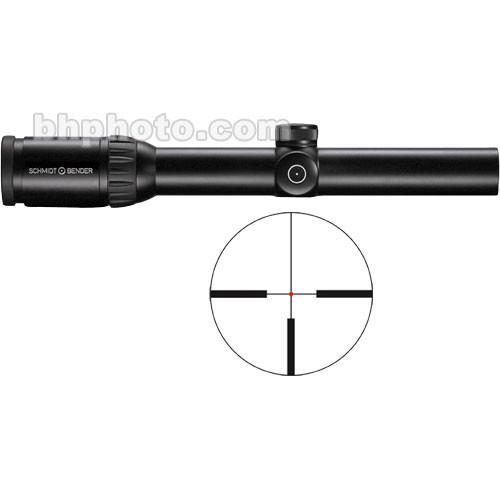

User Manual for Schmidt & Bender 1.1-4x24 Zenith Waterproof & Fogproof Riflescope with Illuminated #7 FlashDot Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 1.1-4x24 Zenith Waterproof
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 1.1-4x24 Zenith Waterproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that hunters and tactical marksmen rely on to deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. Being able to sight with both eyes open offers the shooter the ability to see more of the field, check the wind, and visualize the often necessary follow-up shot. The 1.1-4x24 Zenith Riflescope offers an extremely wide field of view, a very low profile, and enough magnification for moderate distance shooting. This scope is an excellent choice for your favorite brush rifle; it sits low to the receiver and your target acquisition is extremely fast. Even though this objective sports a conservative 24mm diameter, the sight picture remains bright and crisp, even later into the day. Schmidt & Bender's legendary optical excellence seemingly contradicts the laws of physics with optical designs that produce extremely high levels of light transmission when ambient light is at a premium. Scientifically formulated coatings enhance the imaging qualities of their scopes even further by reducing or eliminating reflections, flare and glare. This scope is rugged, dependable and repeatable with a refined and elegant contour that will please even the most discerning of shooters. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - +2/-3 Dioptric correction
- .540" MOA precision adjustments
- Totally waterproof and fogproof
- 1.1-4x Magnification delivers rapid target acquisition
- 30mm One piece aluminum alloy main tube provides stability
- Parallax adjustment knob conveniently located by precision adjustment turrets
- Illuminated #7 Flashdot Reticle
- The #7 FlashDot reticle gives you a variable intensity red dot in the center of your line of sight. At 3, 6 & 9 o'clock there are long, medium weight, non-tapered posts. Fine cross hairs establish the exact center, and a single stadia at 12 o'clock completes the sight picture. When the illuminated dot is turned off, the cross hairs remain and the reticle functions normally. When the red dot is turned on, sight acquisition is extremely fast, regardless of the lighting conditions.
First focal plane positioning of the reticle ensures that the reticle size remains constant throughout the zoom range. This offers a clear and unobstructed view at all levels of magnification. In the Box Schmidt & Bender 1.1-4x24 Zenith Waterproof & Fogproof Riflescope (18.2-5.7 Degree Angle of View) with Illuminated #7 FlashDot Reticle (Matte) Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.1-4x24 Zenith Waterproof & Fogproof Riflescope with Illuminated #7 FlashDot Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 946/7FDZ Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1.1x: 96' @ 100 yd / 31.8 m @ 100 m
6x: 30' @ 100 yd / 9.9 m @ 100 m | | Exit Pupil Diameter | 1.1x: 21.8 mm
4x: 6 mm | | Eye Relief | 3.7" / 94 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 0.5 MOA per Click | | Windage Adjustment | 47 MOA | | Elevation Adjustment | 47 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.2" / 28.4 cm | | Weight | 1 lb / 530 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
