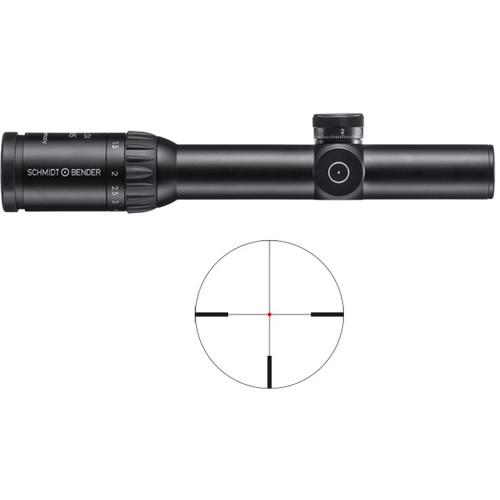

Product description With its wide field of view, the 1.1-5x24 Stratos Riflescope from Schmidt & Bender affords the user quick target acquisition, making it ideal for a driven hunt. It features an FD7 FlashDot reticle and programmable brightness for a customized view.This lightweight, elegant scope offers a field of view of 113' at 100 yards at minimum magnification and 23' at the same distance with the zoom at 5x. The exit pupil ranges from 12.6 to 4.8mm for a bright image. The FlashDot reticle makes targeting easy, and you can choose brightness settings using Schmidt & Bender's Choose Your Light feature – connect the scope to your computer and dial in the settings most likely to be useful to you in the field.To get you precisely on target, the scope's clockwise-adjusting capped turrets have 0.1 MRAD/click impact point correction, with a windage and elevation adjustment range of ±1.0 MRAD to compensate for conditions. The Posicon turrets are color coded so you'll know the position of the adjustment of the reticle within the scope, and remaining adjustment capacity, at a glance.The Stratos' housing features a 30mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant matte-black anodized finish. Since the scope was made to complement most rifles, including large-caliber models, it is recoil resistant to withstand years of shocks. The housing is nitrogen-filled to provide fogproof performance in all weather, and O-ring sealed to be waterproof and submersible to as much as 10'. - Optical Performance
-
- 1.1-5x zoom magnification
- 24mm objective lens
- Index-matched anti-reflection fully multi-coated optics
- 113-23' field of view at 100 yd
- FD7 FlashDot Reticle
-
- Positioned on second (rear) focal plane
- Red illuminated aiming dot
- Center illuminated aiming FlashDot completely disappears when turned off for unobstructed view
- Choose Your Light programmable illumination
- Automatically turns off after up to 6 hours of operation
- Use and Handling
-
- 0.1 MRAD/click impact point correction
- ±1.0 MRAD windage and elevation adjustment
- Covered windage and elevation turrets
- Capped Posicon turrets show reticle position at a glance
- Rubberized and knurled zoom collar
- Construction Details
-
- 30mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled, fog-proof and waterproof to 9.8'/3m
- Runs on included CR2032 coin-cell battery
In the Box Schmidt & Bender 1.1-5x24 Stratos Riflescope (FD7 Reticle) CR2032 Battery Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.1-5x24 Stratos Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 759-811-708 Specs | | | Magnification | 1.1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1.1x: 113' @ 100 yd / 37.6 m @ 100 m
5x: 23' @ 100 yd / 7.6 m @ 100 m | | Exit Pupil Diameter | 1.1x: 12.6 mm
5x: 4.8 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | FD7 FlashDot Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
