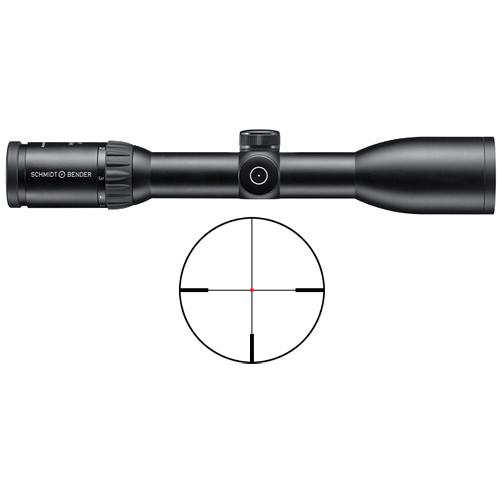

Product description Designed as a utilitarian all-around optic, Schmidt & Bender's 1.5-6x42 Zenith LM Riflescope features a versatile zoom range for medium to long-range use, a large objective that improves low-light performance, and index-matched anti-reflection fully multicoated optics that maximizes light transmission throughout the entire optical path. When set at low power, the scope can be used with both eyes open to quickly acquire and track fast game, while the higher power extends the accuracy for larger game at distances. The FD7 modified crosshair reticle is positioned on the front focal plane and the FlashDot system gives users a sharp and easy-to-see center aiming point that, with its eleven intensity levels, is easy to see in all light but won't obstruct targets or interfere with your vision. When the FlashDot is off, it completely disappears from view to provide an even clearer field of view.Its housing features a 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Zenith fogproof performance in all weather, and O-ring sealed to be waterproof to 300mbar of pressure. This version of the Zenith is offered here without mount, rings or rails. - Optical Performance
-
- 1.5-6x zoom magnification
- 42mm objective lens
- Index-matched anti-reflection fully multicoated optics
- 65-22' wide field of view at 100yd
- Reticle
-
- Positioned on first (front) focal plane
- FD7 modified duplex FlashDot reticle
- Center illuminated aiming FlashDot completely disappears when turned off for unobstructed view
- Eleven adjustable FlashDot intensity levels
- Automatically turns off after 6 hours of operation
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Fast-zoom mechanism goes from min to max in 180° rotation
- Construction Details
-
- 30mm one-piece aluminum maint-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 300mbar
- Runs on included one CR2032 coin-cell battery
- Spare battery pack included
- Manufactured by hand
- Scope only: Mount, rings and rails are required
In the Box Schmidt & Bender 1.5-6x42 Zenith LM Riflescope (FD7 FlashDot Reticle) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.5-6x42 Zenith LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 761-811-707 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 65.1' @ 100 yd / 21.7 m @ 100 m
6x: 22.1' @ 100 yd / 6.7 m @ 100 m | | Exit Pupil Diameter | 1.5x: 14.4 mm
6x: 7 mm | | Eye Relief | 3.6" / 90 mm | | | | Reticle Type | FD7 FlashDot Duplex Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
