Schmidt & Bender 1.5-8x26 PM II

Search your instruction manual in PDF to download

User Manual for Schmidt & Bender 1.5-8x26 PM II ShortDot Riflescope

Click to enlarge the picture
Schmidt & Bender 1.5-8x26 PM II ShortDot Riflescope Contents of the user manual for the Schmidt & Bender 1.5-8x26 PM II
  • Product category: Riflescopes Schmidt & Bender
  • Brand: Schmidt & Bender
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Schmidt & Bender Riflescopes

User manual for the Schmidt & Bender 1.5-8x26 PM II contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Schmidt & Bender product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!



Product description

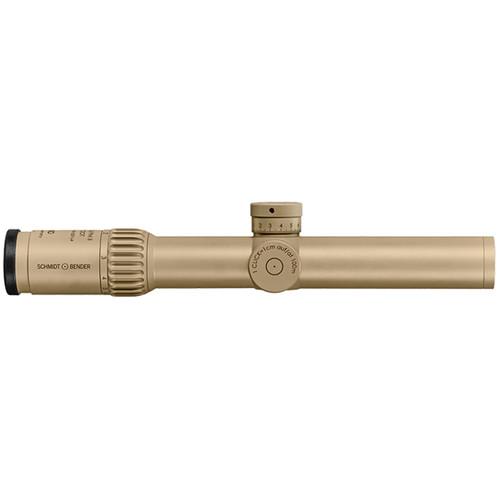

The basic version of the military models in this series, the 1.5-8x26 PM II ShortDot Riflescope from Schmidt & Bender is a sturdy scope for short-range and mid-range use. Its 34mm maintube allows for ample elevation and windage adjustment, and its P3 illuminated reticle features a bright, clear FlashDot aiming dot at its center.This version of the PM II ShortDot features single-turn turrets that rotate in counter-clockwise direction, with 13 MRAD elevation and ±6 MRAD windage impact point correction adjustment ranges at 0.1 MRAD per click. Parallax is fixed at 109 yards/100 meters. The generous 72-14' field of view affords quick target acquisition.The scope's housing features a one-piece maintube made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant black anodized finish. The housing is nitrogen-filled to provide fogproof performance in all weather, and O-ring sealed to be waterproof to 9.8 feet.
    Optical Performance
    • 1.5 - 8x zoom magnification
    • 26mm objective lens
    • Index-matched anti-reflection fully multi-coated optics
    • 72 - 14' field of view at 100 yards
    P3 Reticle
    • Positioned on first (front) focal plane
    • Center FlashDot red aiming dot
    • Dot completely disappears when turned off for unobstructed view of target and reticle
    • Eleven adjustable aiming point intensity levels
    • 'Off' positions between each intensity level for faster activation to preferred setting
    • Automatically turns off after 6 hours of operation
    Use and Handling
    • 0.1 MRAD per-click impact point correction
    • 13 MRAD elevation adjustment range
    • ±6 MRAD windage adjustment range
    • Single-turn rotate in a counter-clockwise direction
    • Parallax-free at 330' / 100 m
    • Rubberized and knurled zoom collar
    Construction Details
    • 34mm one-piece aluminum maintube
    • Corrosion and scratch-resistant black anodized finish
    • Nitrogen-filled, fogproof and waterproof to 9.8'/3m
    • Runs on one included CR2032 coin-cell battery
In the Box Schmidt & Bender 1.5-8x26 PM II ShortDot Riflescope (P3 Reticle, Black)
  • Cleaning Kit
  • CR2032 Battery
  • 2mm Allen Key
  • Limited 2-Year Warranty
