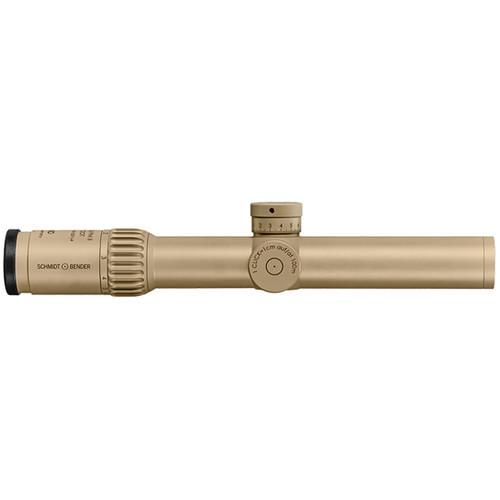

Product description The basic version of the military models in this series, the 1.5-8x26 PM II ShortDot Riflescope from Schmidt & Bender is a sturdy scope for short-range and mid-range use. Its 34mm maintube allows for ample elevation and windage adjustment, and its P3 illuminated reticle features a bright, clear FlashDot aiming dot at its center.This version of the PM II ShortDot features single-turn turrets that rotate in counter-clockwise direction, with 13 MRAD elevation and ±6 MRAD windage impact point correction adjustment ranges at 0.1 MRAD per click. Parallax is fixed at 109 yards/100 meters. The generous 72-14' field of view affords quick target acquisition.The scope's housing features a one-piece maintube made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant RAL 8000 tan anodized finish. The housing is nitrogen-filled to provide fogproof performance in all weather, and O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 1.5 - 8x zoom magnification
- 26mm objective lens
- Index-matched anti-reflection fully multi-coated optics
- 72 - 14' field of view at 100 yards
- P3 Reticle
-
- Positioned on first (front) focal plane
- Center FlashDot red aiming dot
- Dot completely disappears when turned off for unobstructed view of target and reticle
- Eleven adjustable aiming point intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Use and Handling
-
- 0.1 MRAD per-click impact point correction
- 13 MRAD elevation adjustment range
- ±6 MRAD windage adjustment range
- Single-turn rotate in a counter-clockwise direction
- Parallax-free at 330' / 100 m
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum maintube
- Corrosion and scratch-resistant RAL 8000 tan anodized finish
- Nitrogen-filled, fogproof and waterproof to 9.8'/3m
- Runs on one included CR2032 coin-cell battery
In the Box Schmidt & Bender 1.5-8x26 PM II ShortDot Riflescope (P3 Reticle, RAL 8000 Tan) Cleaning Kit CR2032 Battery 2mm Allen Key Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1.5-8x26 PM II ShortDot Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 639-945-887-G2-E4 Specs | | | Magnification | 1.5 to 8x | | Objective Lens Diameter | 26 mm | | Field of View | 1.5x: 71.6' @ 100 yd / 23.9 m @ 100 m
8x: 13.8' @ 100 yd / 4.6 m @ 100 m | | Exit Pupil Diameter | 1.5x: 12 mm
8x: 3.5 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | P3 Aiming Dot Reticle | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
