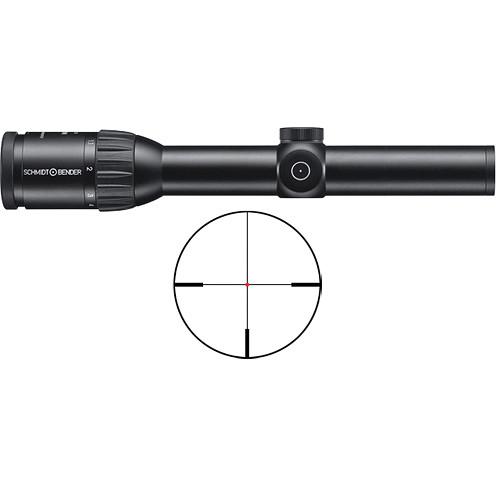

Product description Purpose-built as a versatile and utilitarian close to medium-long range optic, the Schmidt & Bender 1-8x24 Exos LM Riflescope has the FlashDot illuminated center aiming point and FD7 reticle located on the rear (second) focal plane to maintain a constant reticle size regardless of the zoom range selected. The low magnification enables both-eyes-open use for fast target acquisition and tracking, while the high 8x power extends the scope's reach and accuracy from close to medium-long range. The center FlashDot point has eleven intensity levels to make easily visible in all light, and completely disappears when it is turned off for an unobstructed view of the reticle and target. To get you precisely on-target is 0.1 mrad/click impact point correction with a windage and elevation adjustment range of ±1.0 mrad to compensate for most terrain or wind conditions.Its housing features a 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. Since the scope was made to complement most rifles, including large caliber, it is recoil resistant to withstand years of shocks. The housing is nitrogen-filled to provide the Exosfogproof performance in all weather, and O-ring sealed to be waterproof and submersible to as much as 10'. - Optical Performance
-
- 1-8x zoom magnification
- 24mm objective lens
- Index-matched anti-reflection fully multicoated optics
- 106-15' wide field of view at 100yd
- FD7 FlashDot Reticle
-
- Positioned on second (rear) focal plane
- Modified duplex crosshair design with short thick posts on horizontal and lower vertical axes and thin crosshairs in the center aiming with red illuminated dot
- Center illuminated aiming FlashDot completely disappears when turned off for unobstructed view
- Eleven adjustable FlashDot intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Construction Details
-
- 30mm one-piece aluminum maint-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof to 9.8'/3m
- Runs on included one CR2032 coin-cell battery
- Manufactured by hand
- Mount, rail, or rings required
In the Box Schmidt & Bender 1-8x24 Exos LM Riflescope (FD7 FlashDot Reticle) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 1-8x24 Exos LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 780-811-708 Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 105.9' @ 100 yd / 35.3 m @ 100 m
6x: 14.7' @ 100 yd / 4.9 m @ 100 m | | Exit Pupil Diameter | 1x: 13.9 mm
8x: 3.9 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | FD7 FlashDot Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
